Negative: Service and Repair

Battery Negative Cable Replacement (4.8L, 5.3L and 6.0L)

Removal Procedure

1. On all models, disconnect the battery negative cable from the battery.




2. Disconnect the battery negative cable lead from the inner fender panel.

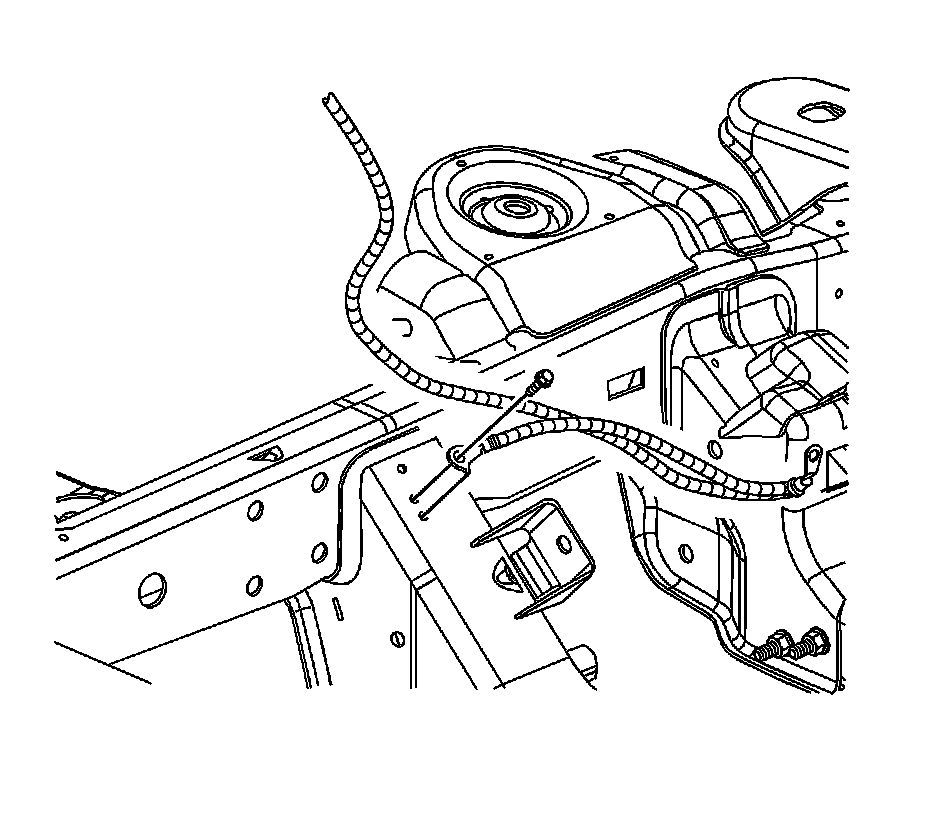

3. On models with 5.3L engine, disconnect the battery negative cable lead from the frame.

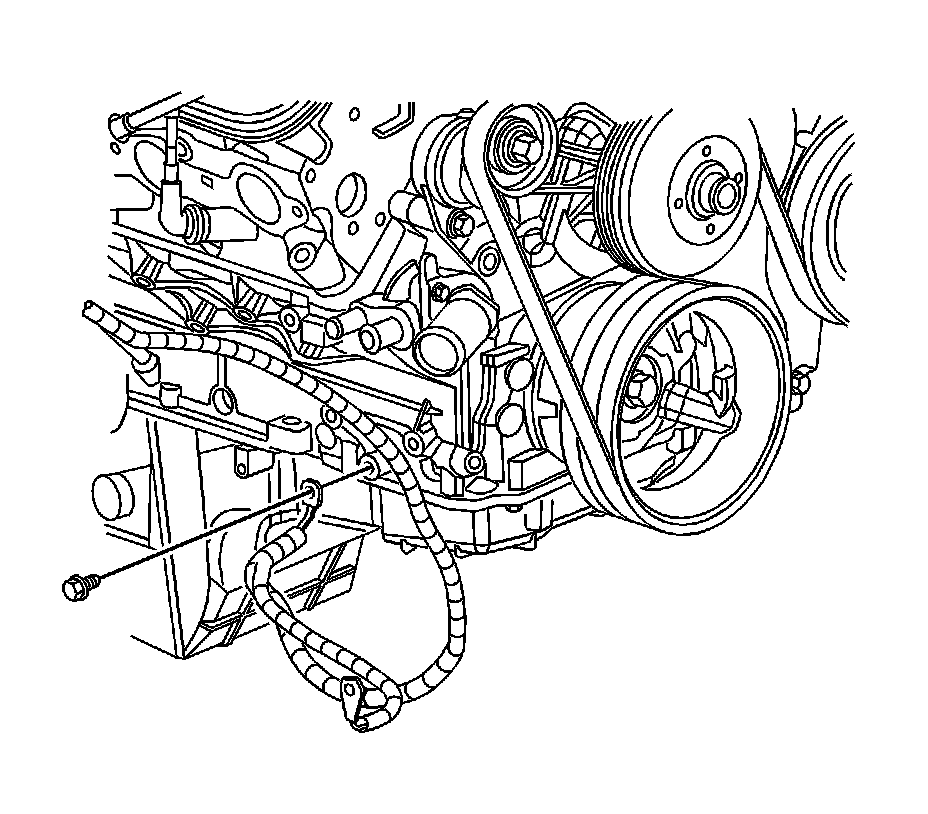

4. On all models, disconnect the battery negative cable lead from the engine block.

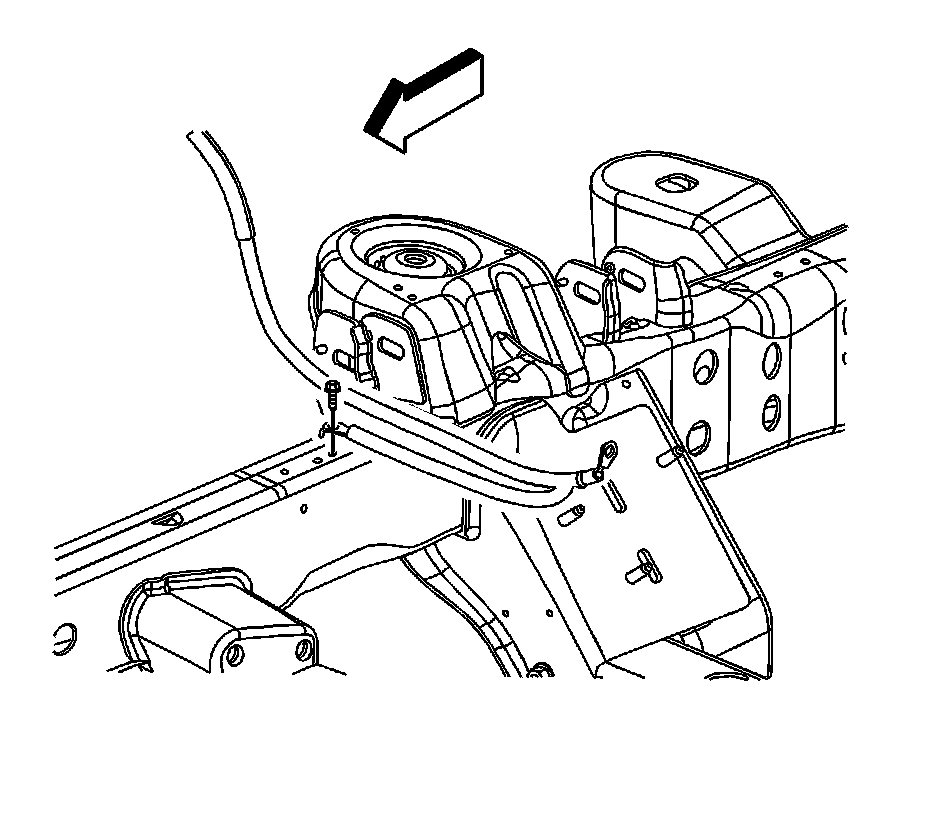

5. On models with 4.8L and 6.0L engine, disconnect the battery negative cable lead from the frame.




6. On all models, remove the battery negative cable from the vehicle.

Installation Procedure




1. On all models, install the battery negative cable to the vehicle.




2. On models with 4.8L and 6.0L engine, connect the battery negative cable lead to the frame.






Notice: Refer to Fastener Notice.

3. On all models, connect the battery negative cable lead to the engine block.

Tighten the bolt that retains the battery negative cable lead to the engine block to 25 N.m (18 lb ft).




4. On models with 5.3L engine, connect the battery negative cable lead to the frame.




5. On all models, connect the battery negative cable lead to the inner fender panel.

Tighten the nut that retains the battery negative cable to the inner fender well to 10 N.m (89 lb in).

6. Connect the battery negative cable to the battery.

Tighten the battery negative terminal bolt to 17 N.m (13 lb ft).
