Radiator Support Bracket Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

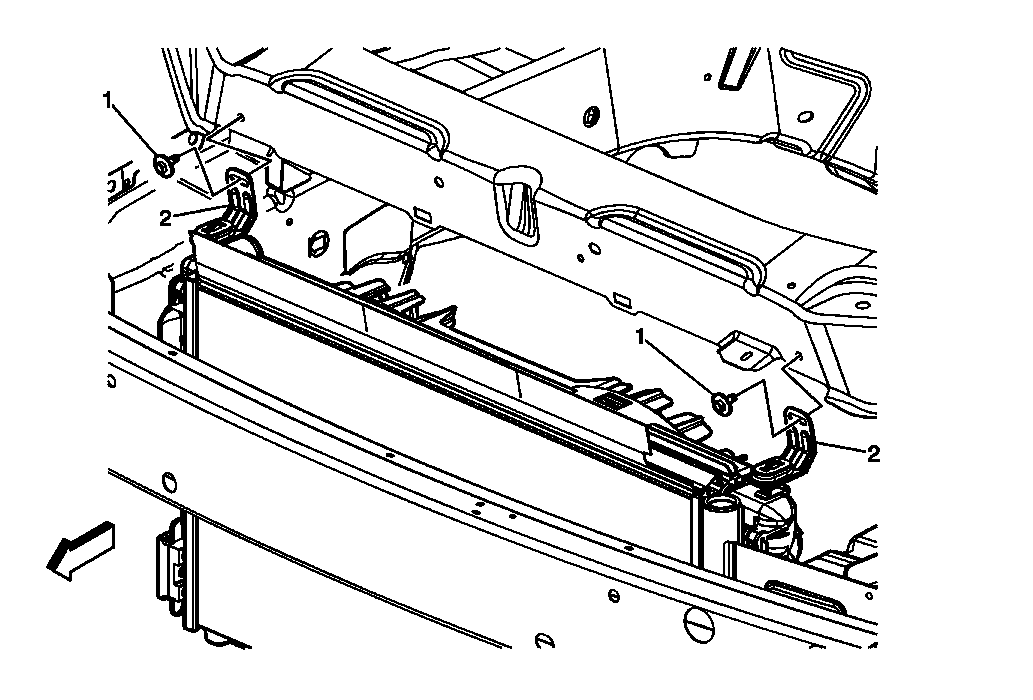

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement . |
|
| 1 | Radiator Upper Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Radiator Upper Bracket (Qty: 2) |
