Engine Views

Harness Routing Views

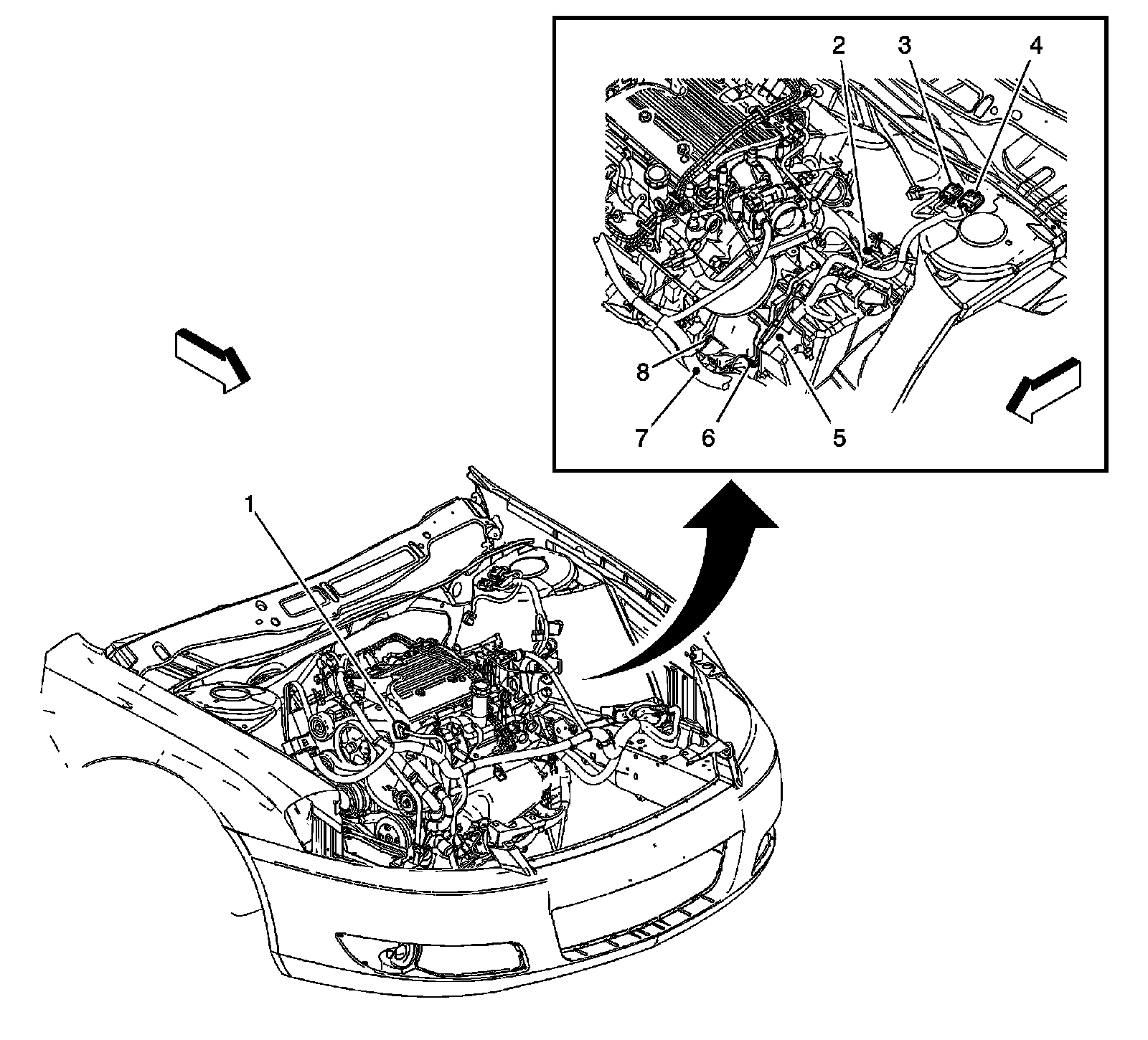

Front of the Engine Compartment - LZ8

1 - X102
2 - G115
3 - X101
4 - X111
5 - J105
6 - G113
7 - J101
8 - G111
