Rear Fuse Block
Electrical Center Identification Views
Fuse Block - Rear Top View
Fuse Block - Rear Bottom View

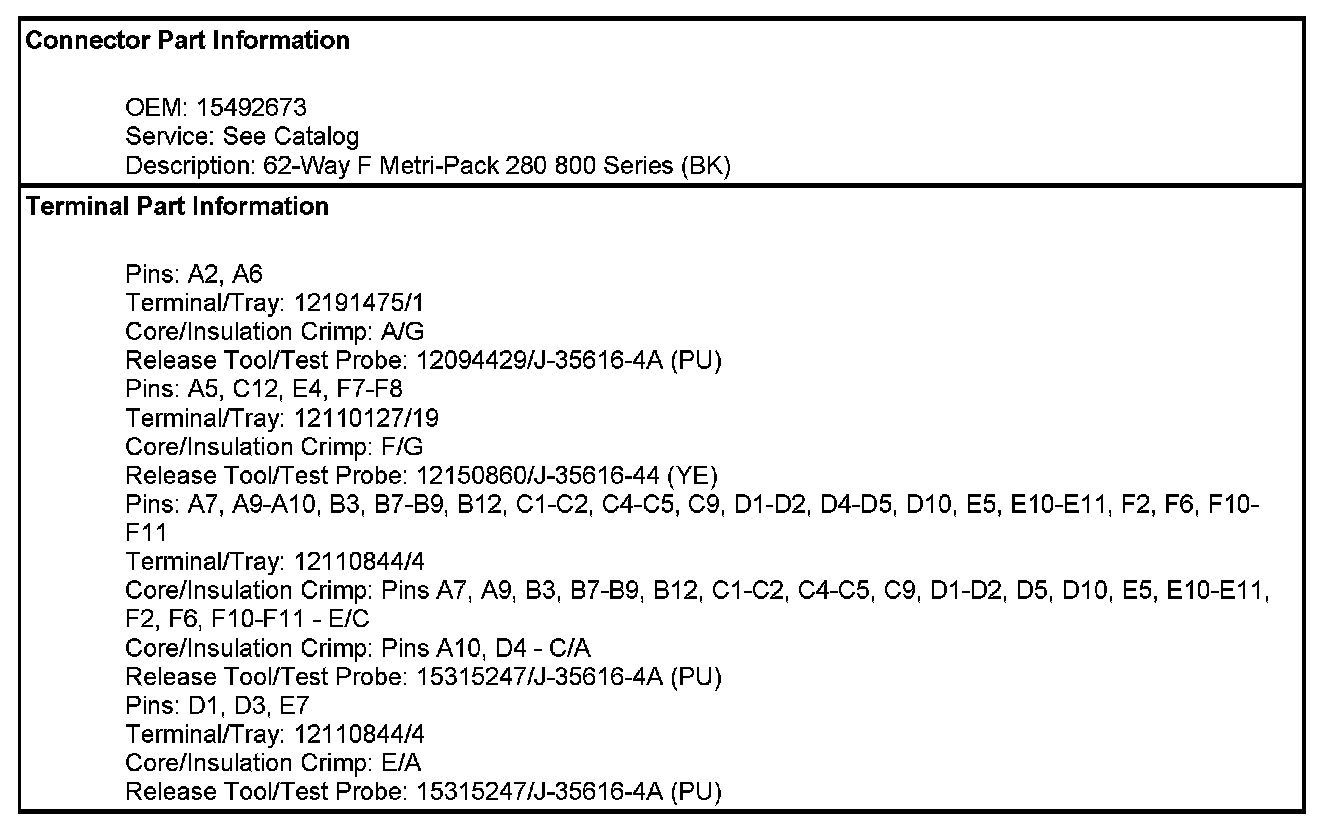

Fuse Block - Rear X1

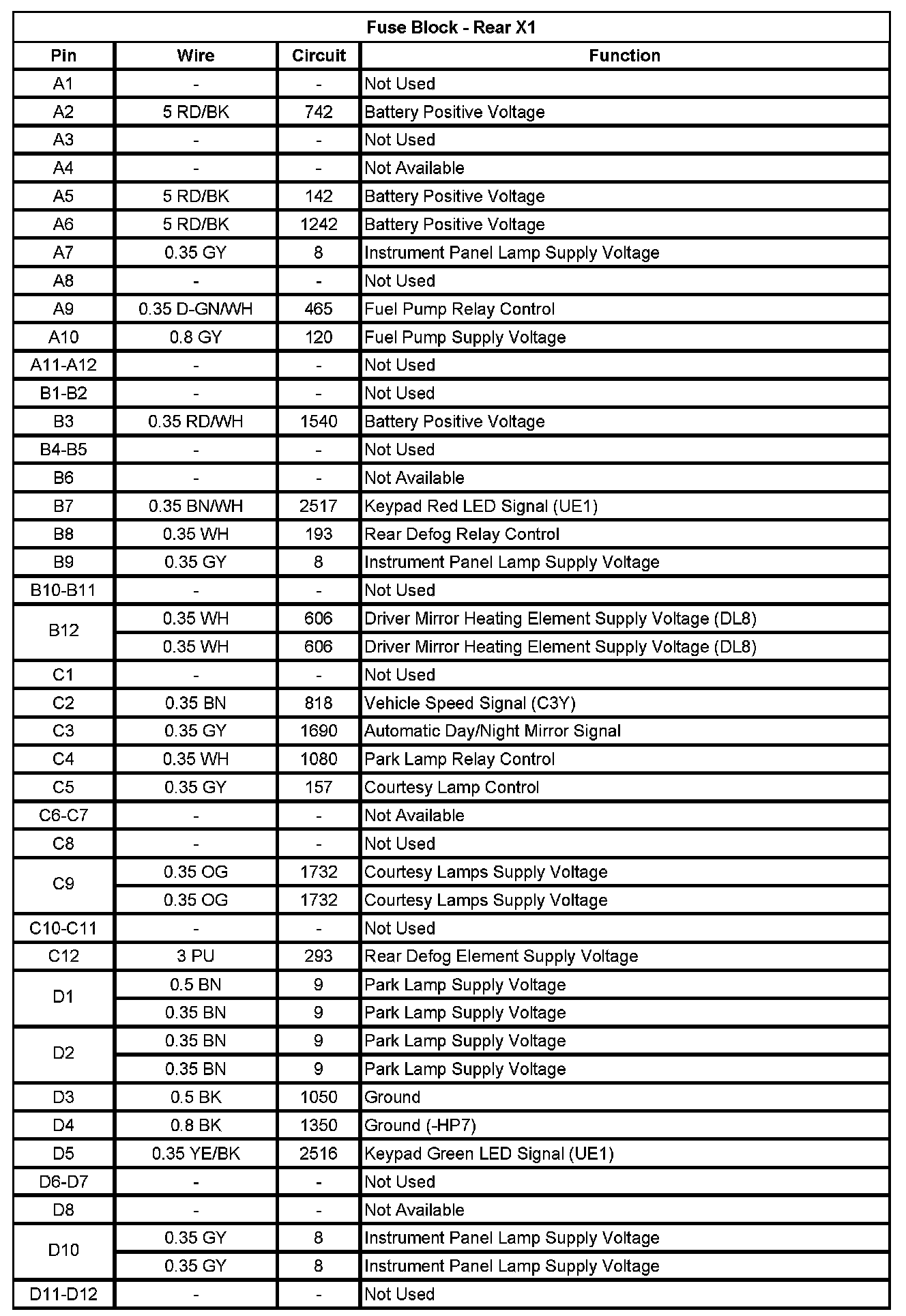

Fuse Block - Rear X1 (Pin A1 To D12):

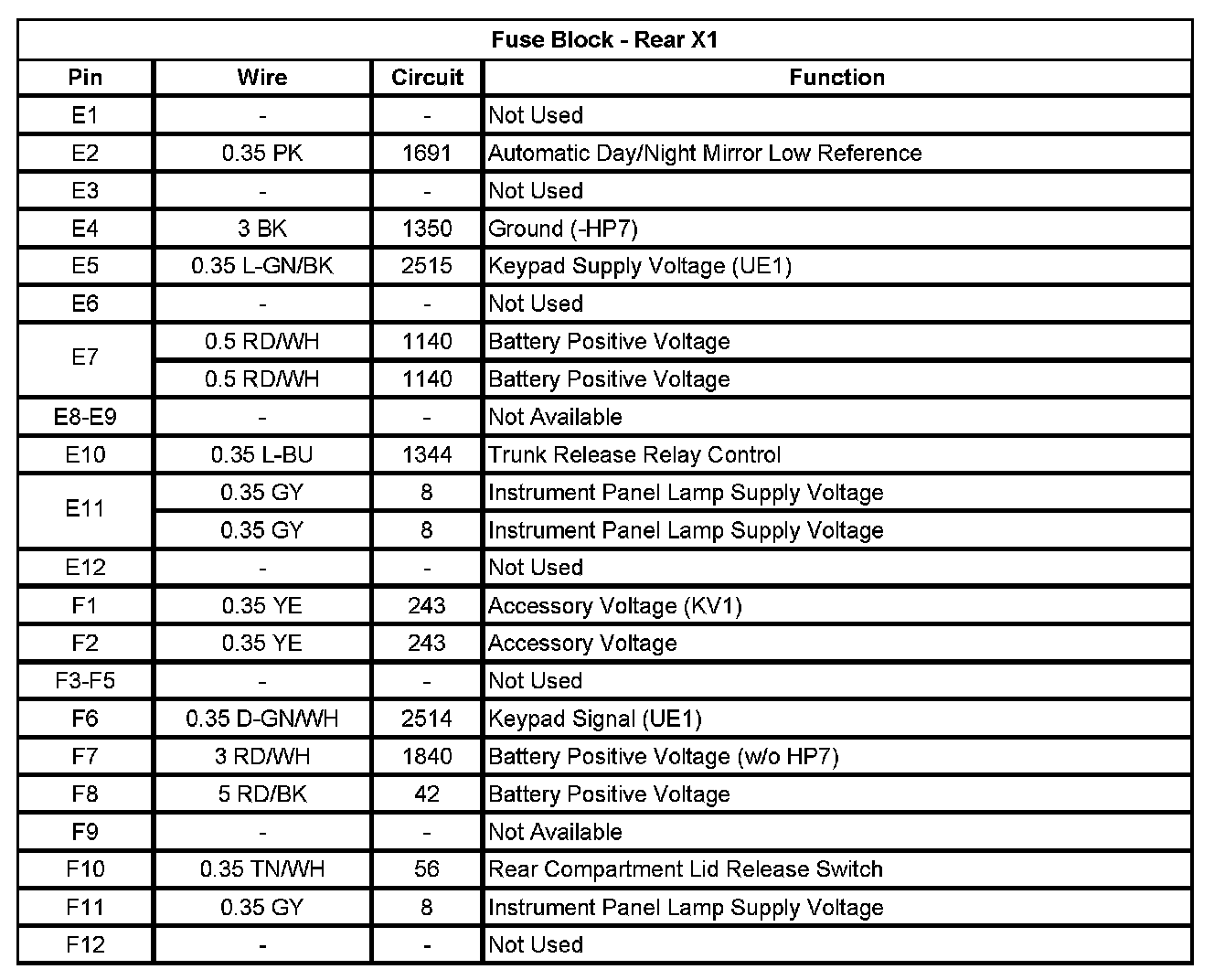

Fuse Block - Rear X1 (Pin E1 To F12):
Fuse Block - Rear X2

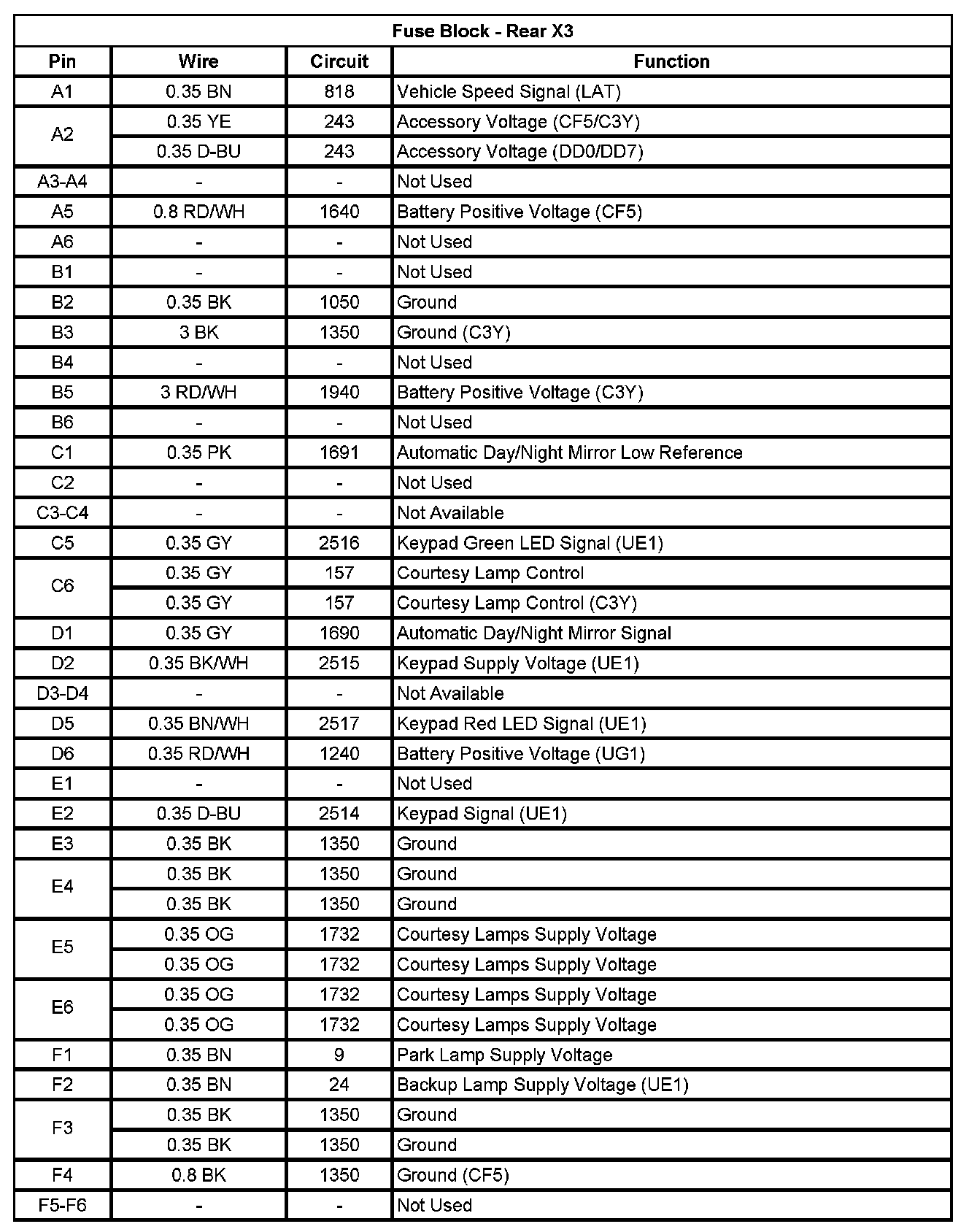

Fuse Block - Rear X3

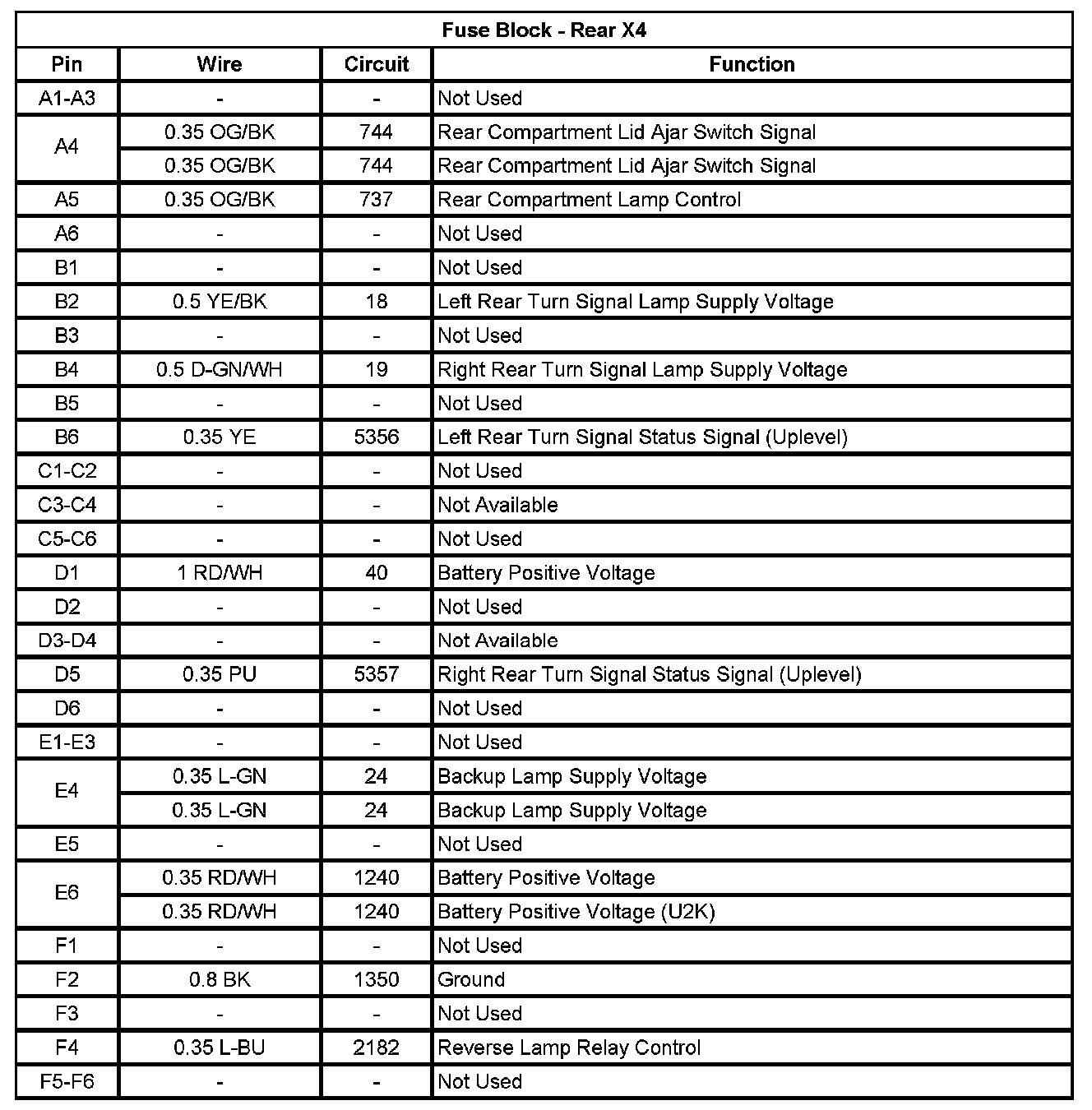

Fuse Block - Rear X4
