Moveable Window Schematics

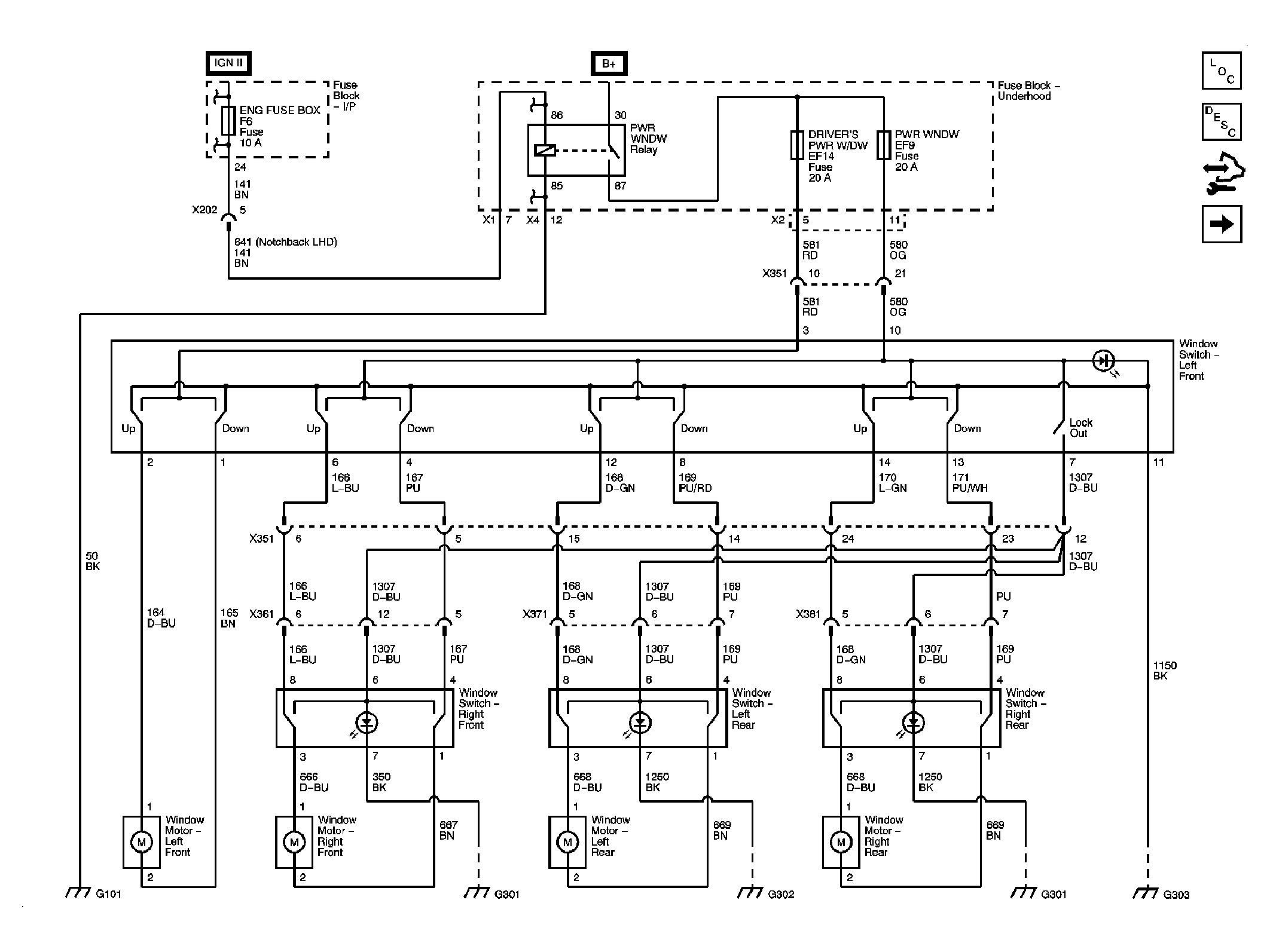

Fig 1: Front/Rear Power Windows Schematic
GM1962836Courtesy of GENERAL MOTORS CORP.

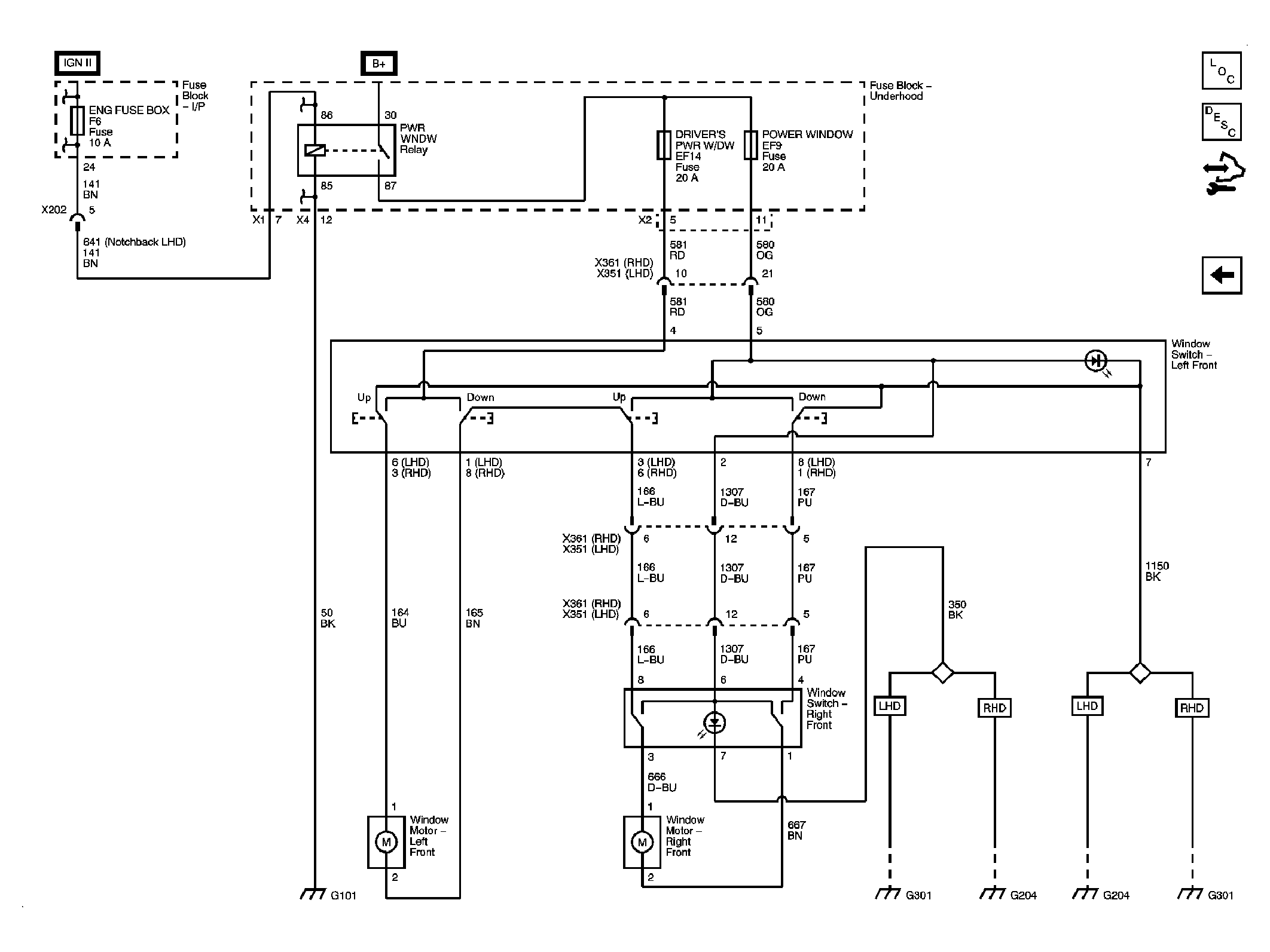

Fig 2: Front Power Windows Schematic
GM1962837Courtesy of GENERAL MOTORS CORP.
