Installation Procedure

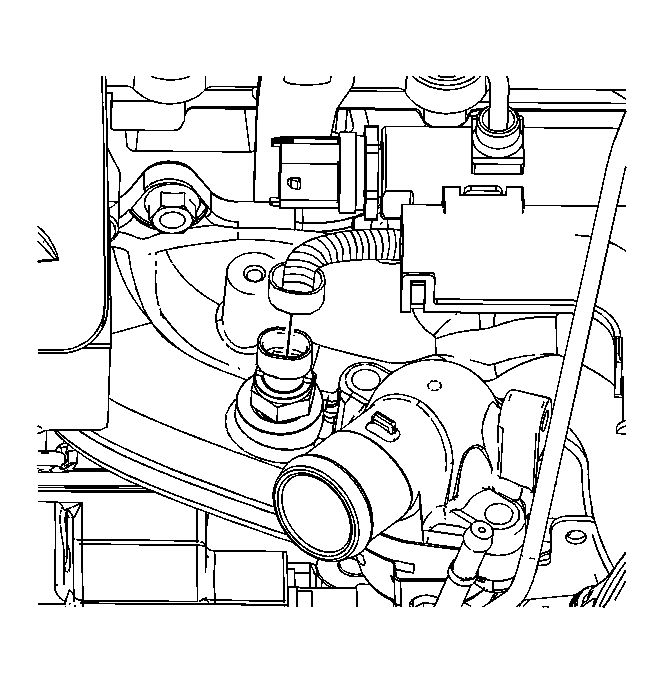

    Fig 1: View Of ECT Sensor And Connector
    GM1820589Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the ECT sensor.

    Tighten:  Tighten the ECT sensor to 35 N.m (25.8 lb ft)  .

  2. Connect the ECT sensor.
    3. Fig 2: View Of Engine Cover And Fasteners
    GM1962428Courtesy of GENERAL MOTORS CORP.
  3. Install the engine cover. Refer to Engine Cover Replacement .
  4. Connect the negative battery cable.
