Shift Lock Control Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Shift Lock Control Schematics
Fig 1: Automatic Transmission Shift Lock Control w/o Ignition Lock Cylinder Control Actuator Schematic
Courtesy of GENERAL MOTORS CORP.

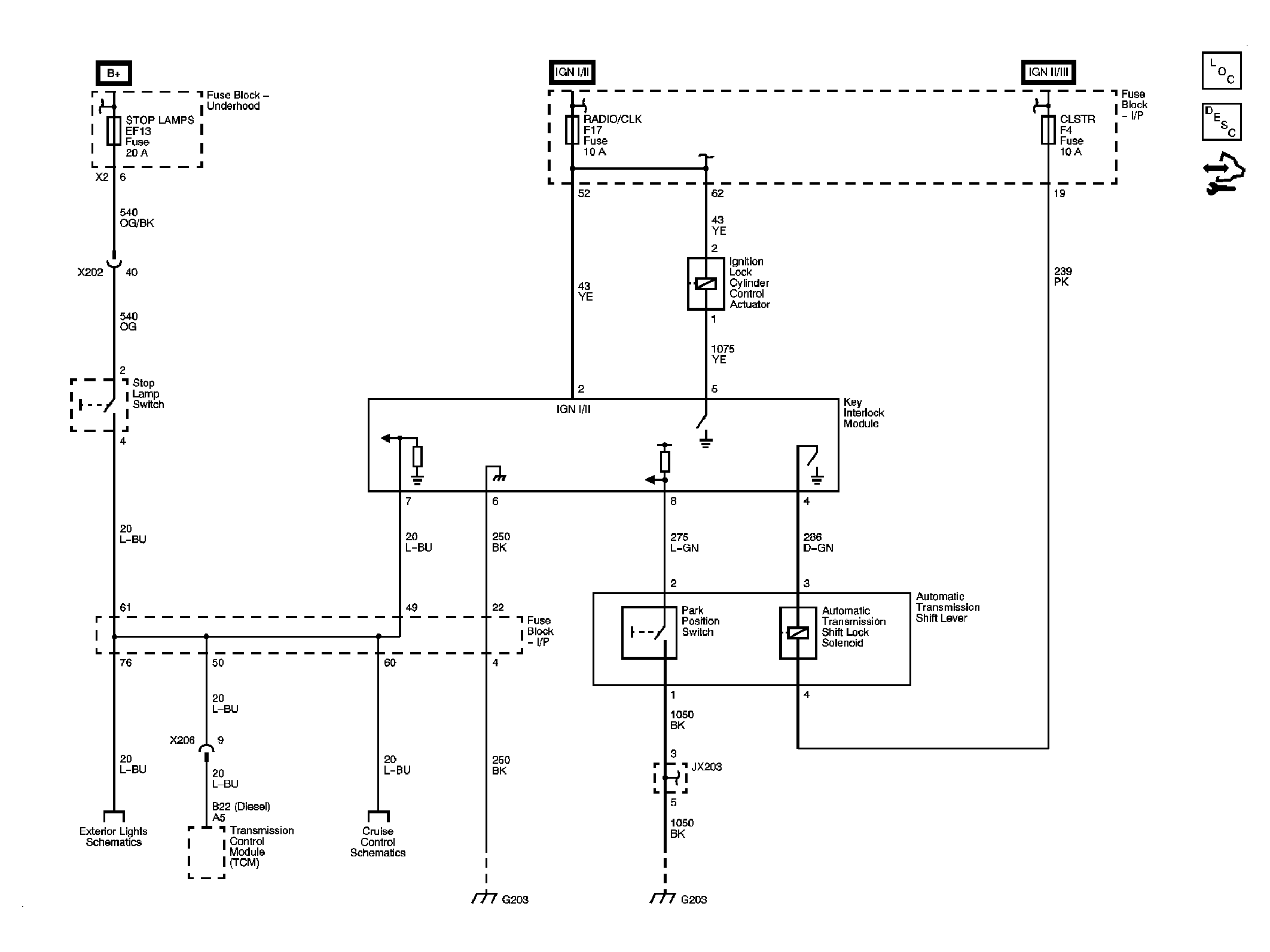

Fig 2: Automatic Transmission Shift Lock Control with Ignition Lock Cylinder Control Actuator Schematic
Courtesy of GENERAL MOTORS CORP.
