Auxiliary Fuse Block



Electrical Center Identification Views

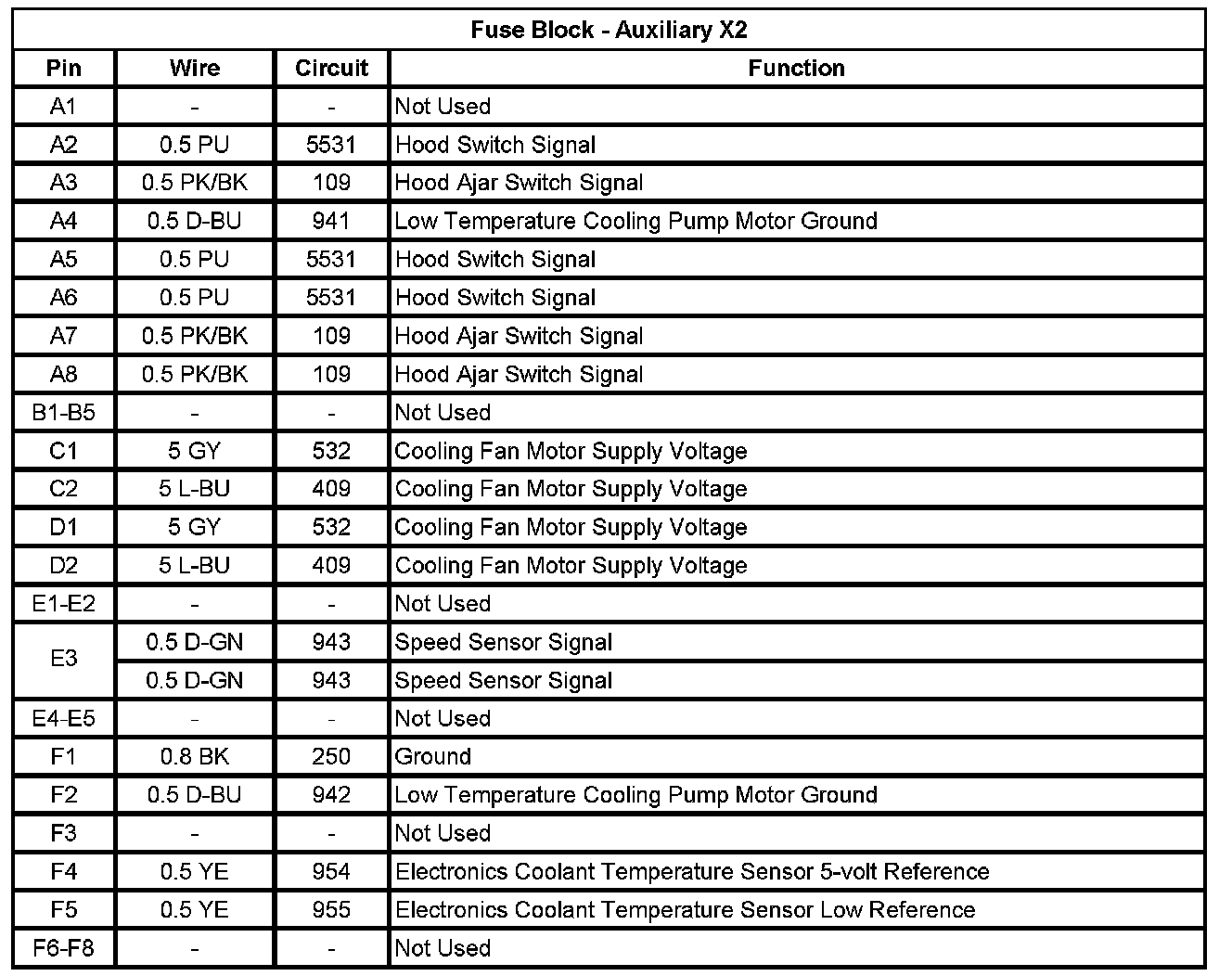

Fuse Block - Auxiliary X2














Fuse Block - Auxiliary X3
