Refrigerant Pressure Sensor / Switch: Locations

Front of Vehicle/Engine Compartment Component Views

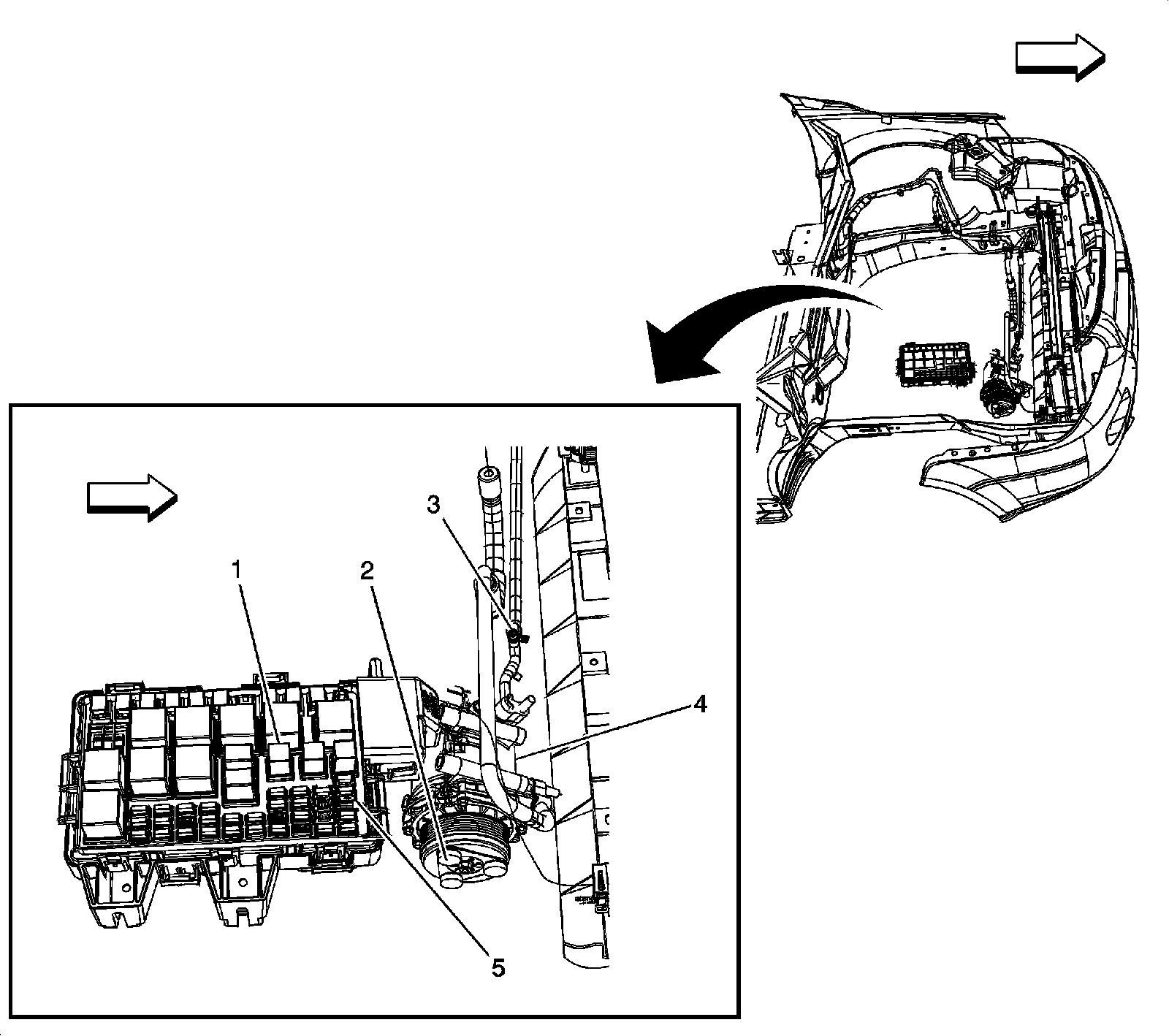

Right Front of Engine Compartment Components 2 of 2




1 - A/C CLTCH Relay
2 - A/C Compressor Clutch
3 - A/C Refrigerant Pressure Sensor
4 - A/C Compressor
5 - DIODE 3
