Front Side Door Window Weatherstrip Replacement

Front Side Door Window Weatherstrip Replacement

Removal Procedure

1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair).
2. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement (Service and Repair).
3. Remove the front door window. Refer to Front Side Door Window Replacement (Service and Repair).

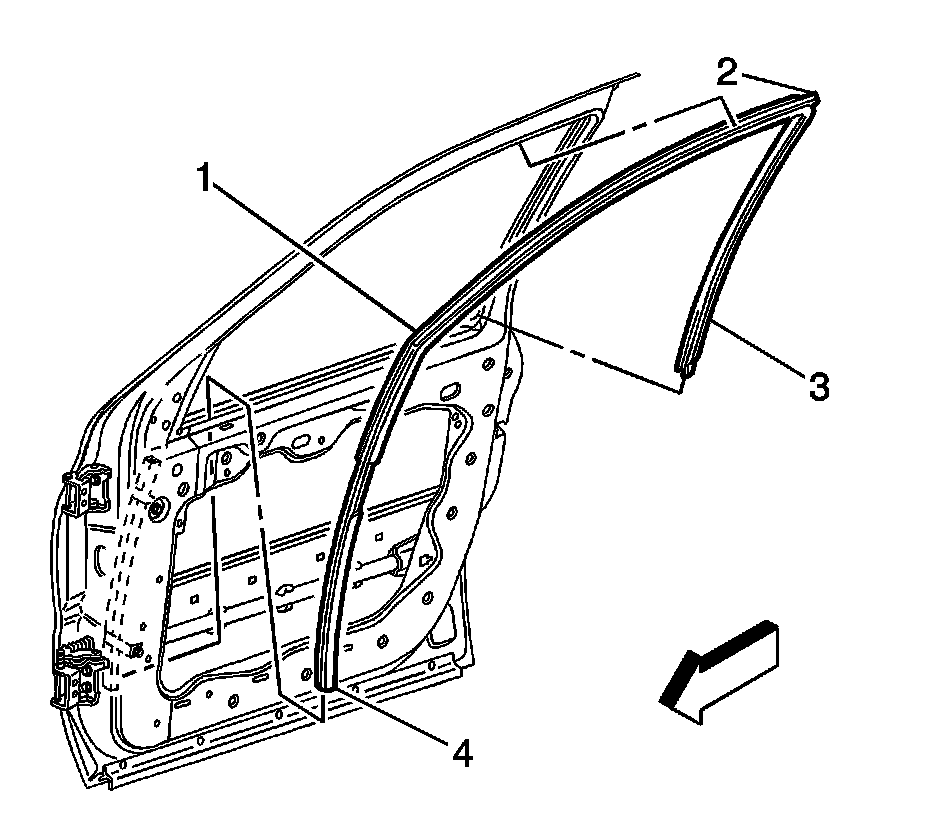

4. Remove the weatherstrip (2) from the door frame.

Installation Procedure




1. Position the front weatherstrip edge (4) to the door frame channel.
2. Secure the weatherstrip beginning at (4) and working around the inside of the window frame back to (3).
3. Ensure the weatherstrip at (1, 2) is secured to the corners of the upper window frame.
4. Install the front door window. Refer to Front Side Door Window Replacement (Service and Repair).
5. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement (Service and Repair).
6. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair).
