Camshaft Position Sensor: Diagrams




Component Connector End Views

Camshaft Position (CMP) Sensor (LMU)






Camshaft Position (CMP) Sensor (L95/LXT)

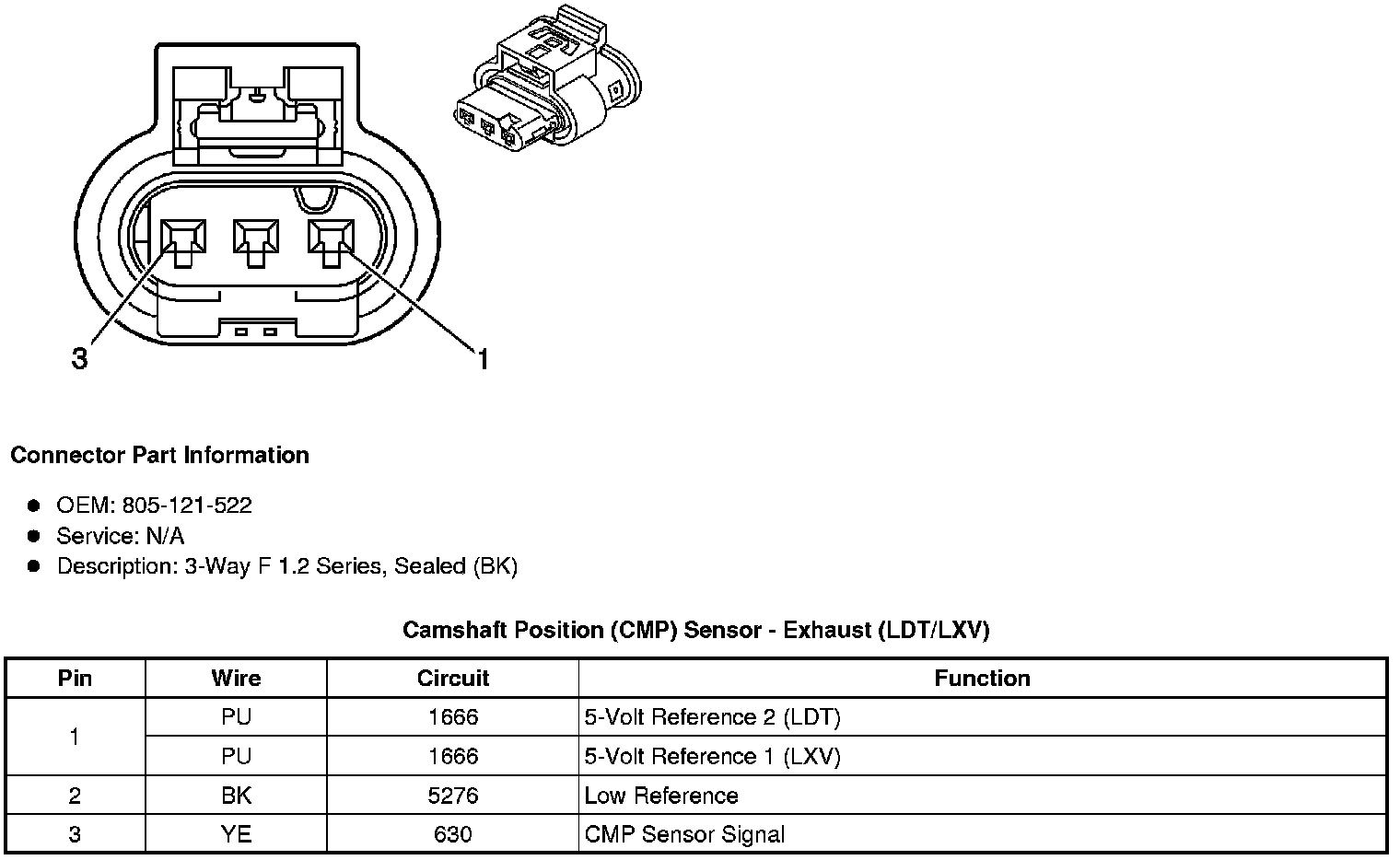

Camshaft Position (CMP) Sensor - Exhaust (LDT/LXV)






Camshaft Position (CMP) Sensor - Intake (LDT/LXV)
