Oxygen Sensor: Diagrams




Component Connector End Views

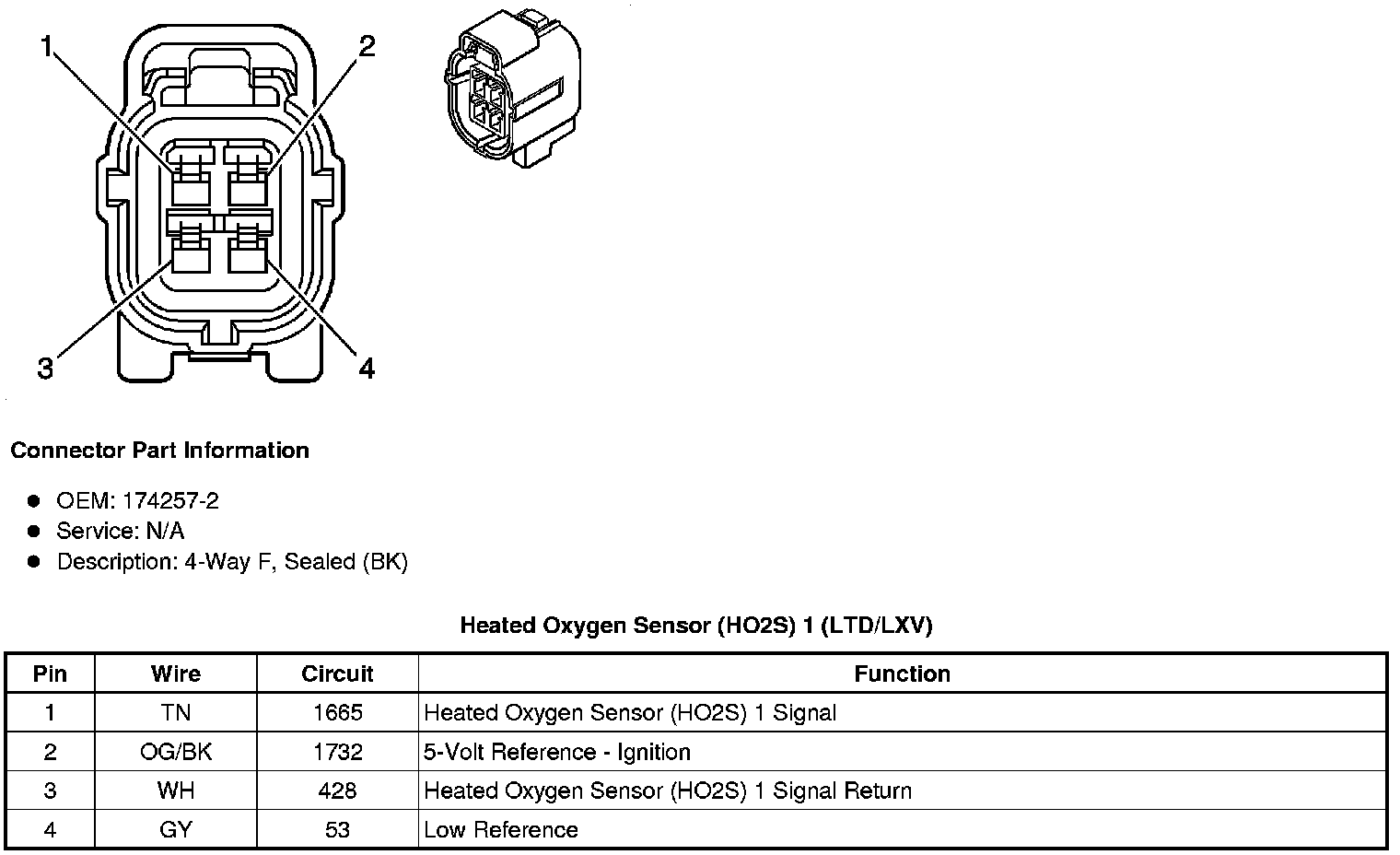

Heated Oxygen Sensor (HO2S) 1 (LTD/LXV)

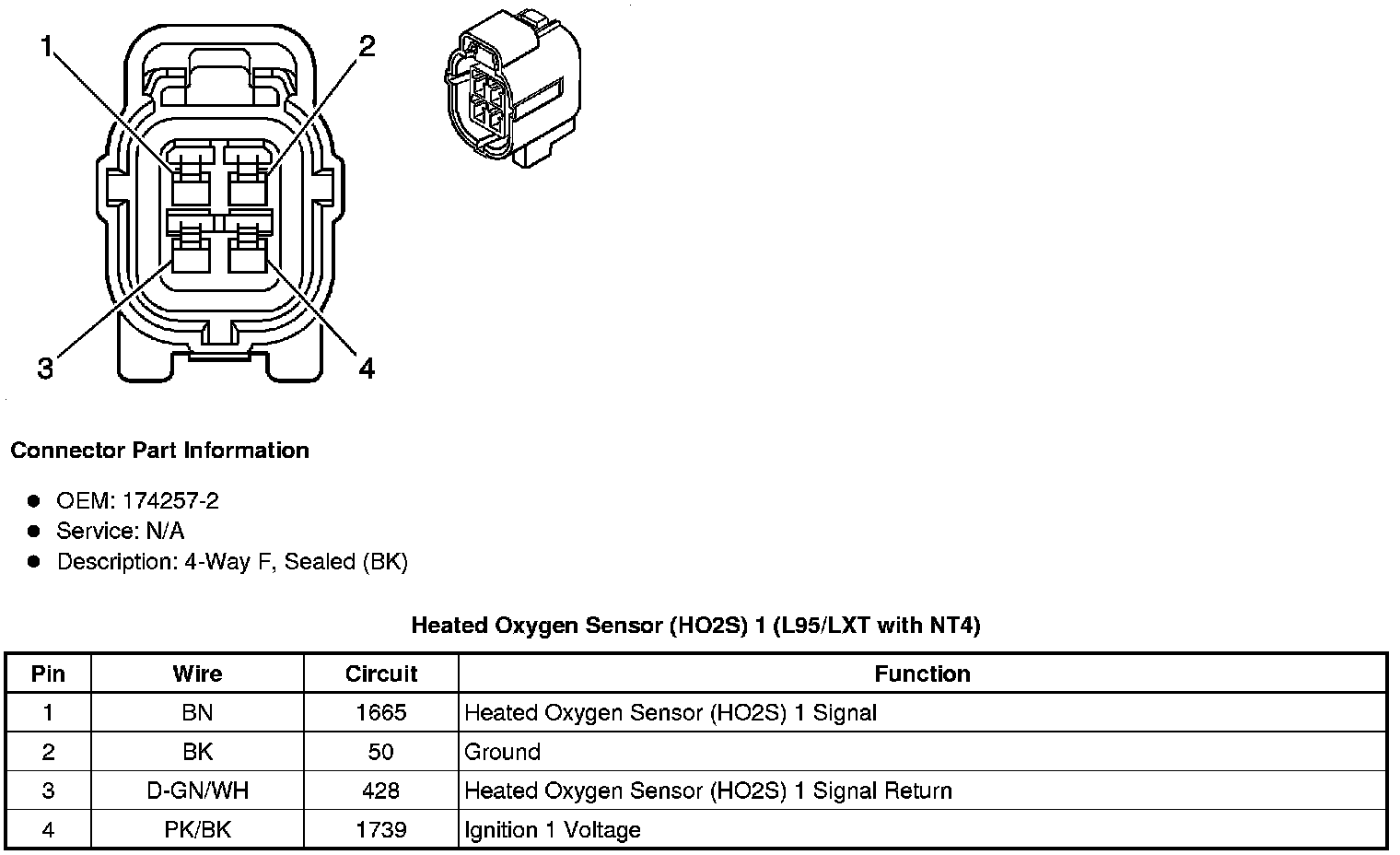

Heated Oxygen Sensor (HO2S) 1 (L95/LXT with NT4)






Heated Oxygen Sensor (HO2S) 1 (L95/LXT with NT3)






Heated Oxygen Sensor (HO2S) 1 (LMU without NQT)






Heated Oxygen Sensor (HO2S) 2 (L95/LXT/LDT/LXV with NT4)






Heated Oxygen Sensor (HO2S) 2 (L95/LXT with NT3)

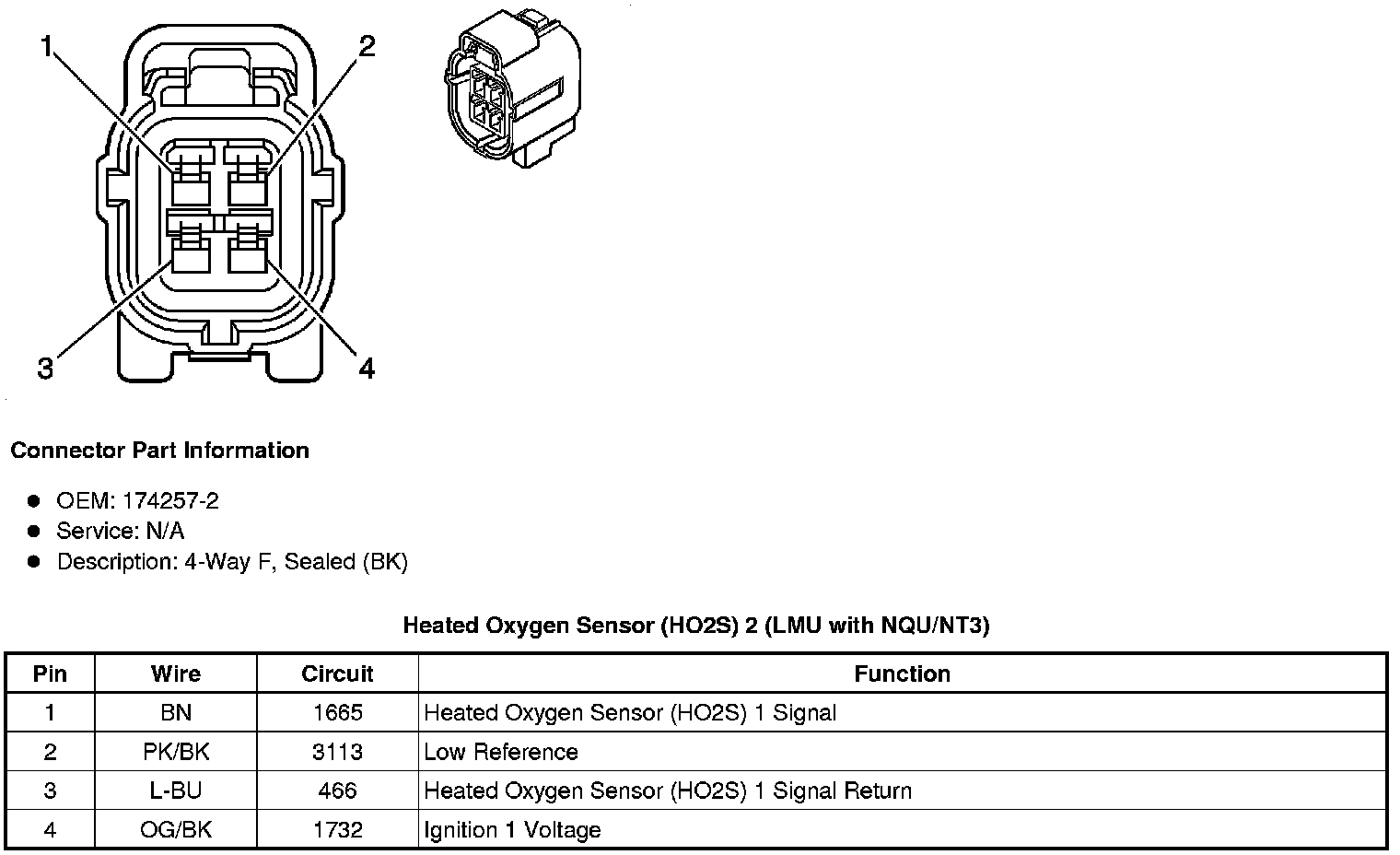

Heated Oxygen Sensor (HO2S) 2 (LMU with NQU/NT3)
