Installation Procedure

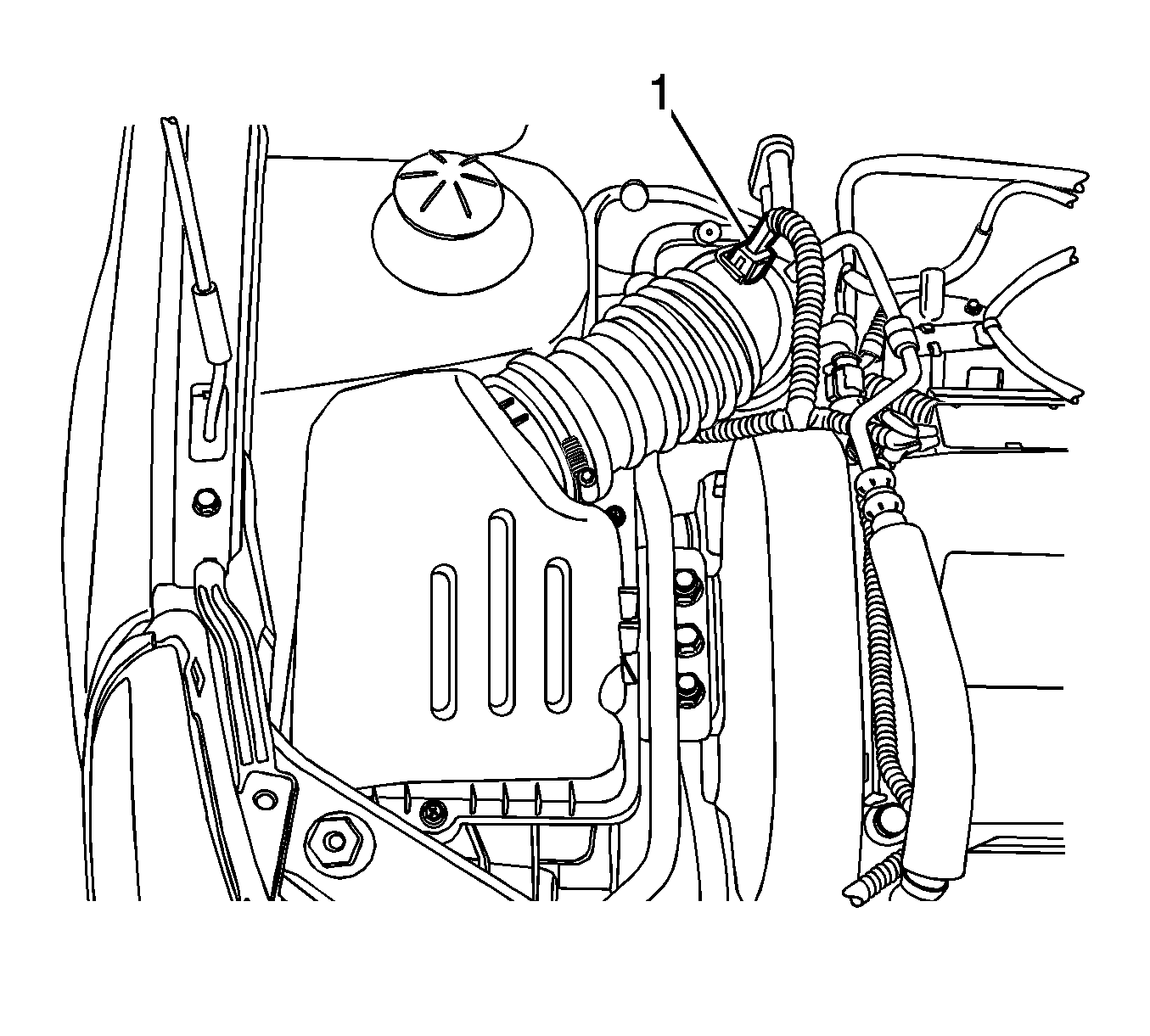

    Fig 1: IAT
    GM2049251Courtesy of GENERAL MOTORS CORP.
  1. Install the IAT sensor.
  2. Connect the IAT sensor connector (1).
  3. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
