Headliner Views

Harness Routing Views

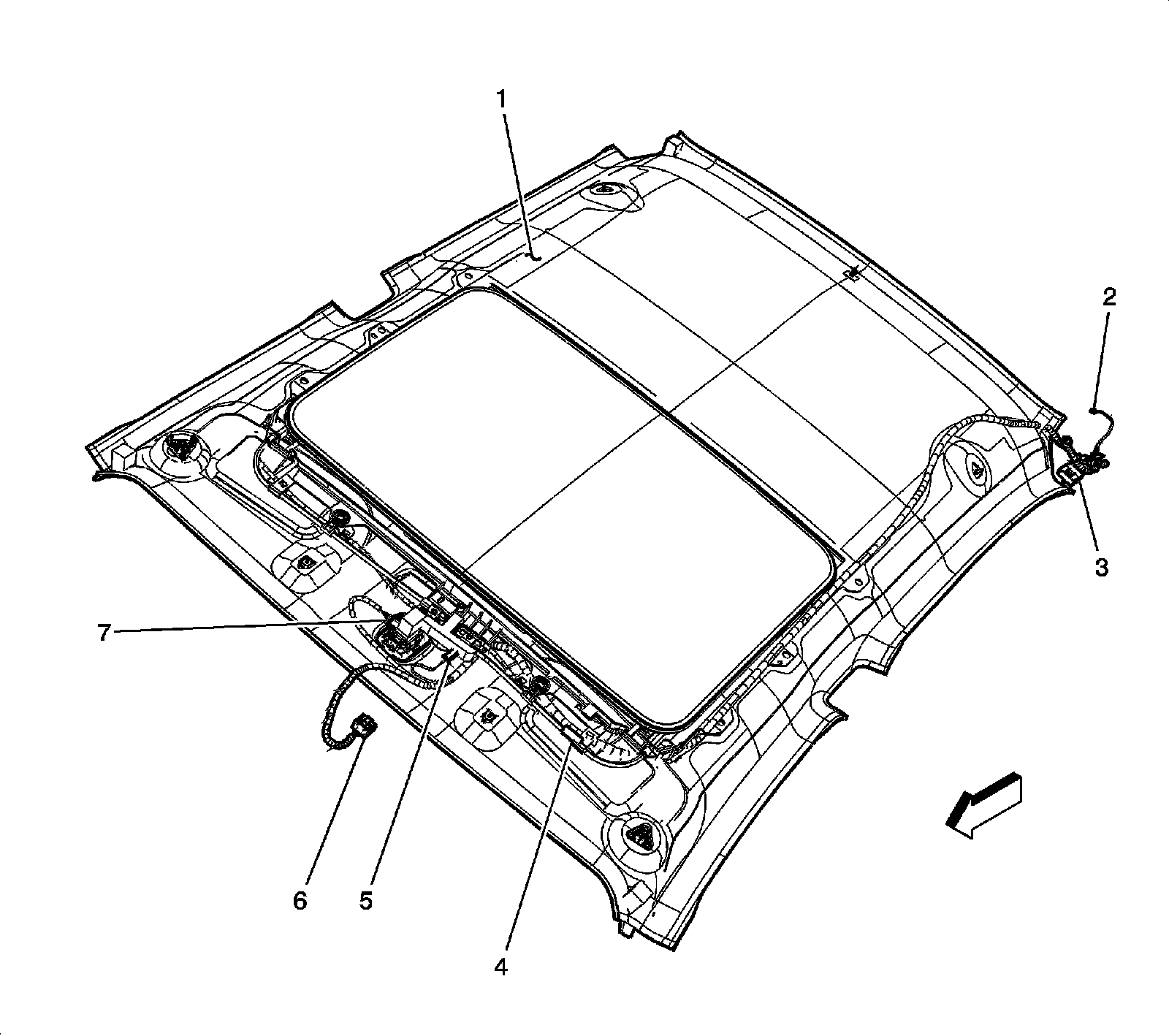

Headliner Harness (CF5)




1 - Headliner
2 - X304 (Coax)
3 - X321 (UE1)
4 - X302
5 - Cellular Micophone Connector (UE1)
6 - Inside Rearview Mirror (ISRVM) Connector
7 - Sunroof Switch Connector (CF5)

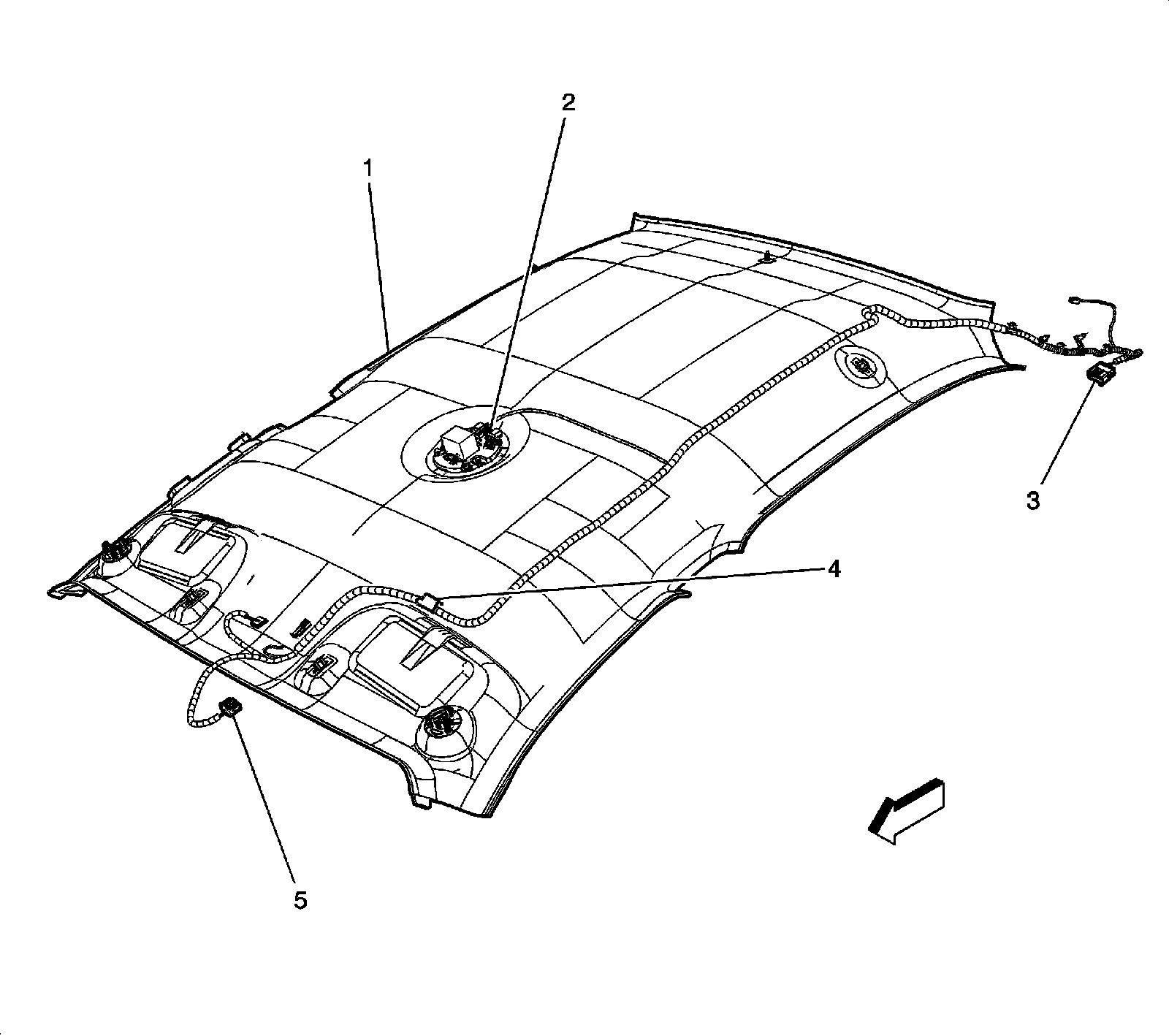

Headliner Harness (without CF5)




1 - Headliner
2 - Dome Lamp
3 - X323
4 - J300
5 - Inside Rearview Mirror (ISRVM) Connector
