Instrument Panel




Harness Routing Views

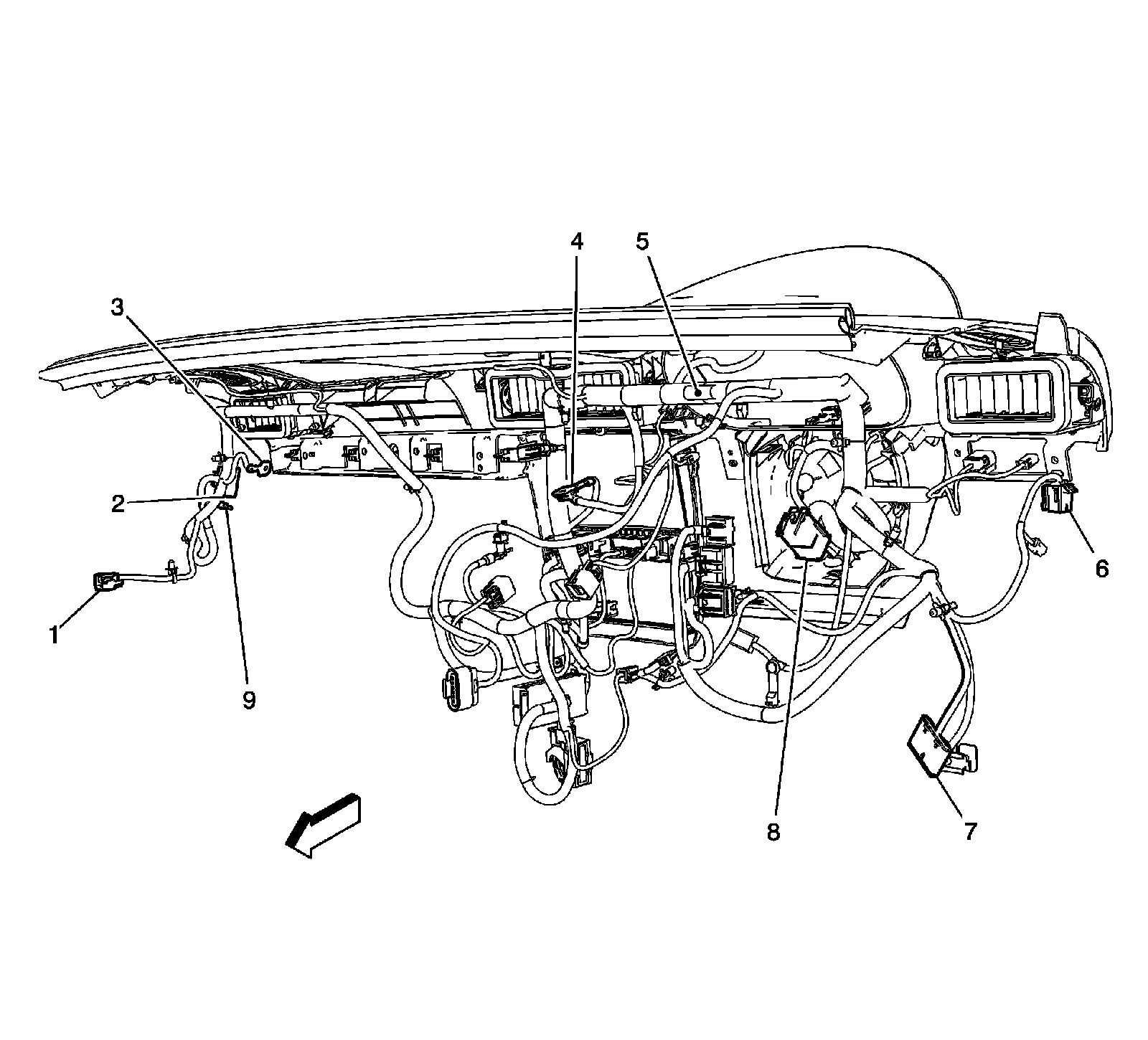

Instrument Panel Harness




1 - X210
2 - X200
3 - G203
4 - G201
5 - J233
6 - X275
7 - JX200
8 - X201
9 - Radio Antenna Coax
