Strut Towers Views




Harness Routing Views

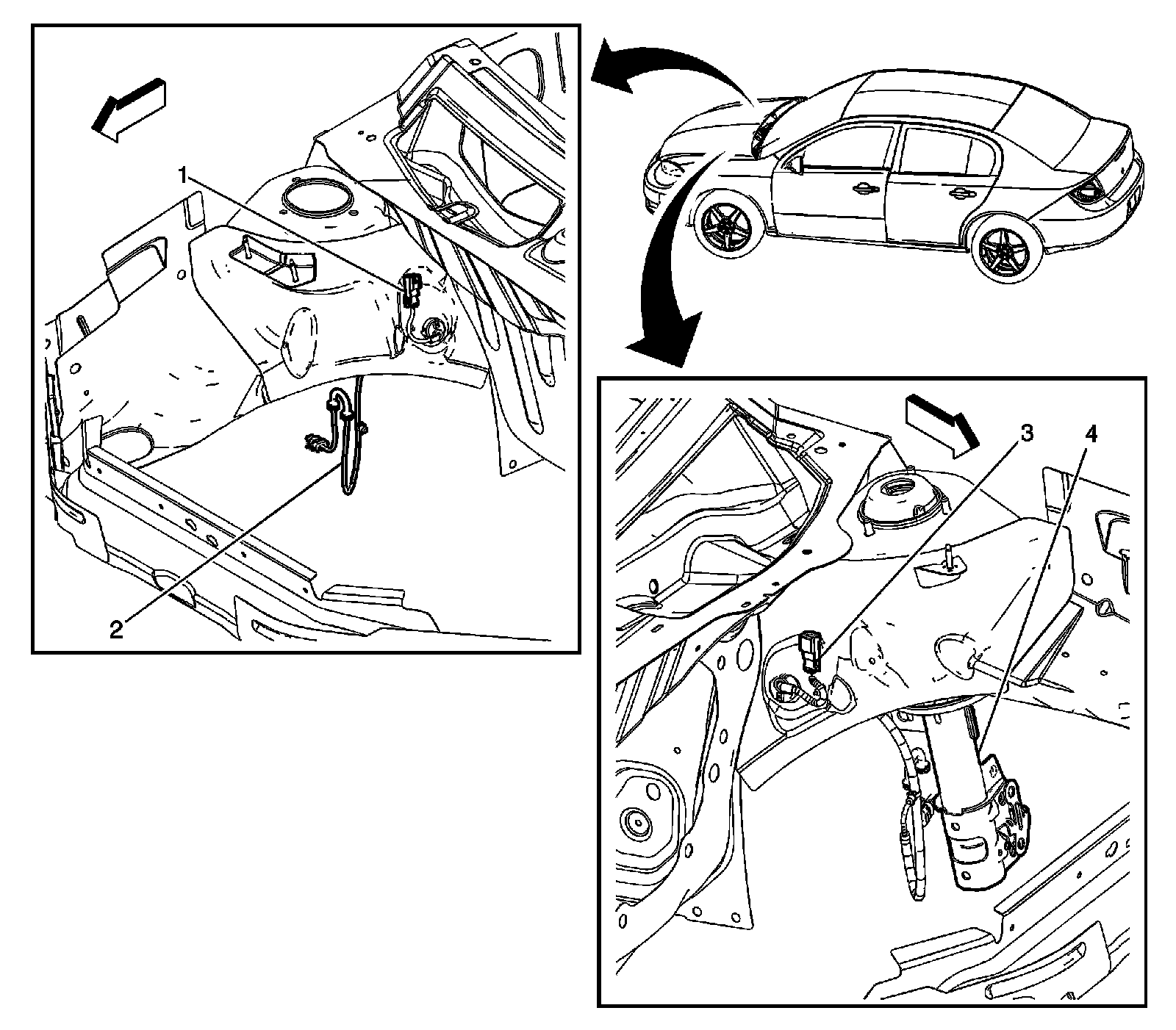

Near the Front Strut Towers




1 - X170 Body Harness to Front Wheel Speed Harness
2 - Right Front Wheel Speed Harness
3 - X171 Body Harness to Front Wheel Speed Harness
4 - Left Front Strut
