Fuse: Application and ID
Electrical Center Identification Views

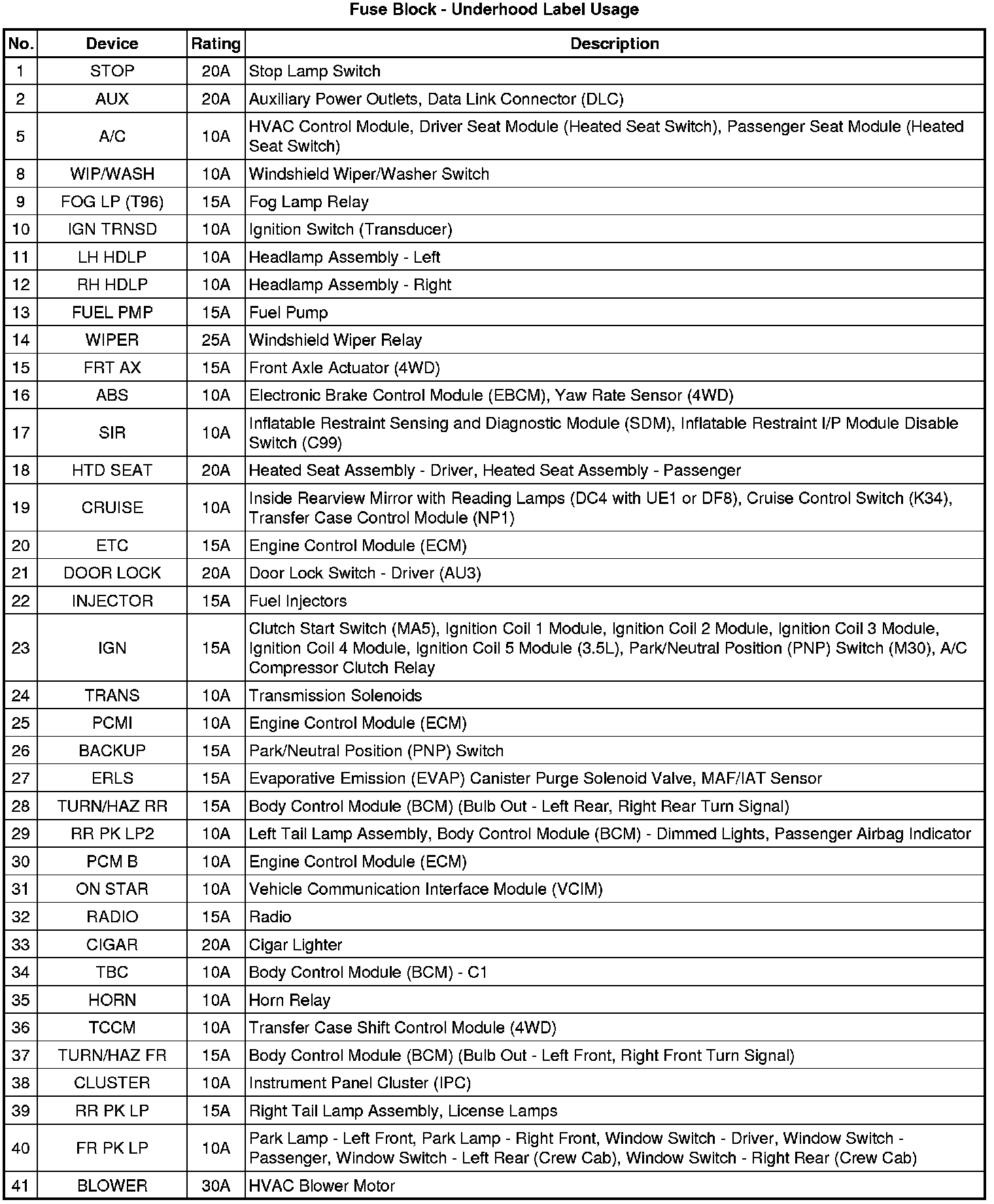

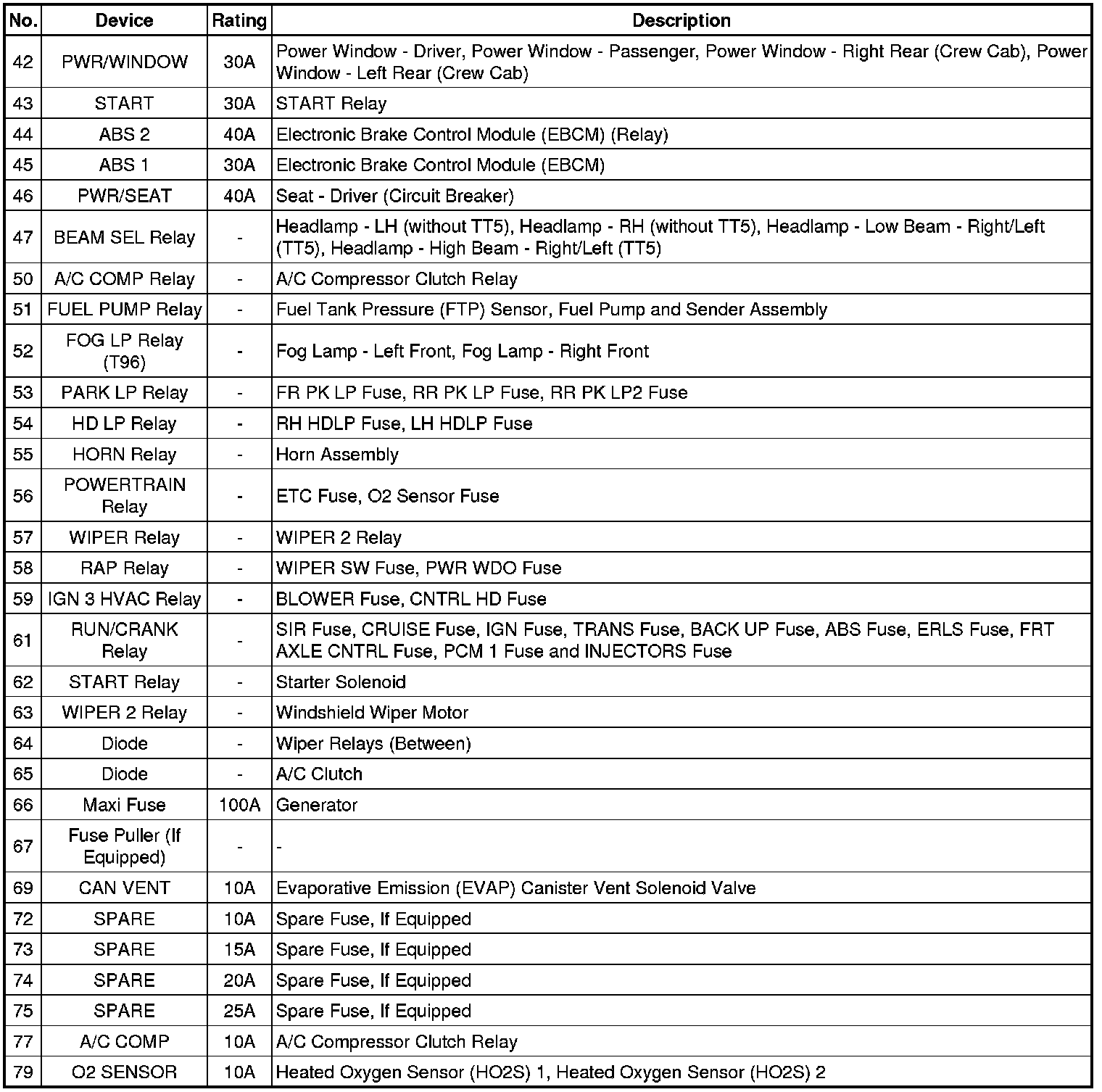

Fuse Block - Underhood Label

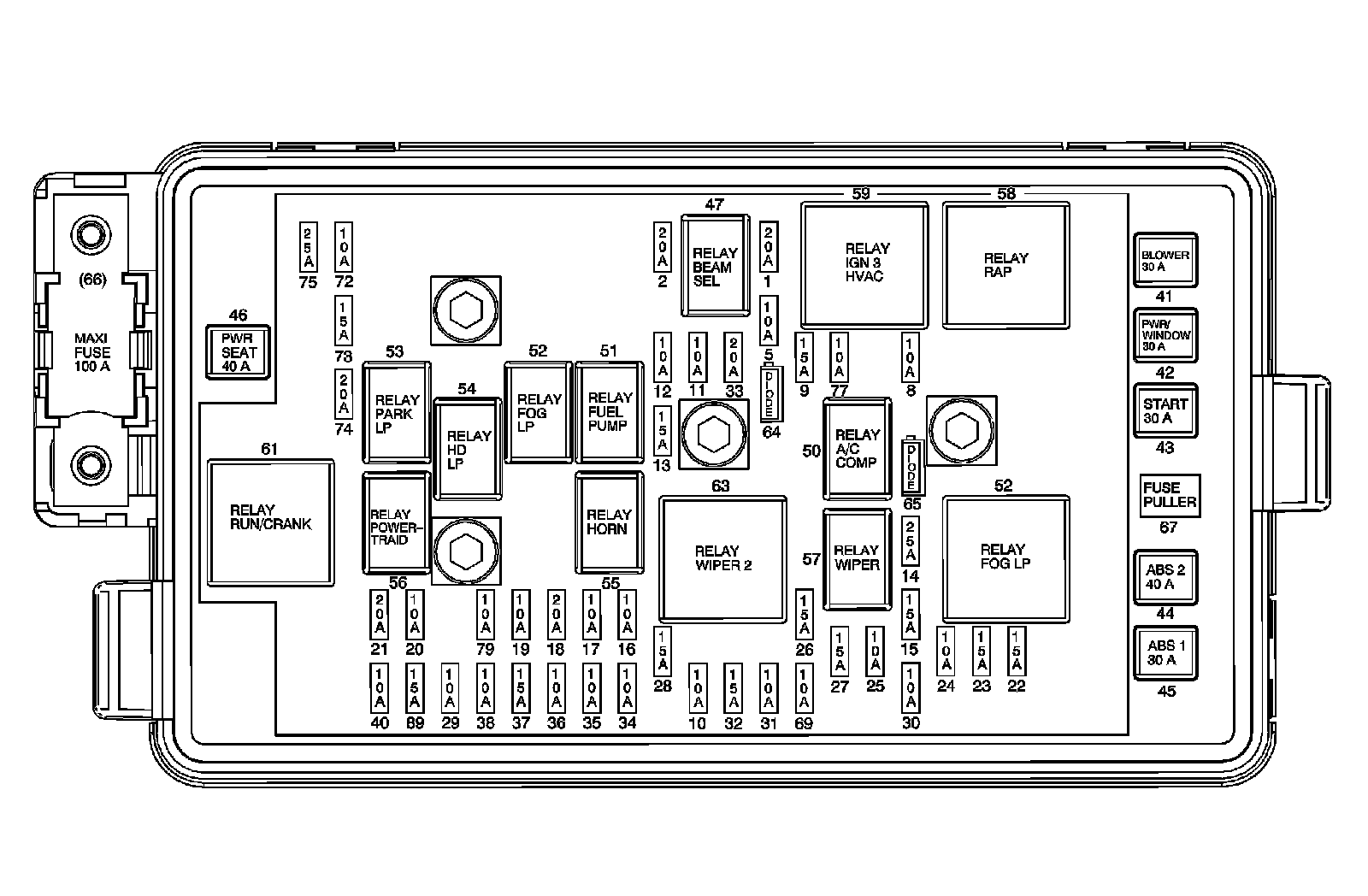

Fuse Block - Underhood - Top View
Fuse Block - Underhood - Bottom View

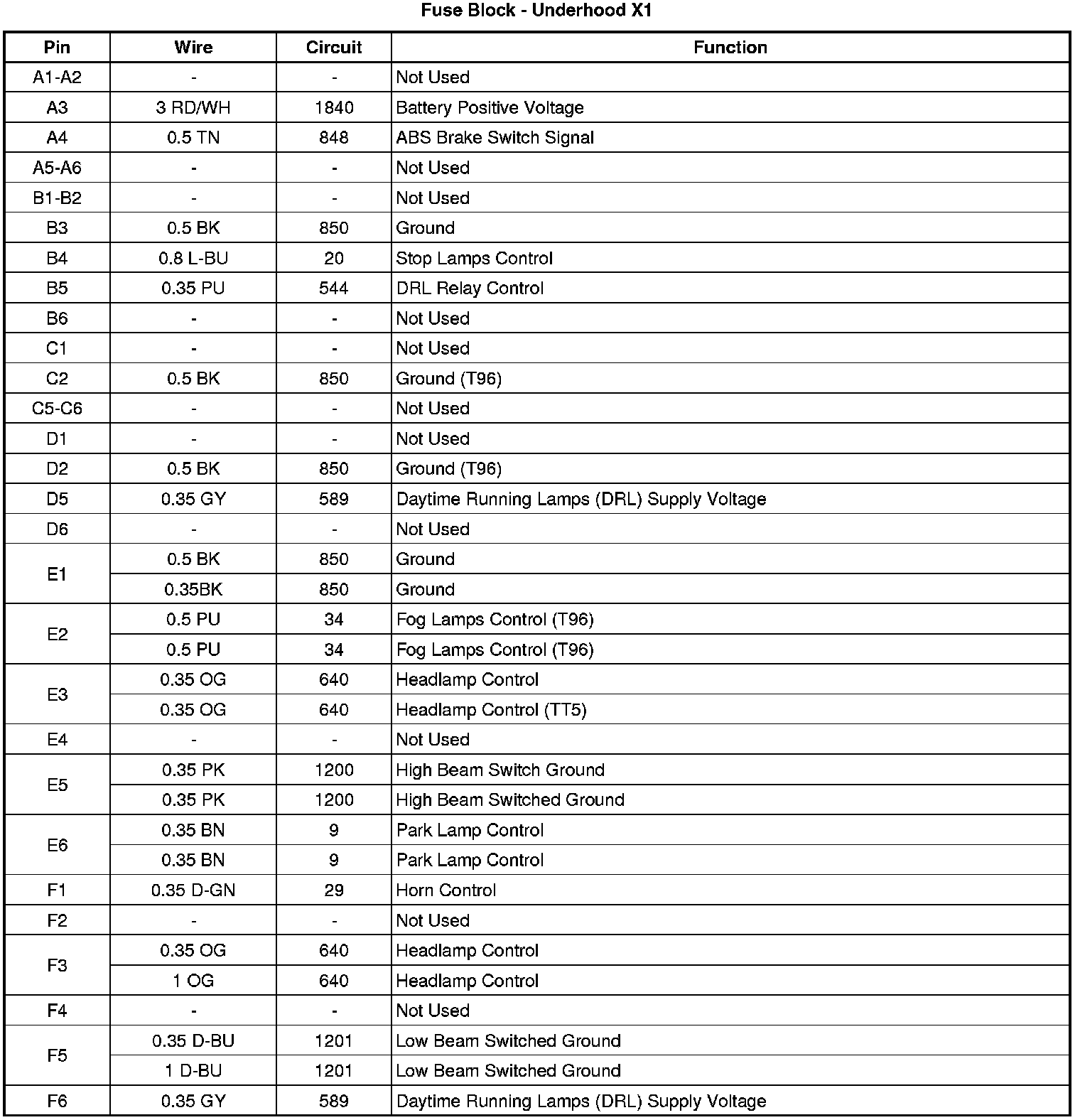

Fuse Block - Underhood X1

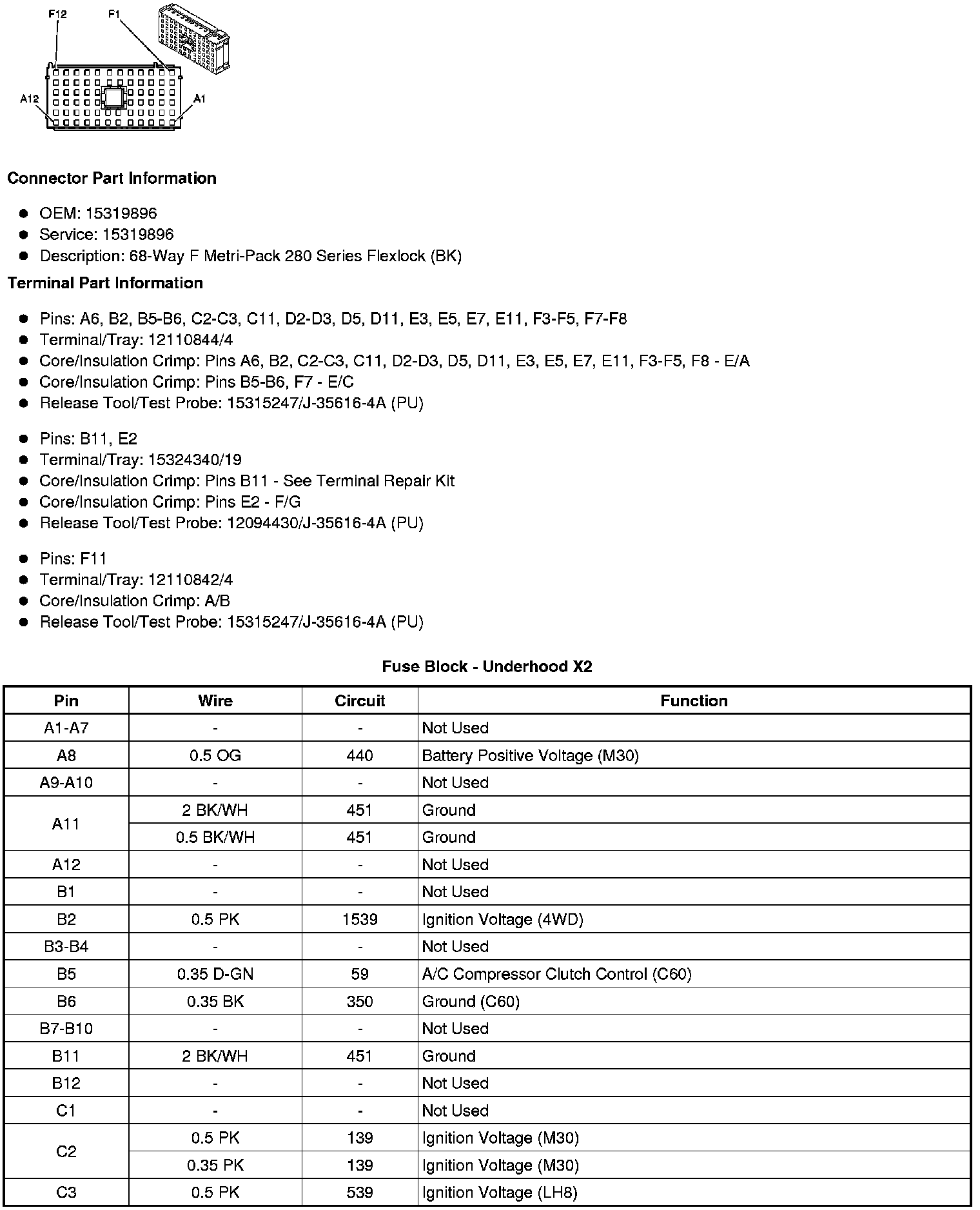

Fuse Block - Underhood X2
Fuse Block - Underhood X4
Fuse Block - Underhood X5

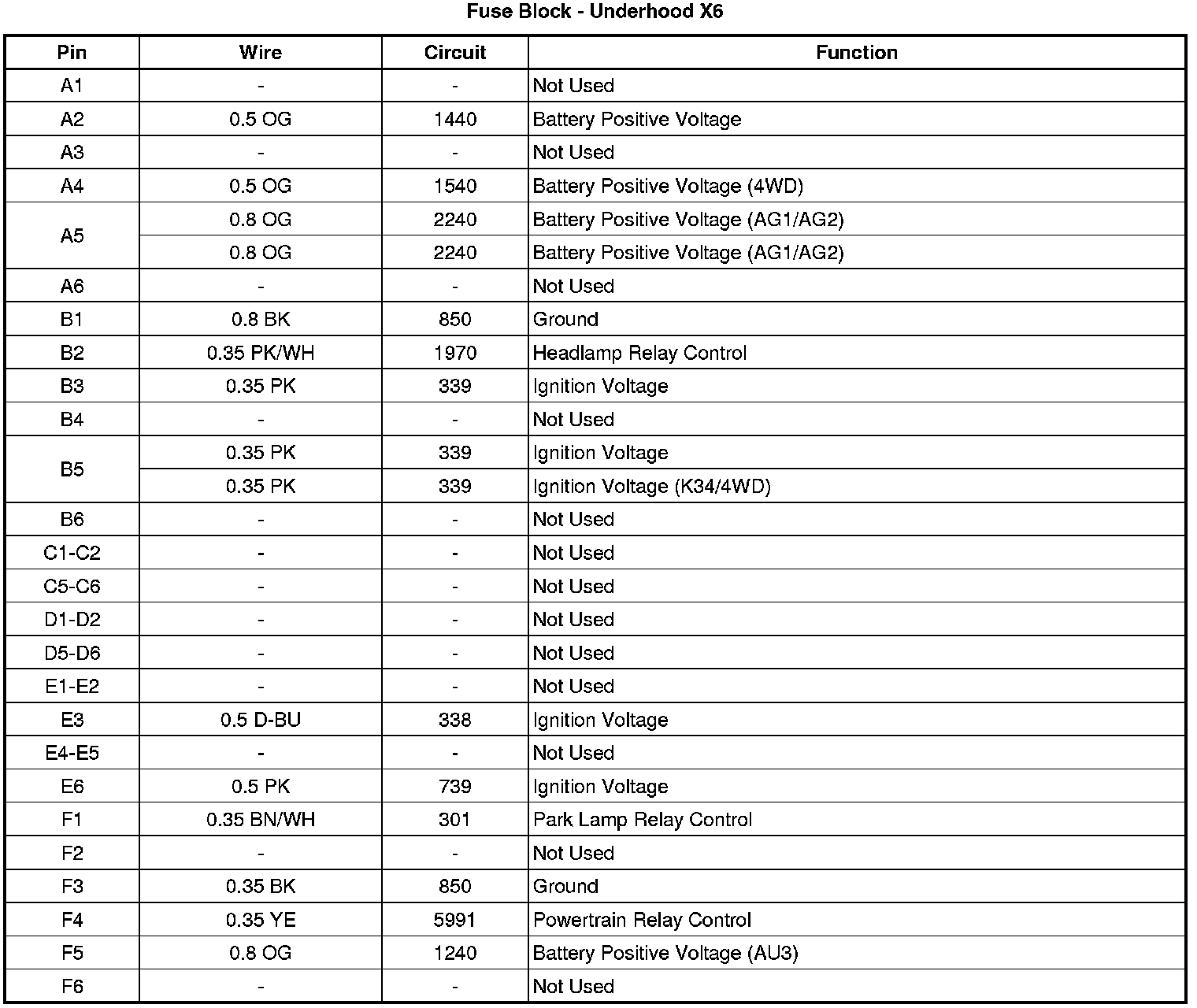

Fuse Block - Underhood X6

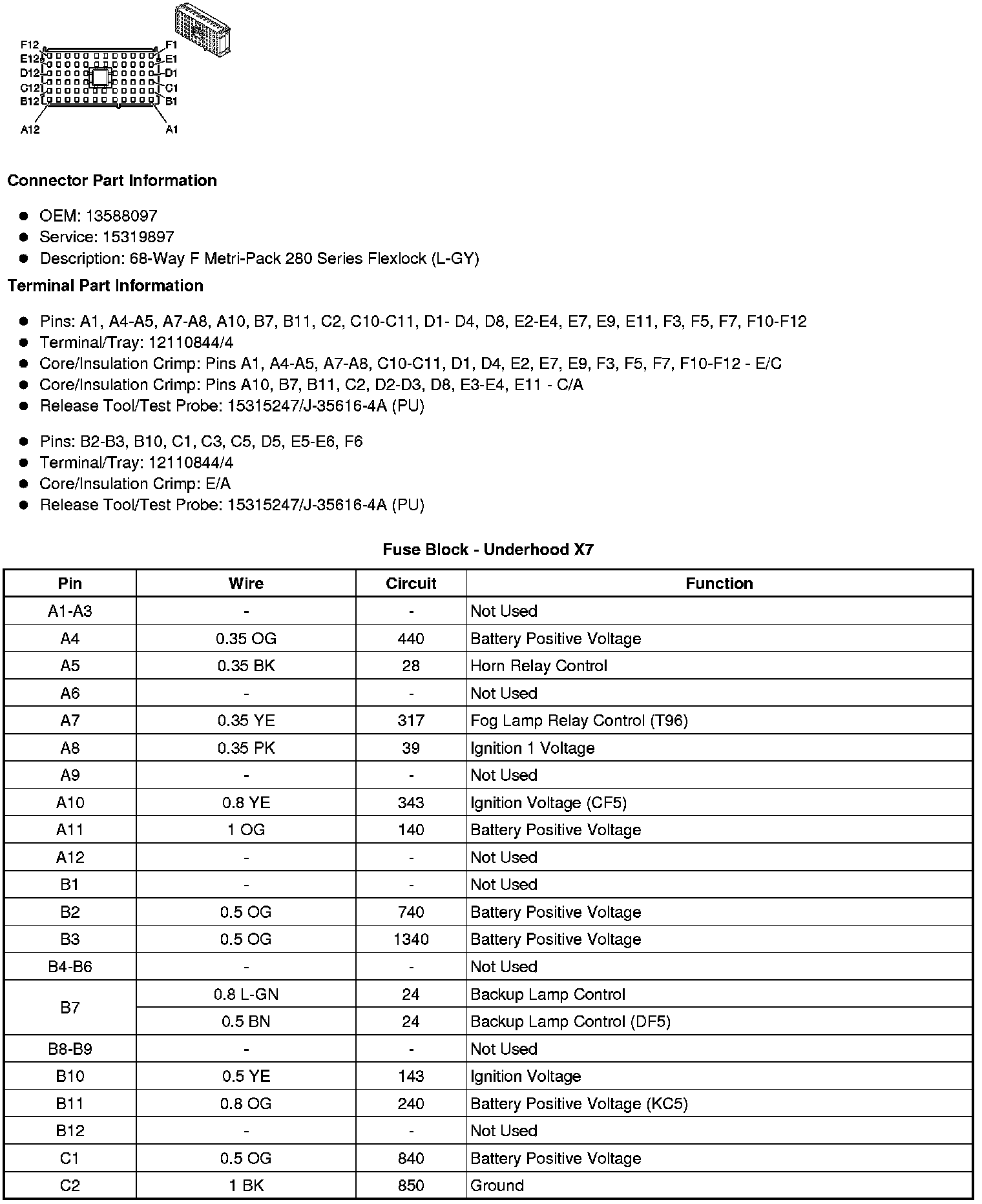

Fuse Block - Underhood X7
Fuse Block - Underhood X9
