Turn Signal Lamp




Component Connector End Views

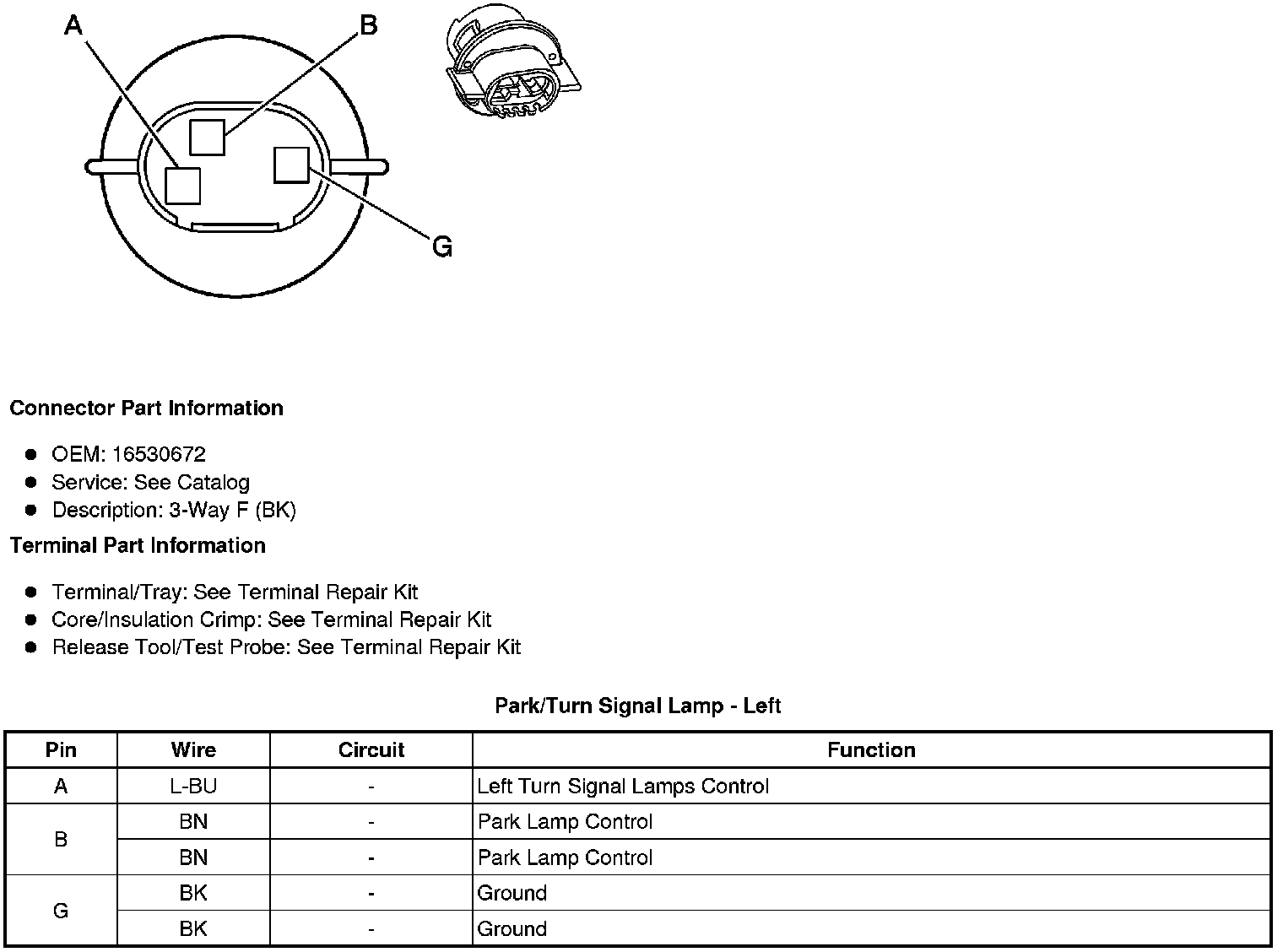

Park/Turn Signal Lamp - Left

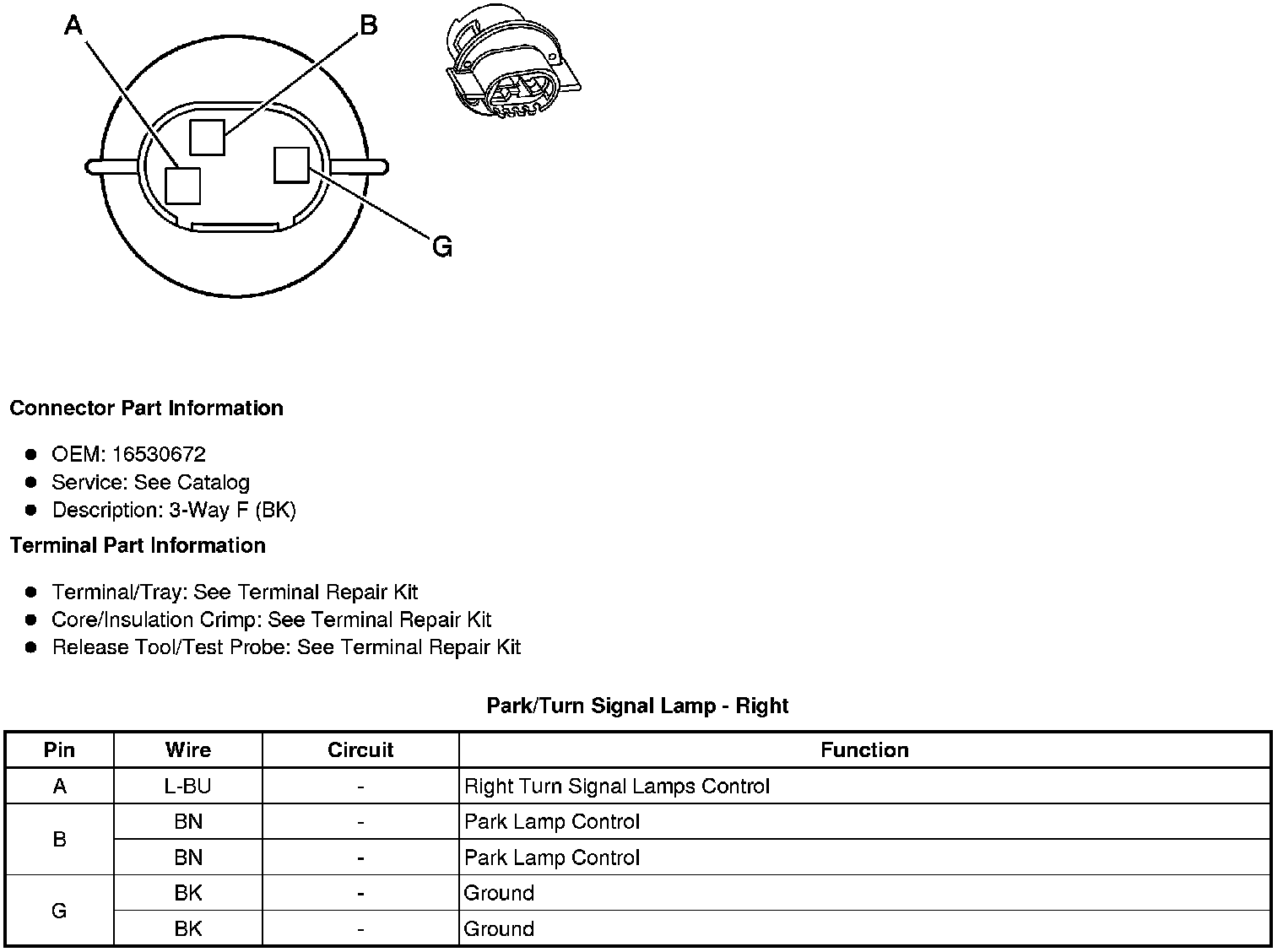

Park/Turn Signal Lamp - Right

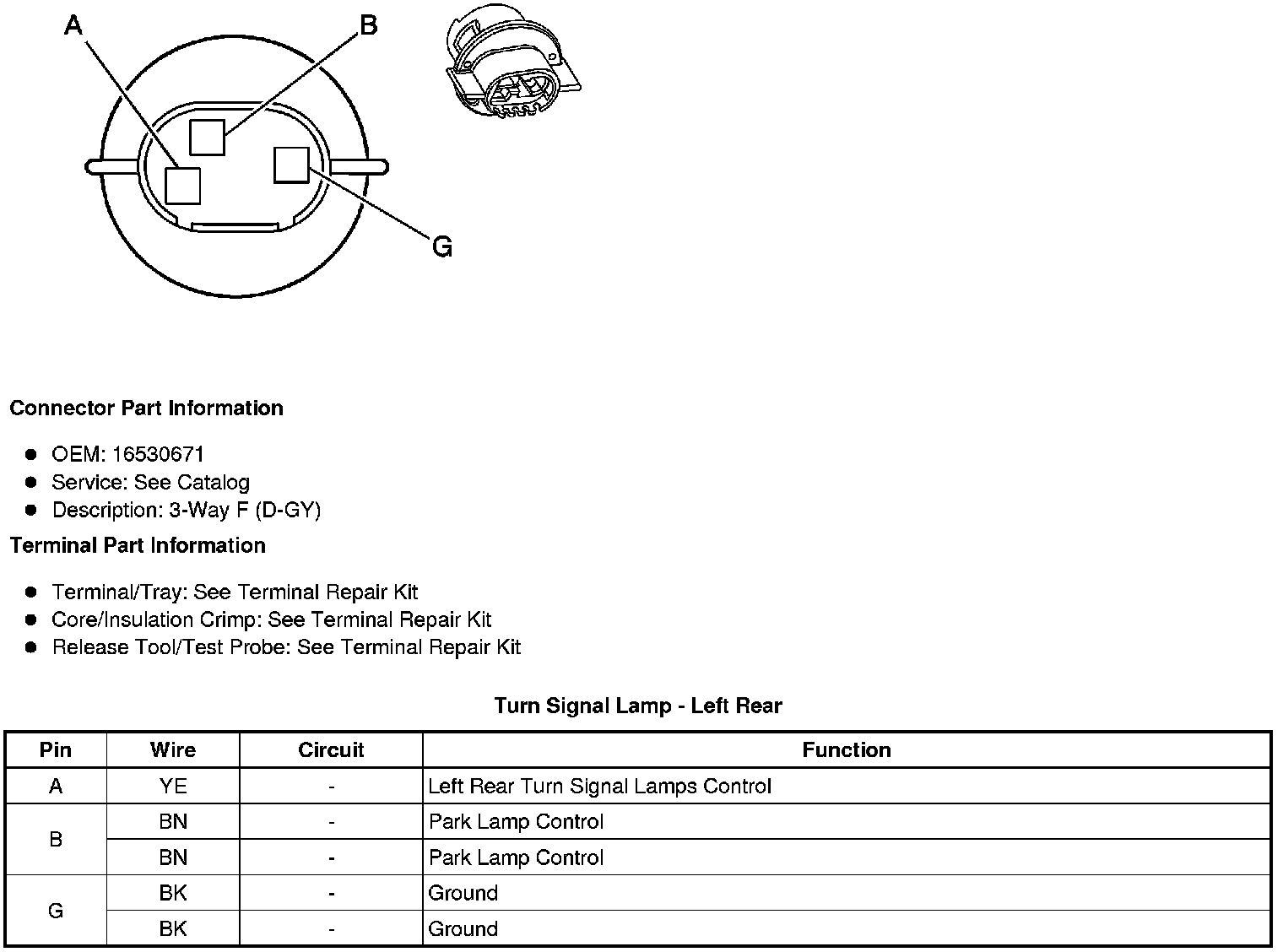

Turn Signal Lamp - Left Rear

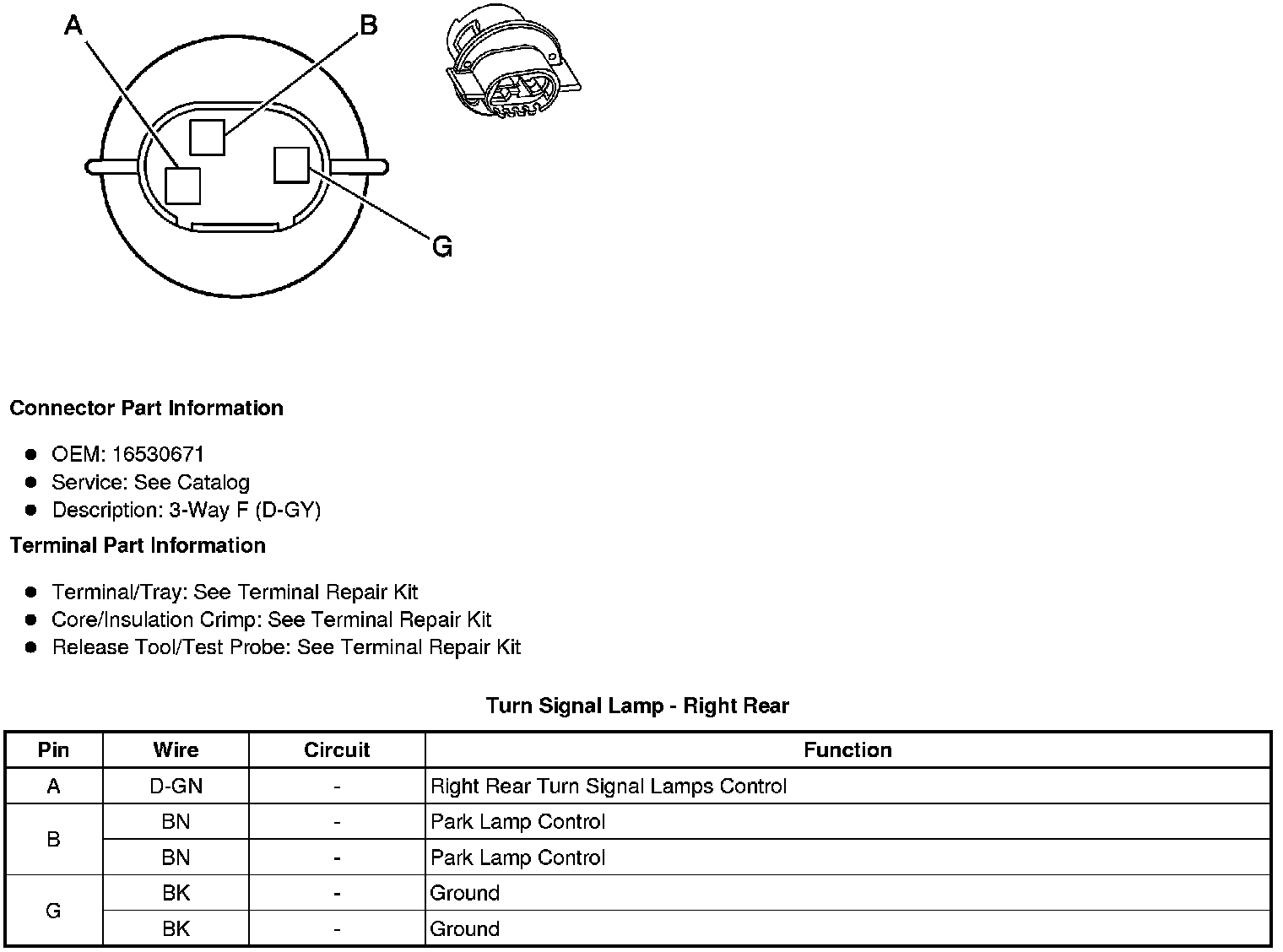

Turn Signal Lamp - Right Rear
