Radio/Navigation System Schematics

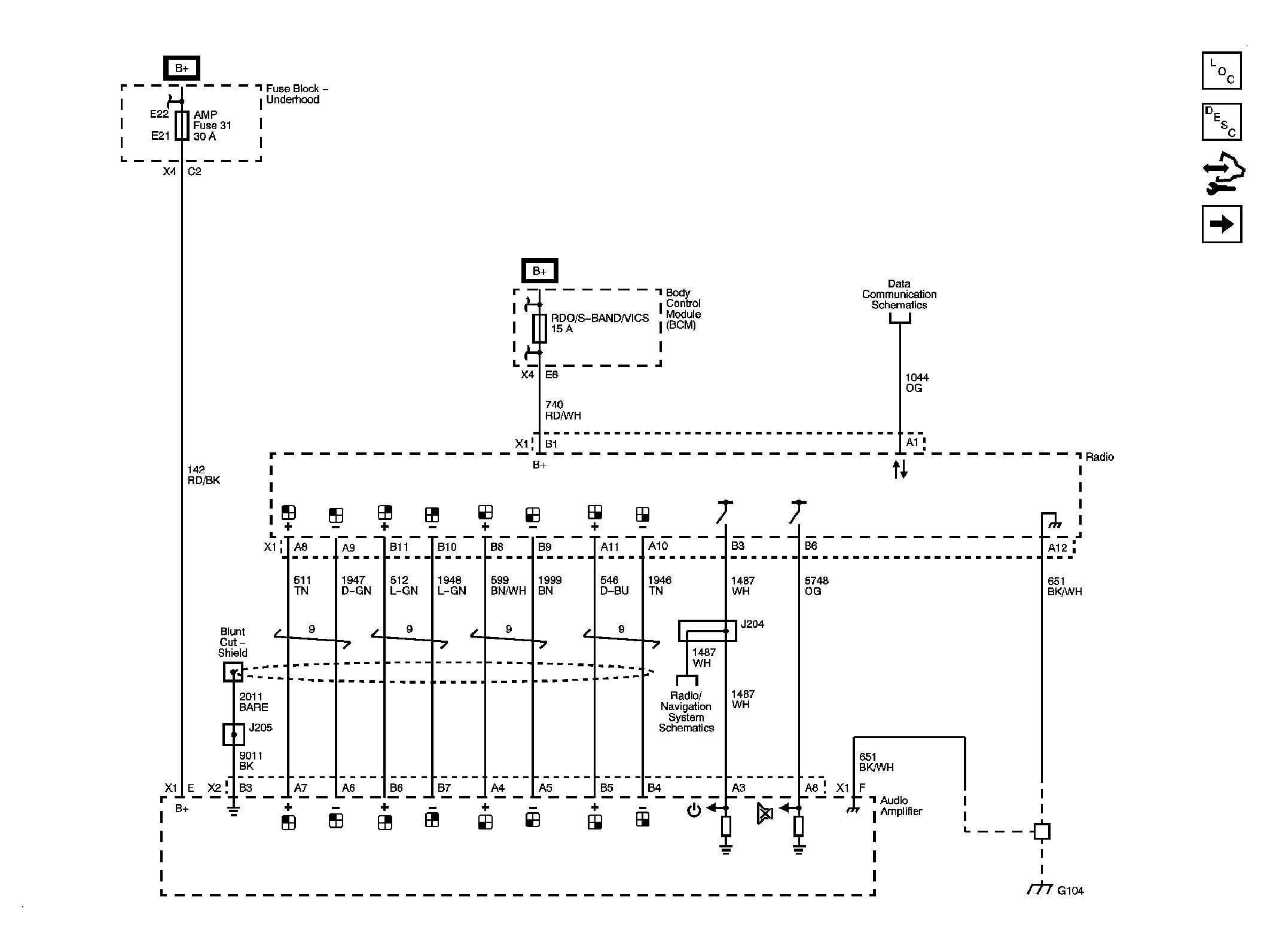

Fig 1: Power, Ground, Serial Data, Radio, Amplifier and Audio Signals Circuit Schematic (US8/U66)

Courtesy of GENERAL MOTORS CORP.

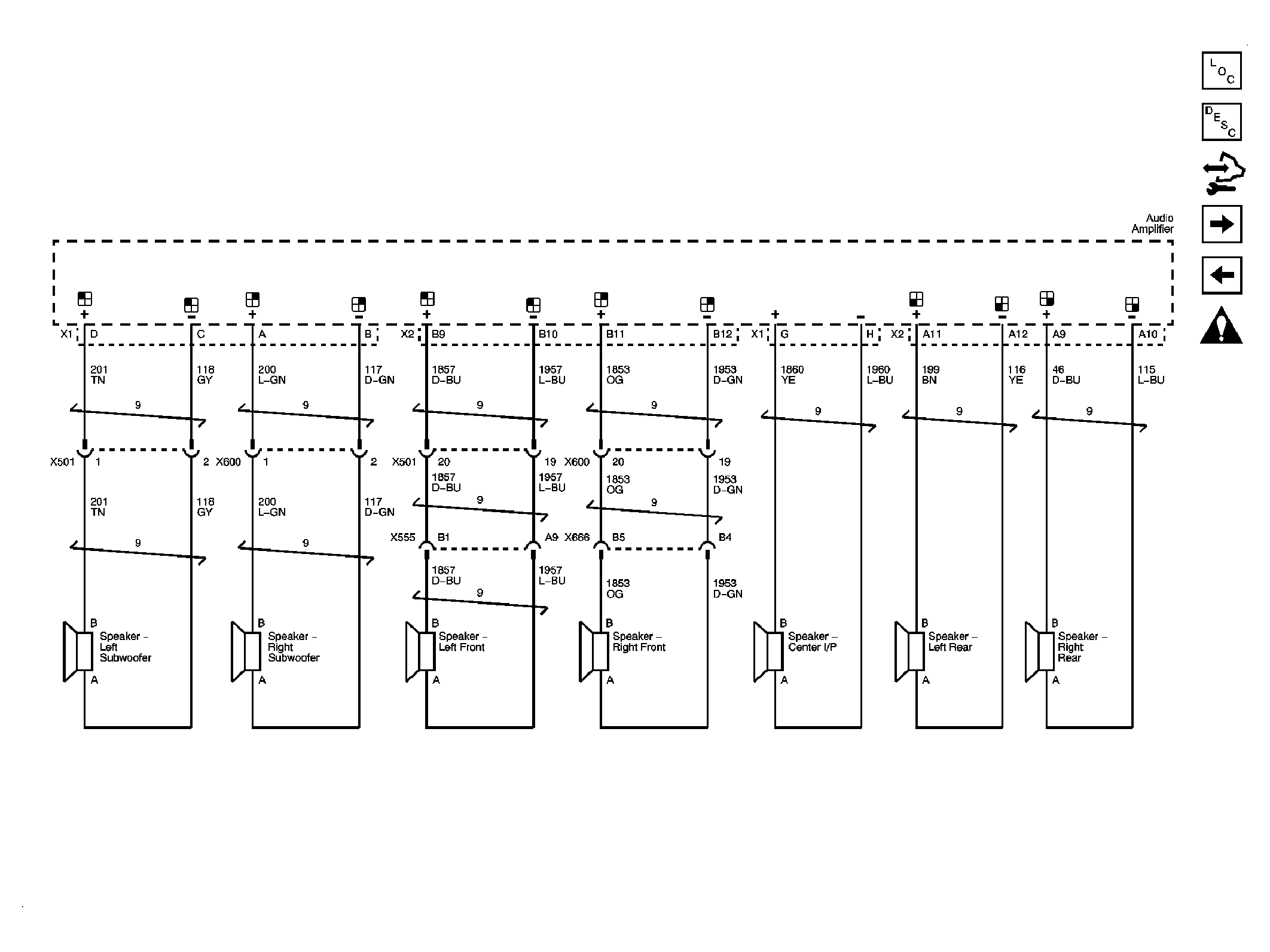

Fig 2: Speakers Circuit Schematic (U66)

Courtesy of GENERAL MOTORS CORP.

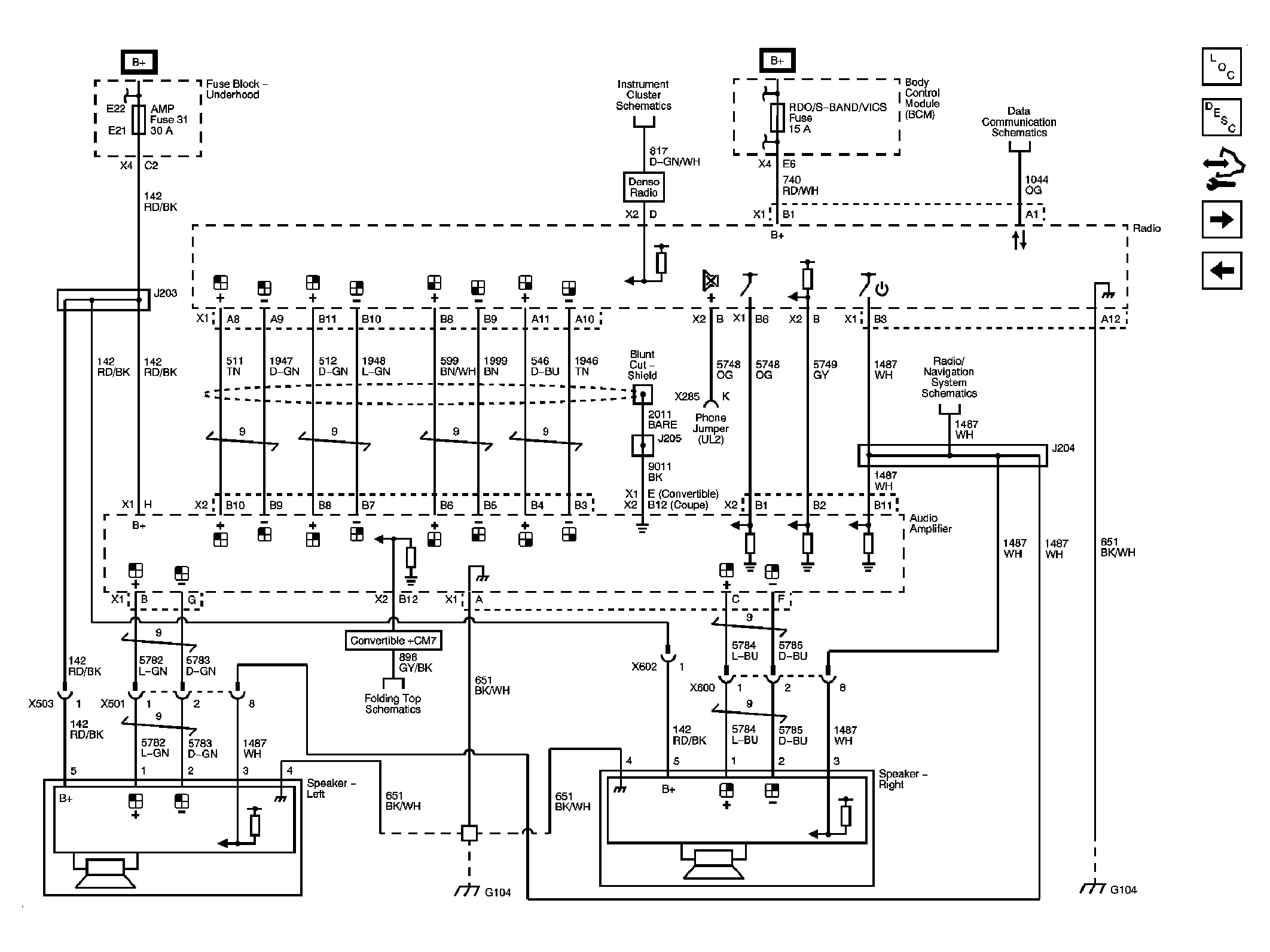

Fig 3: Power, Ground, Serial Data, Radio, Amplifier, Audio Signals & Front Speakers Circuit Schematic (U65)

Courtesy of GENERAL MOTORS CORP.

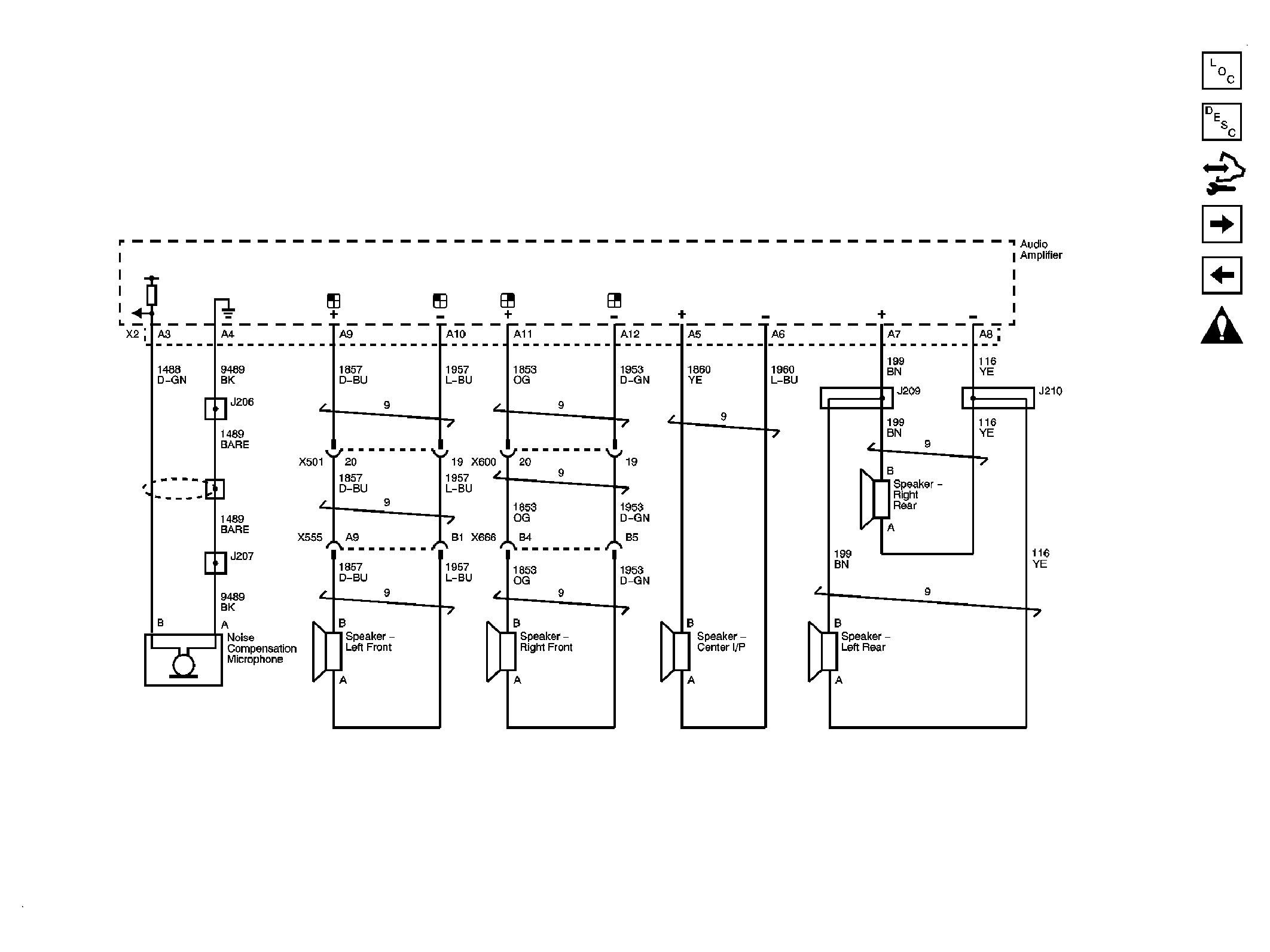

Fig 4: Speakers & Noise Compension Microphone Circuit Schematic (U65)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Antennas Except (U2K), Navigation & OnStar References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Satellite Radio Circuit Schematic (U2K)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Steering Wheel Controls Circuit Schematic (UK3)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Navigation Except Japan Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Japan Circuit Schematic (U32)

Courtesy of GENERAL MOTORS CORP.
