Engine Controls Schematics (LS7)

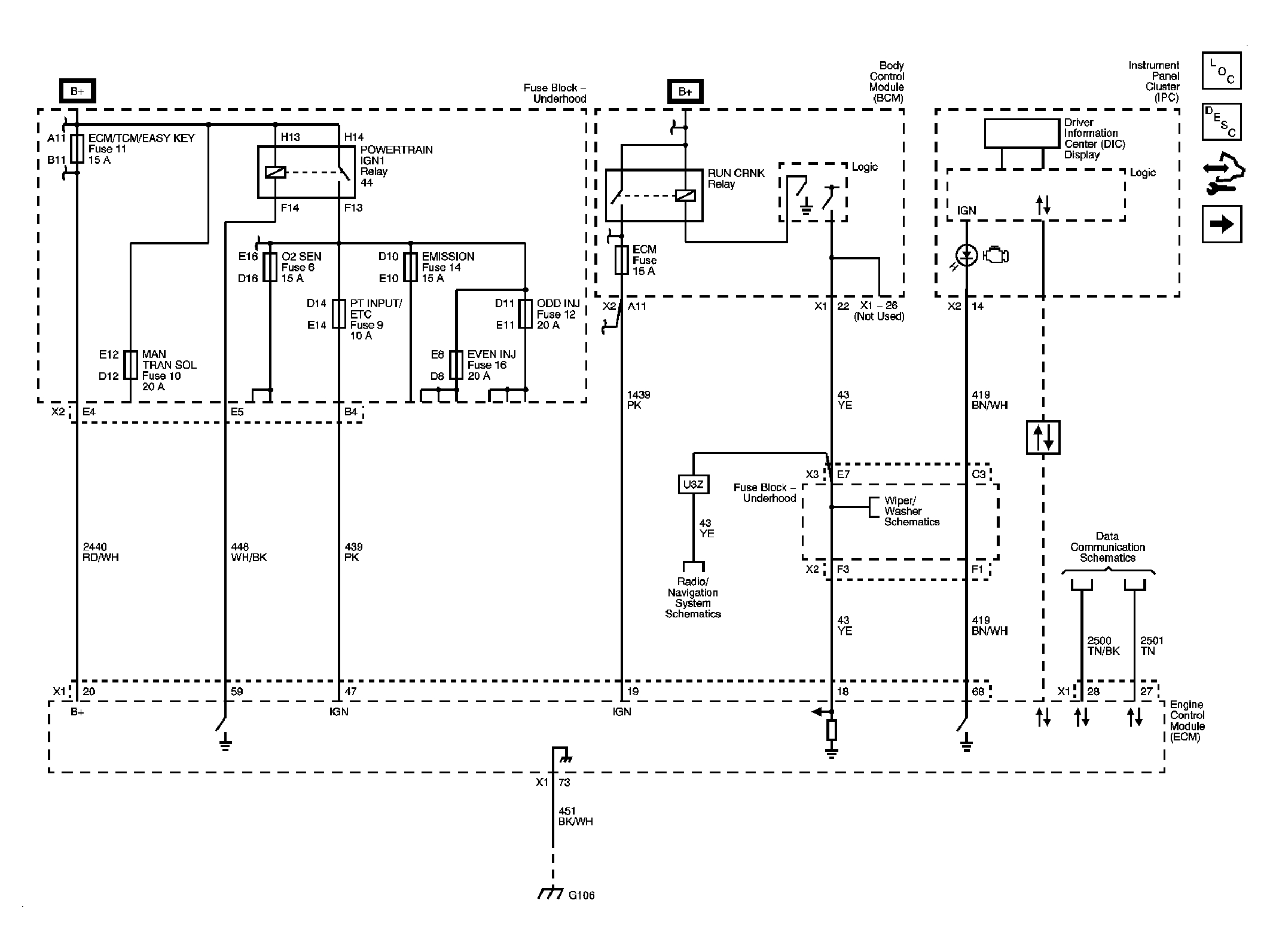

Fig 1: ECM Power, Ground, MIL & Serial Data Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

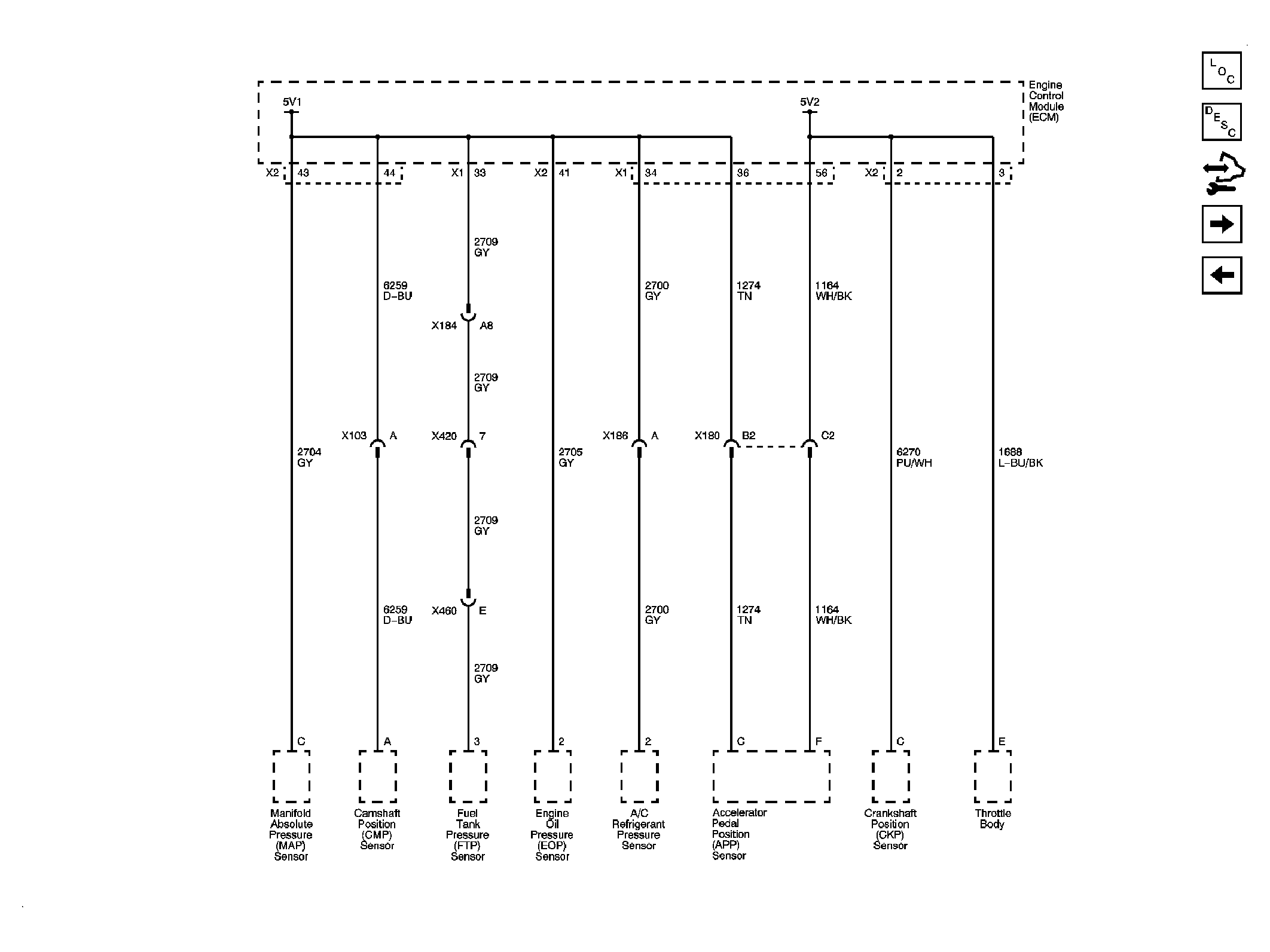

Fig 2: 5-Volt Reference Bussing Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

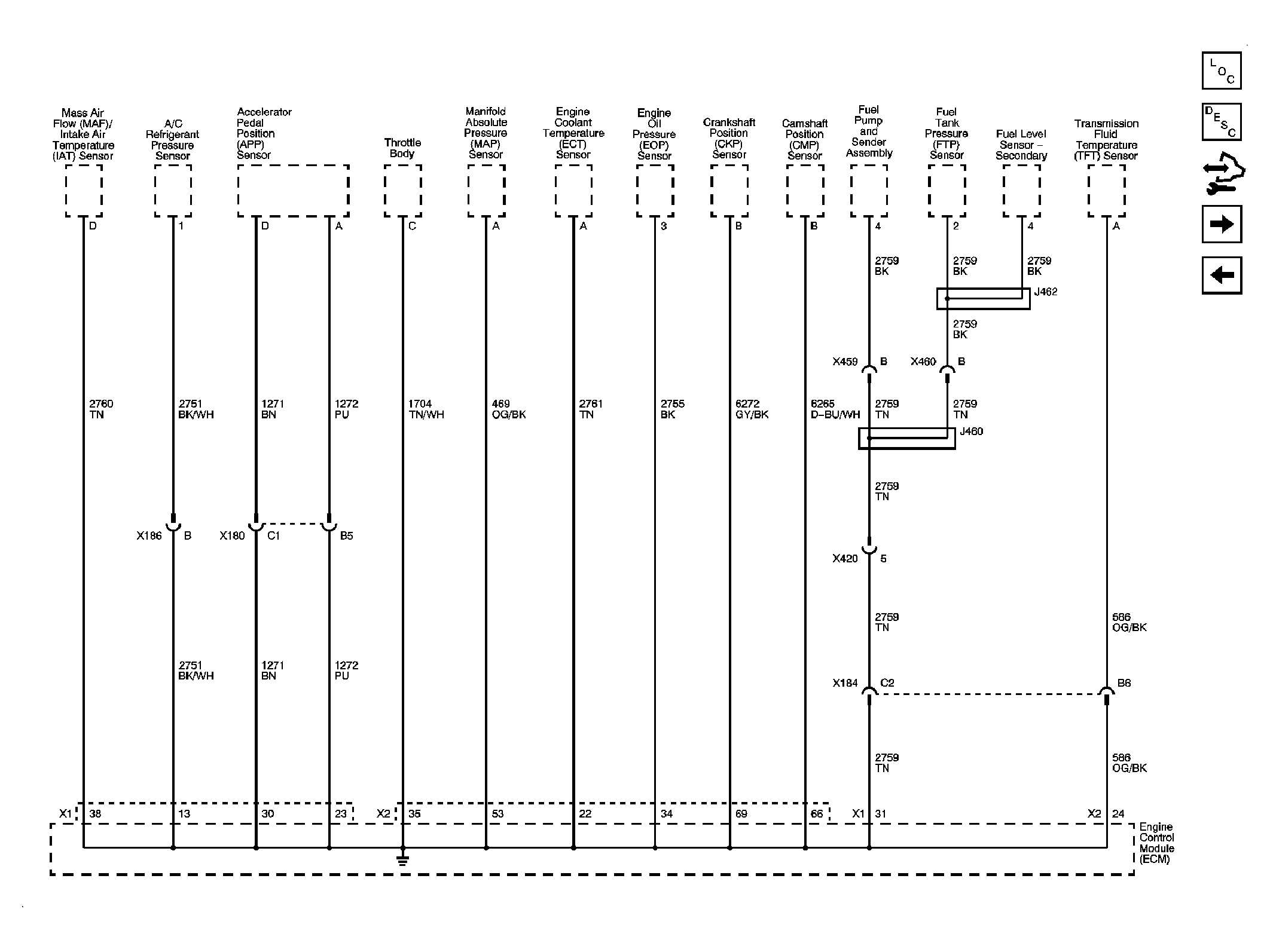

Fig 3: Low Reference Bussing Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

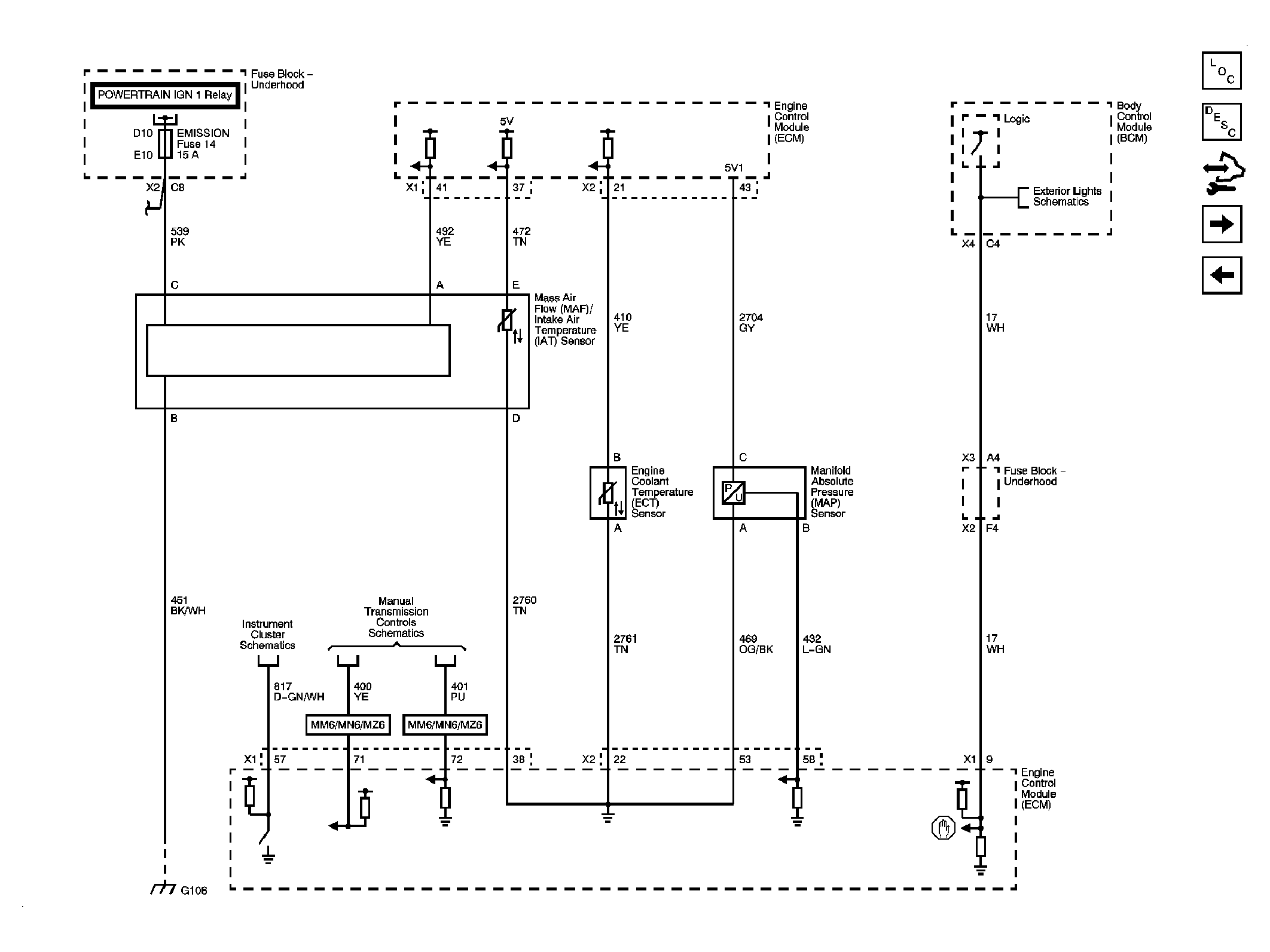

Fig 4: IAT/MAF, MAP, ECT Sensors, VSS & Stop Lamp Signals Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

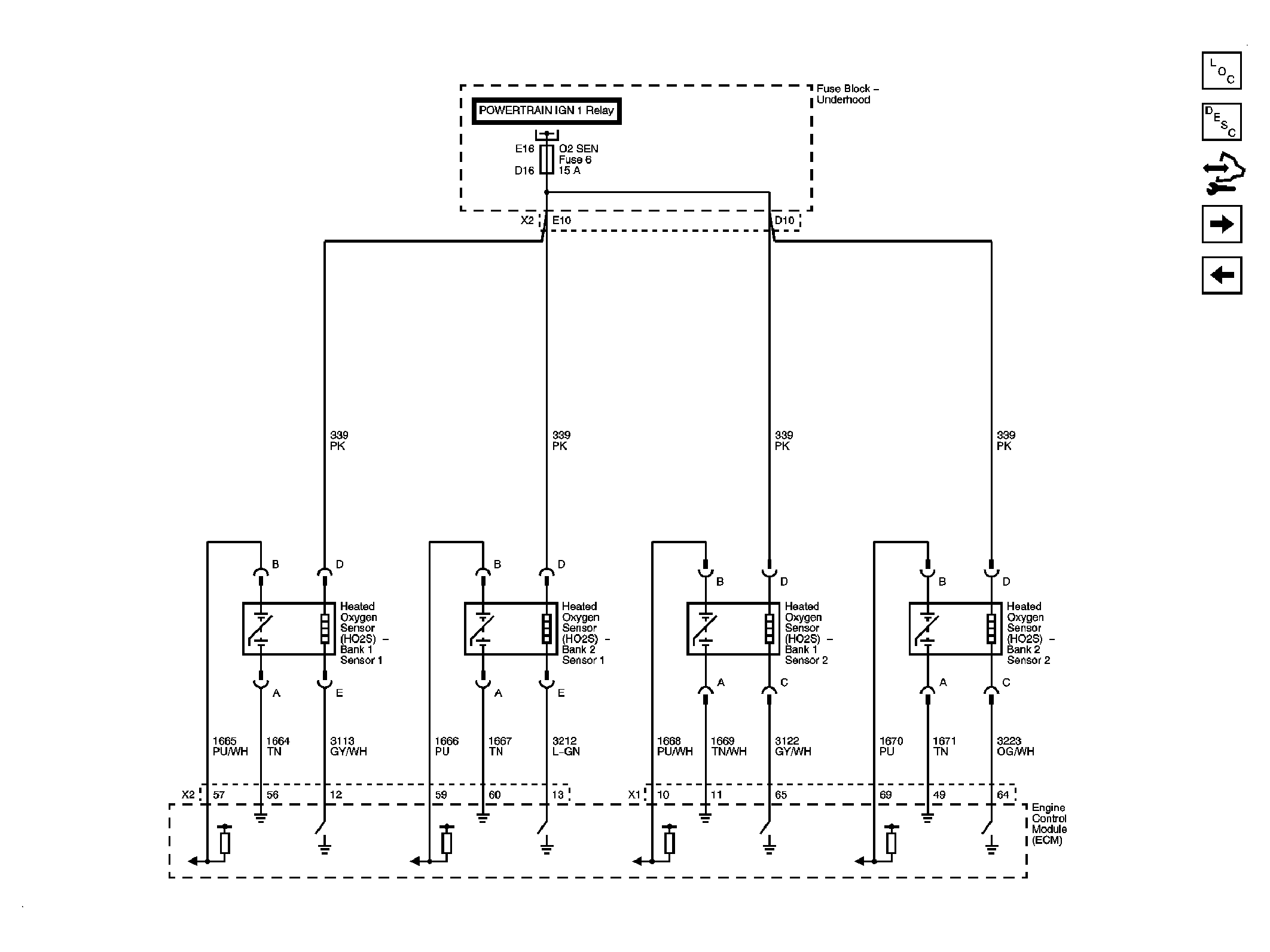

Fig 5: Heated Oxygen Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Electronic Throttle Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

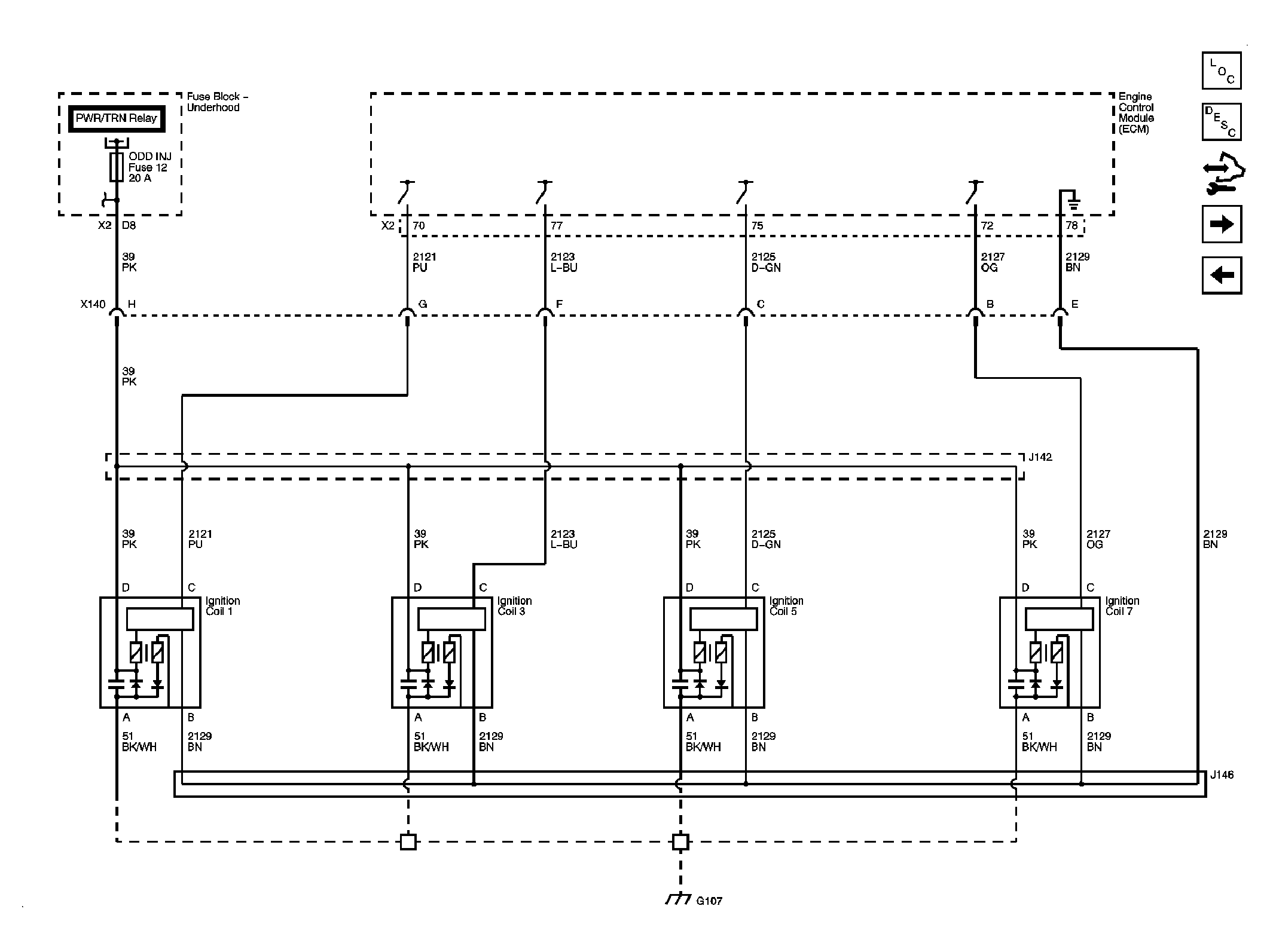

Fig 7: Ignition Controls Bank 1 (Odd) Ignition Coils Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

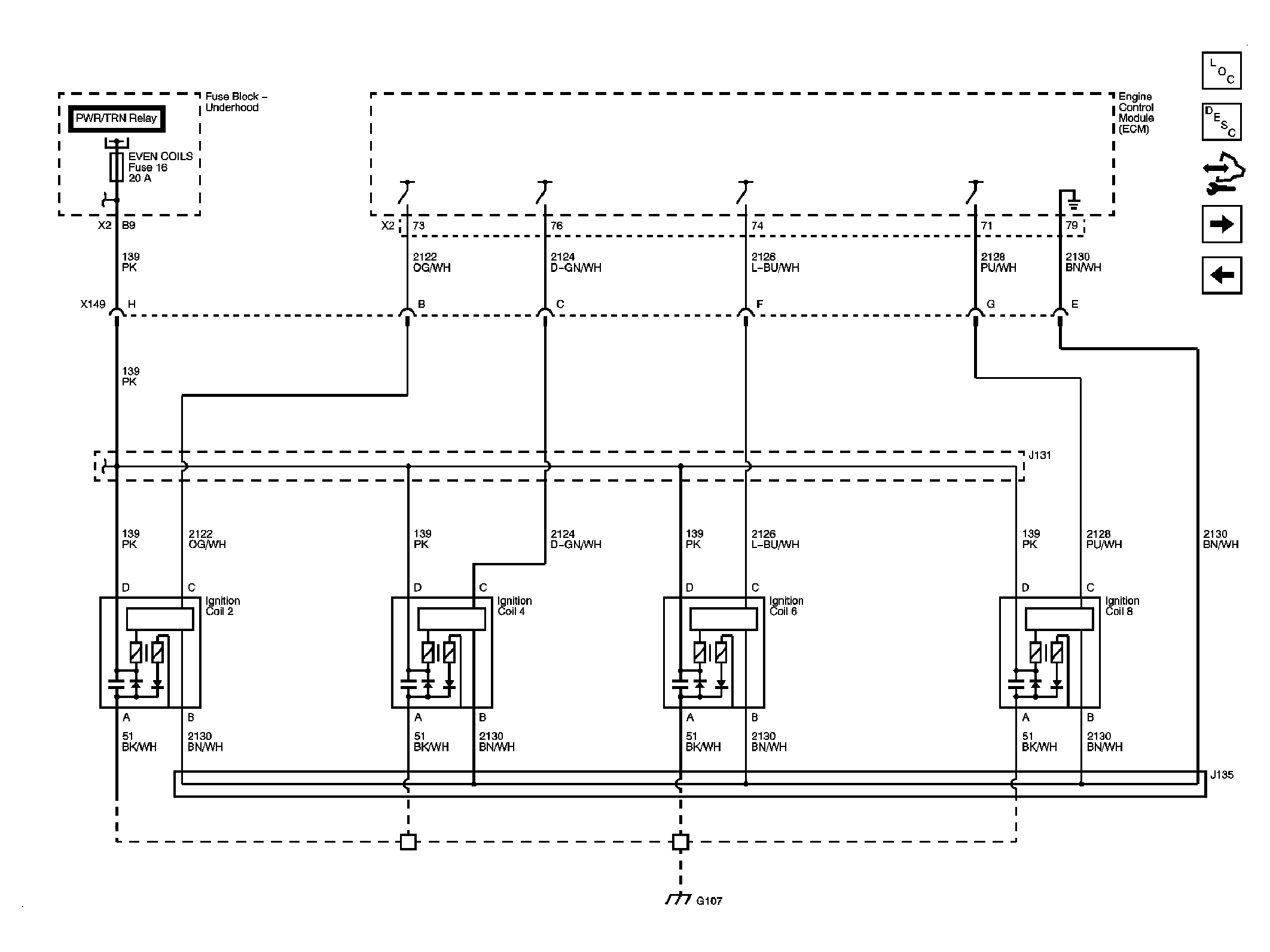

Fig 8: Ignition Controls Bank 2 (Even) Ignition Coils Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Ignition Controls - CMP, CKP & KS Sensors Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

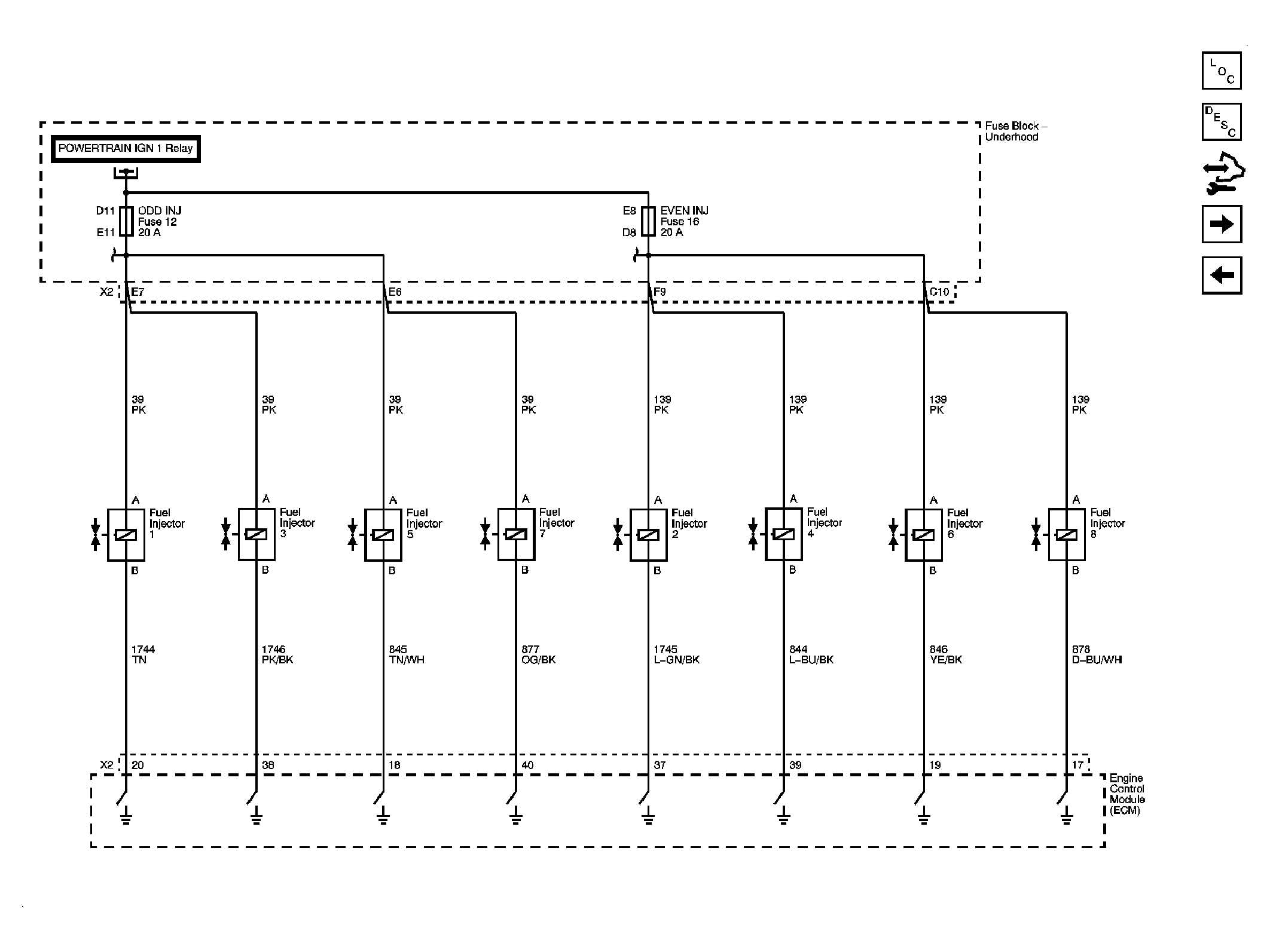

Fig 10: Fuel injectors & Fuel Pump Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

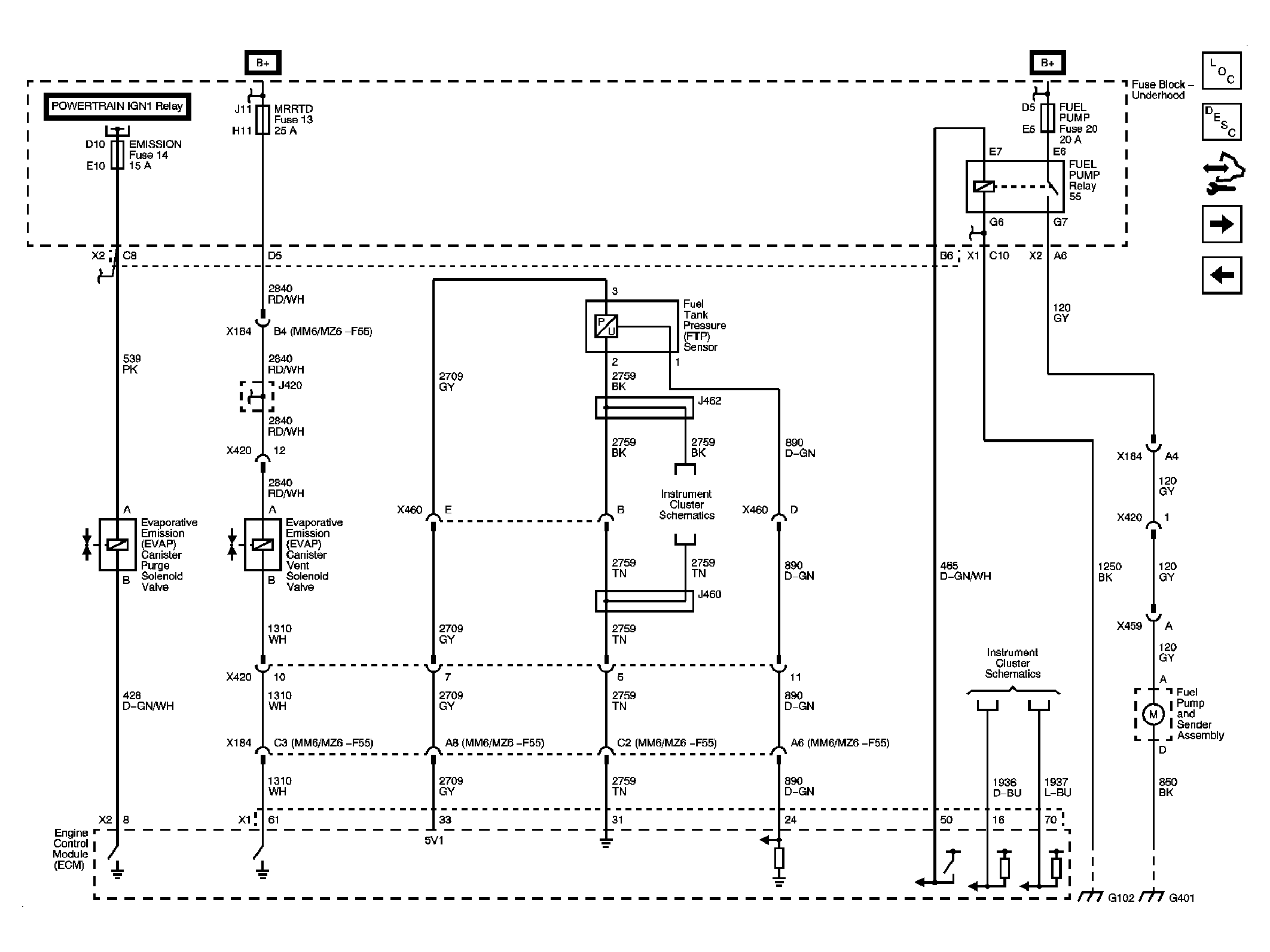

Fig 11: EVAP Solenoids & FTP Sensor Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 12: Controlled/Monitored Subsystem References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
