Fuel Pressure Control Module




Component Connector End Views

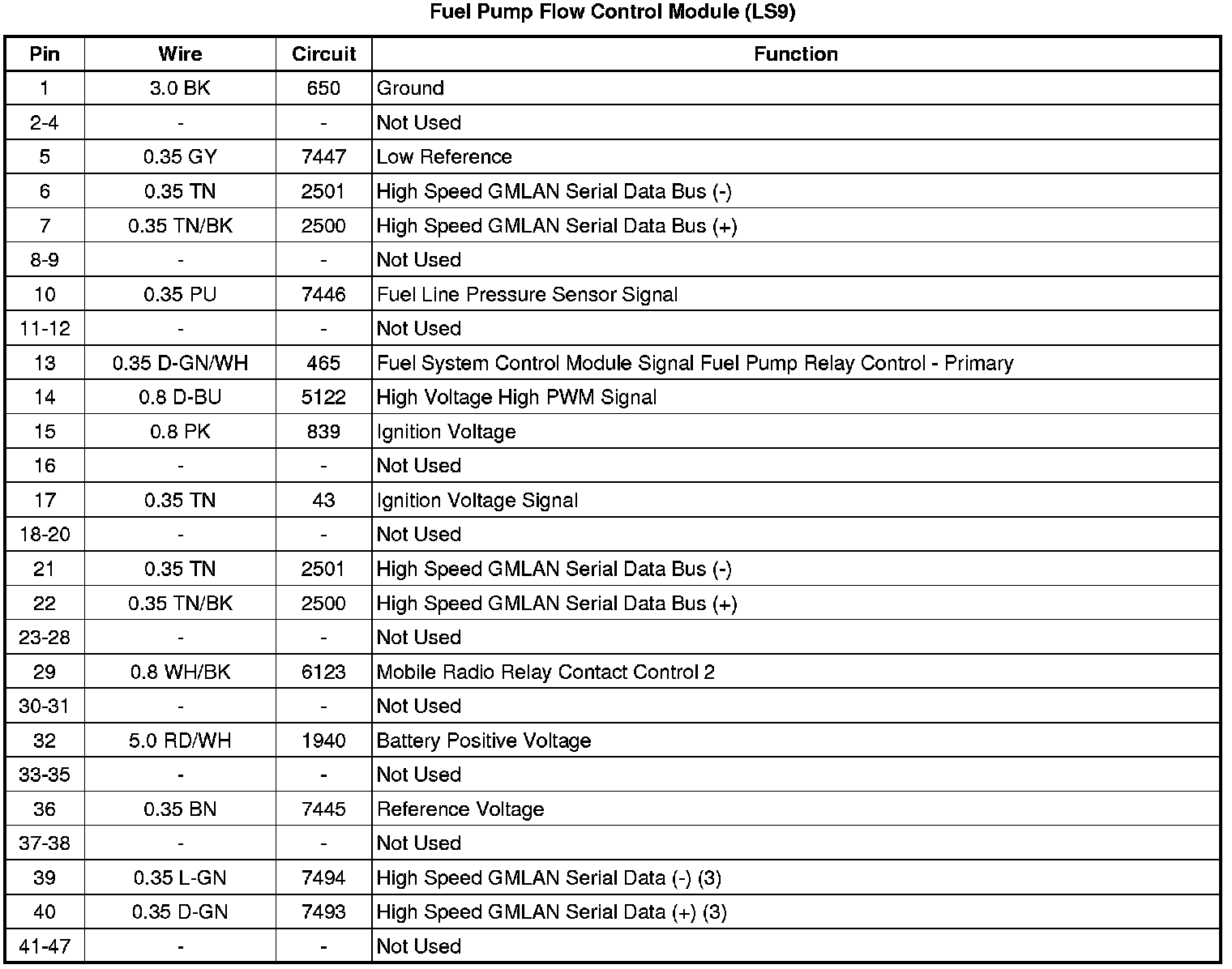

Fuel Pump Flow Control Module (LS9)

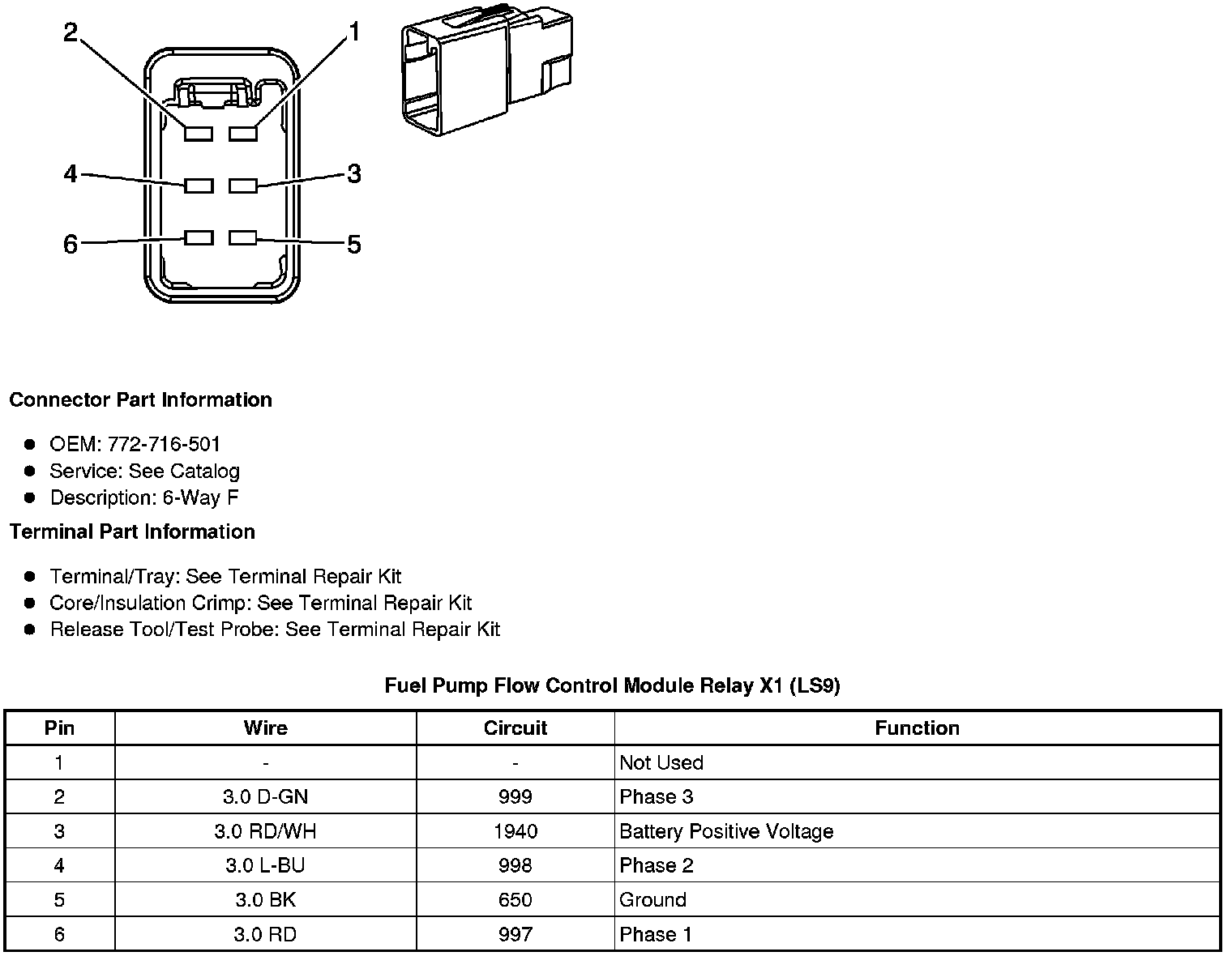

Fuel Pump Flow Control Module Relay X1 (LS9)

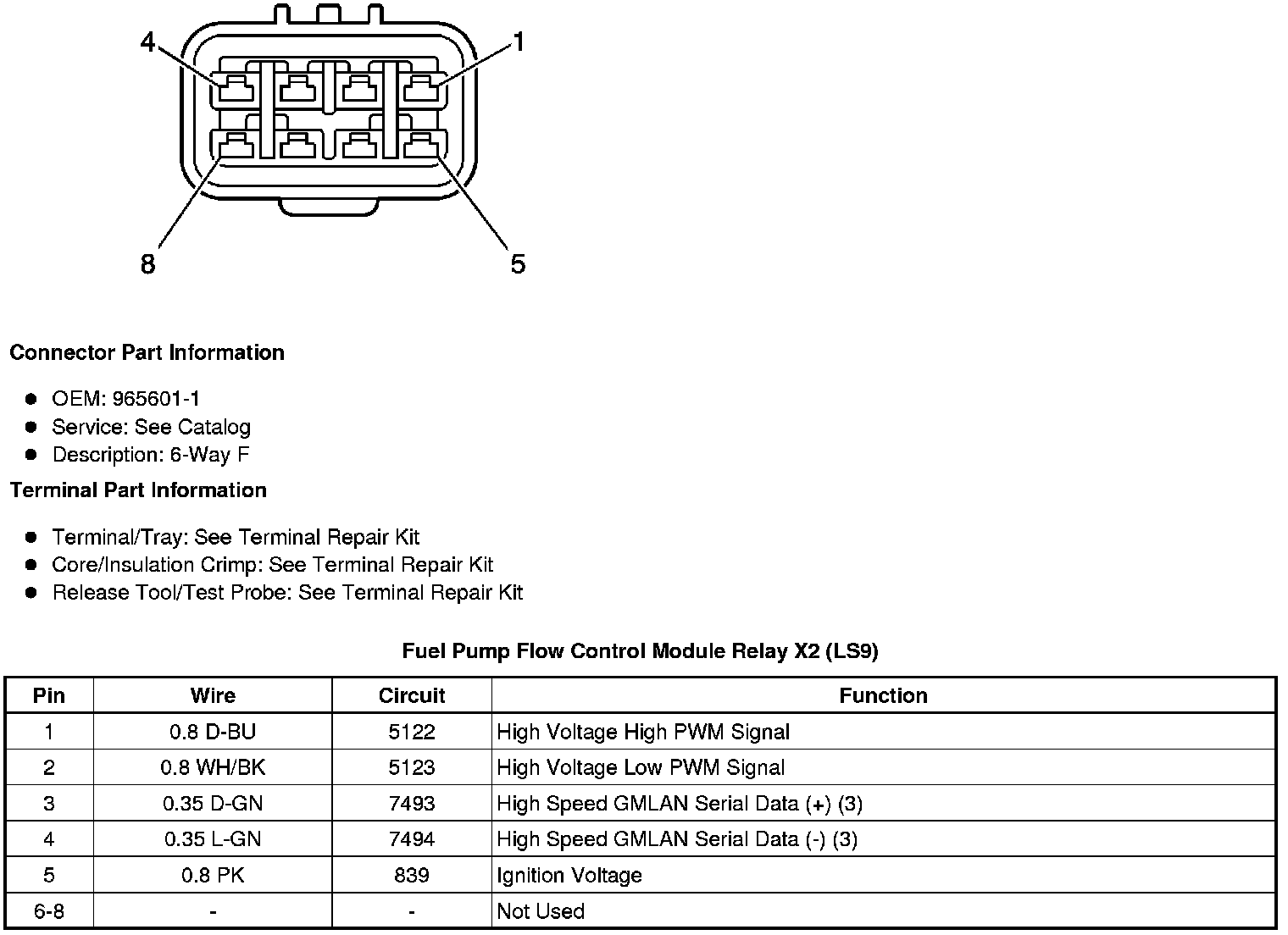

Fuel Pump Flow Control Module Relay X2 (LS9)
