Harness Routing Views

Harness Routing Views

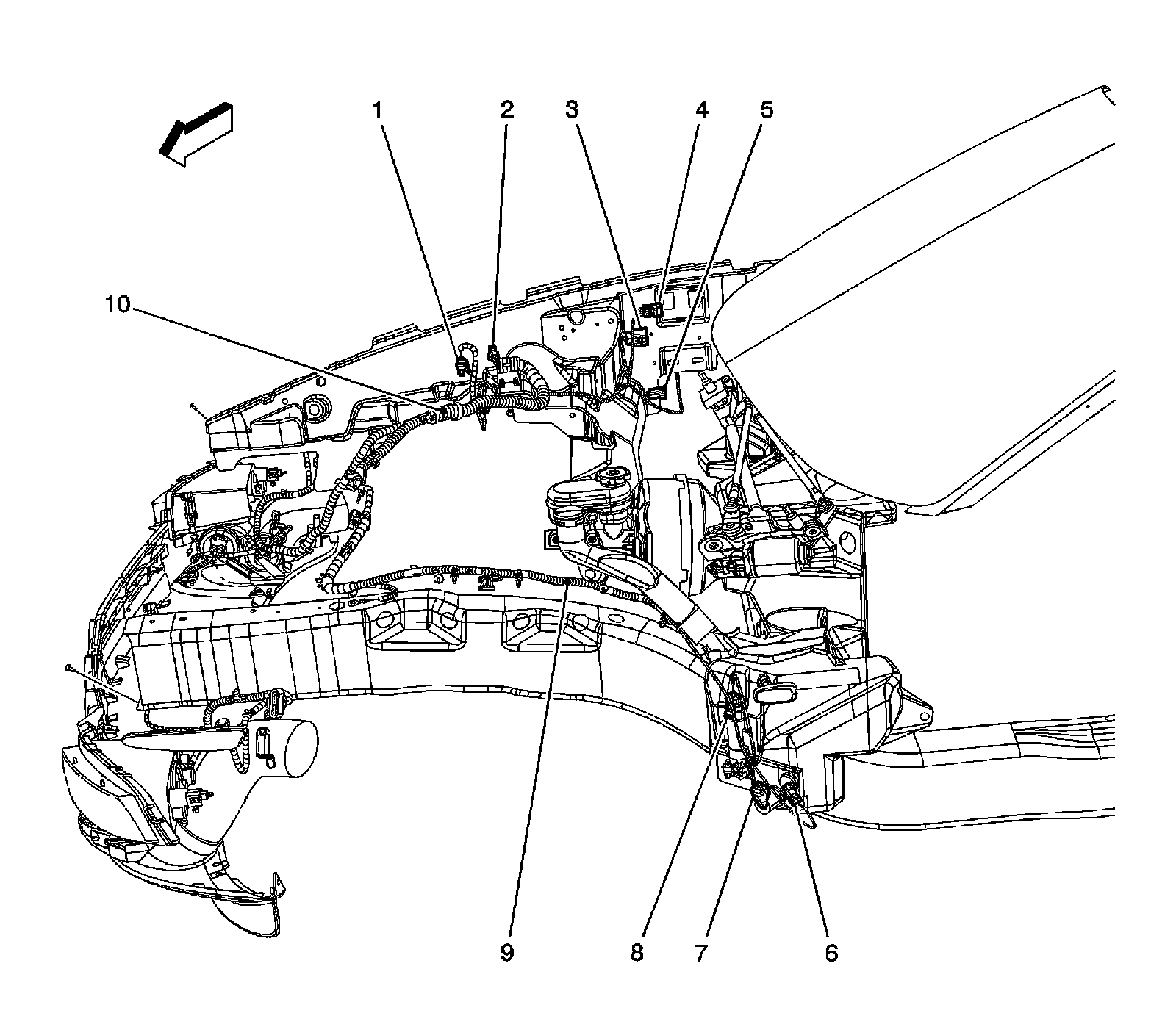

Forward Lamp Wiring Components 2 of 2




1 - A/C Refrigerant Pressure Sensor
2 - Hood Ajar Switch
3 - X166
4 - X186
5 - X168 (F55)
6 - Windshield Washer Fluid Level Switch
7 - Windshield Washer Fluid Pump
8 - Headlamp Washer Fluid Pump (CE4)
9 - J101
10 - J103
