Oxygen Sensor: Diagrams




Component Connector End Views

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (LS9)

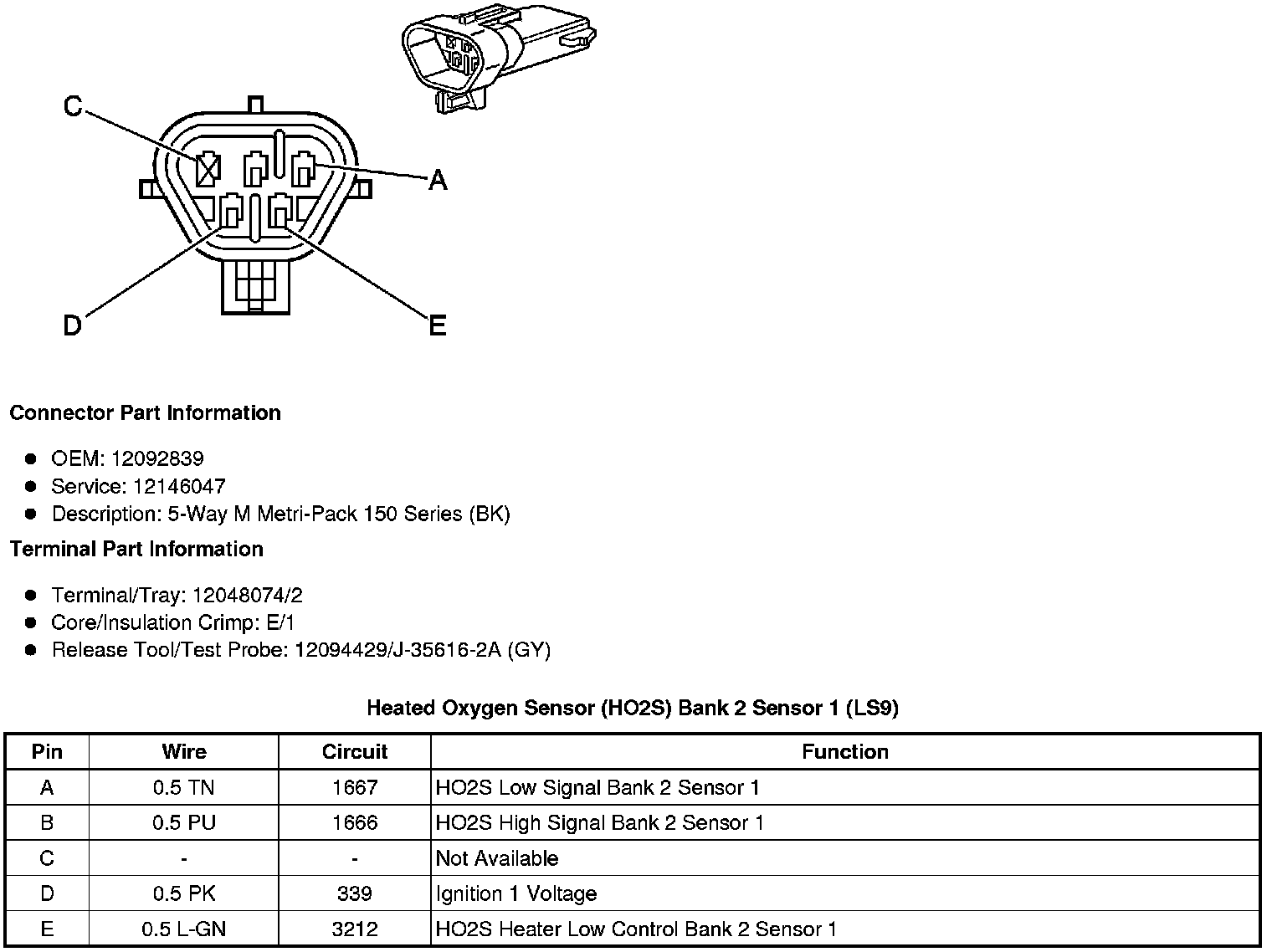

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (LS9)






Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2






Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
