Impact Sensor




Component Connector End Views

Inflatable Restraint Front End Sensor - Left (LS7/LS9)






Inflatable Restraint Front End Sensor - Right (LS7/LS9)

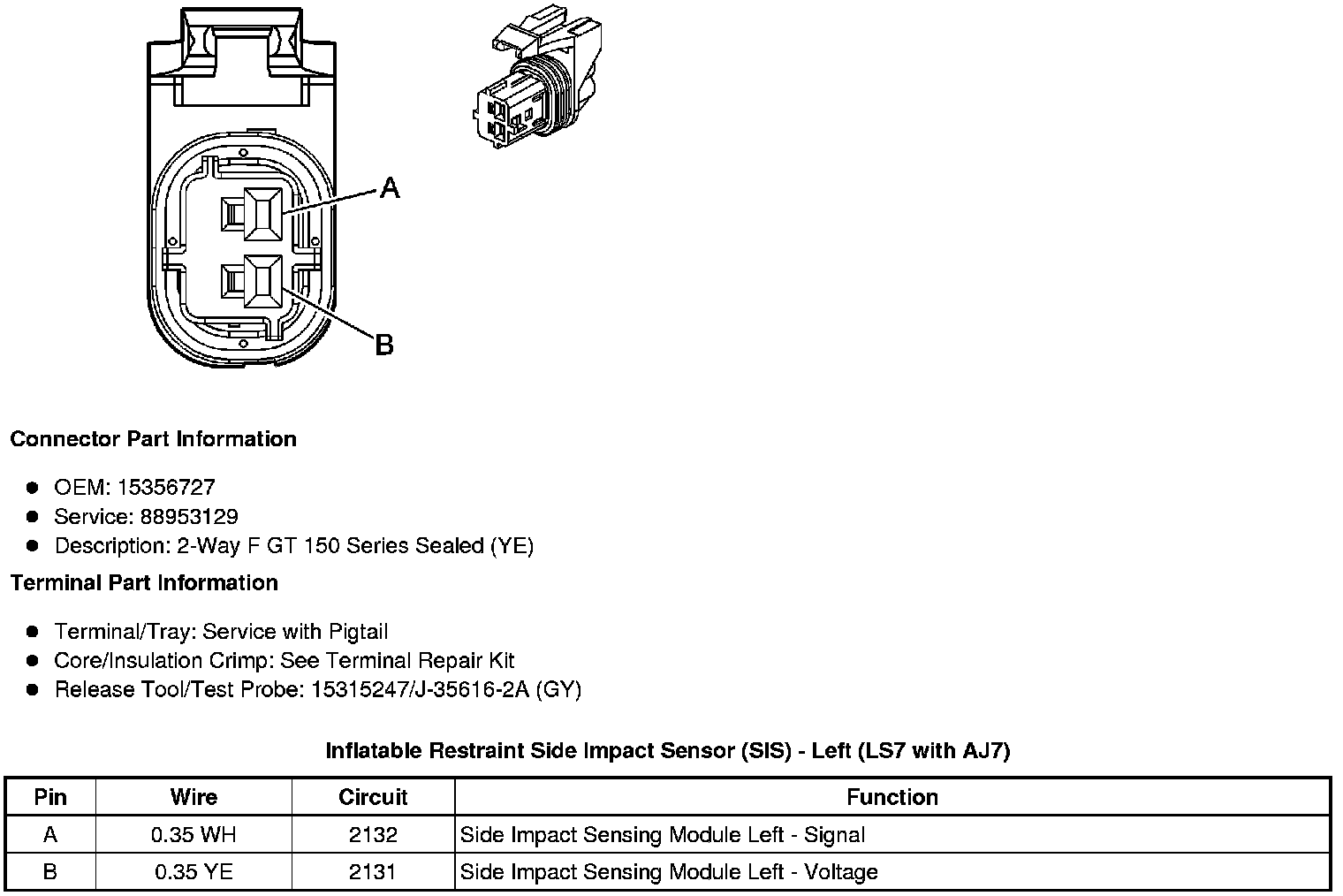

Inflatable Restraint Side Impact Sensor (SIS) - Left (LS7 with AJ7)

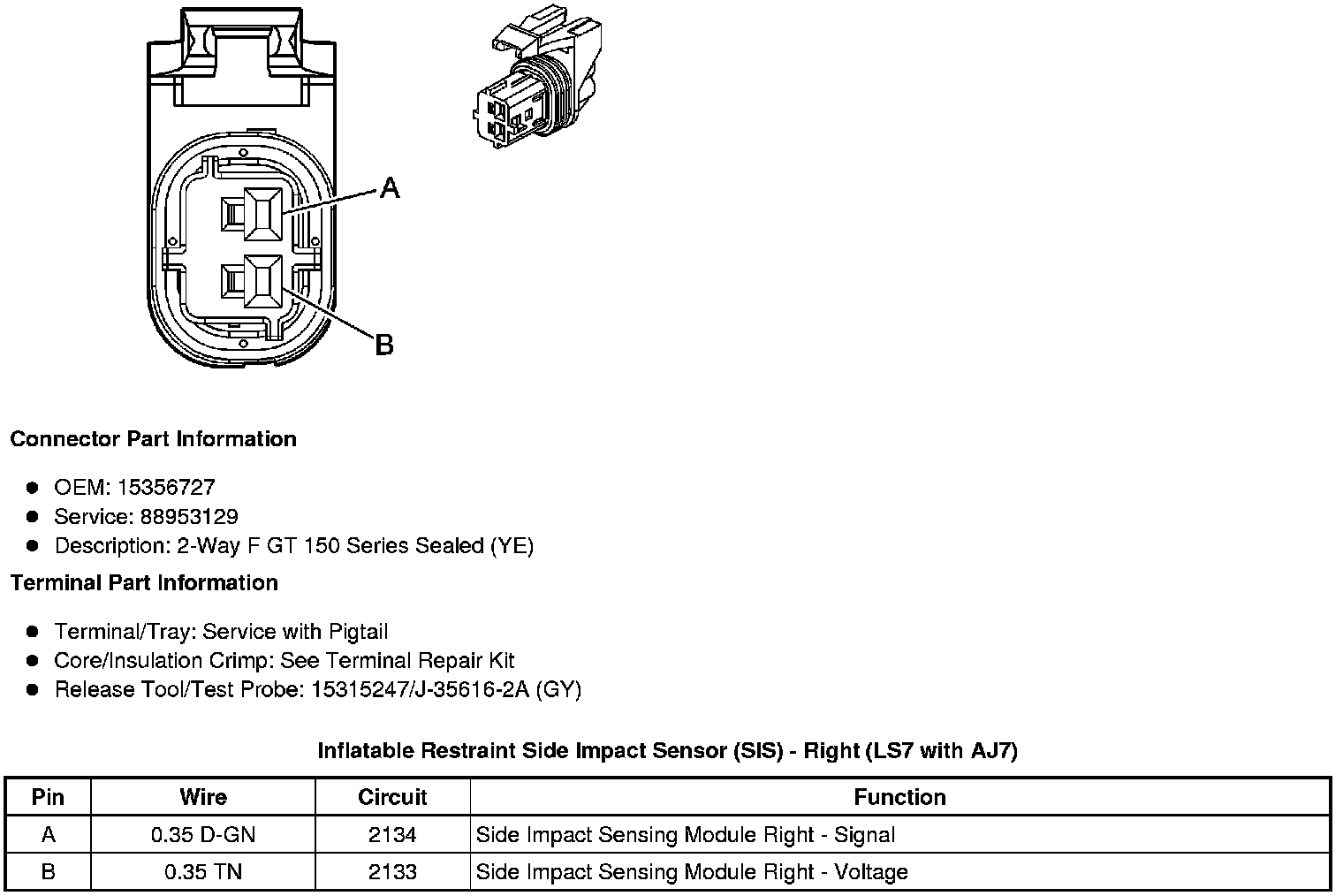

Inflatable Restraint Side Impact Sensor (SIS) - Right (LS7 with AJ7)
