Automatic Transmission Views




Harness Routing Views

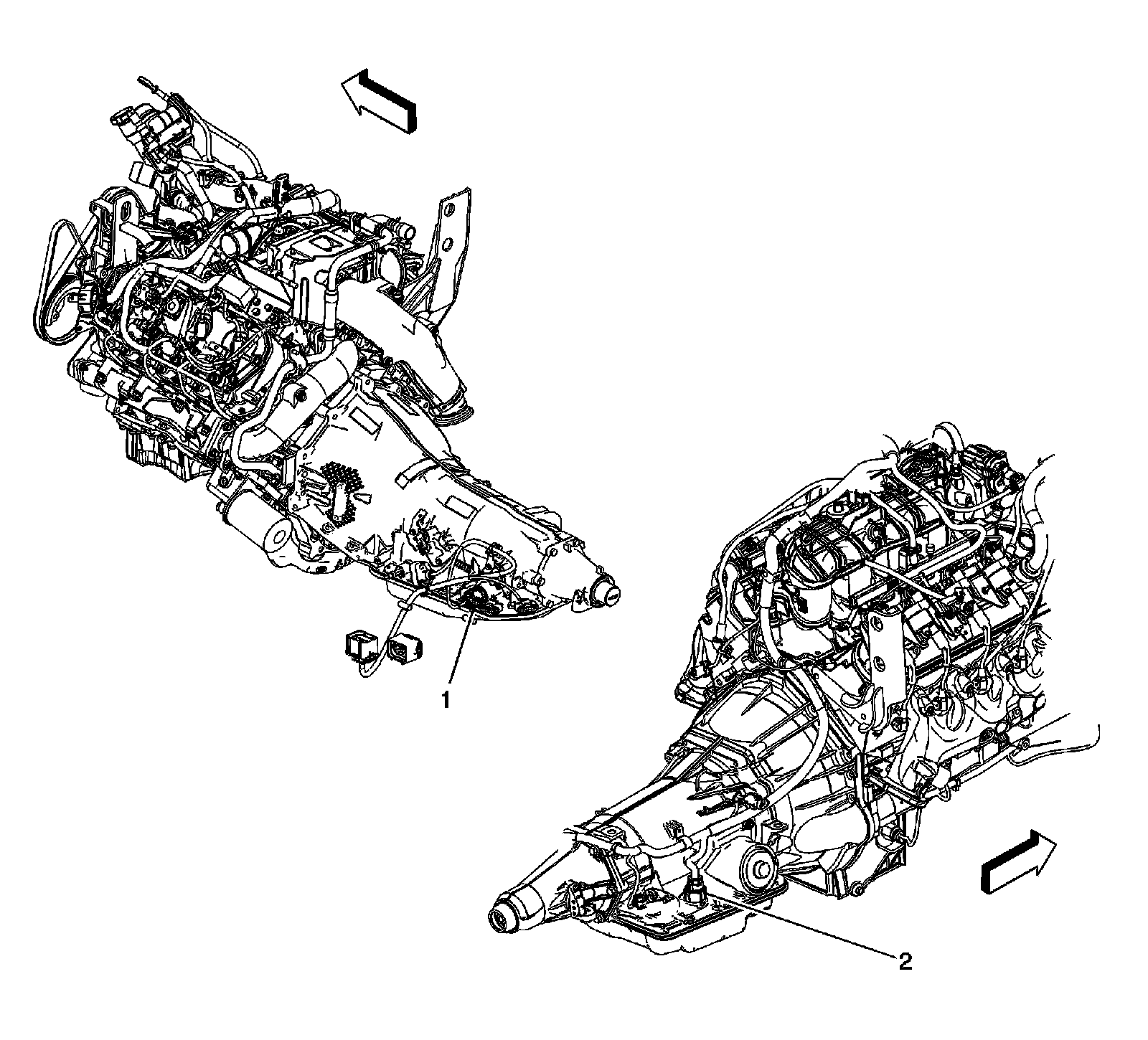

Automatic Transmission (4L60-E/4L80-E)




1 - X175 (4L80-E)
2 - X175 (4L60-E)
