Ignition Coil: Diagrams




Component Connector End Views

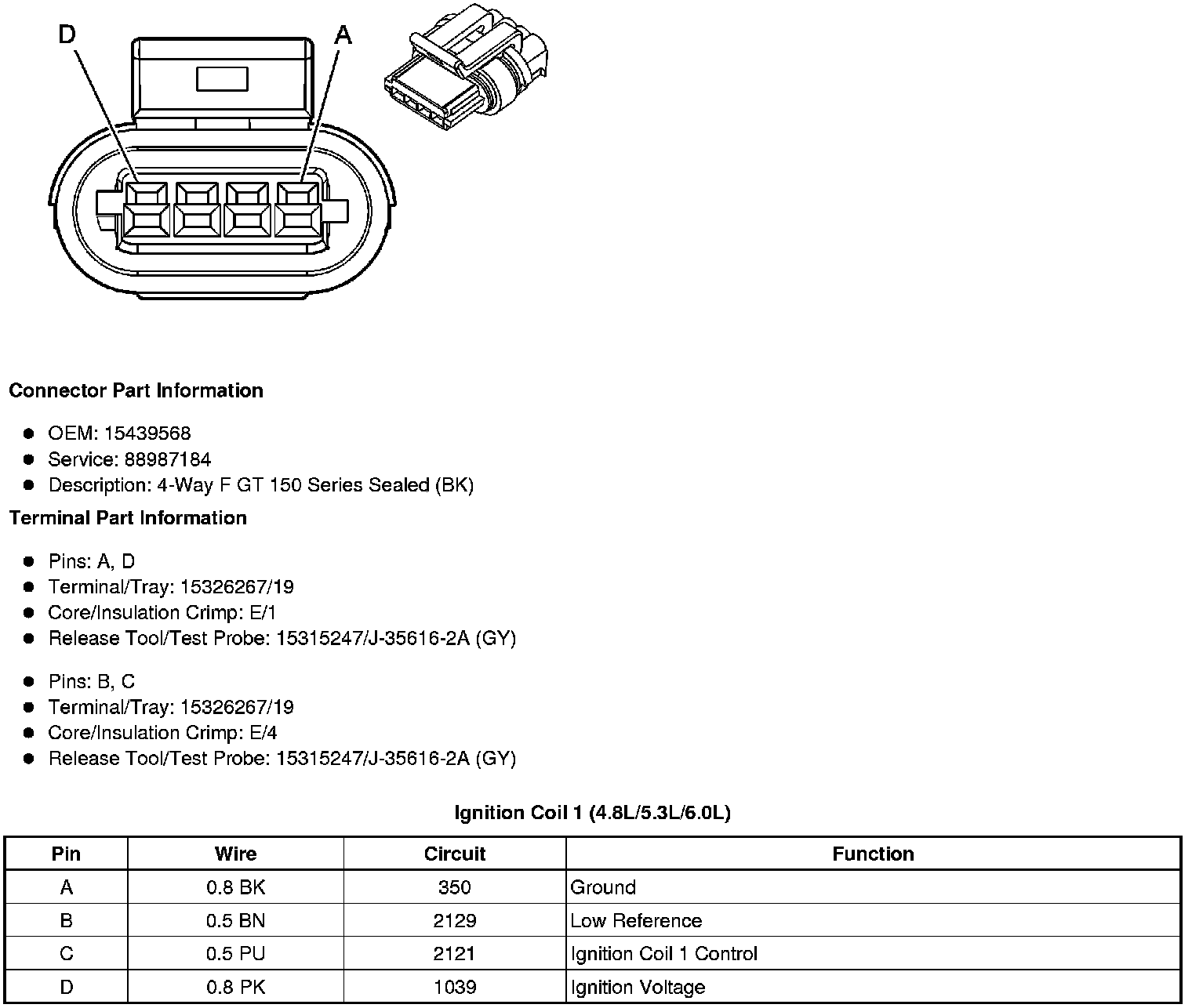

Ignition Coil 1 (4.8L/5.3L/6.0L)






Ignition Coil 2 (4.8L/5.3L/6.0L)

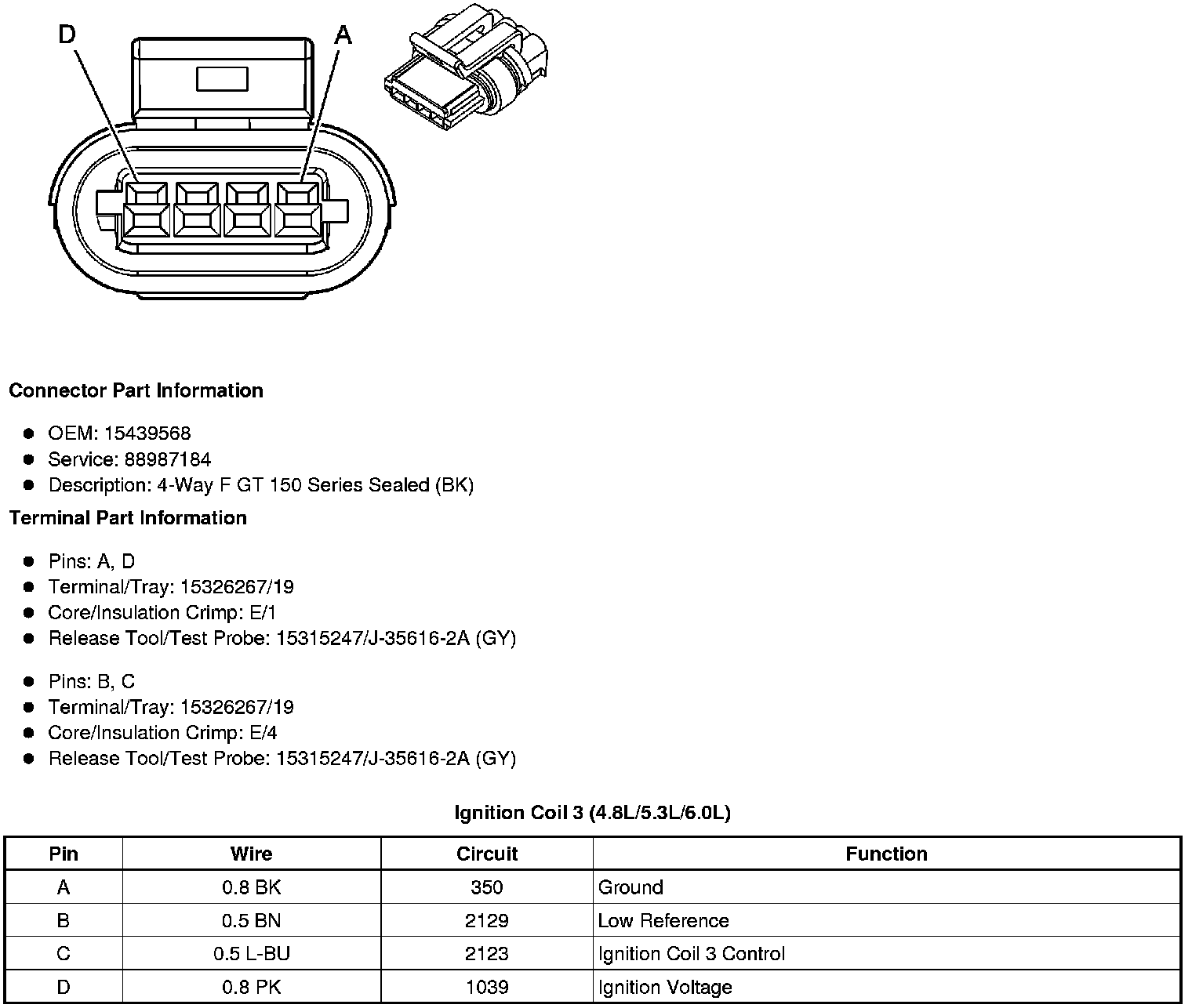

Ignition Coil 3 (4.8L/5.3L/6.0L)

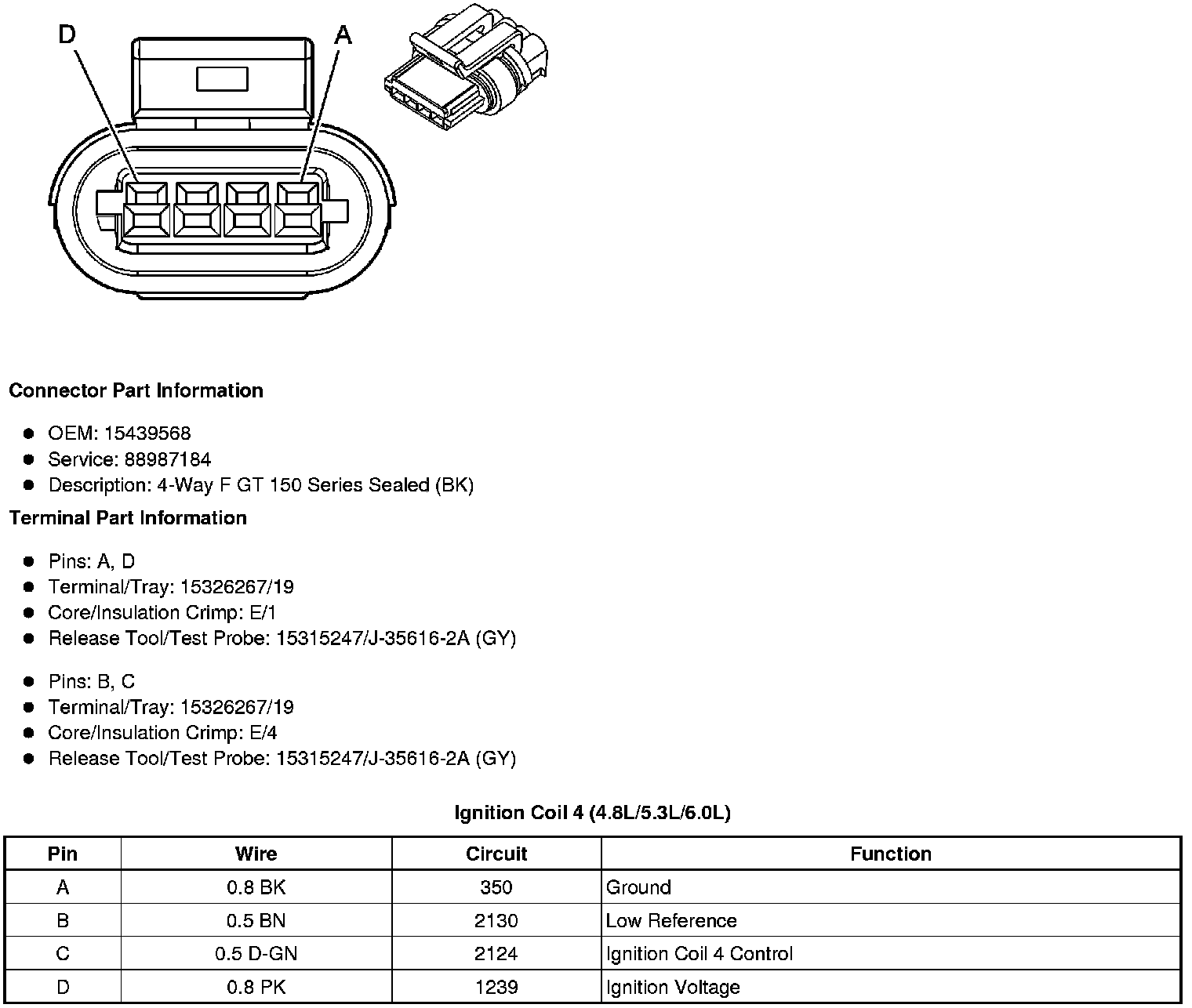

Ignition Coil 4 (4.8L/5.3L/6.0L)






Ignition Coil 5 (4.8L/5.3L/6.0L)






Ignition Coil 6 (4.8L/5.3L/6.0L)

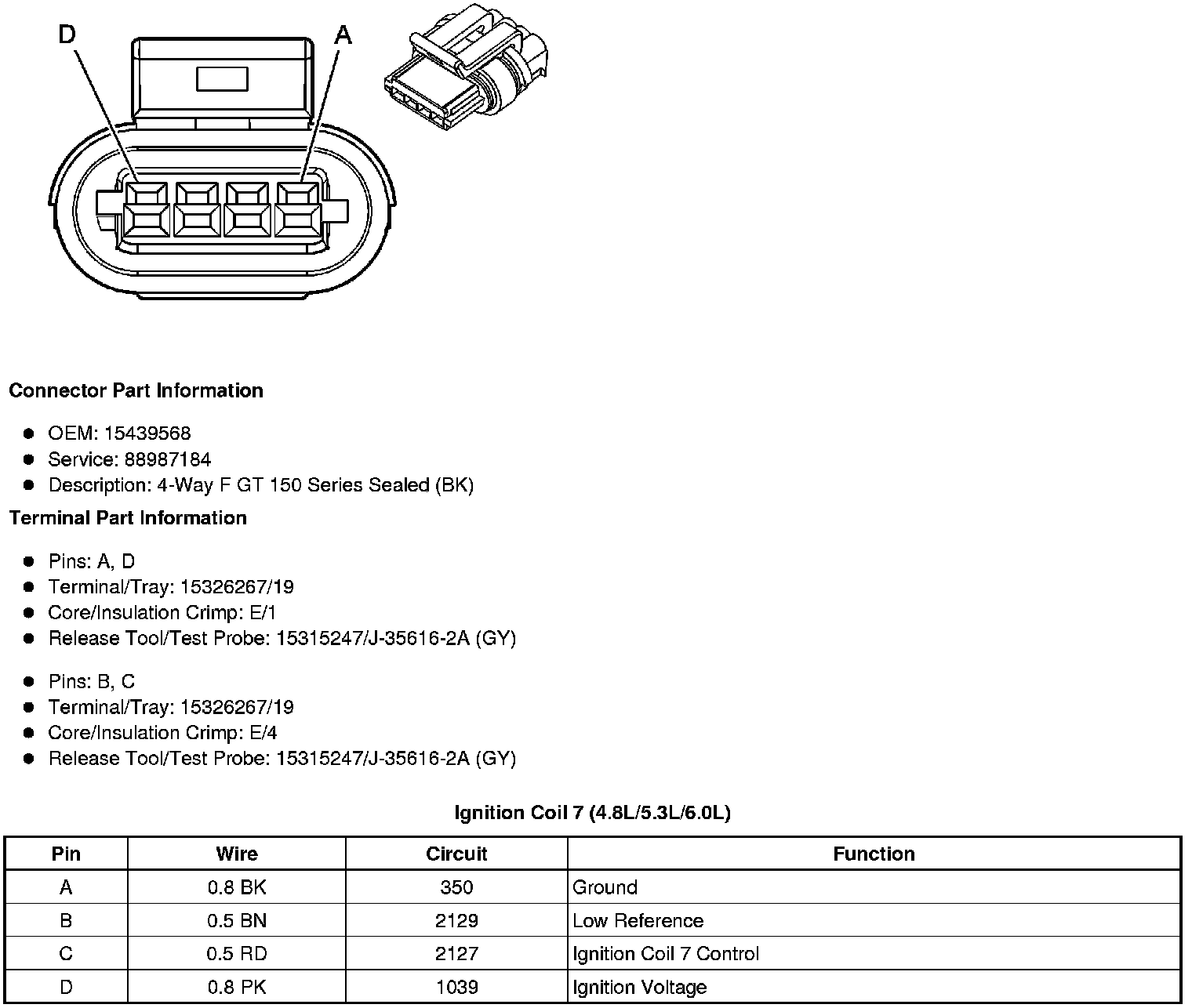

Ignition Coil 7 (4.8L/5.3L/6.0L)






Ignition Coil 8 (4.8L/5.3L/6.0L)
