Fuse Block

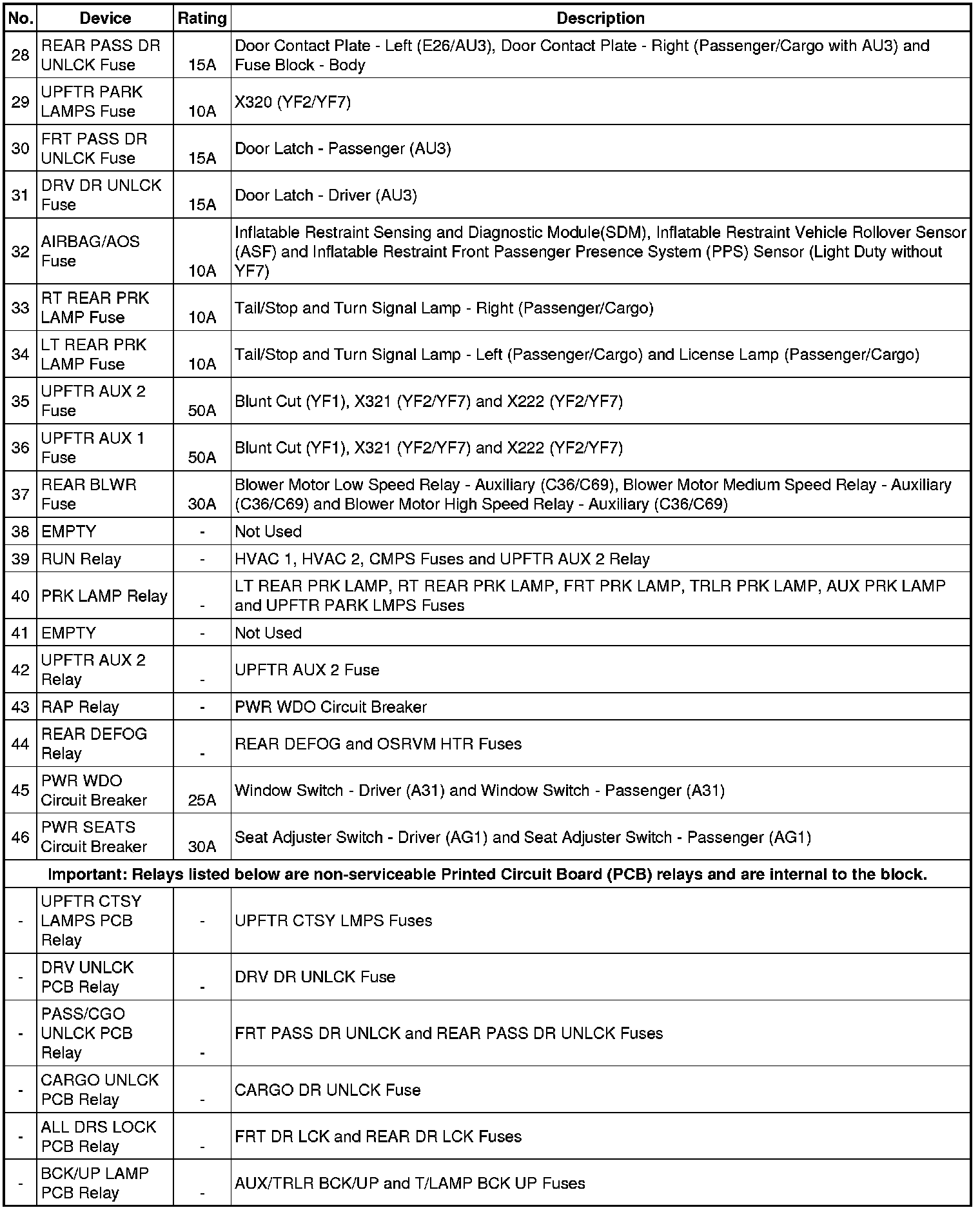

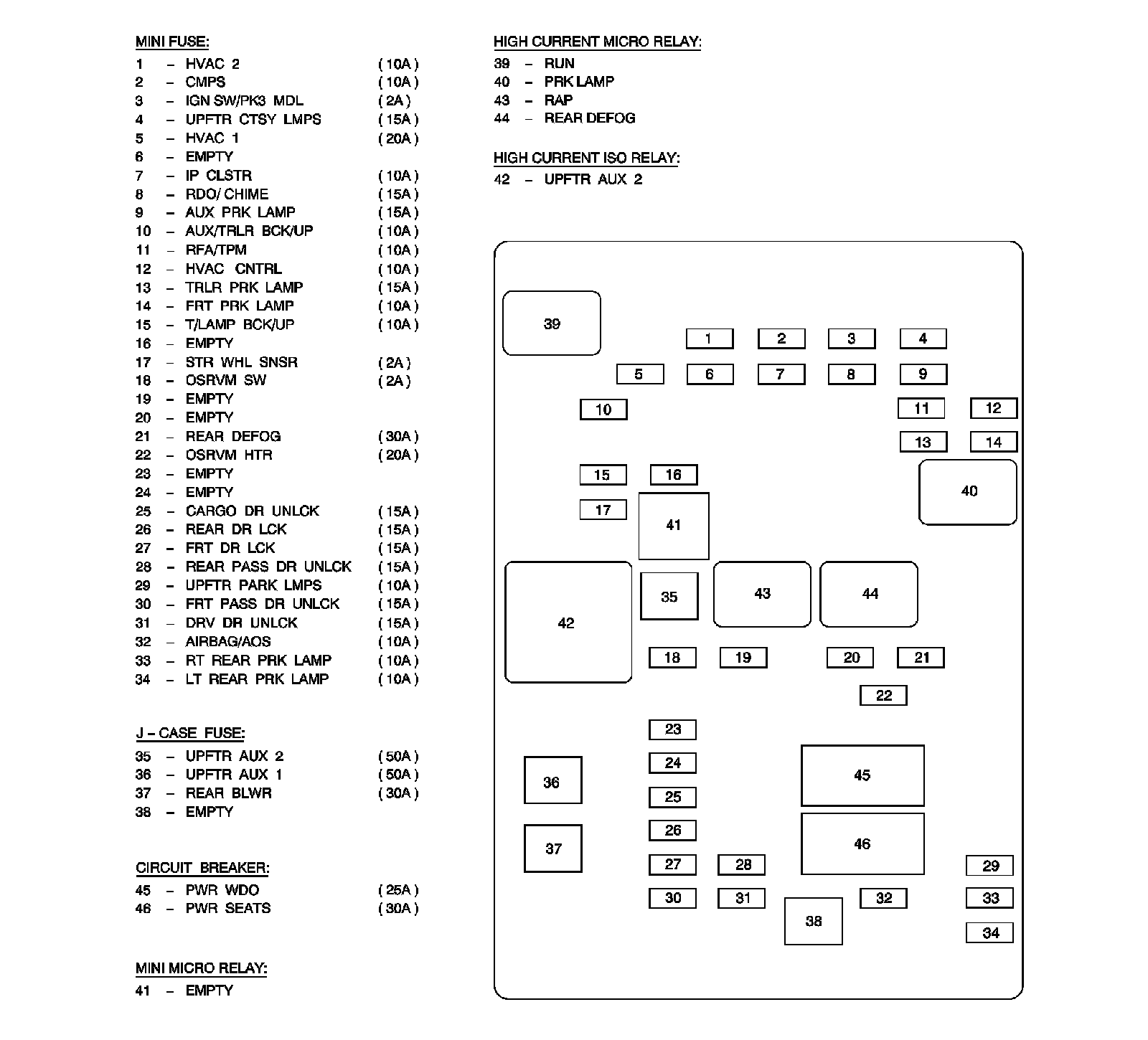

Electrical Center Identification Views

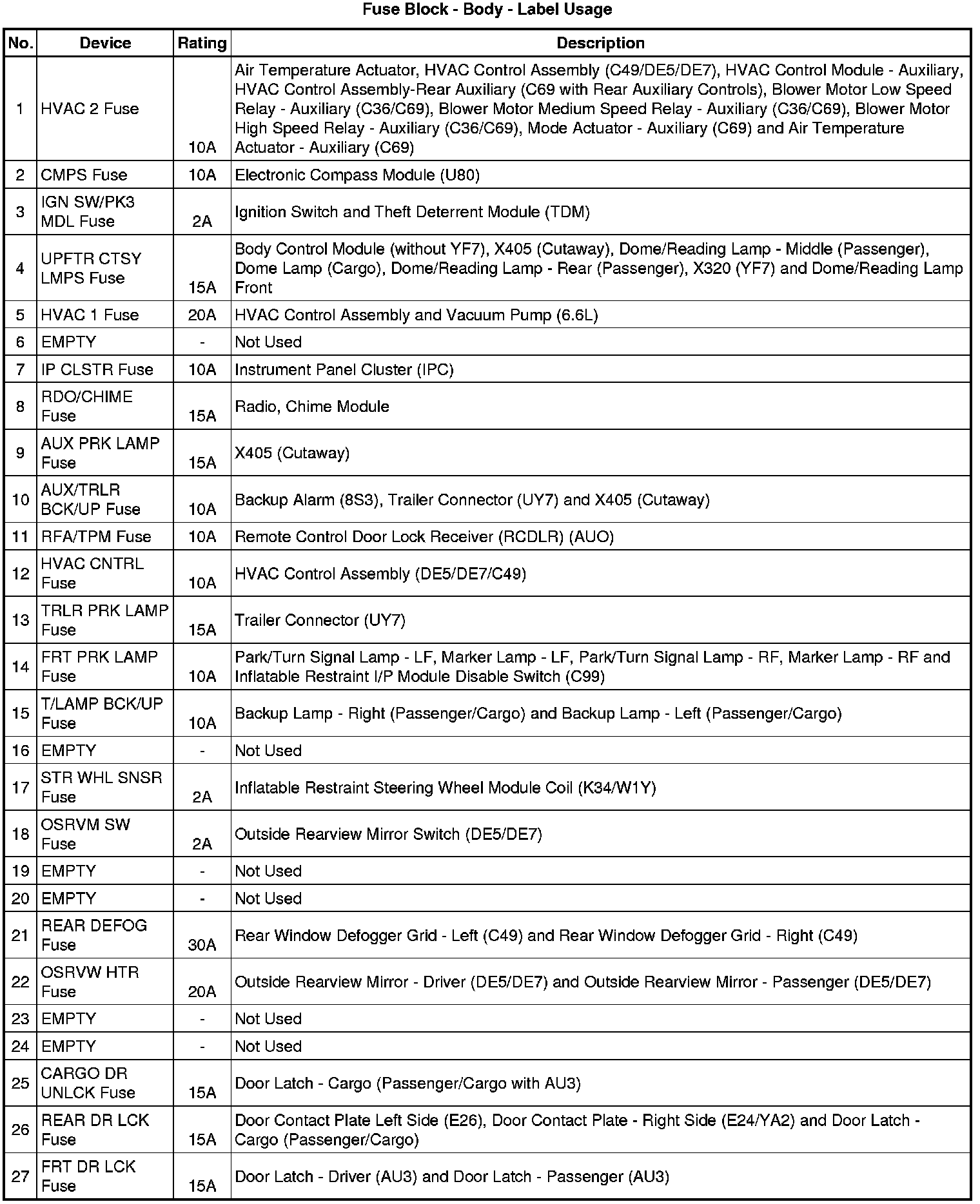

Fuse Block - Body Label

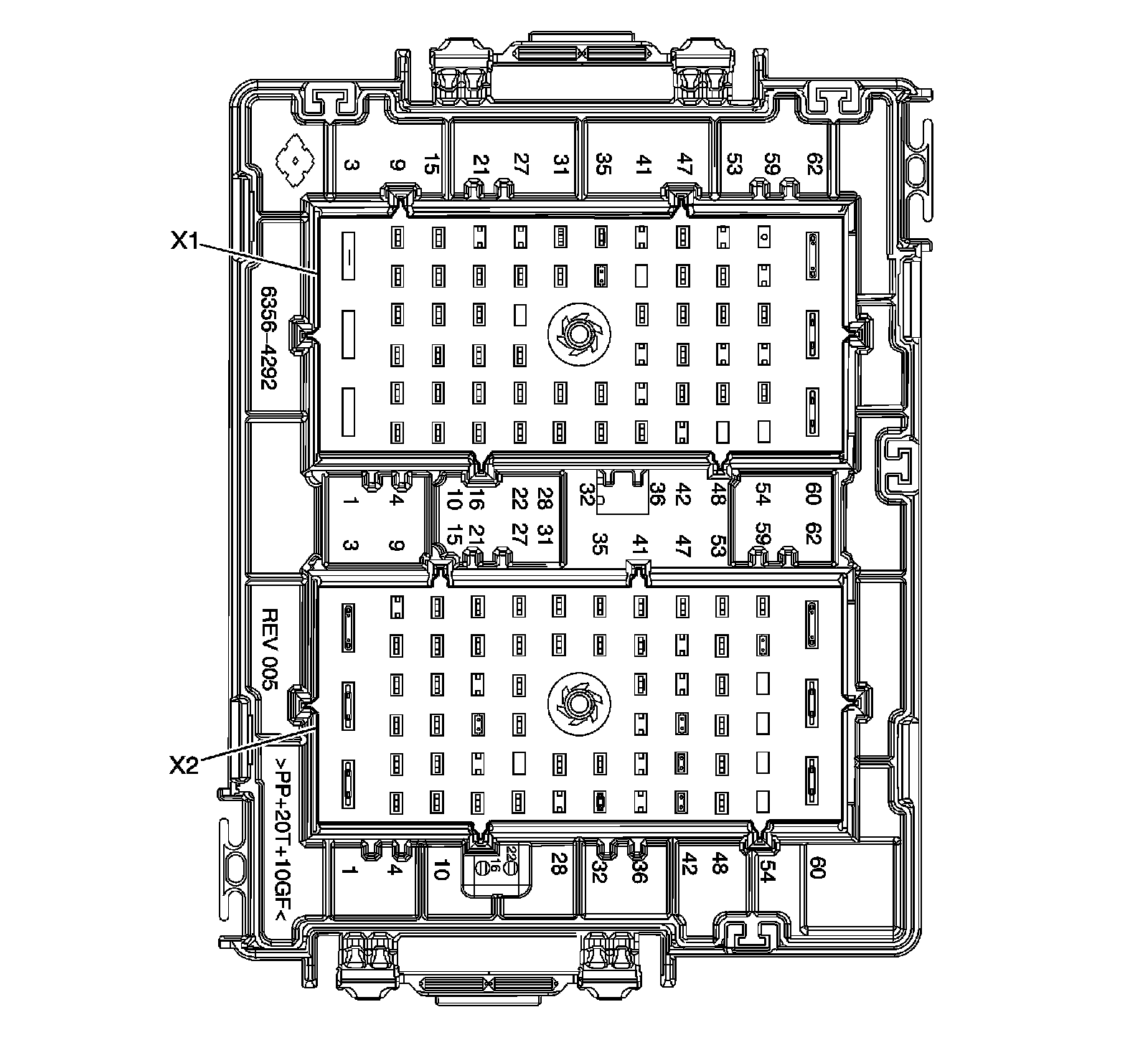

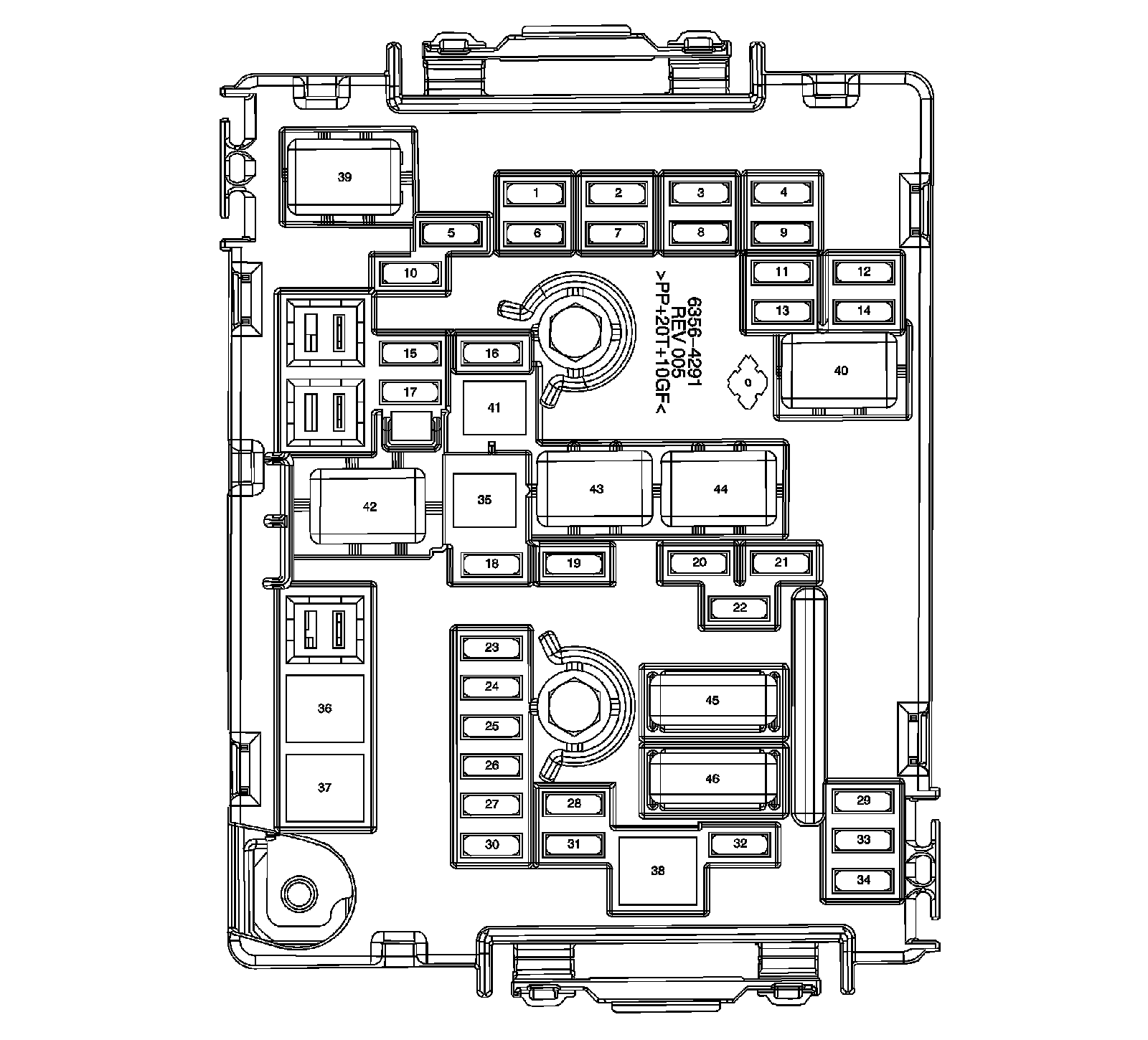

Fuse Block - Body Top View

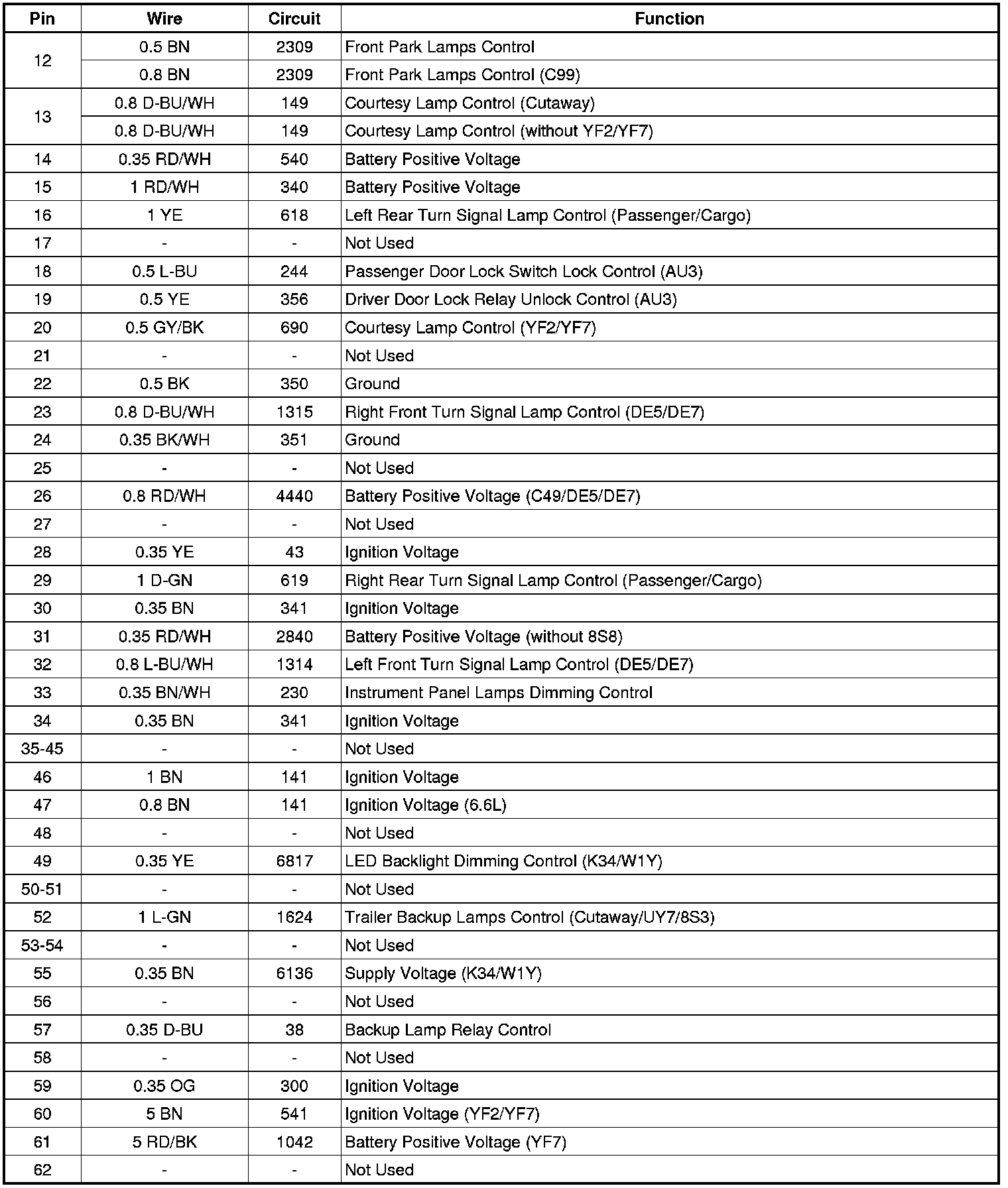

Fuse Block - Body Bottom View

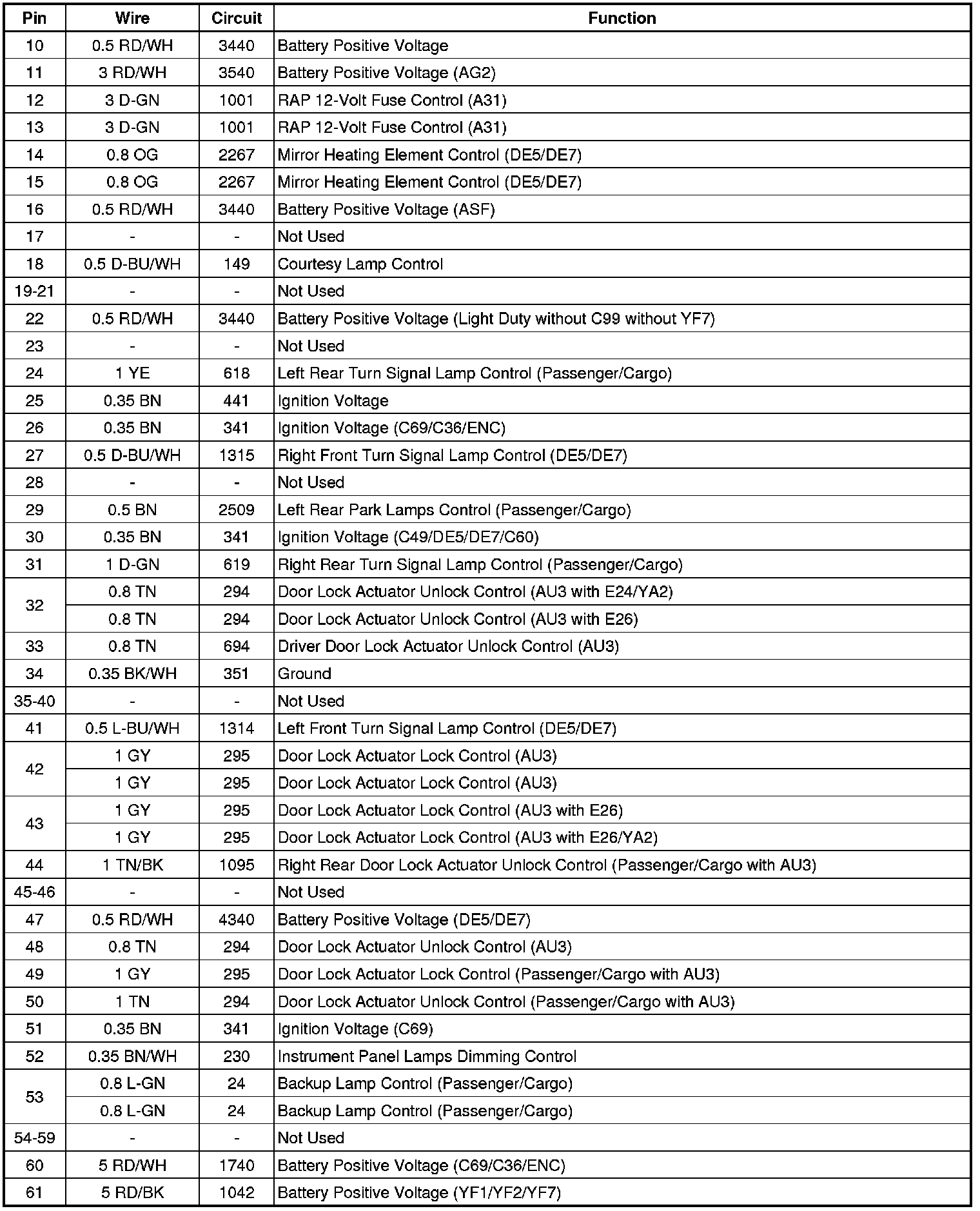

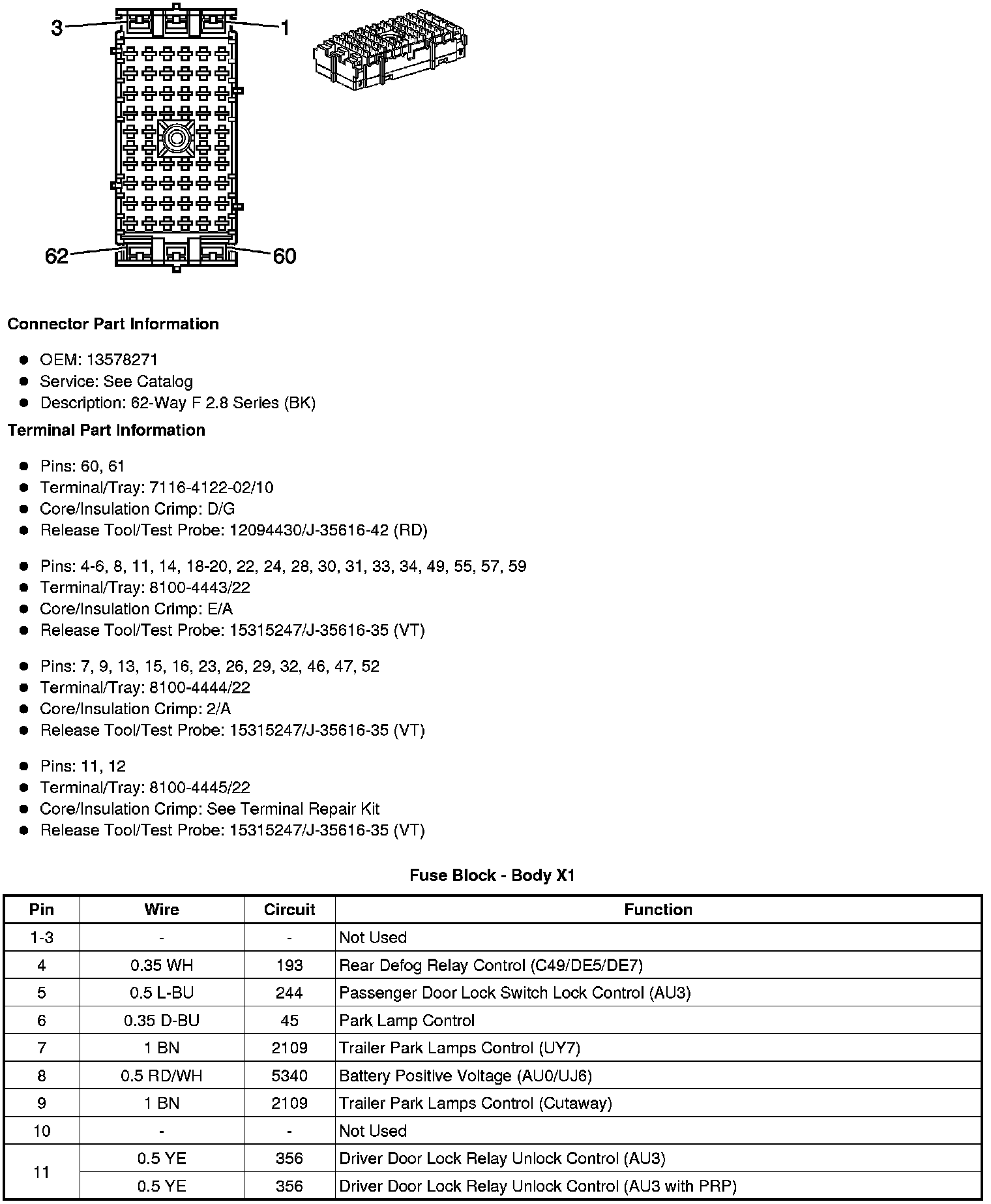

Fuse Block - Body X1

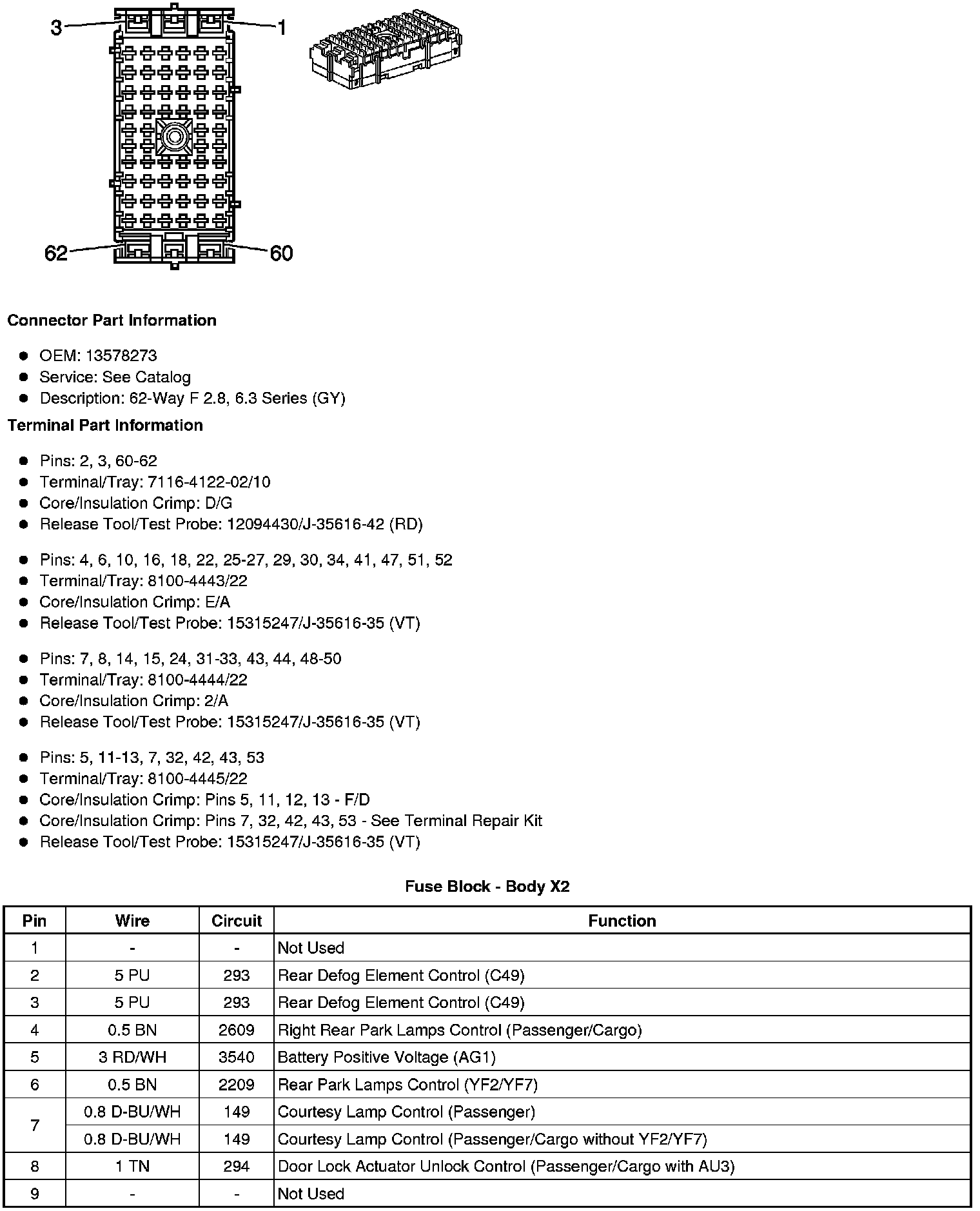

Fuse Block - Body X2














Fuse Block - Rear (PRP) - Top View

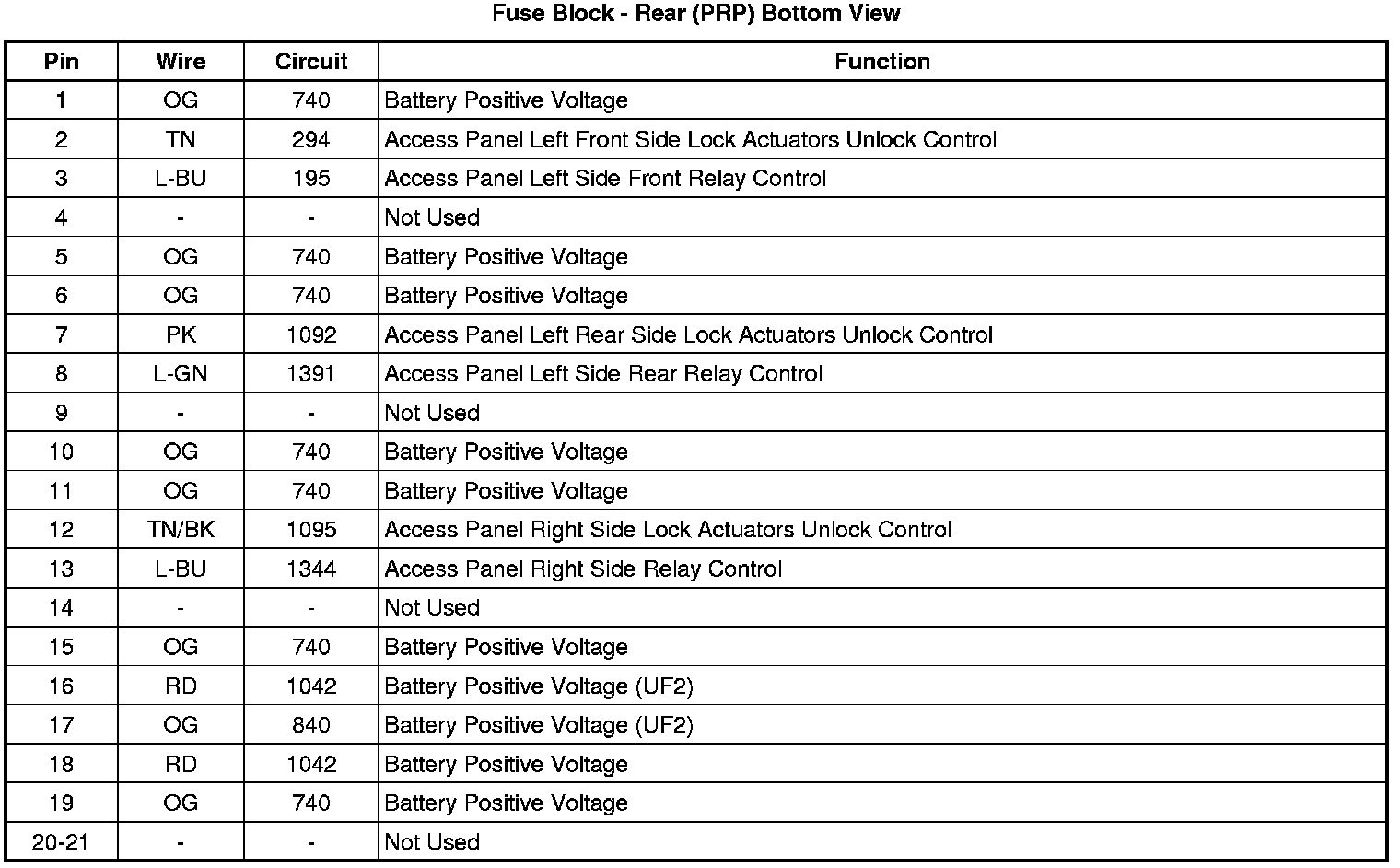

Fuse Block - Rear (PRP) Bottom View
