Fuel Tank Pressure Sensor: Diagrams




Component Connector End Views

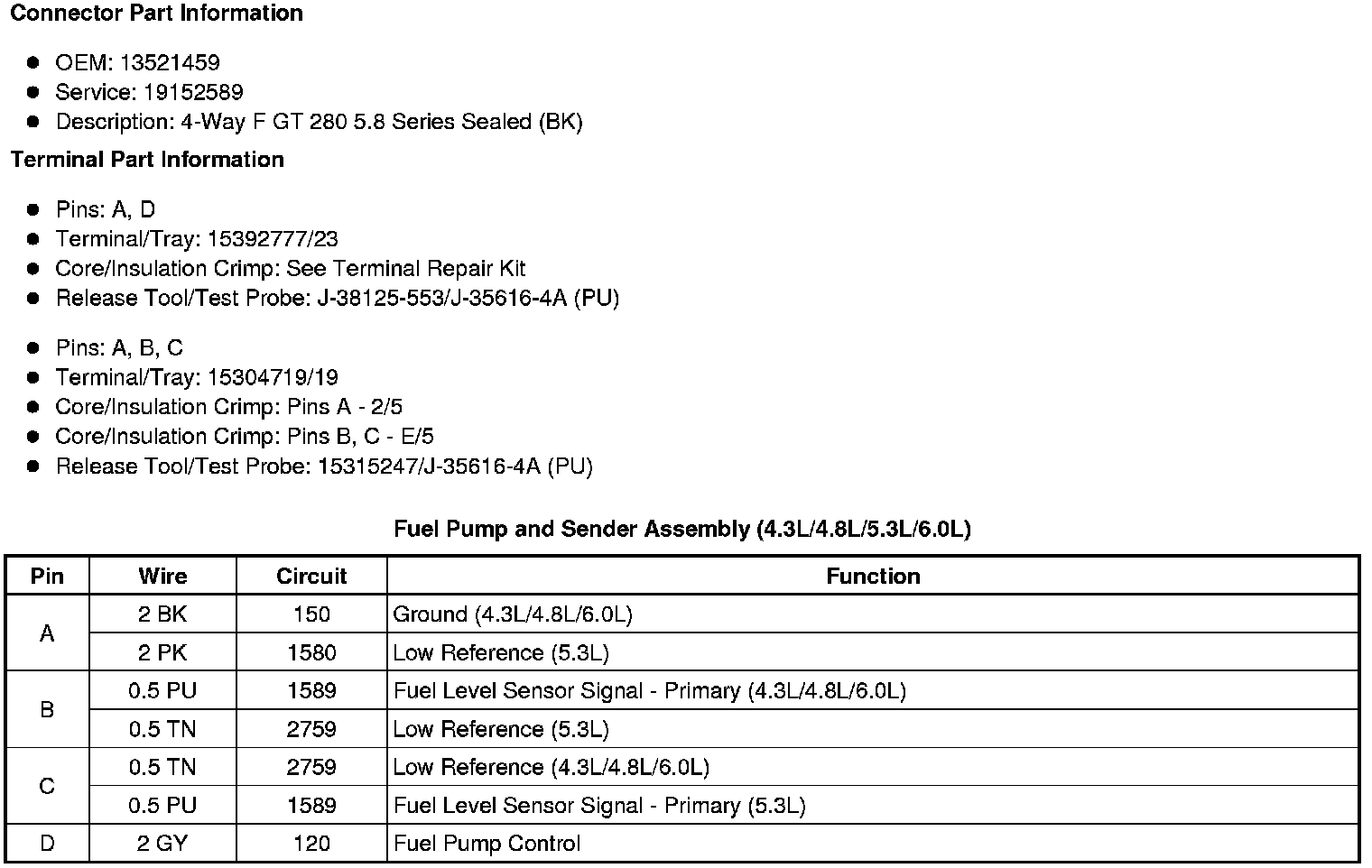

Fuel Pump and Sender Assembly (4.3L/4.8L/5.3L/6.0L)

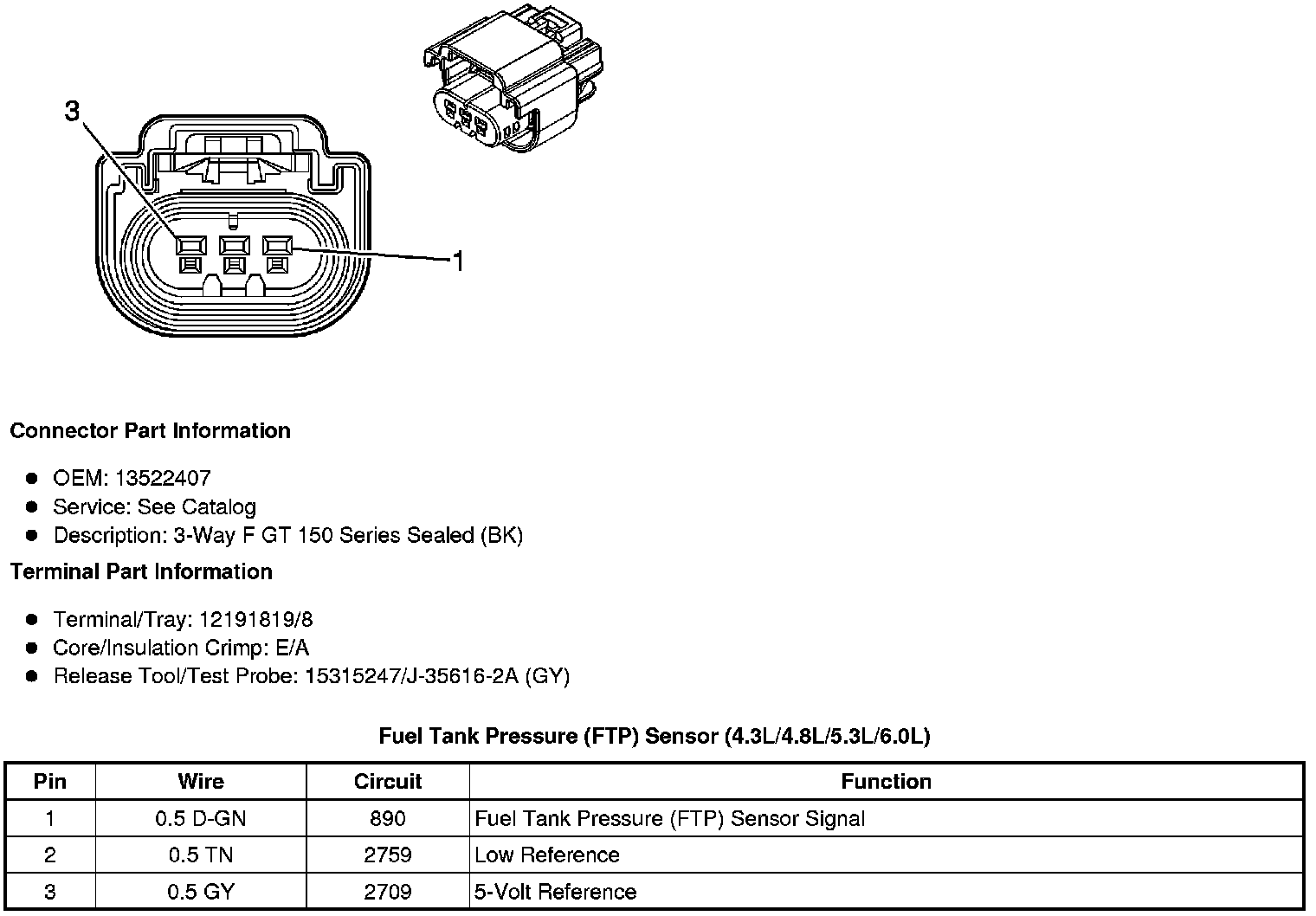

Fuel Tank Pressure (FTP) Sensor (4.3L/4.8L/5.3L/6.0L)
