Glow Plug Control Module: Diagrams




Component Connector End Views

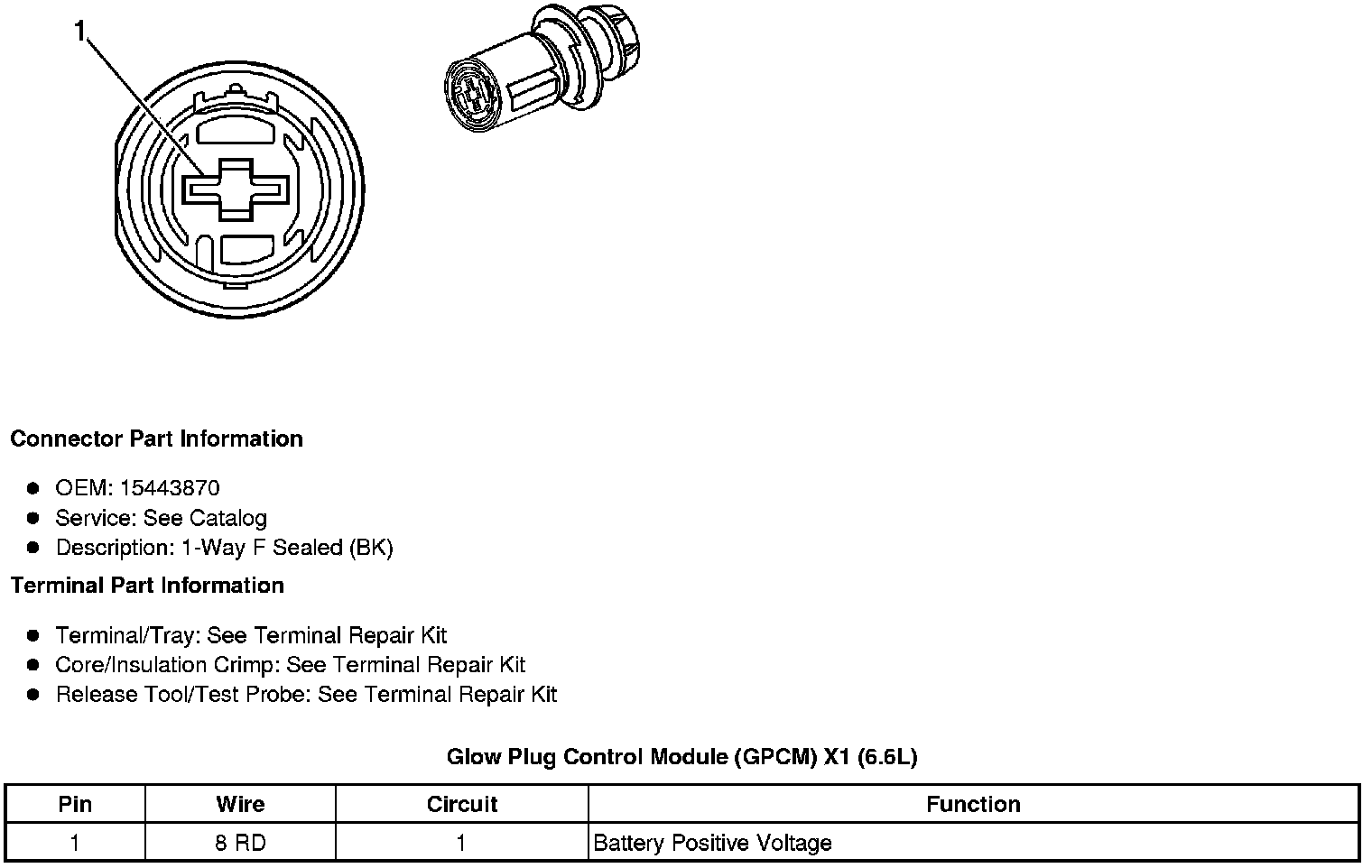

Glow Plug Control Module (GPCM) X1 (6.6L)

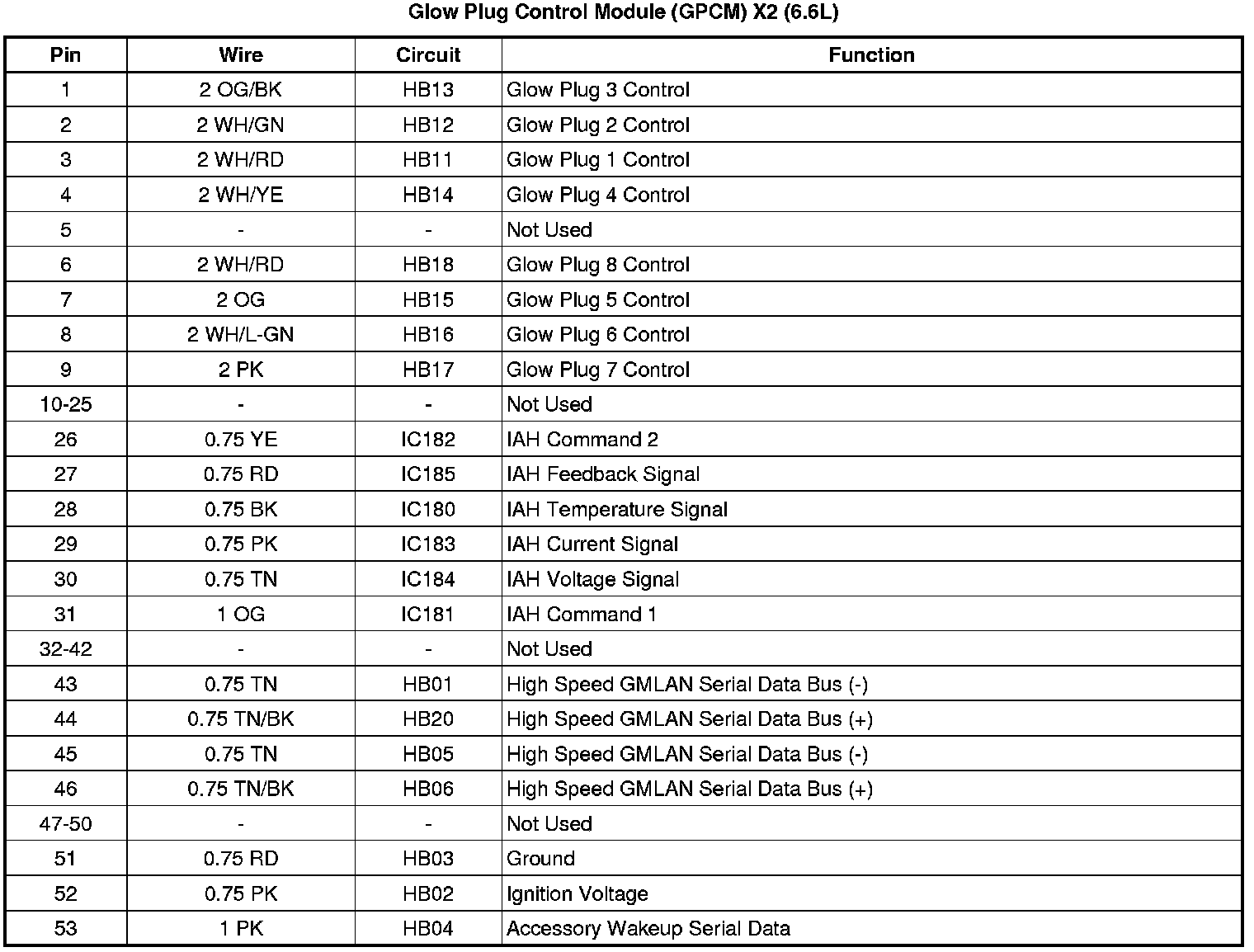

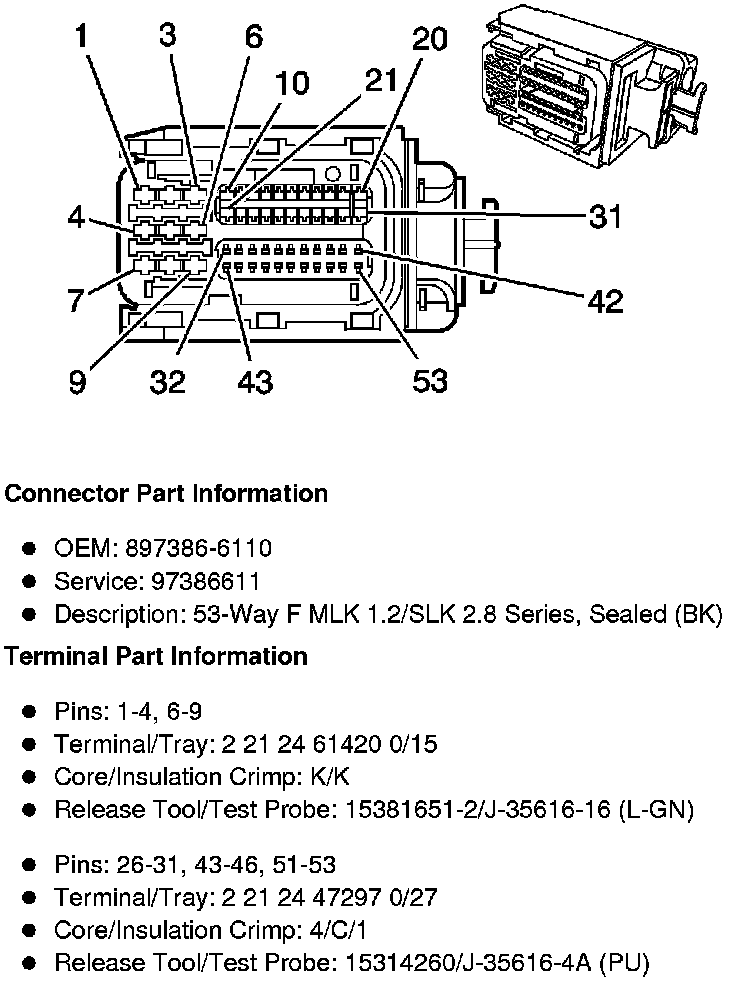

Glow Plug Control Module (GPCM) X2 (6.6L)
