Steering Control Module




Component Connector End Views

Power Steering Control Module (PSCM) X1 (LNF)






Power Steering Control Module (PSCM) X2 (LNF)

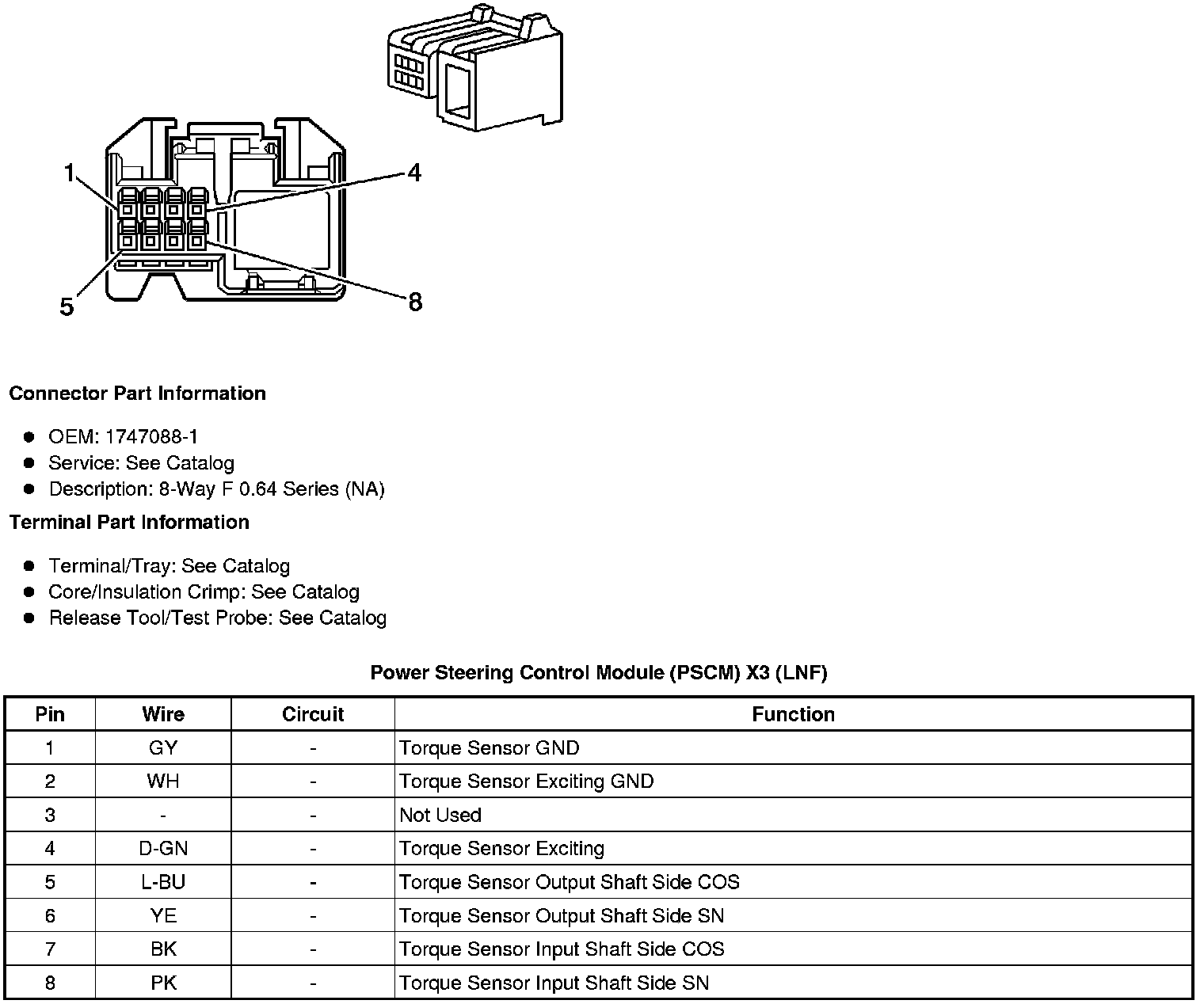

Power Steering Control Module (PSCM) X3 (LNF)

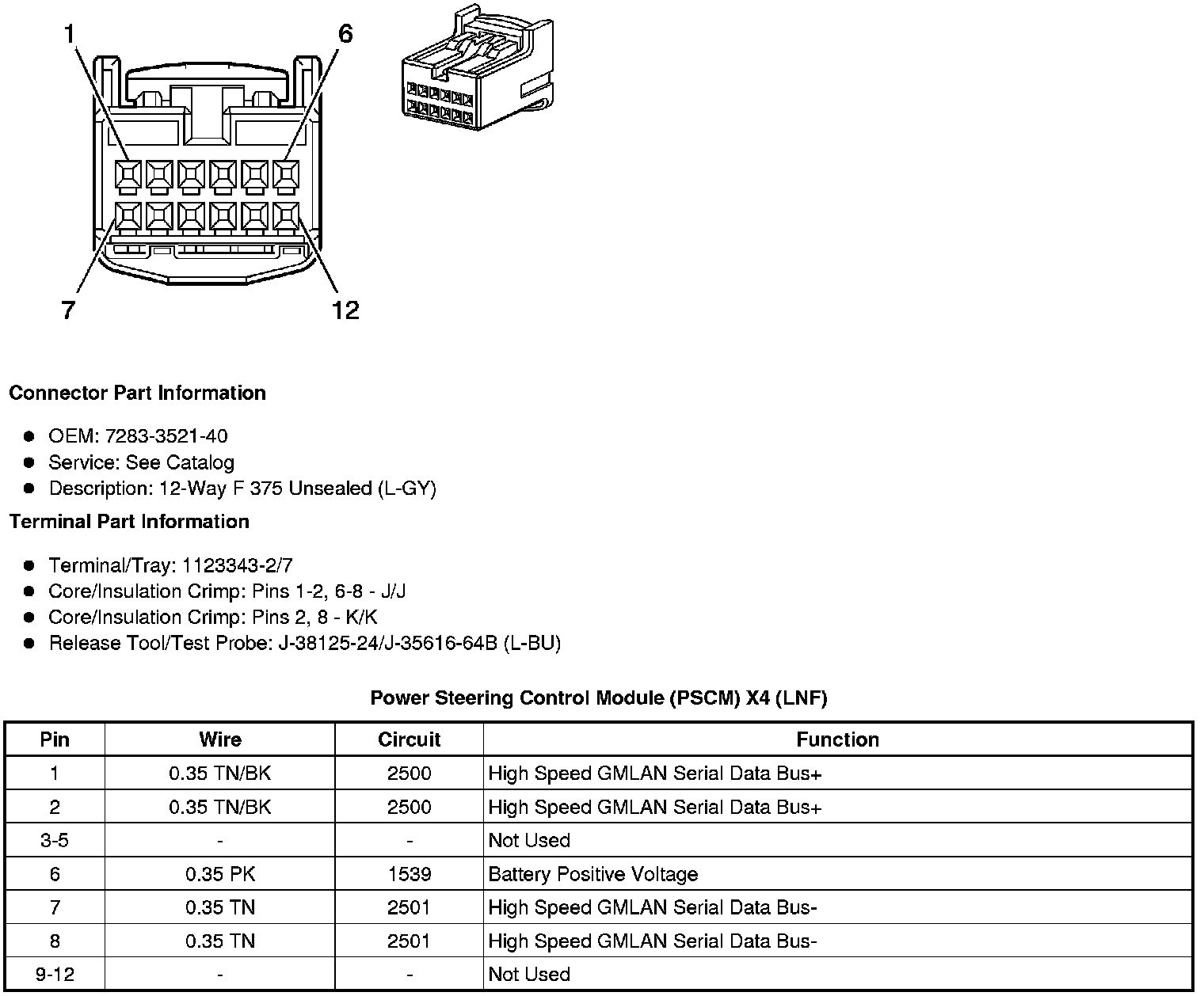

Power Steering Control Module (PSCM) X4 (LNF)






Power Steering Control Module (PSCM) X5 (LNF)
