Air Bag




Component Connector End Views

Inflatable Restraint Steering Wheel Module X1






Inflatable Restraint Steering Wheel Module X2

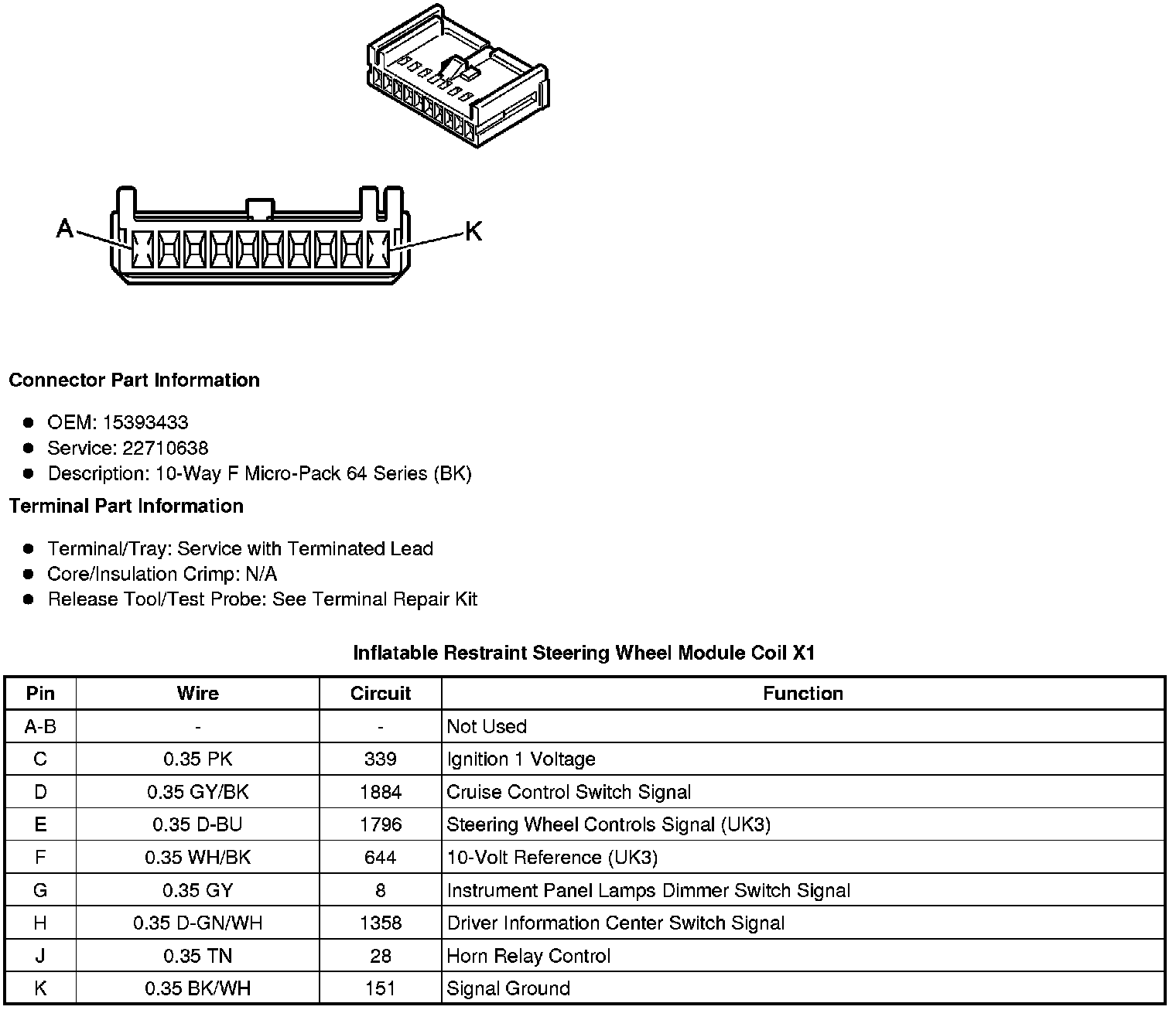

Inflatable Restraint Steering Wheel Module Coil X1

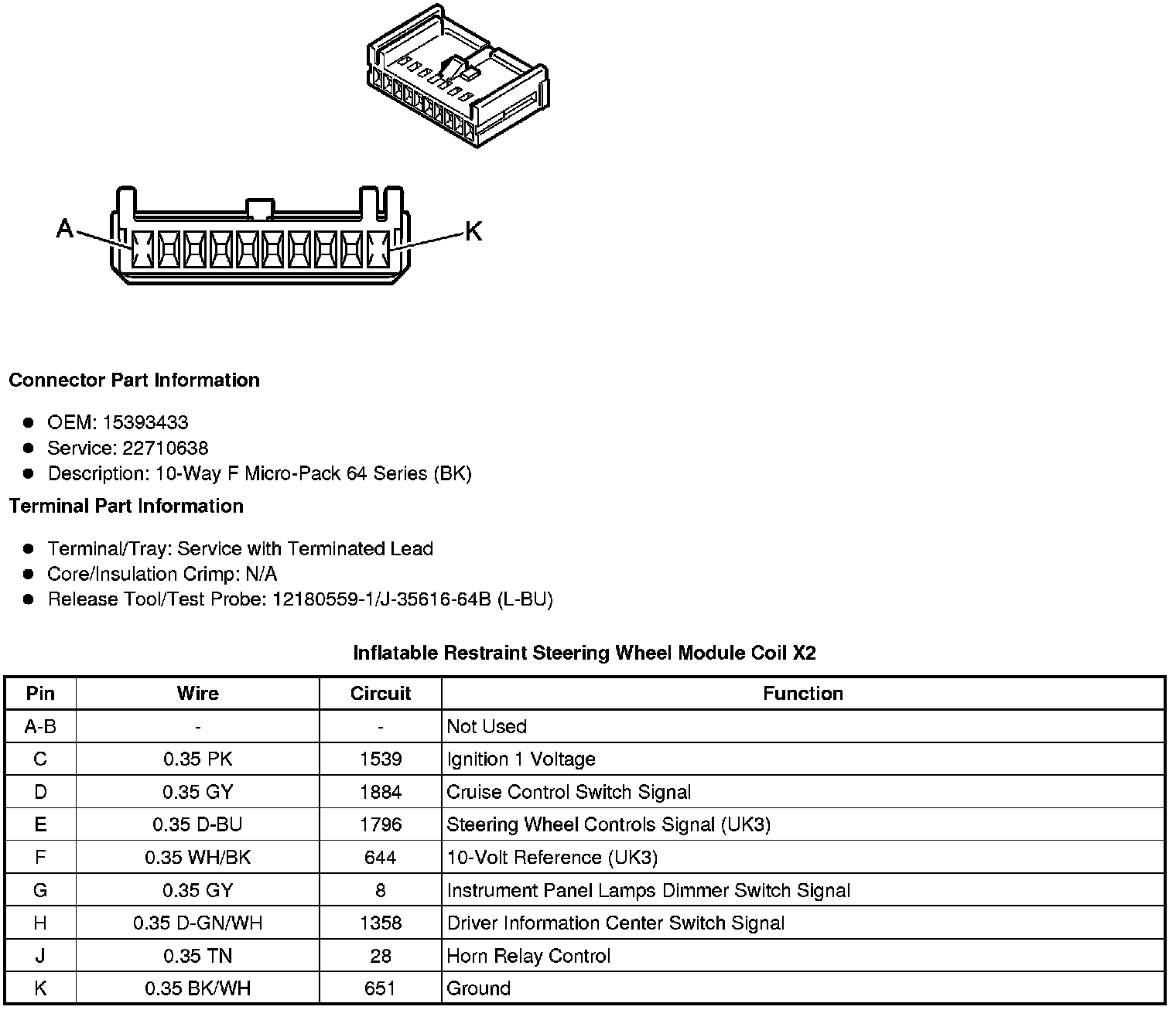

Inflatable Restraint Steering Wheel Module Coil X2

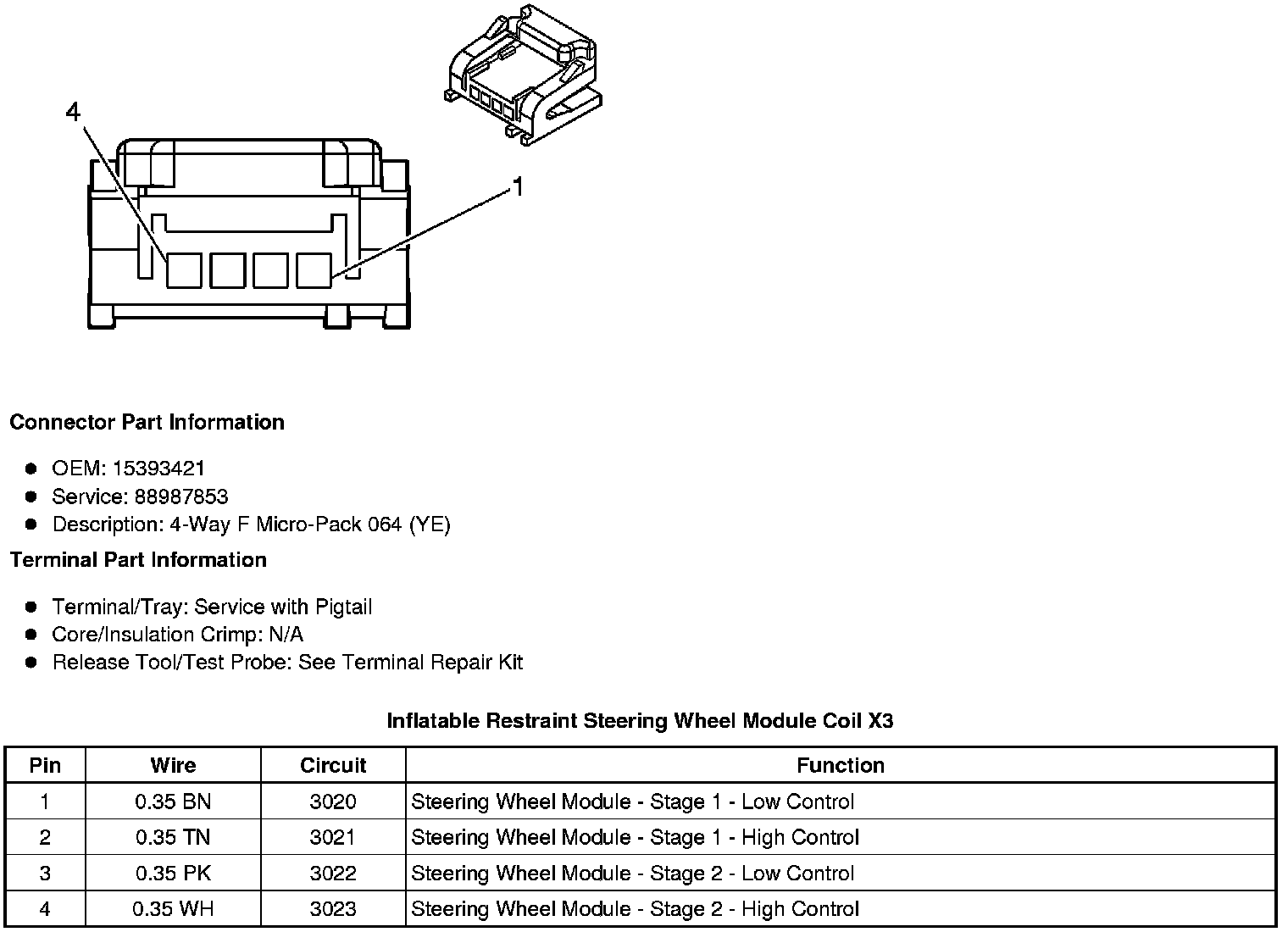

Inflatable Restraint Steering Wheel Module Coil X3

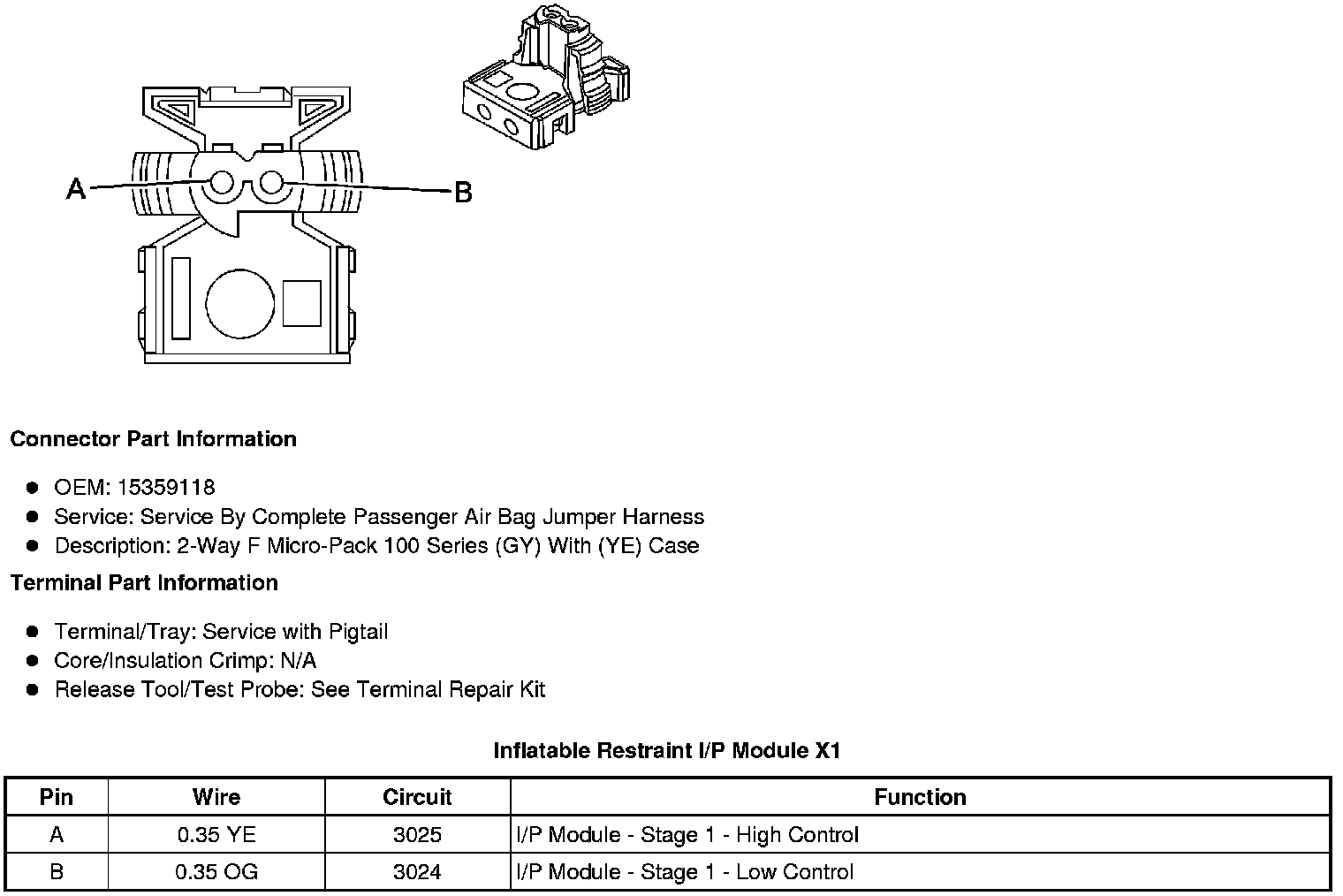

Inflatable Restraint I/P Module X1

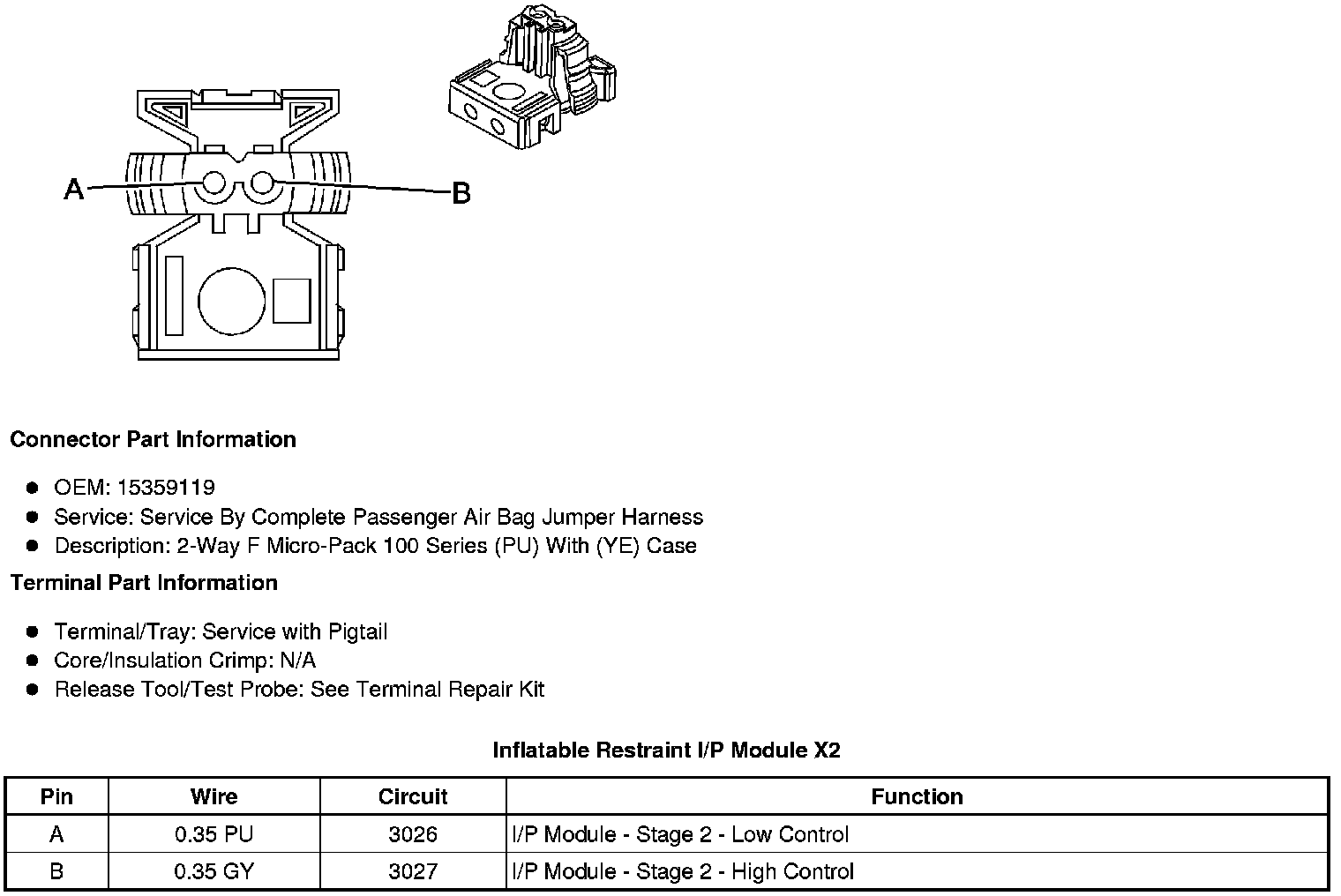

Inflatable Restraint I/P Module X2






Inflatable Restraint Roof Rail Module - Left (ASF)






Inflatable Restraint Roof Rail Module - Right (ASF)
