Data Communication Schematics

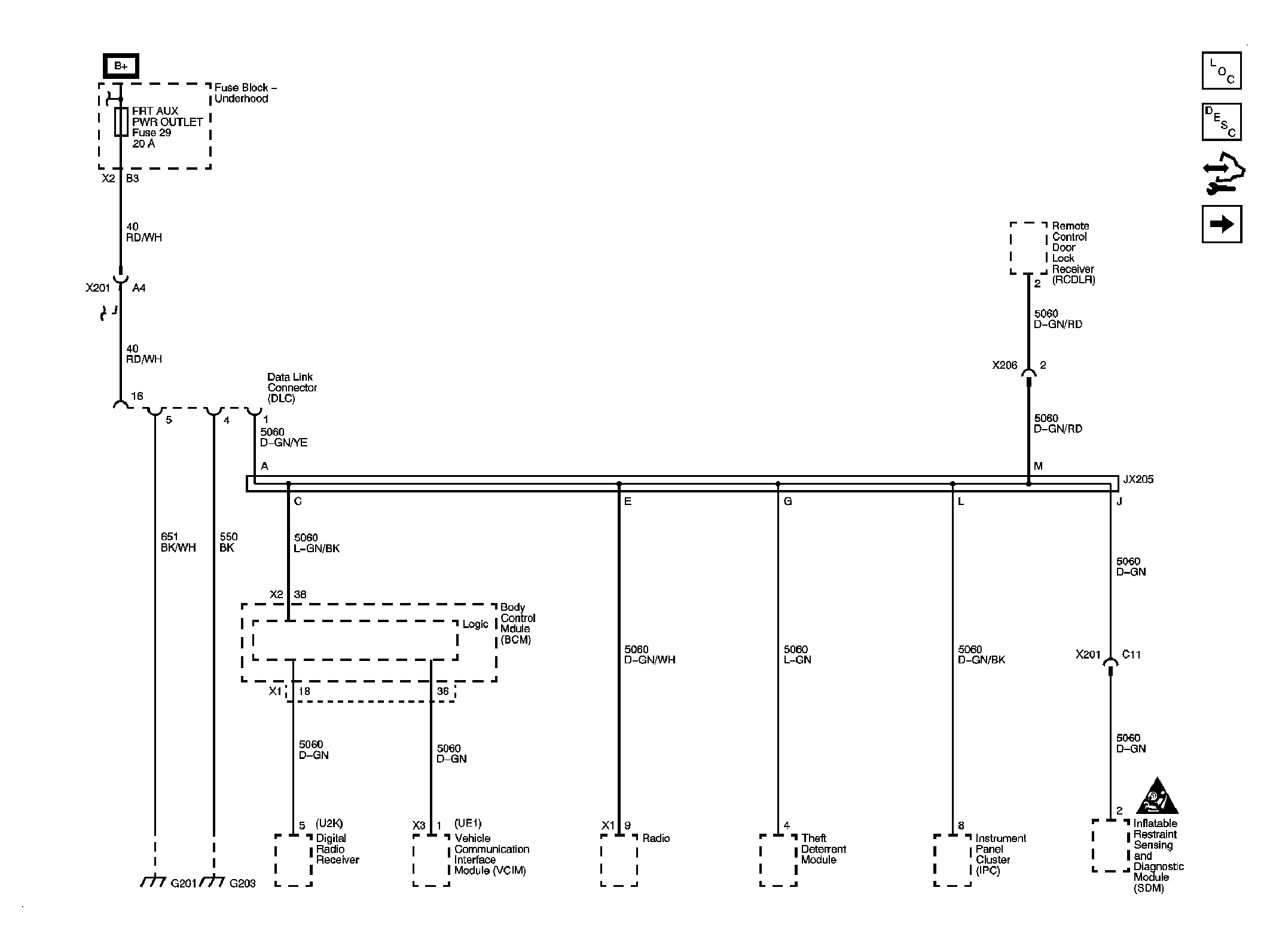

Fig 1: DLC Power, Ground & Low Speed GMLAN Circuit Schematic
GM2085365Courtesy of GENERAL MOTORS CORP.

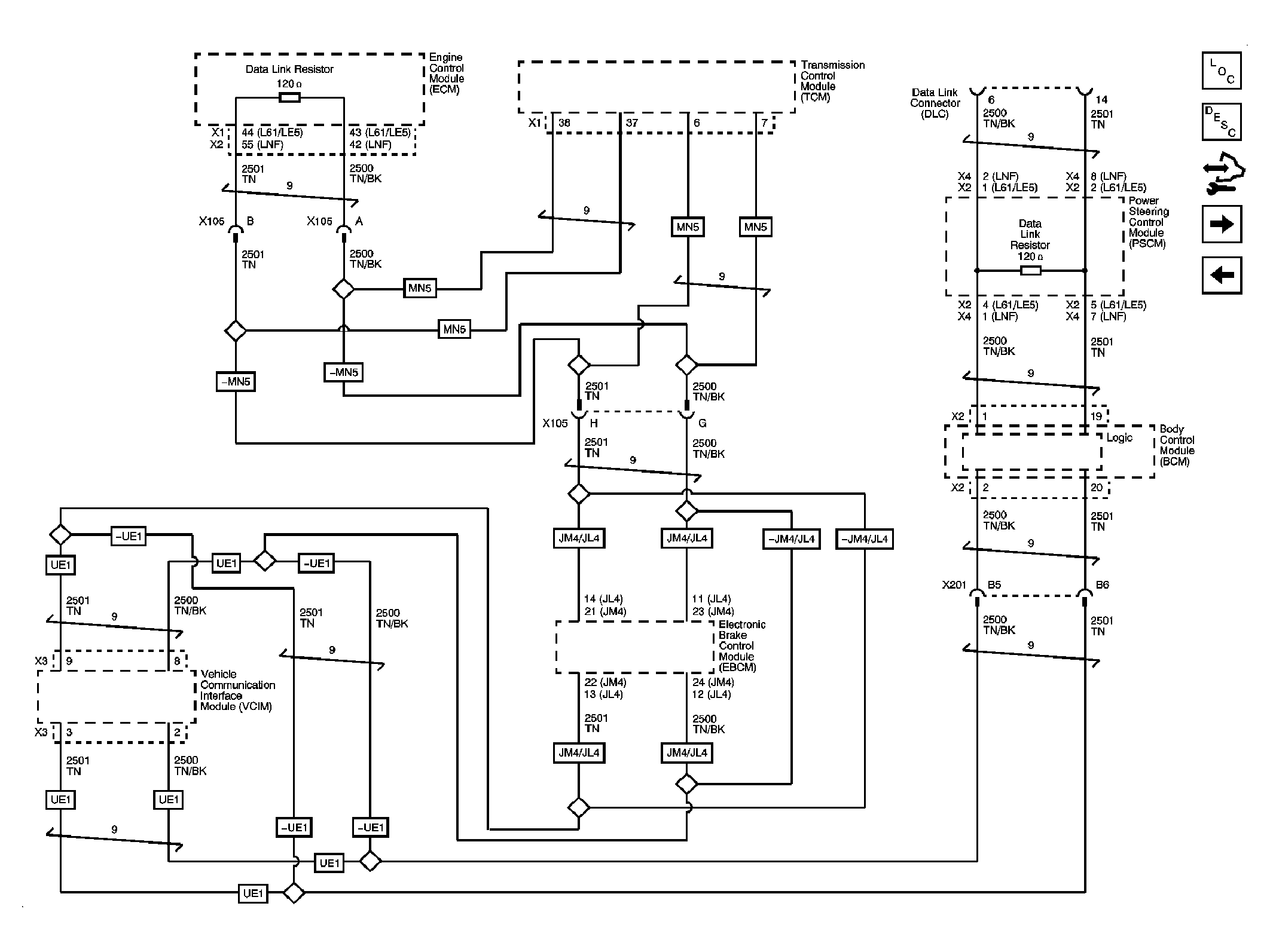

Fig 2: High Speed GMLAN Circuit Schematic
GM2085367Courtesy of GENERAL MOTORS CORP.
