Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

Right Rear Wheel Speed Sensor (Left Similar)




1 - Wheel Speed Sensor (WSS) - Right Rear (Wheel Speed Sensor (WSS) - Left Rear Similar)

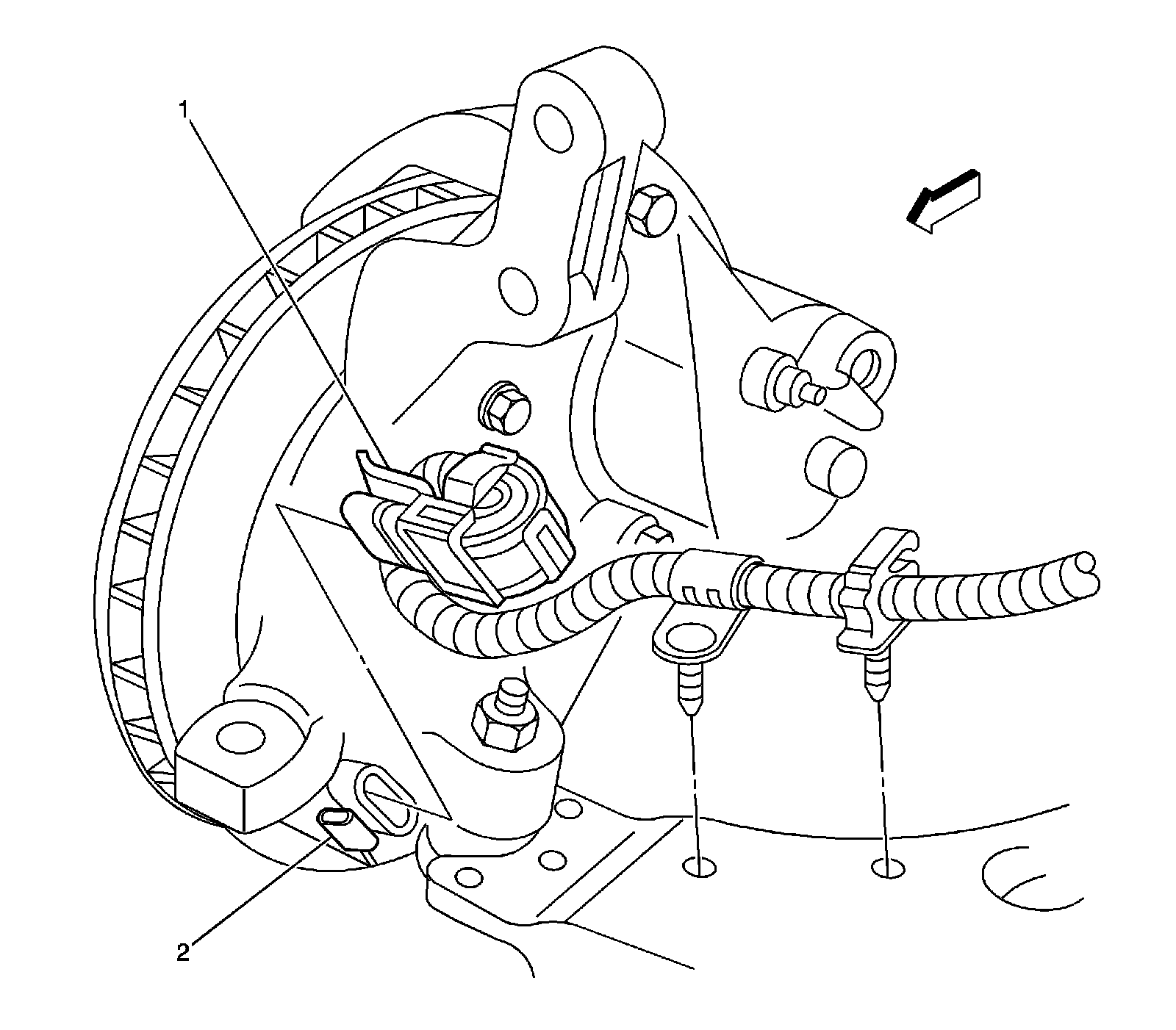

Right Front Wheel Speed Sensor (Left Similar)




1 - Wheel Speed Sensor (WSS) Connector - Right Front (Wheel Speed Sensor (WSS) Connector - Left Front Similar)
2 - Wheel Speed Sensor (WSS) - Right Front (Wheel Speed Sensor (WSS) - Left Front Similar)

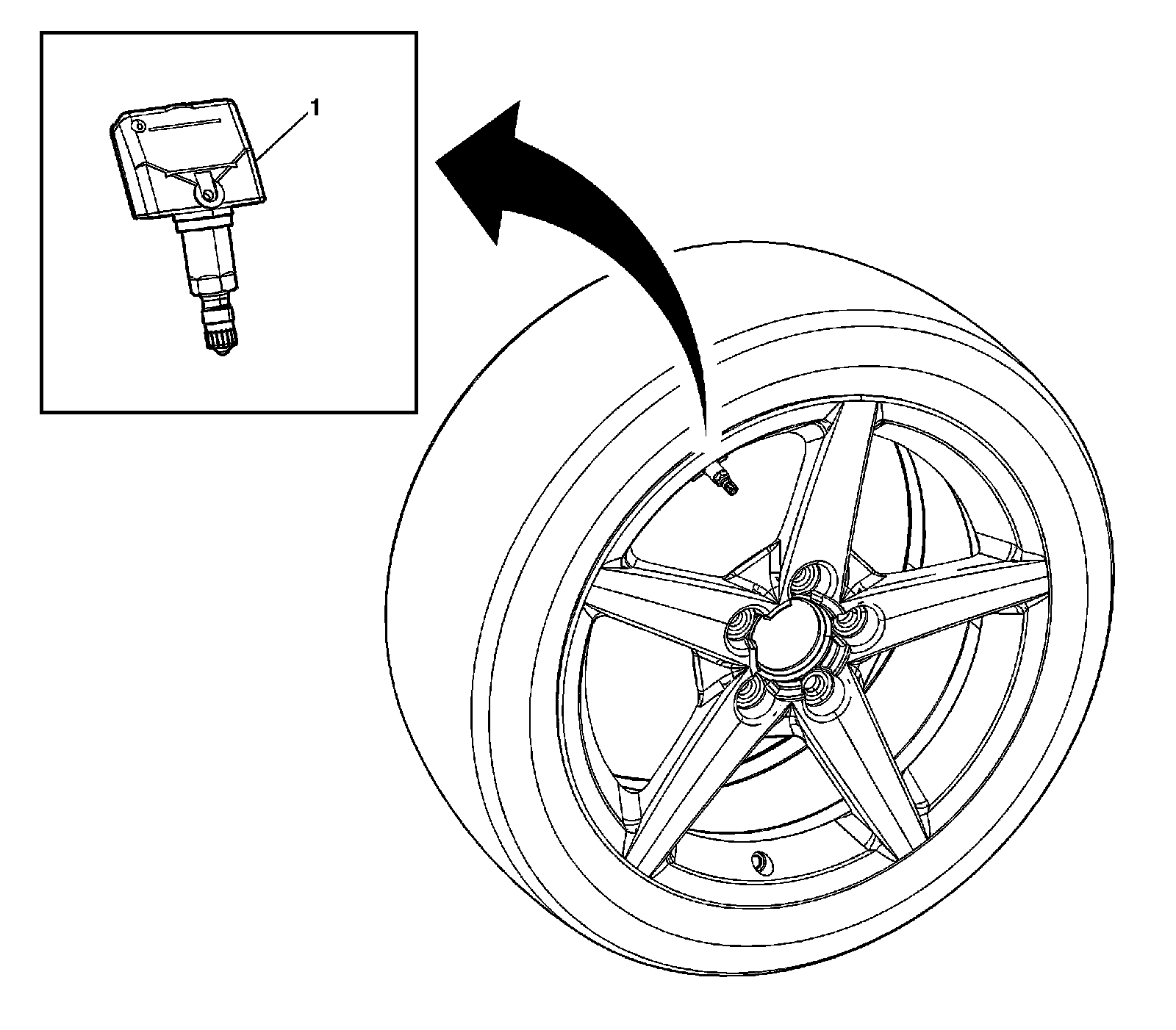

Tire Pressure Monitor Sensor (Typical)




1 - Tire Pressure Monitor Sensor
