Fuel Injector




Component Connector End Views

Fuel Injector 1 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)

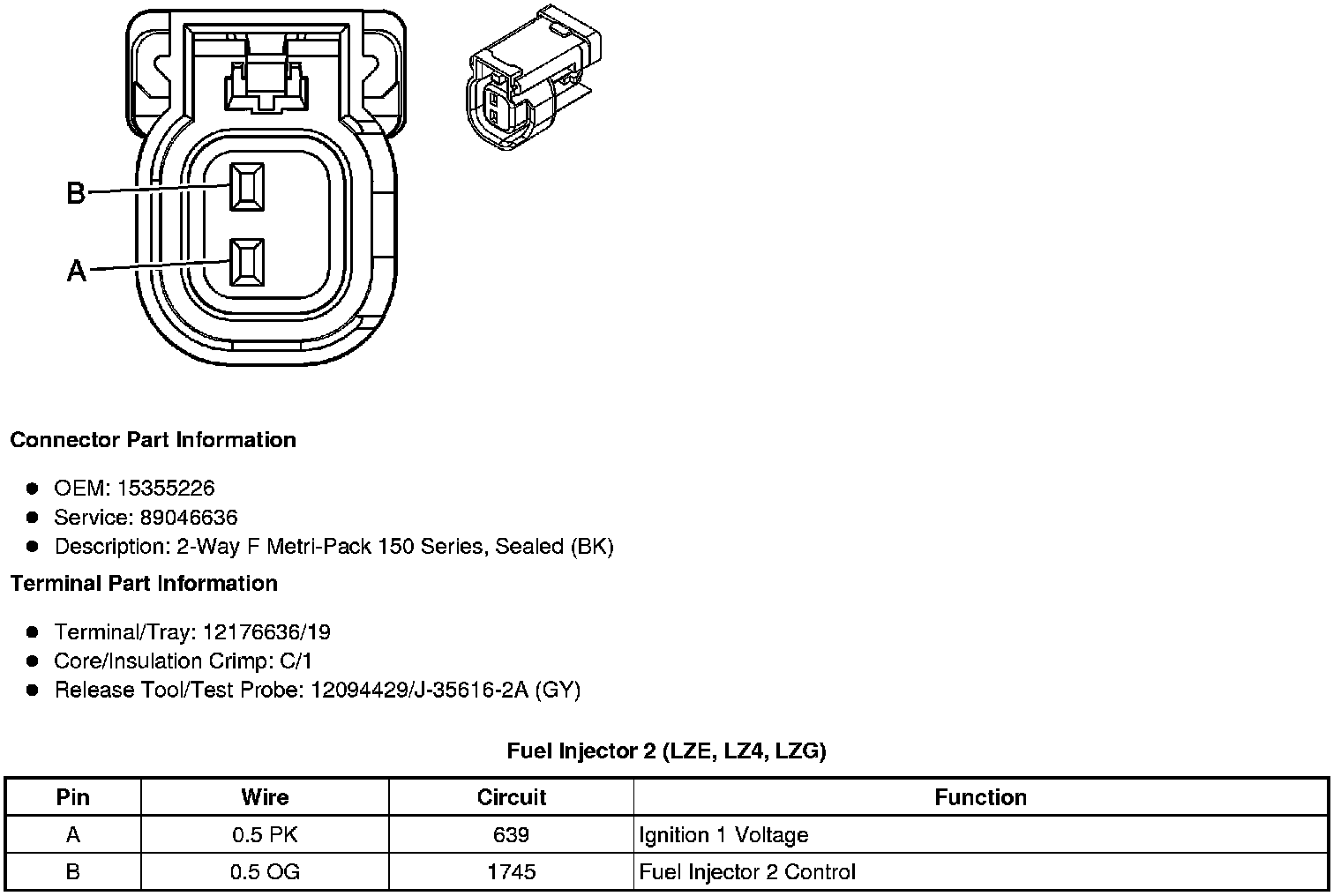

Fuel Injector 2 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)

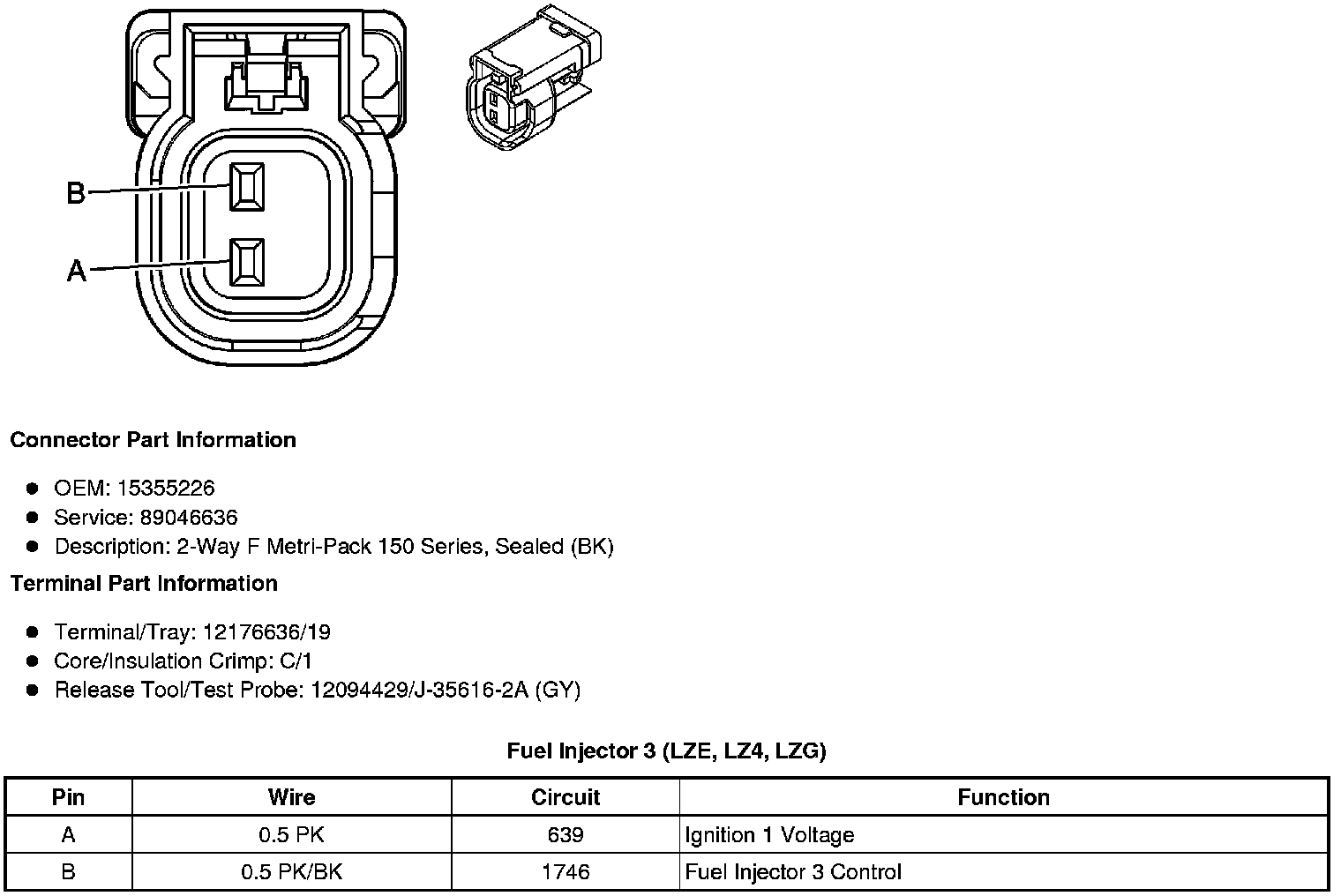

Fuel Injector 3 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)

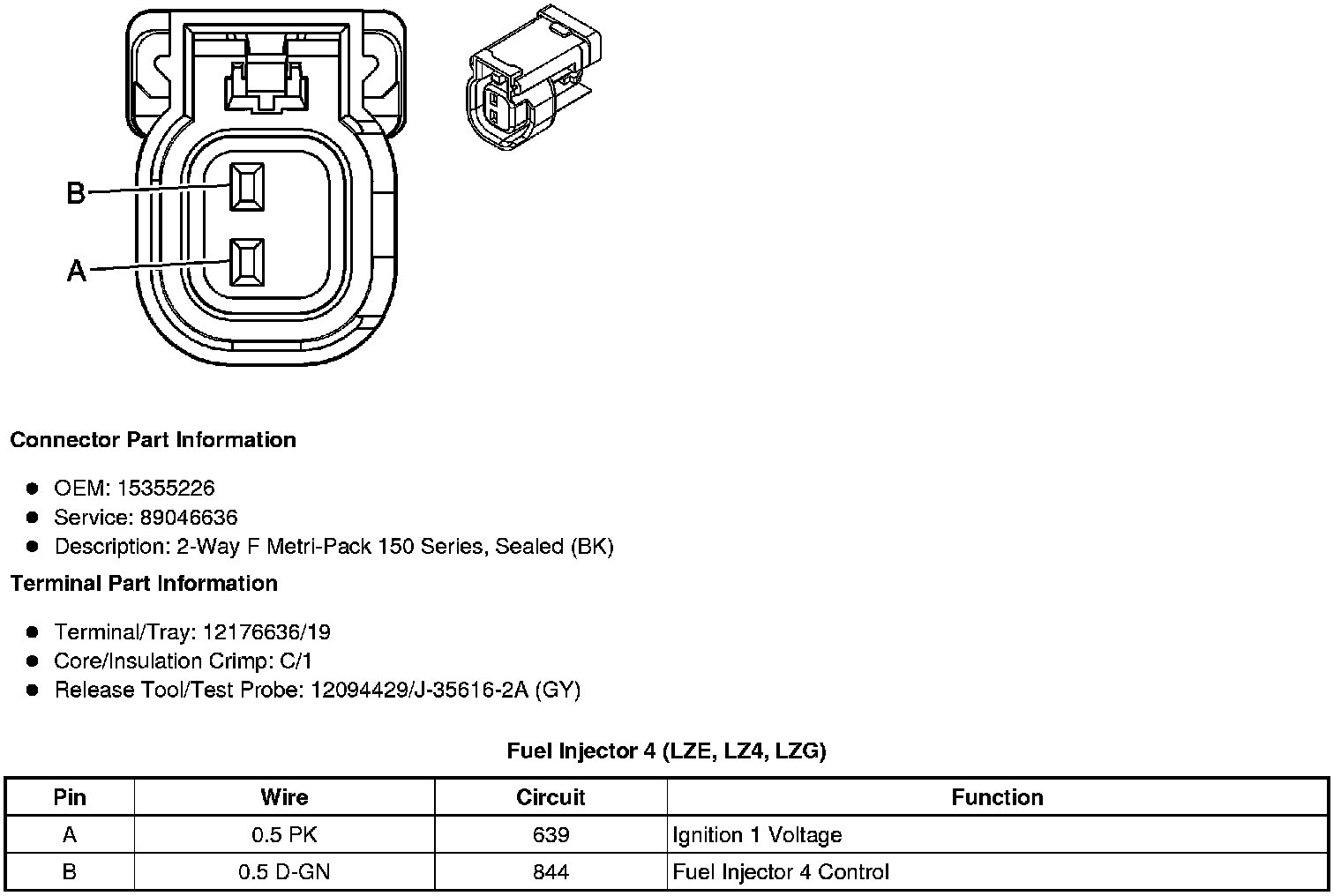

Fuel Injector 4 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)






Fuel Injector 5 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)






Fuel Injector 6 (LZE-3.5L Flex Fuel, LZ4-3.5L Gas, LZG-3.9L Flex Fuel)
