System Diagram




Component Connector End Views

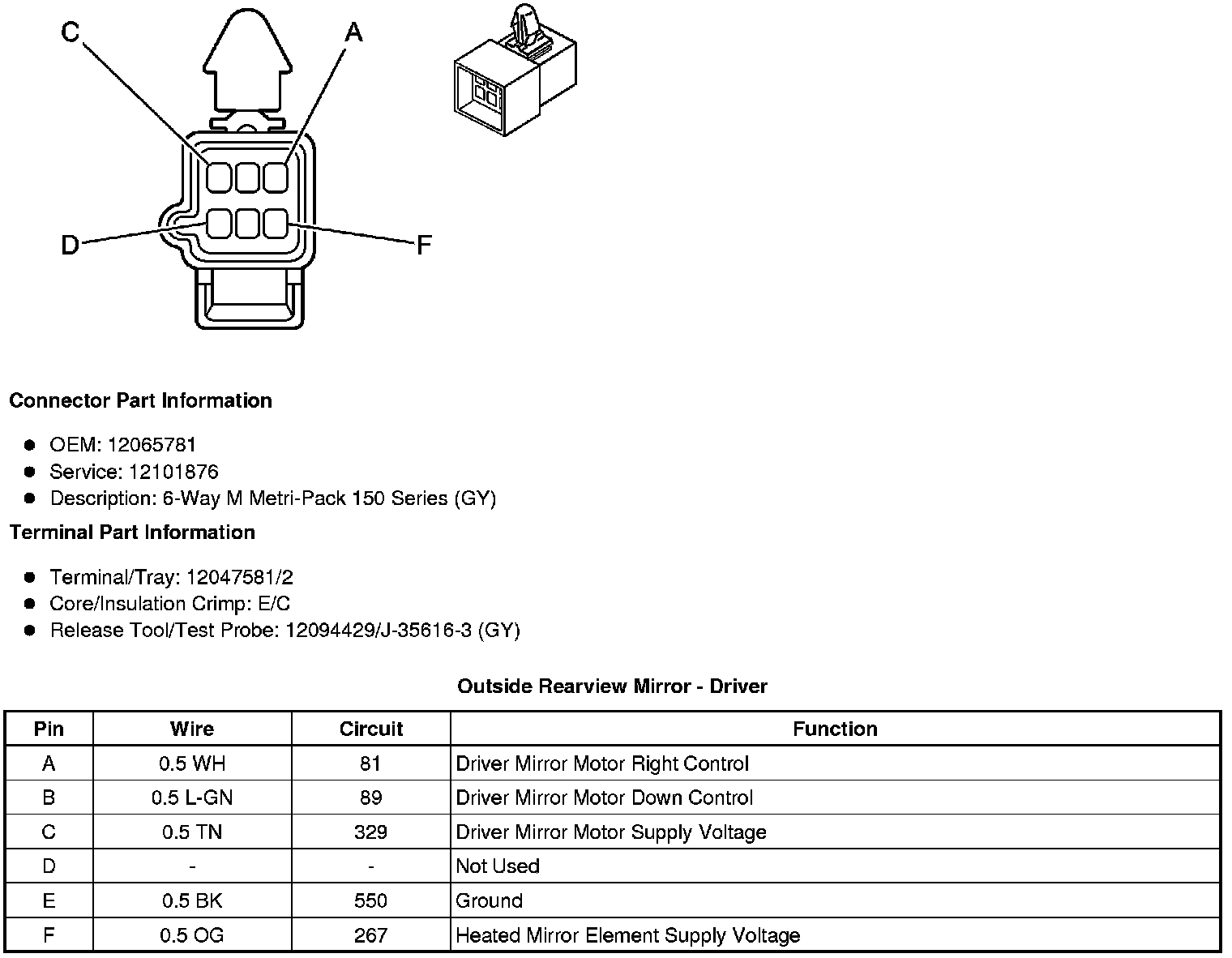

Outside Rearview Mirror - Driver

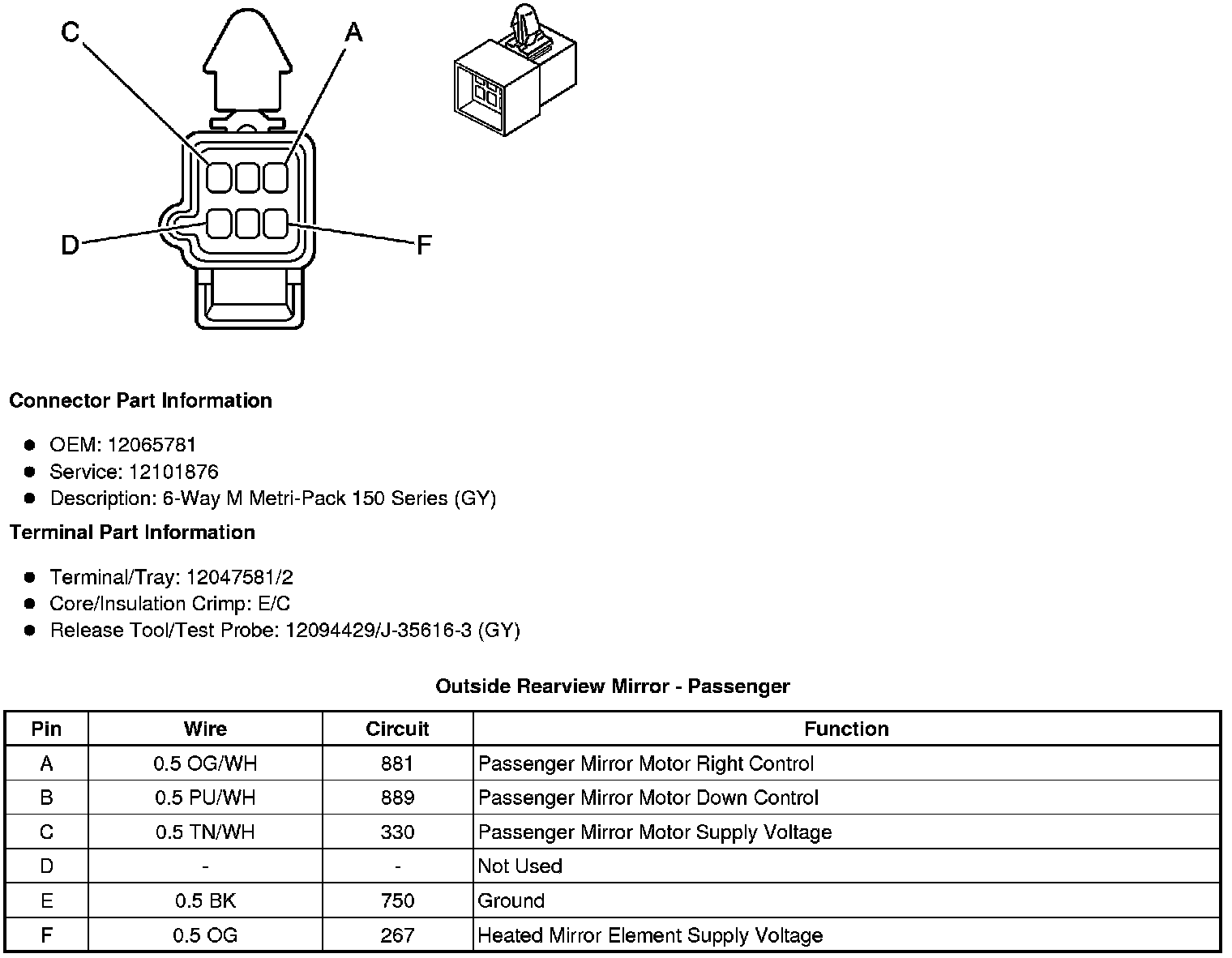

Outside Rearview Mirror - Passenger

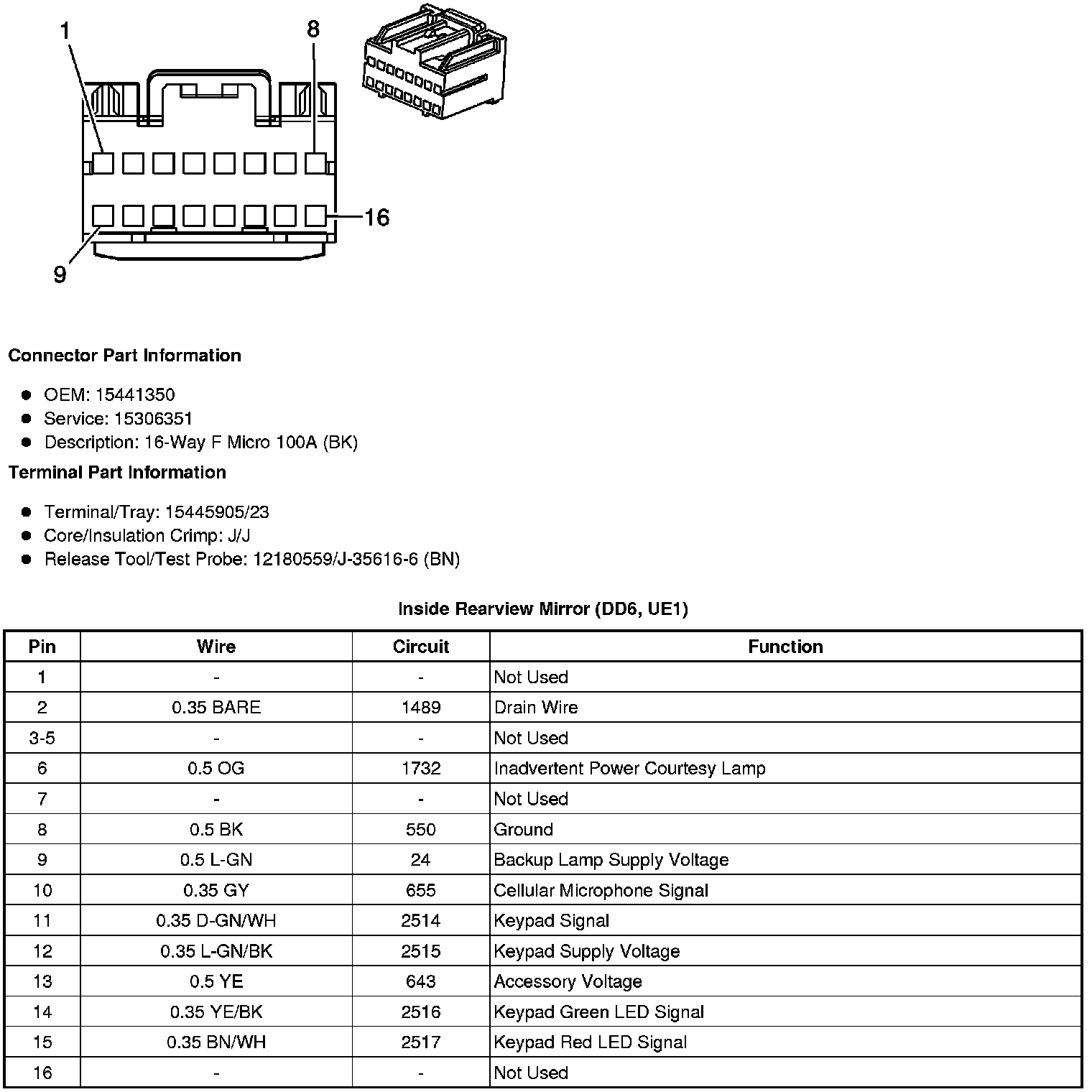

Inside Rearview Mirror (DD6, UE1)






Inside Rearview Mirror (without DD6 or UE1)
