Seat Temperature Control Module




Component Connector End Views

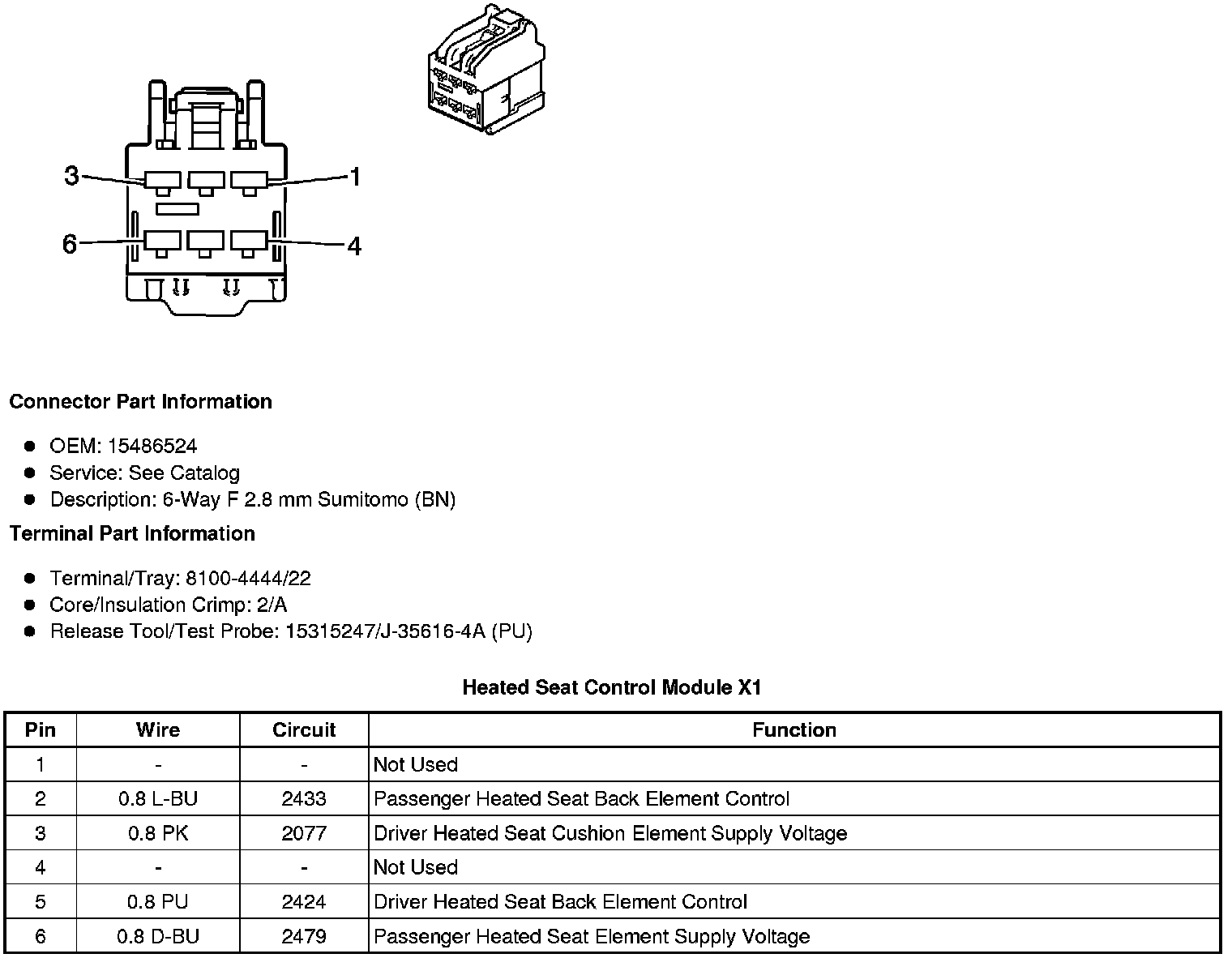

Heated Seat Control Module X1

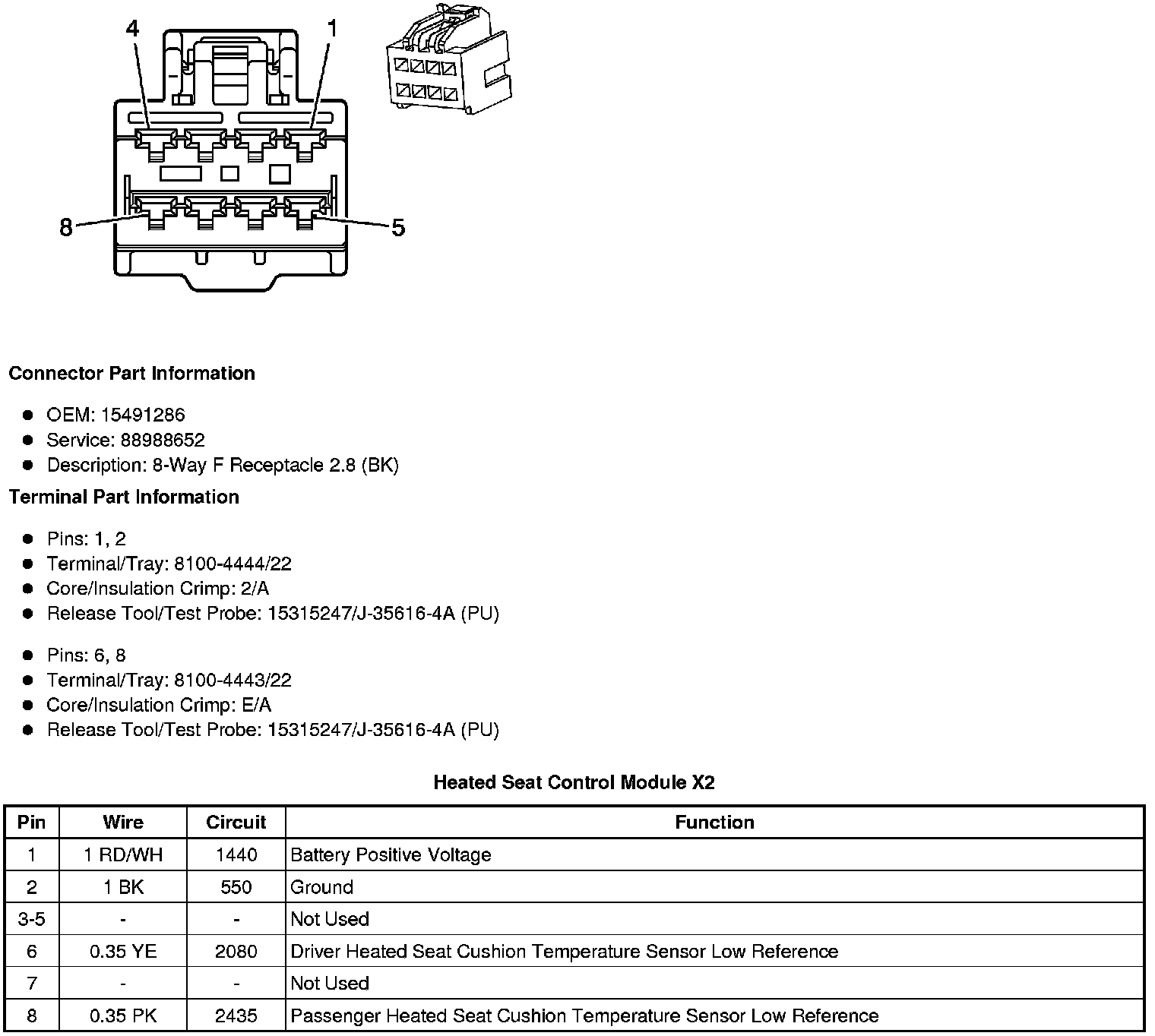

Heated Seat Control Module X2

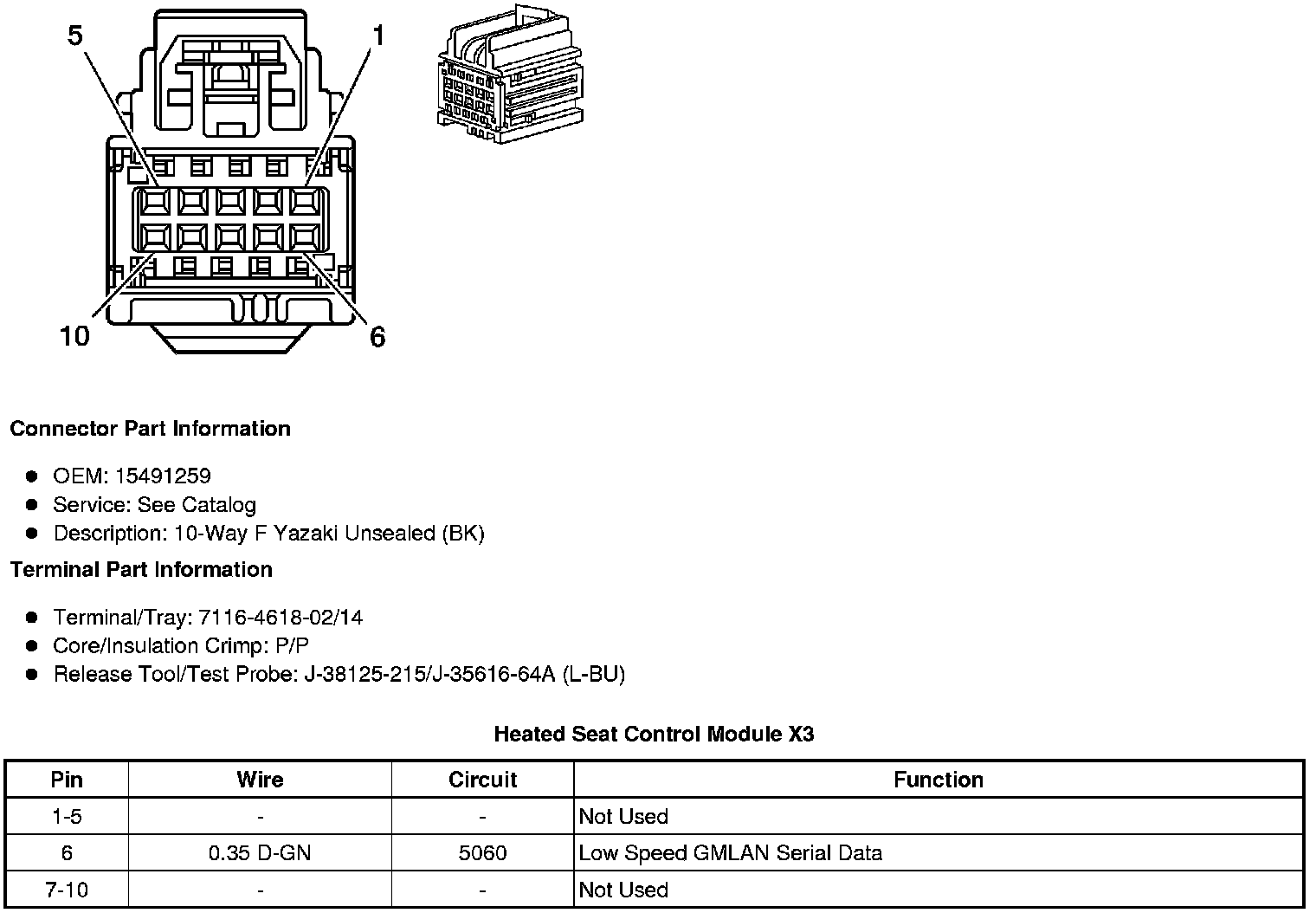

Heated Seat Control Module X3

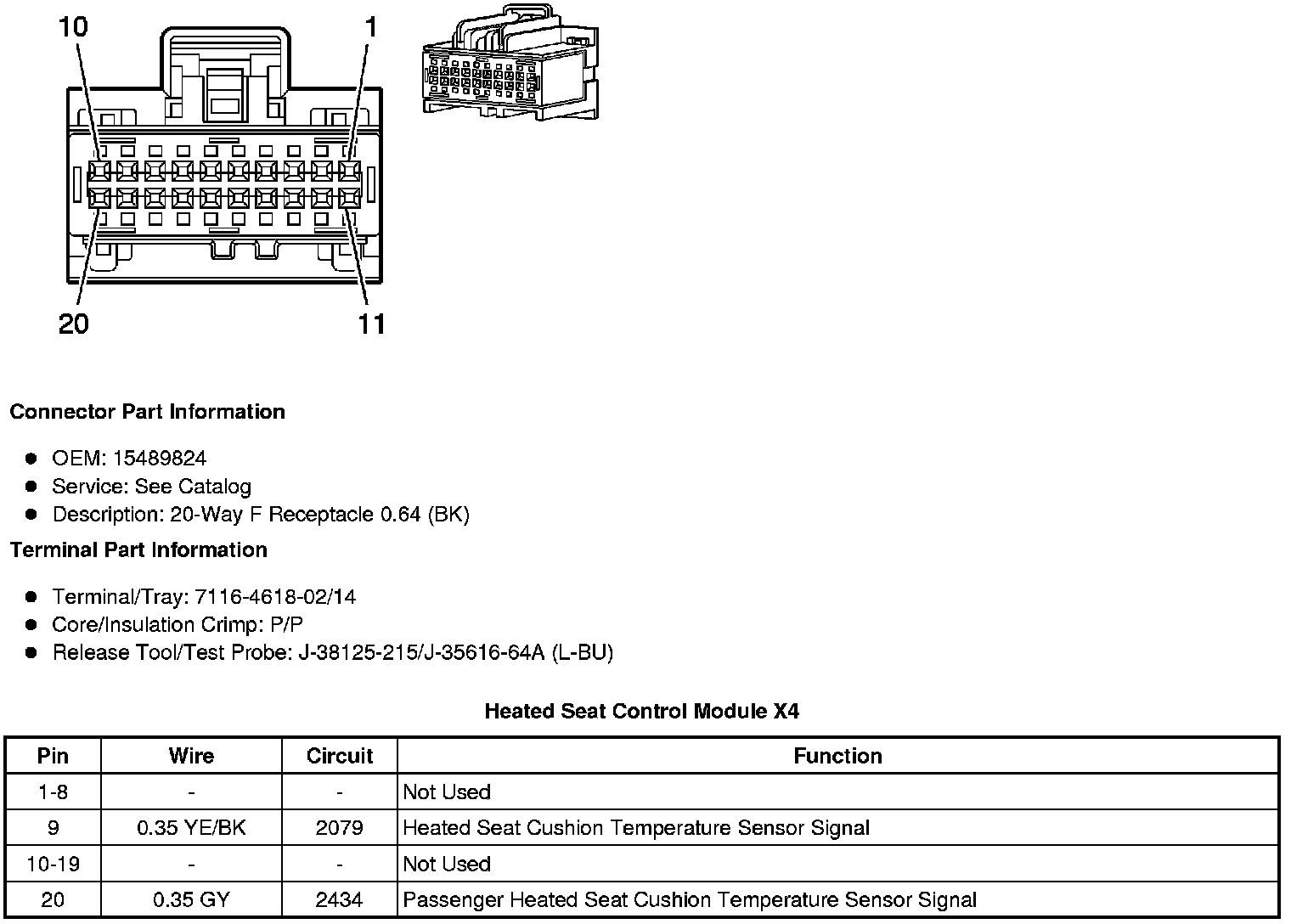

Heated Seat Control Module X4
