Seat Temperature Element




Component Connector End Views

Heated Seat Element - Driver Back

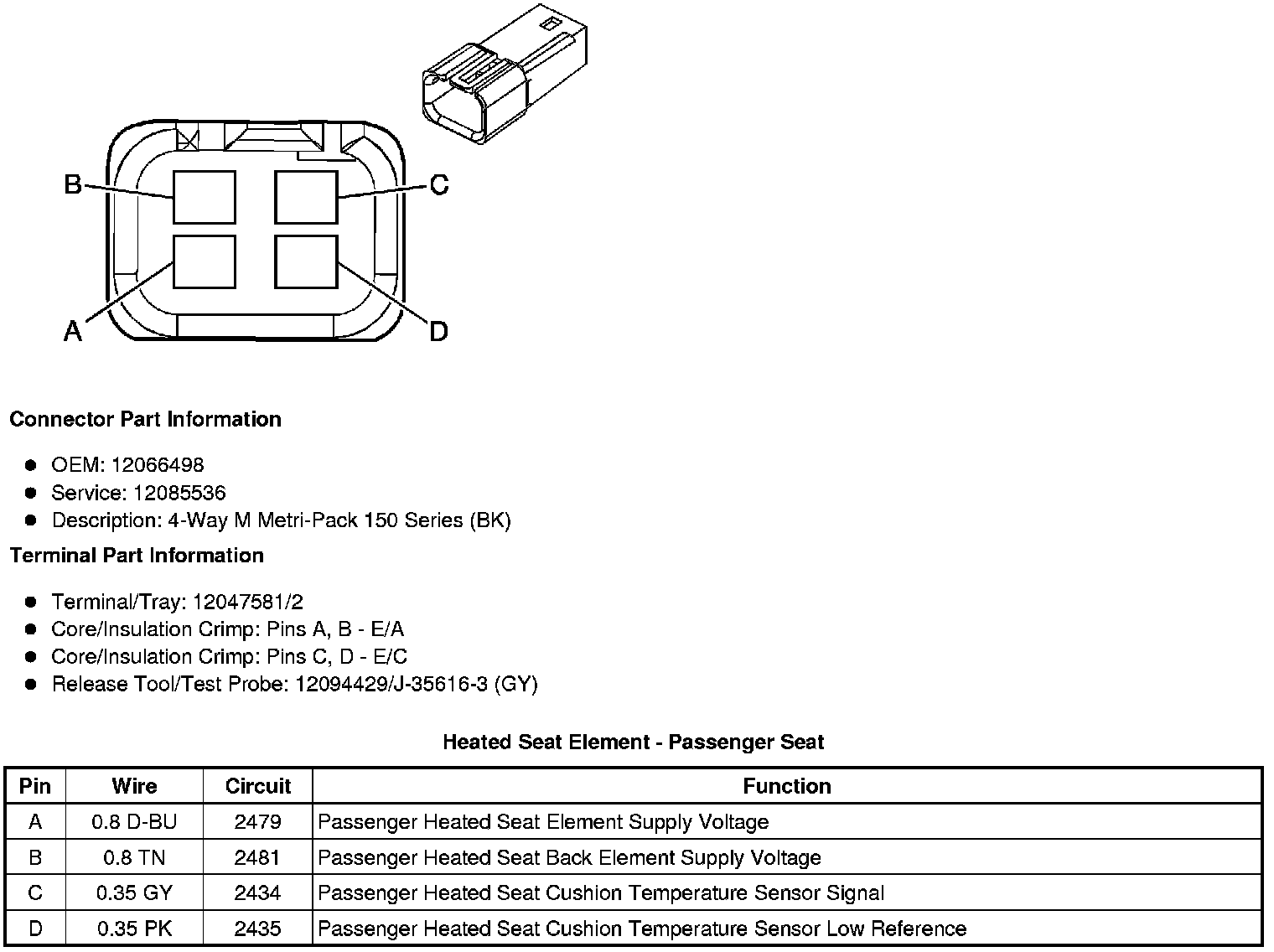

Heated Seat Element - Driver Seat

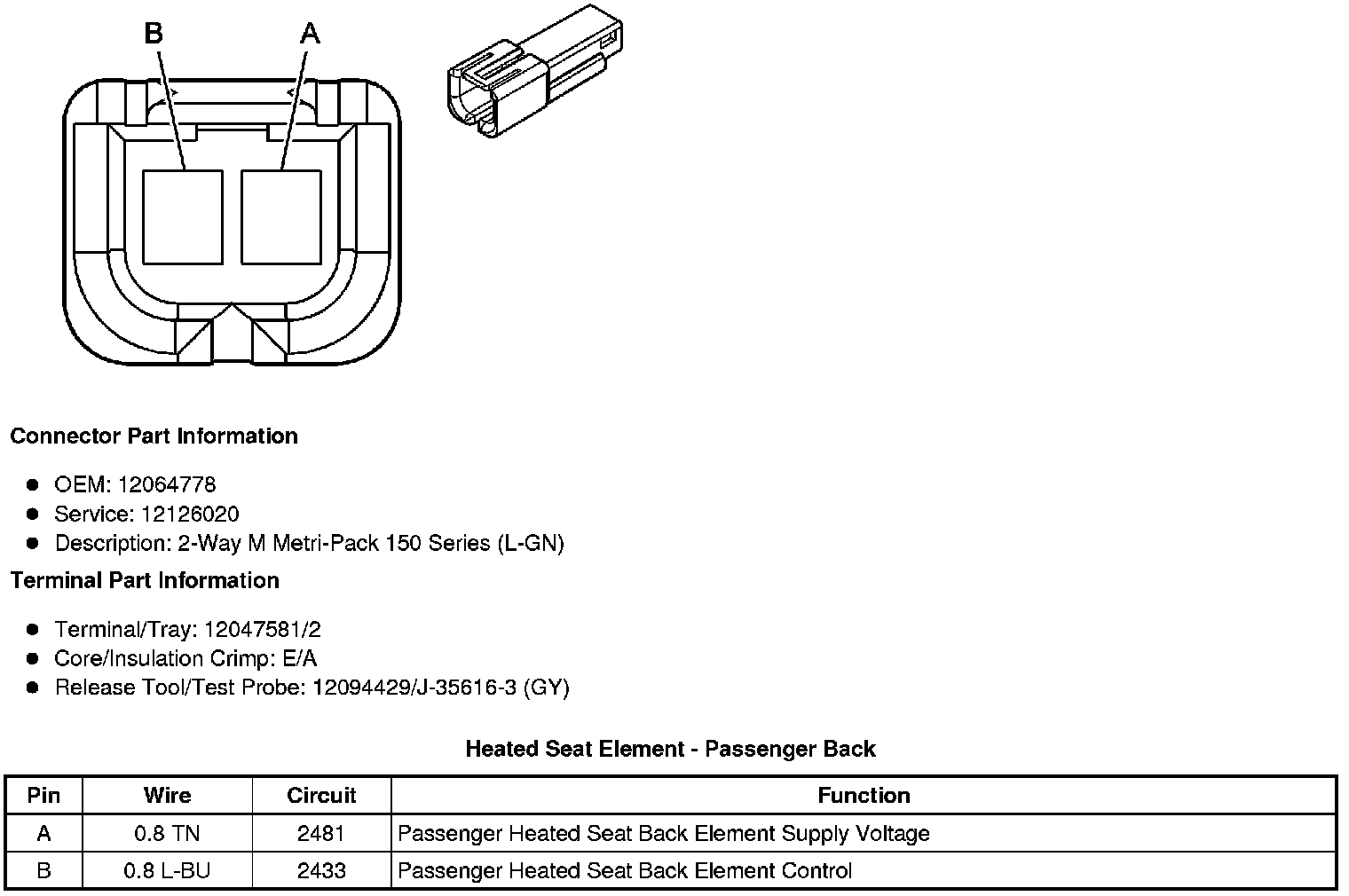

Heated Seat Element - Passenger Back

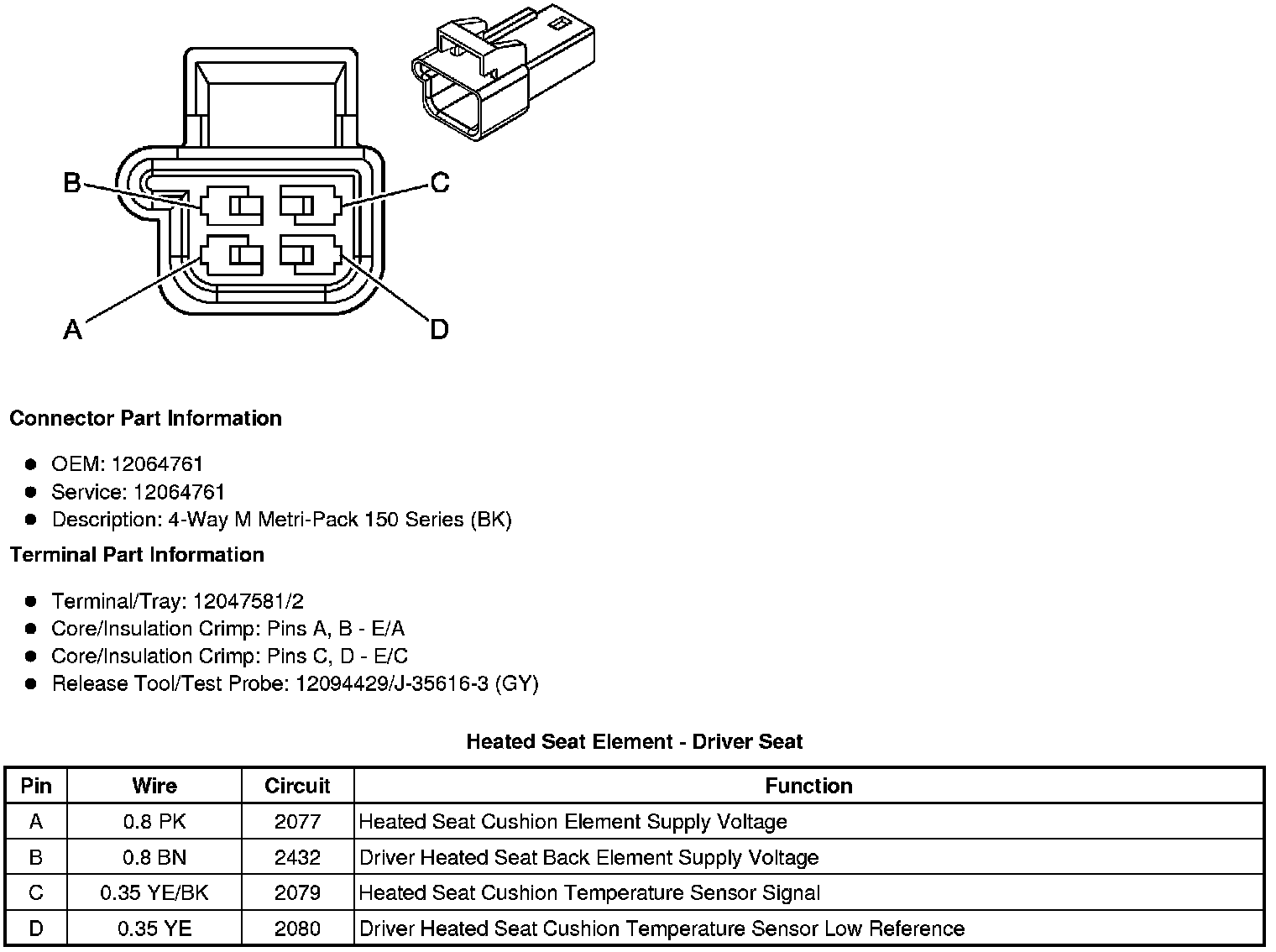

Heated Seat Element - Passenger Seat
