Shift Interlock Solenoid




Component Connector End Views

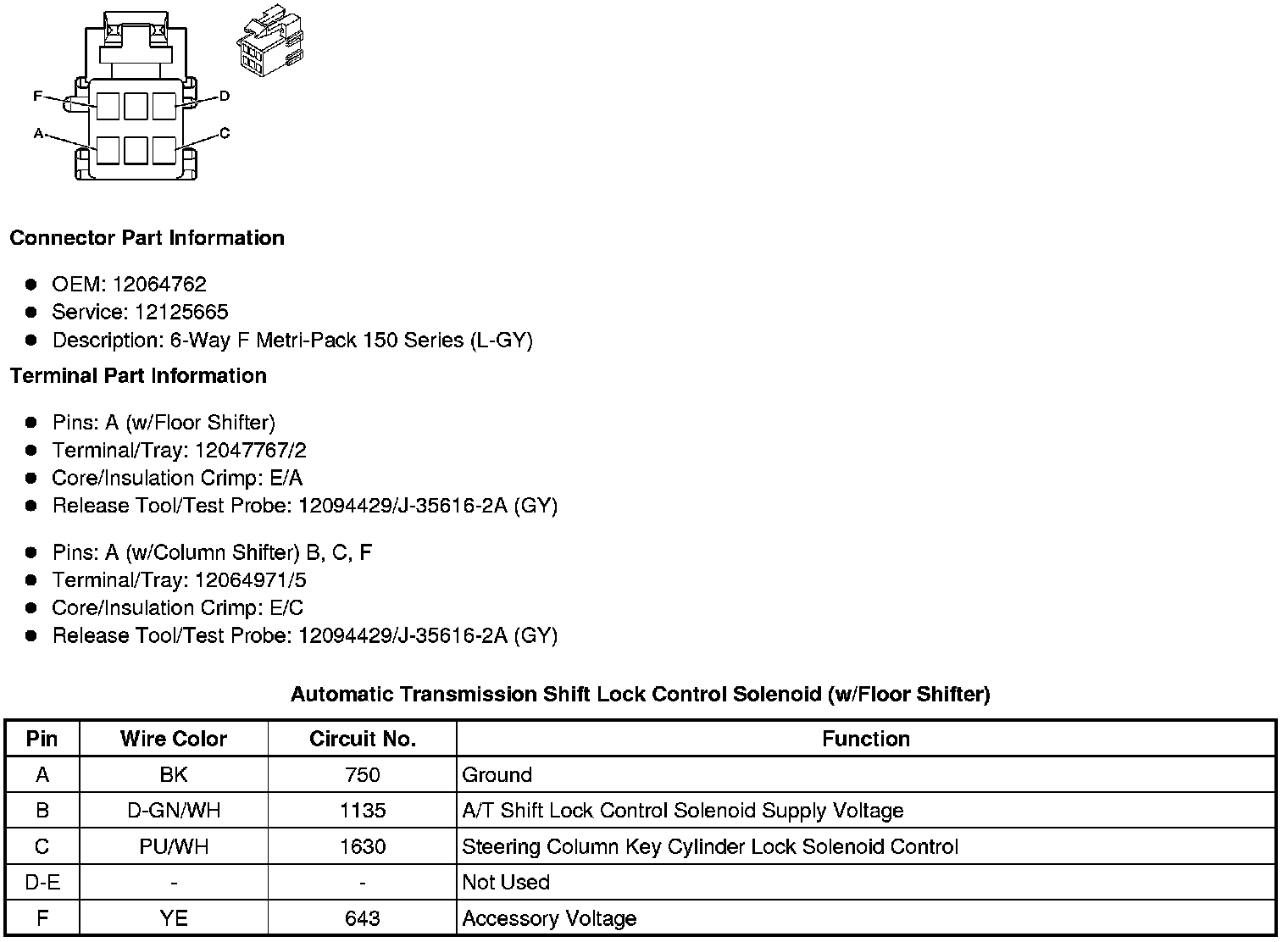

Automatic Transmission Shift Lock Control Solenoid (w/Floor Shifter)






Automatic Transmission Shift Lock Control Solenoid (w/o Floor Shifter)
