Battery Cables Views




Harness Routing Views

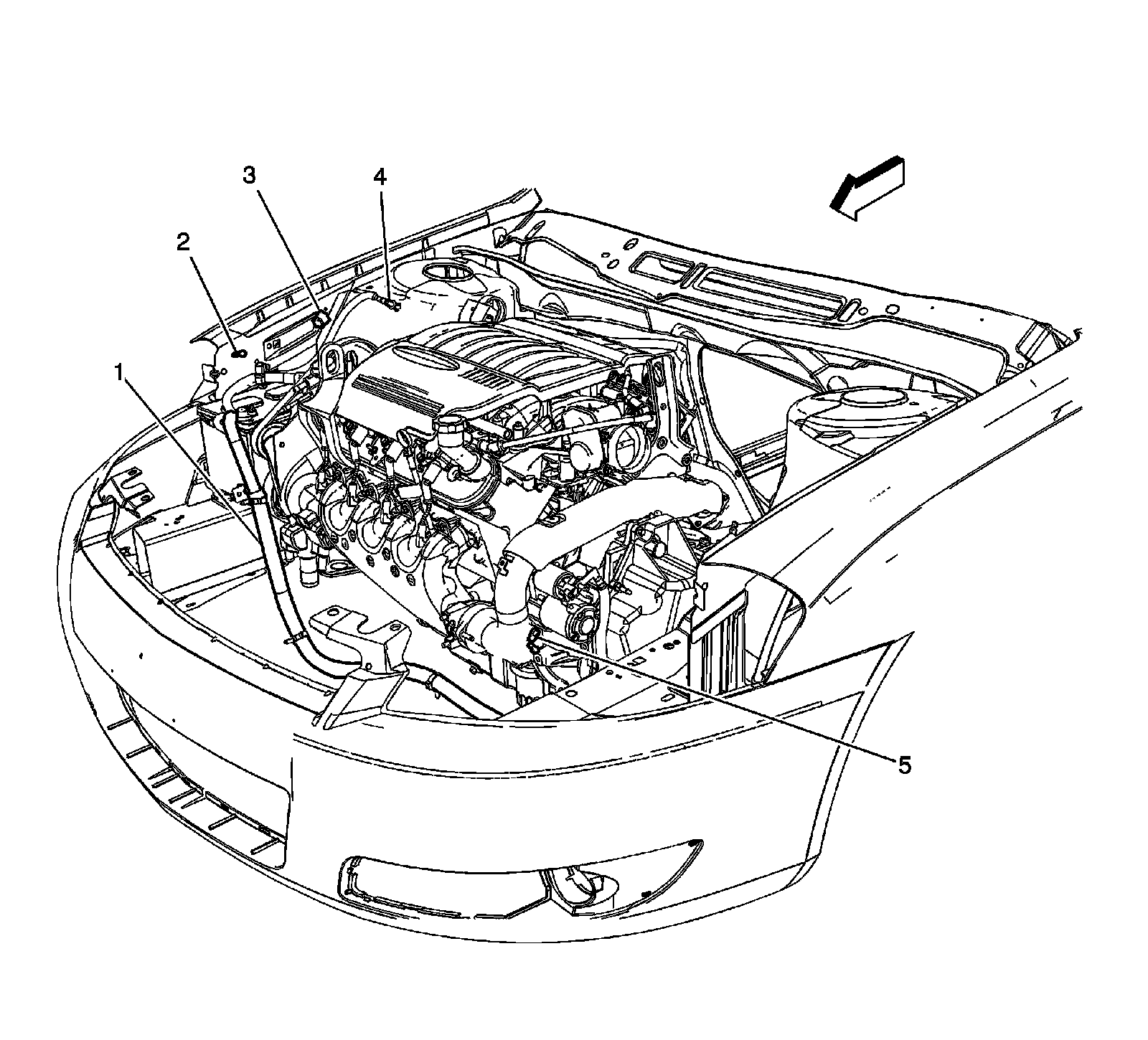

Battery Cables (Typical)




1 - Battery Cables
2 - G102
3 - X105
4 - Positive Voltage Stud
5 - G111
