Master Splice List




Master Electrical Component List

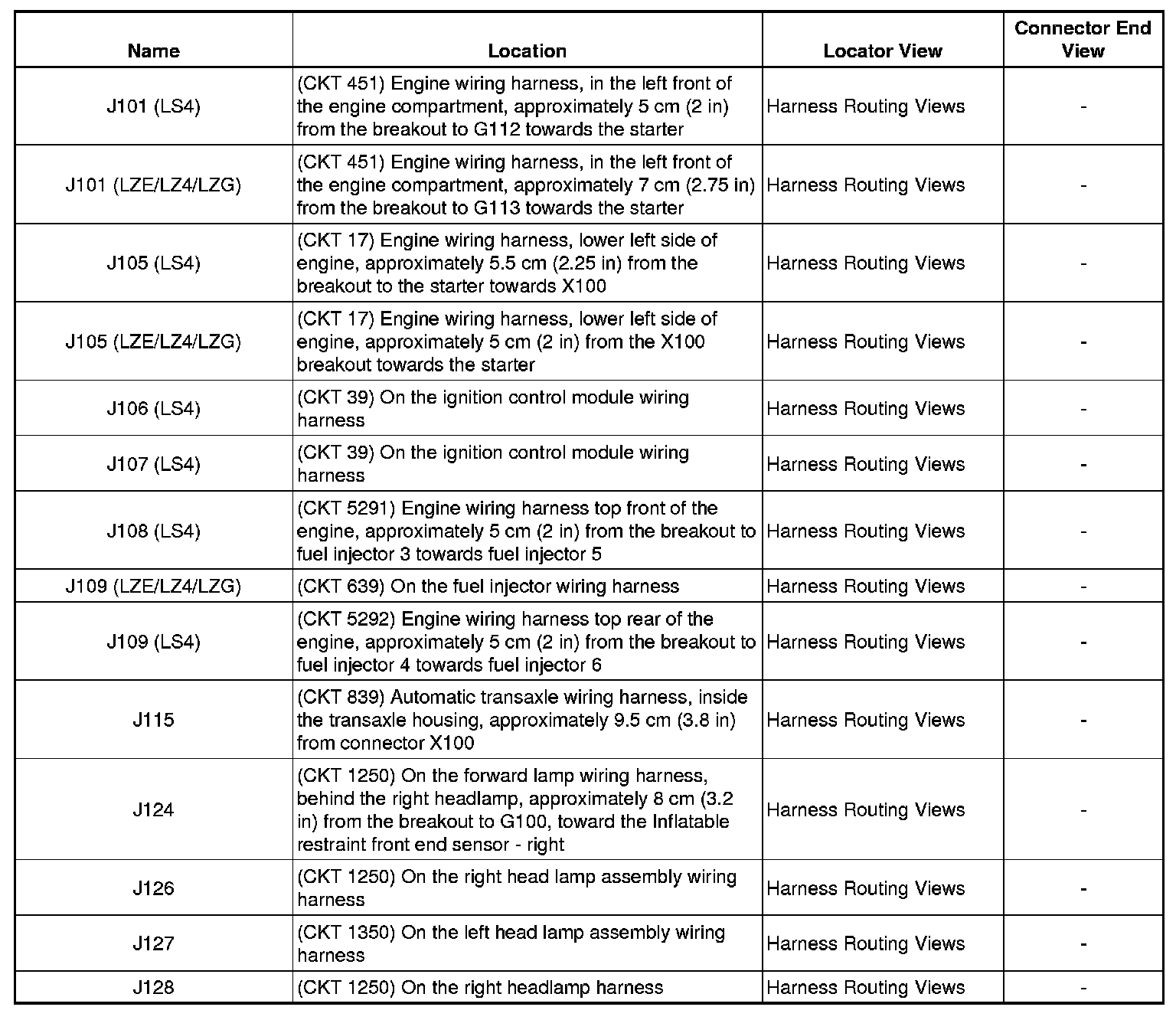

J101 - J128:

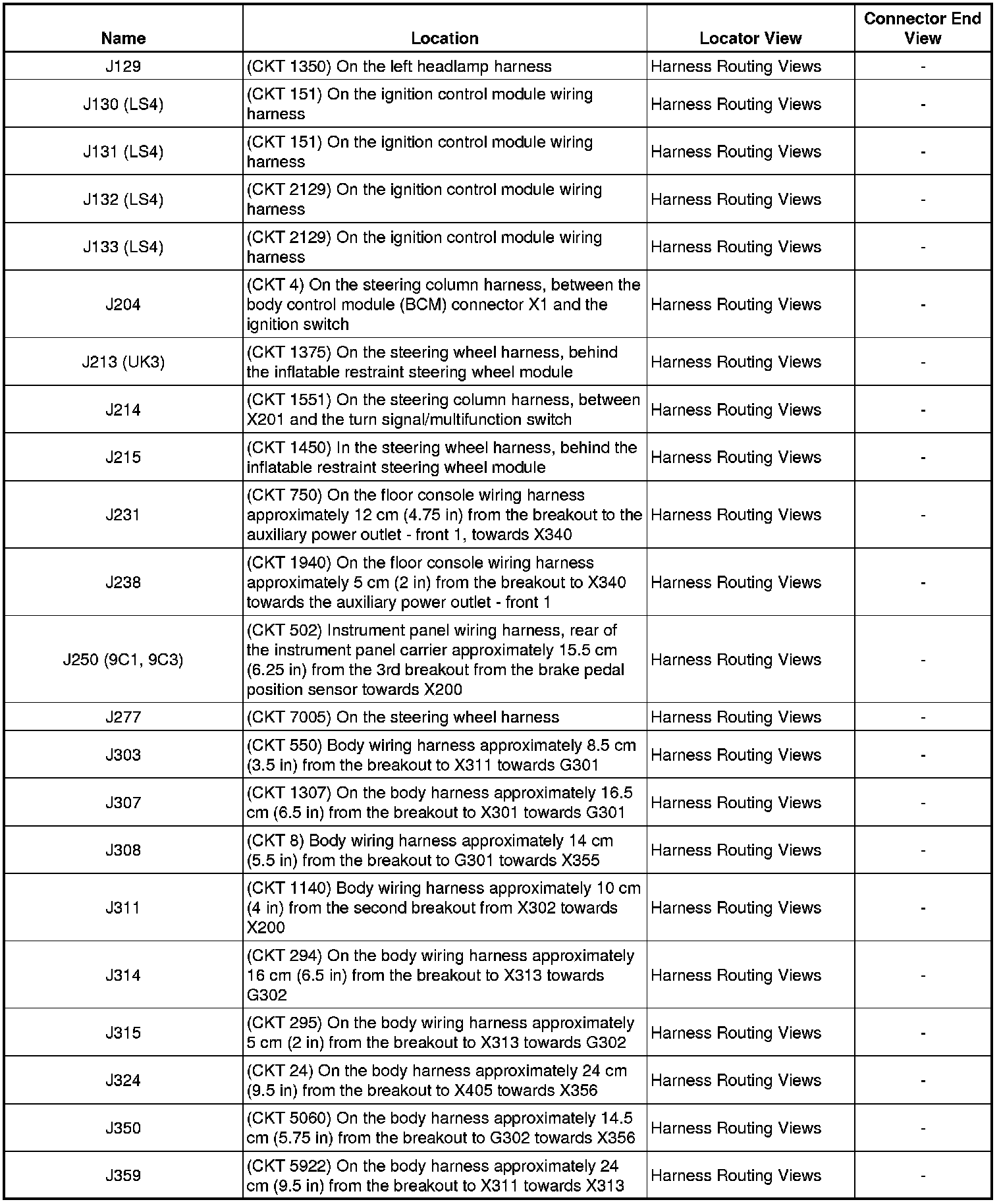

J129 - J359:

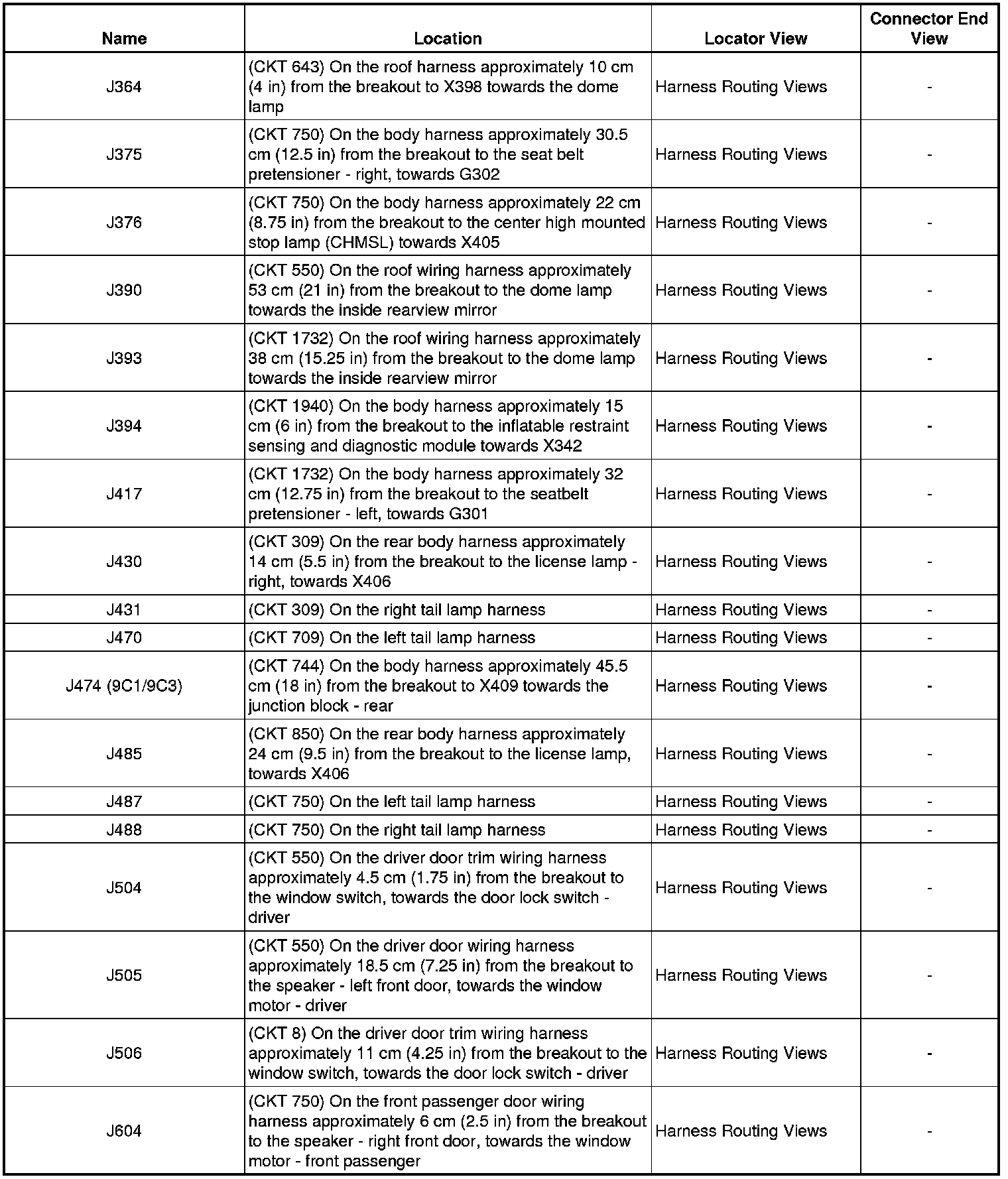

J364 - J604:




J608 - JX207:
