Underhood Fuse Block
Electrical Center Identification Views

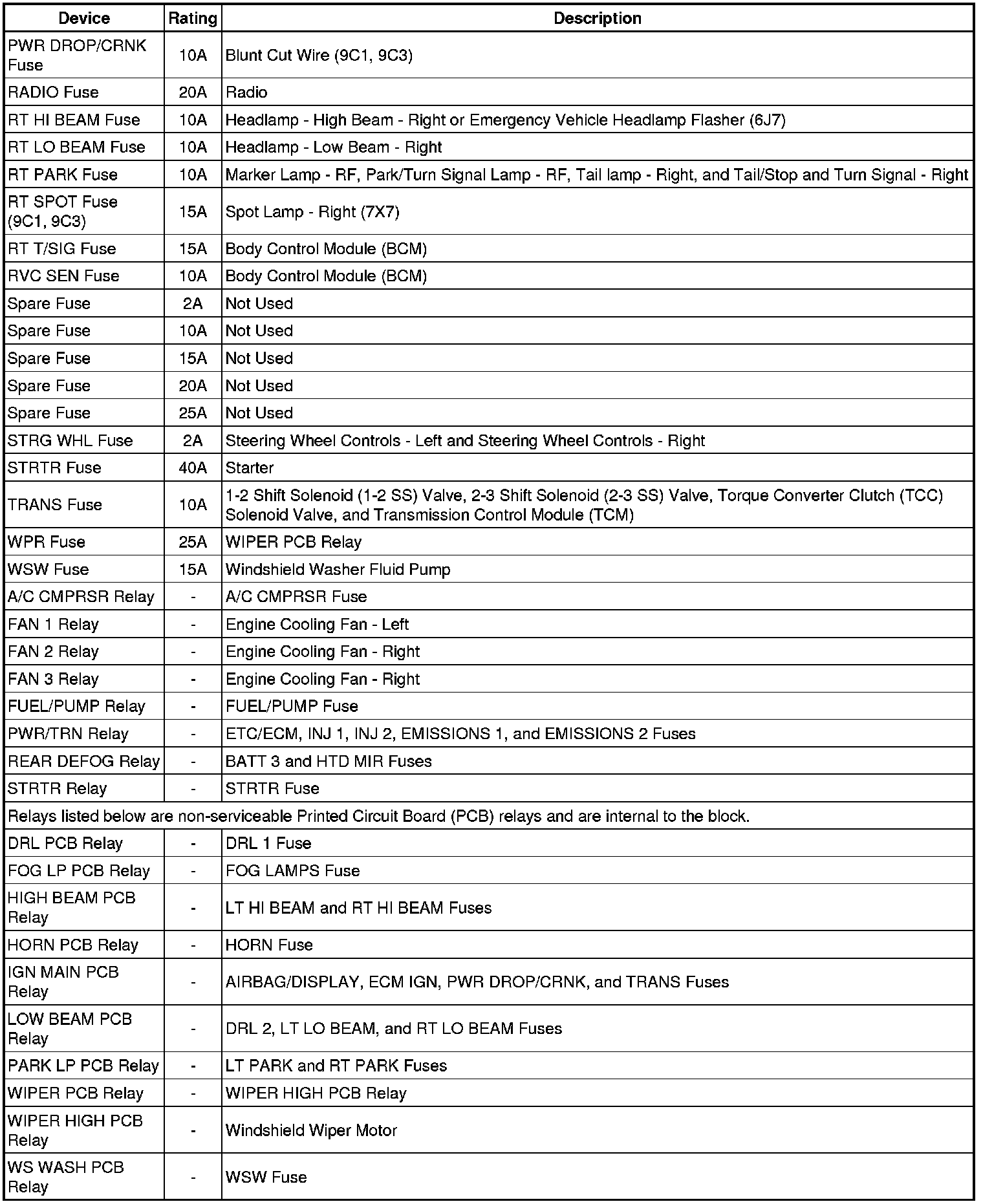

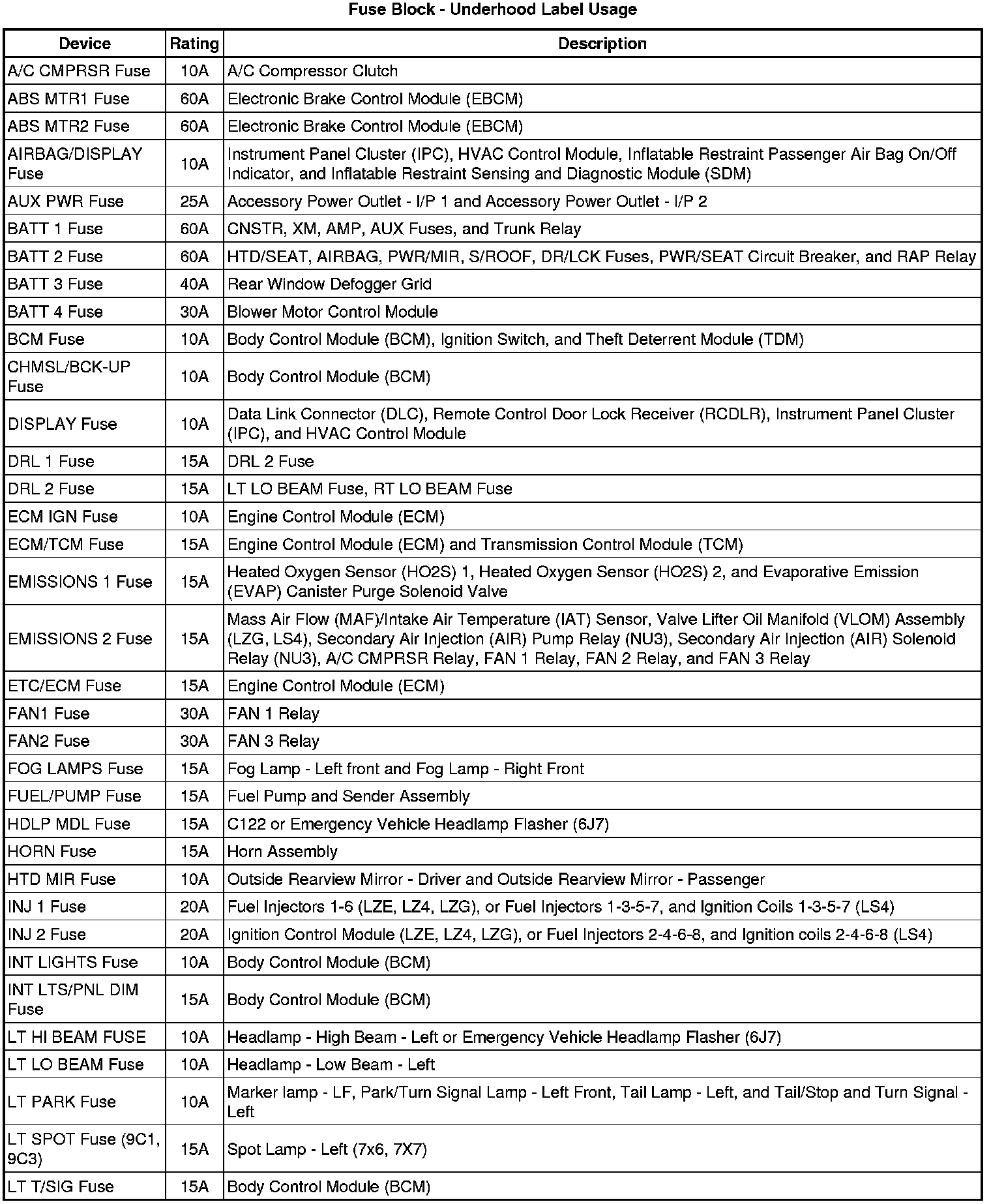

Fuse Block - Underhood Label
Fuse Block - Underhood - Top View

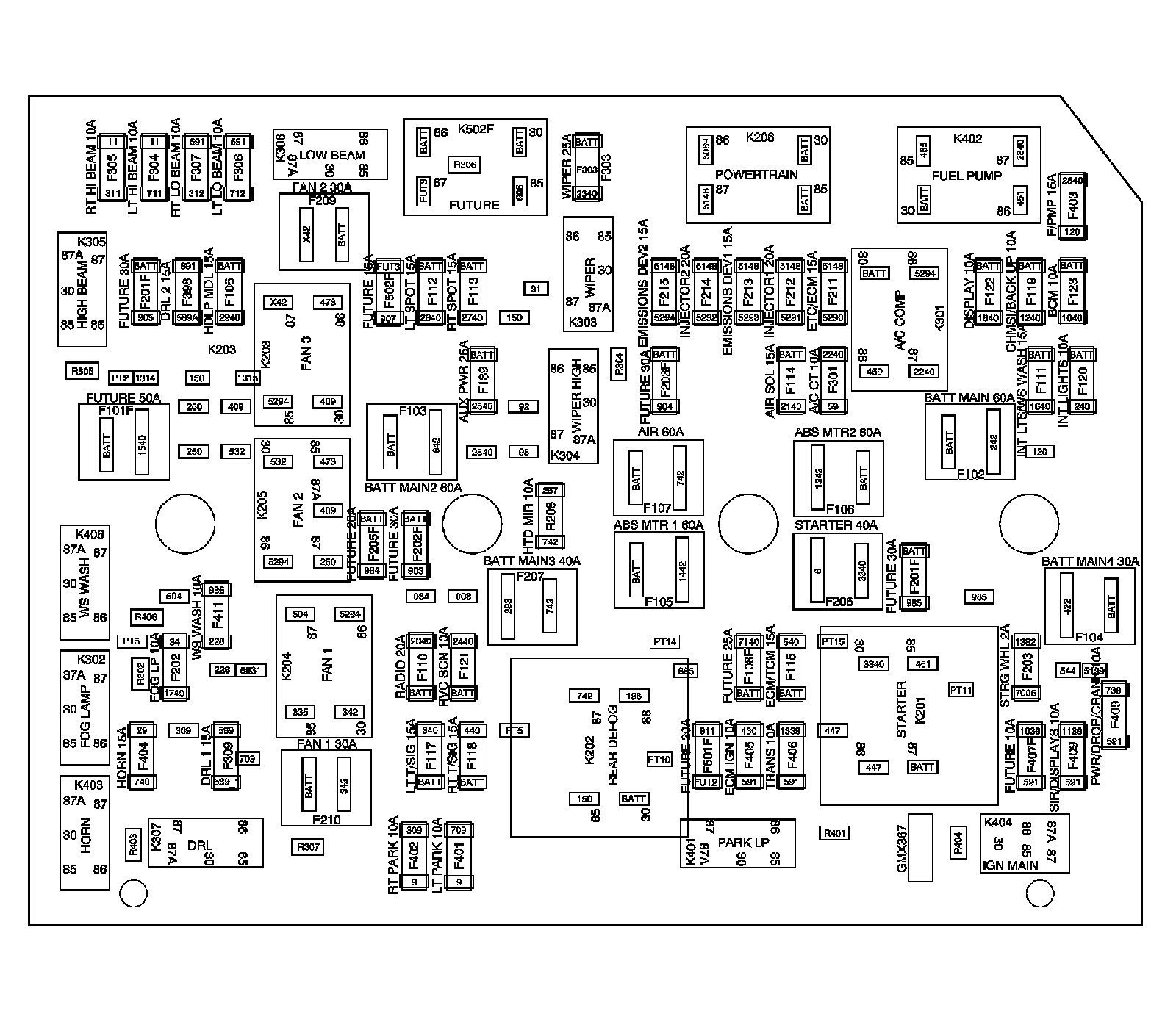

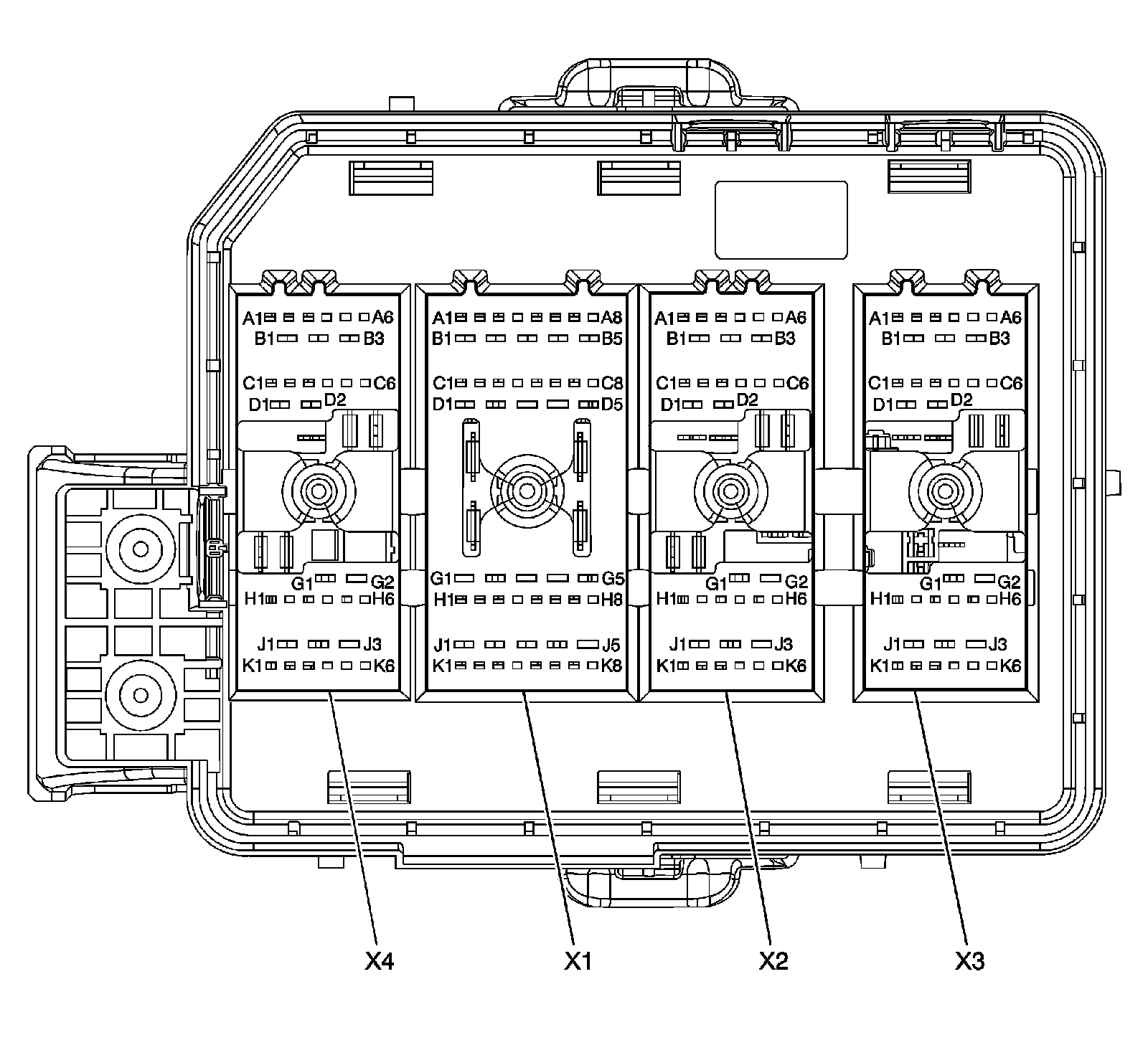

Fuse Block - Underhood - Bottom View

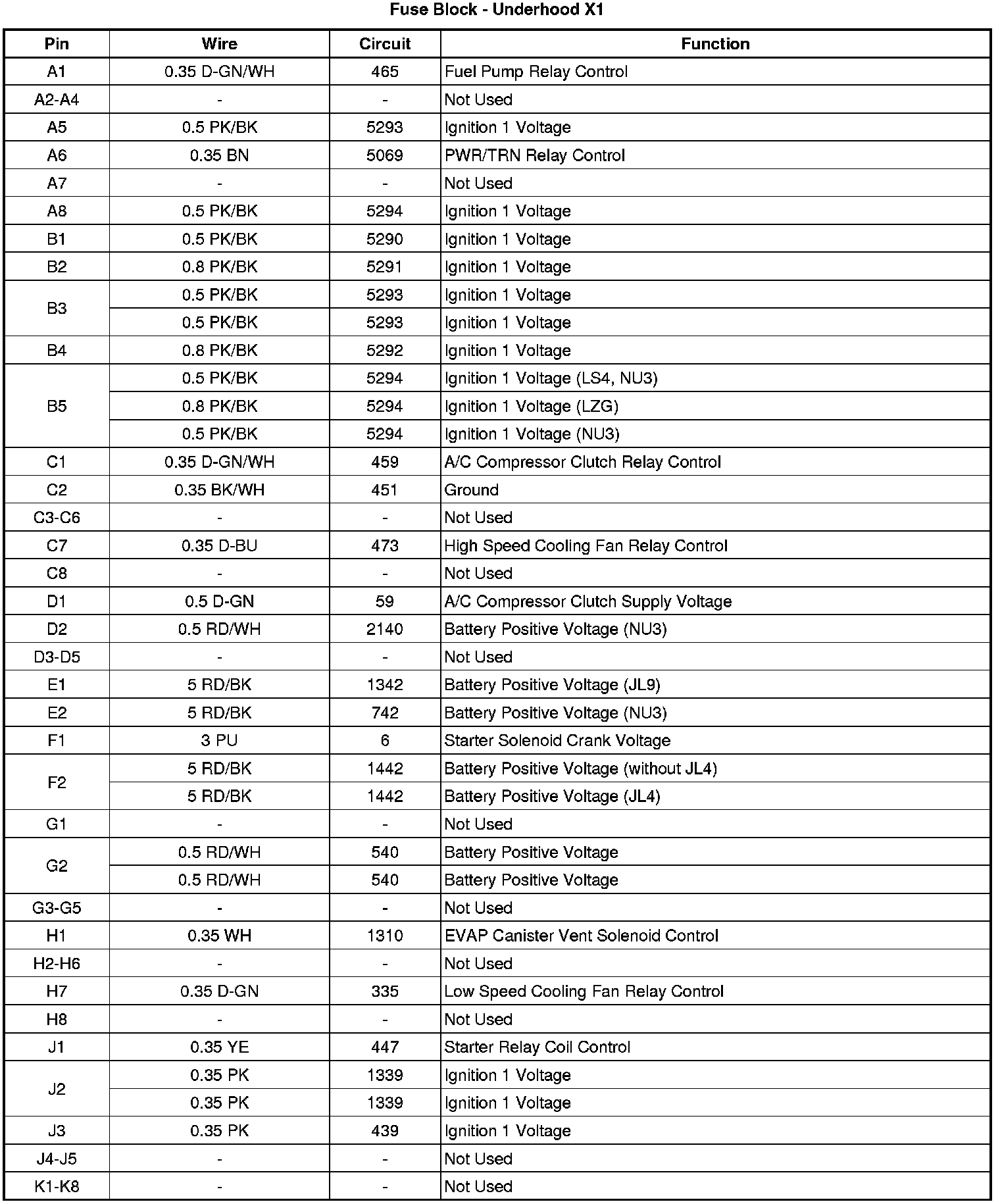

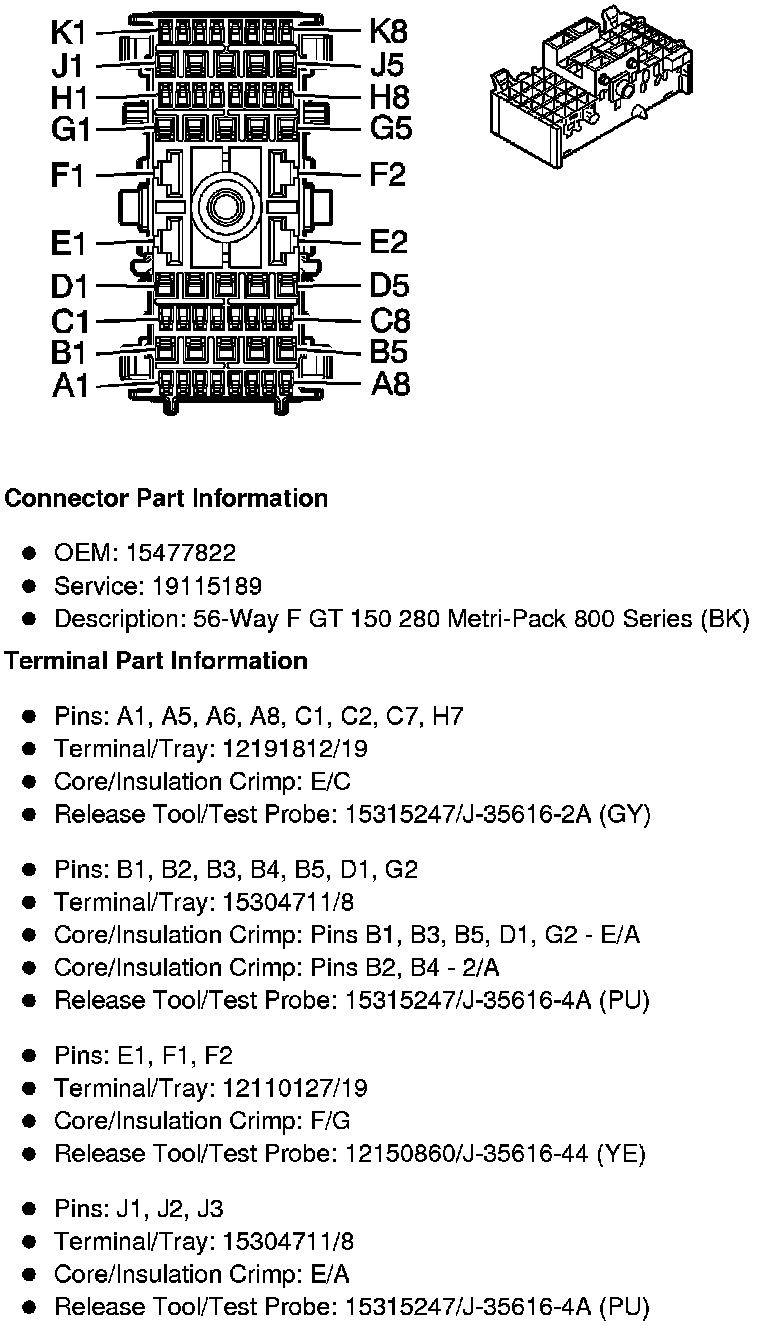

Fuse Block - Underhood X1

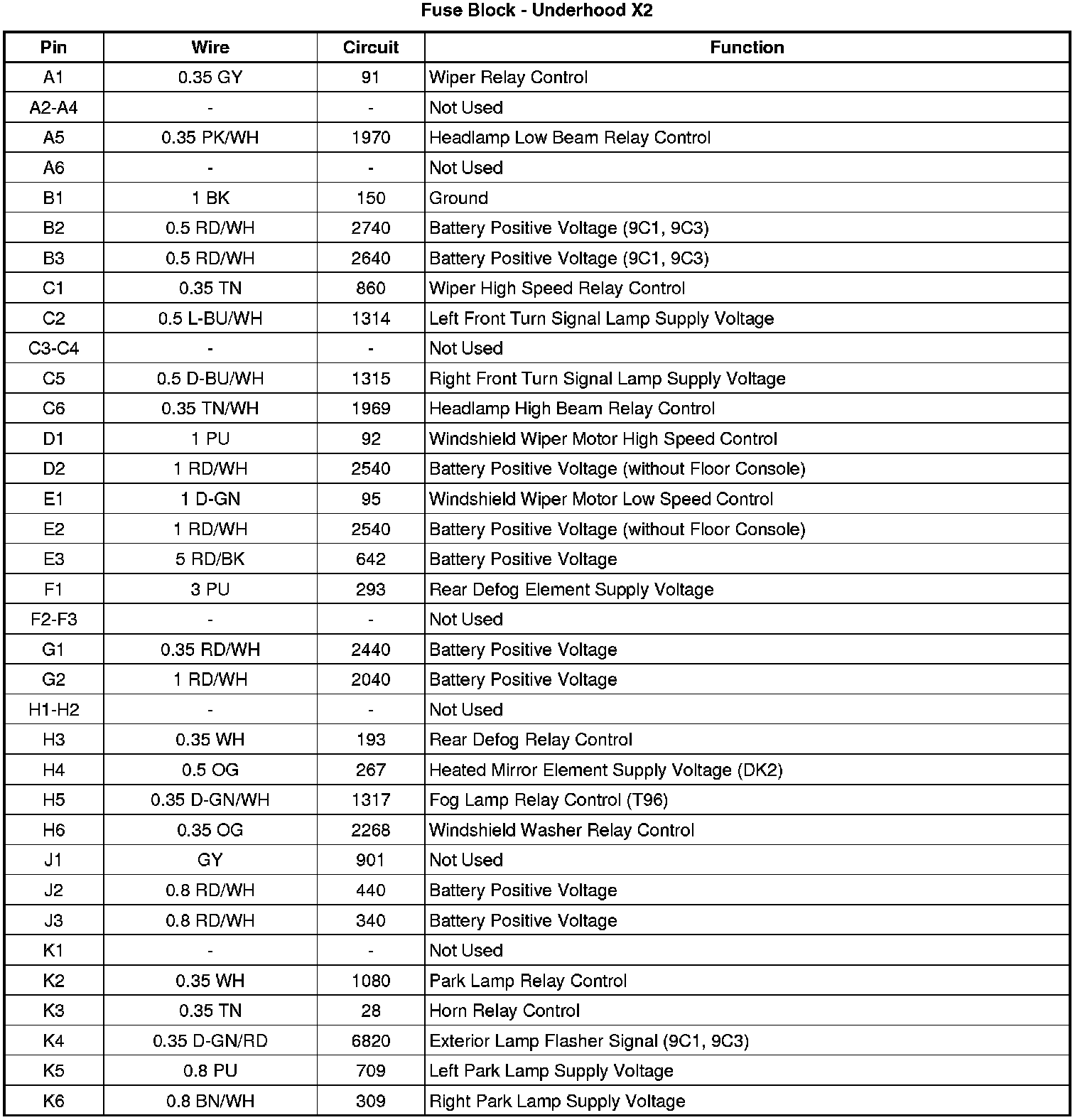

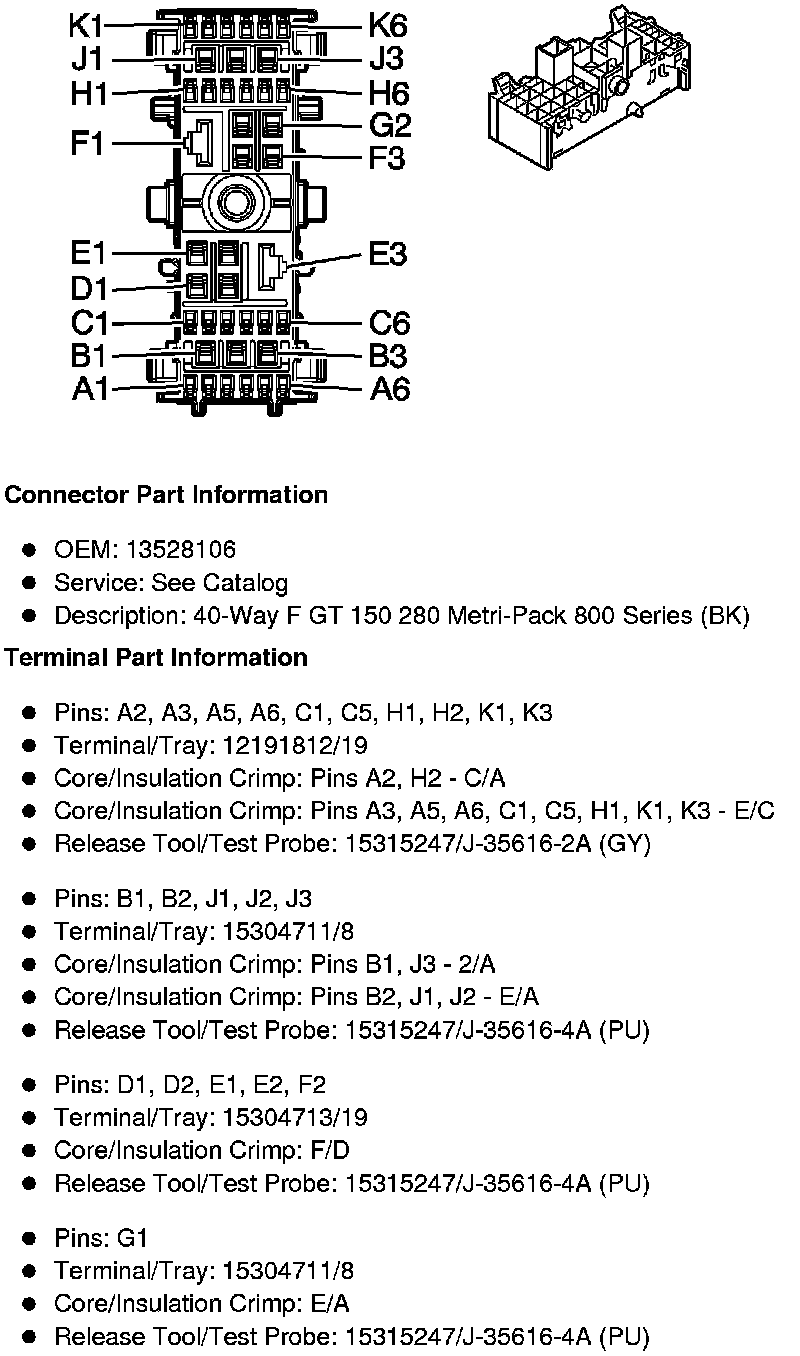

Fuse Block - Underhood X2

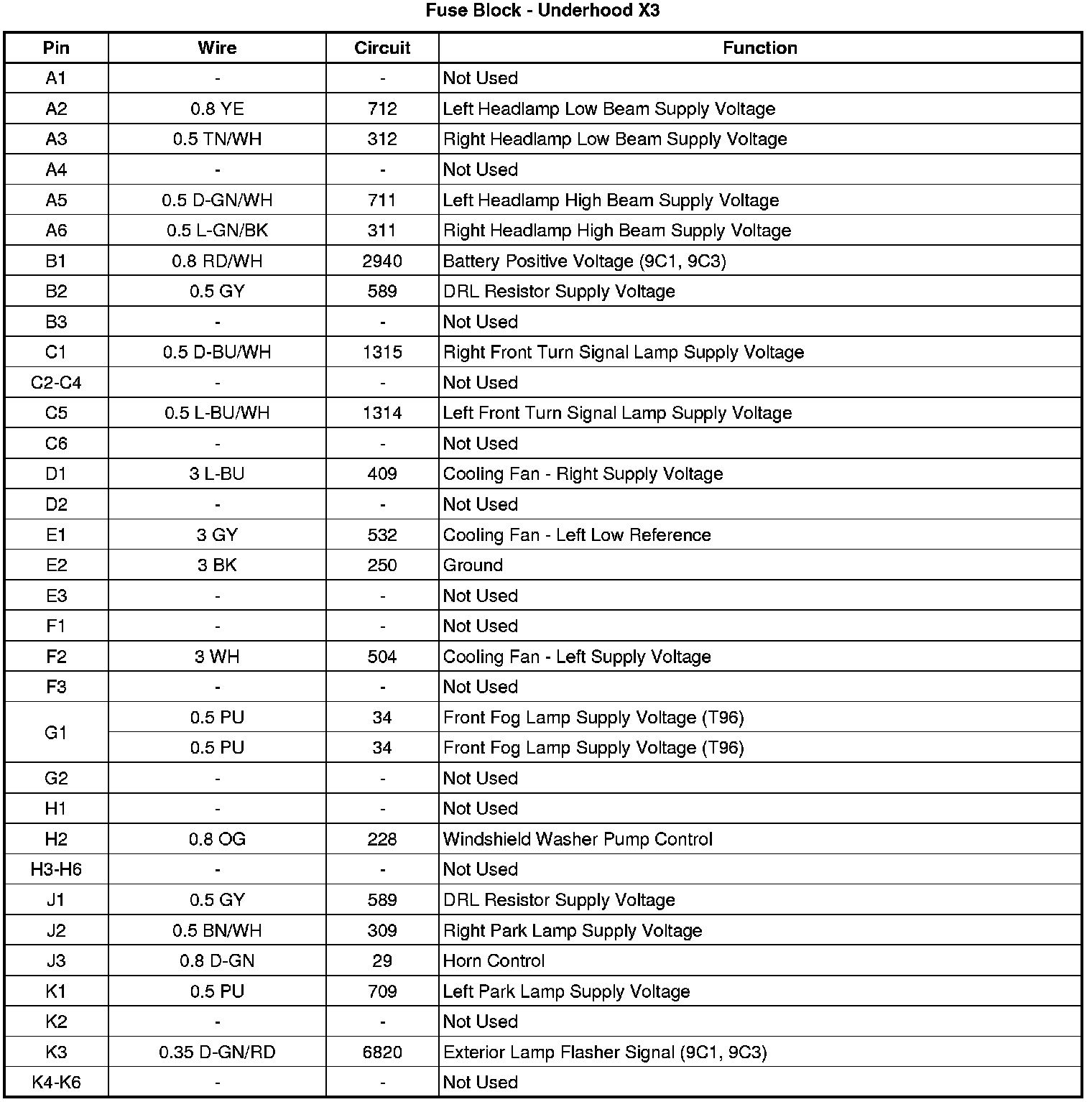

Fuse Block - Underhood X3

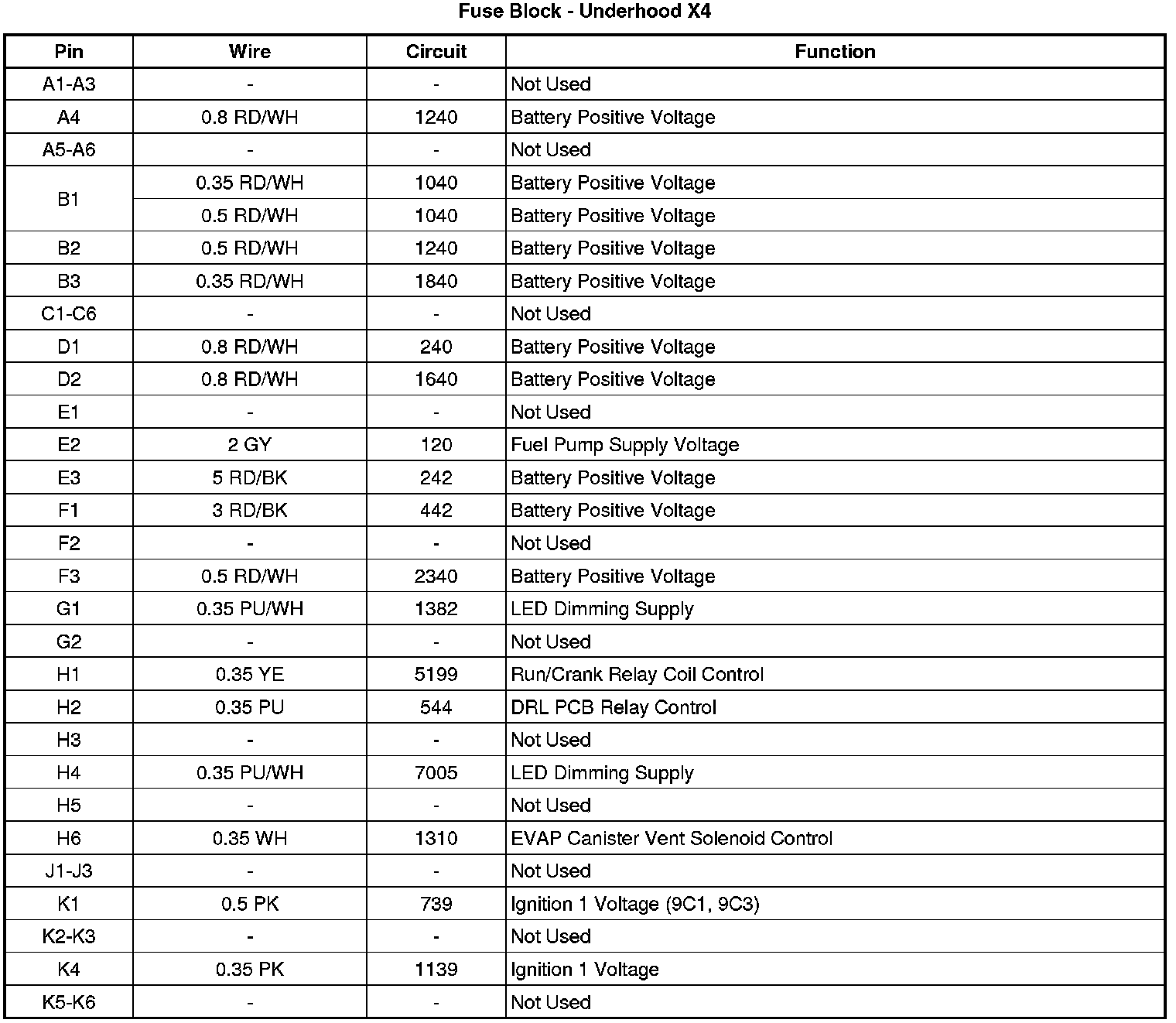

Fuse Block - Underhood X4
