Passenger Compartment/Roof Component Views

Passenger Compartment/Roof Component Views

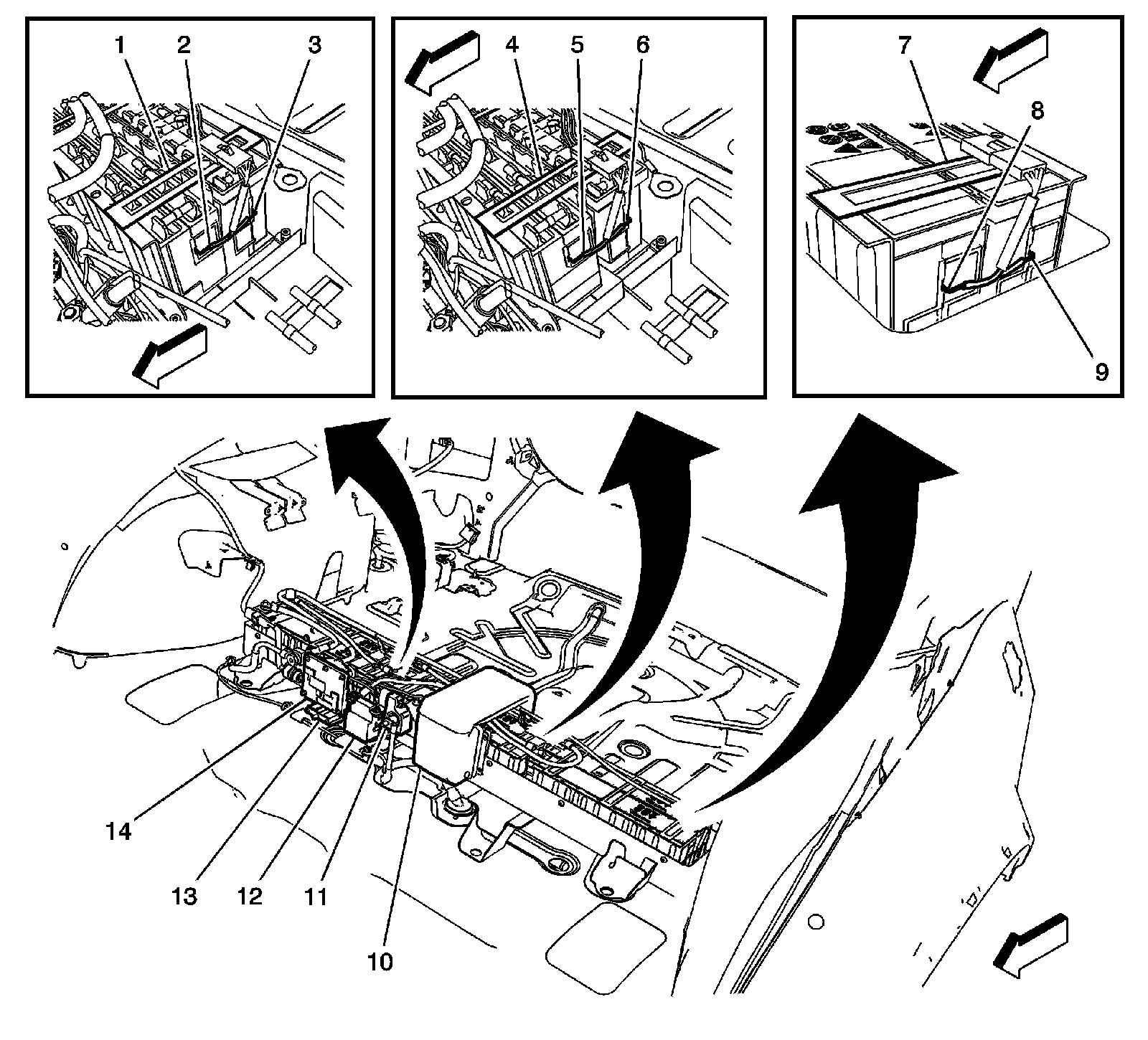

Generator Battery Assembly (HP7)




1 - Generator Battery 1
2 - Generator Battery Temperature Sensor 1
3 - Generator Battery Temperature Sensor 1
4 - Generator Battery 2
5 - Generator Battery Temperature Sensor 2
6 - Generator Battery Temperature Sensor 2
7 - Generator Battery 3
8 - Generator Battery Temperature Sensor 3
9 - Generator Battery Temperature Sensor 3
10 - Generator Battery Vent Fan
11 - Battery Current Sensor
12 - Main Contactor Relay
13 - Battery Disconnect Switch
14 - Generator Battery Disconnect Control Module
