Fuse Block

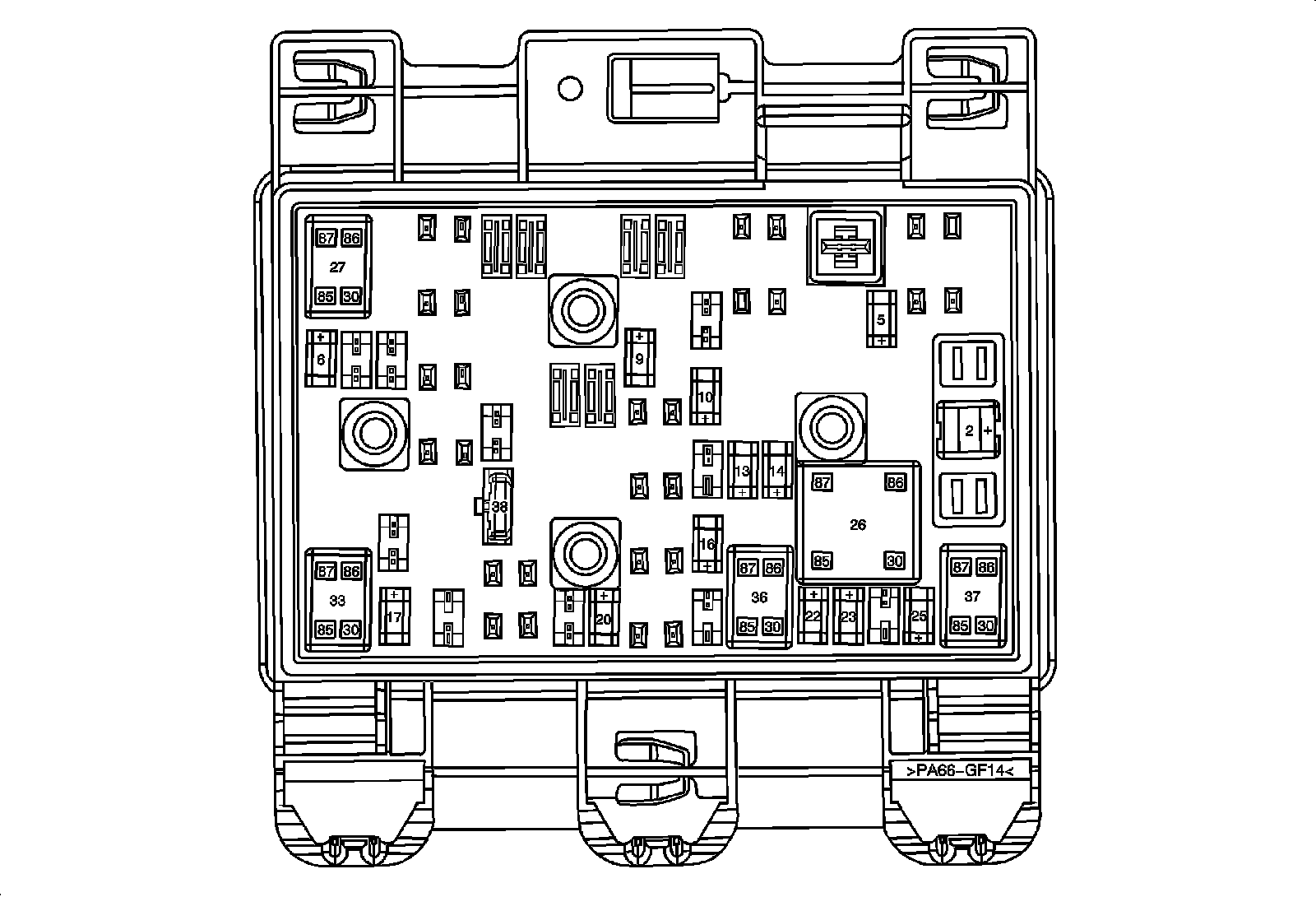

Electrical Center Identification Views

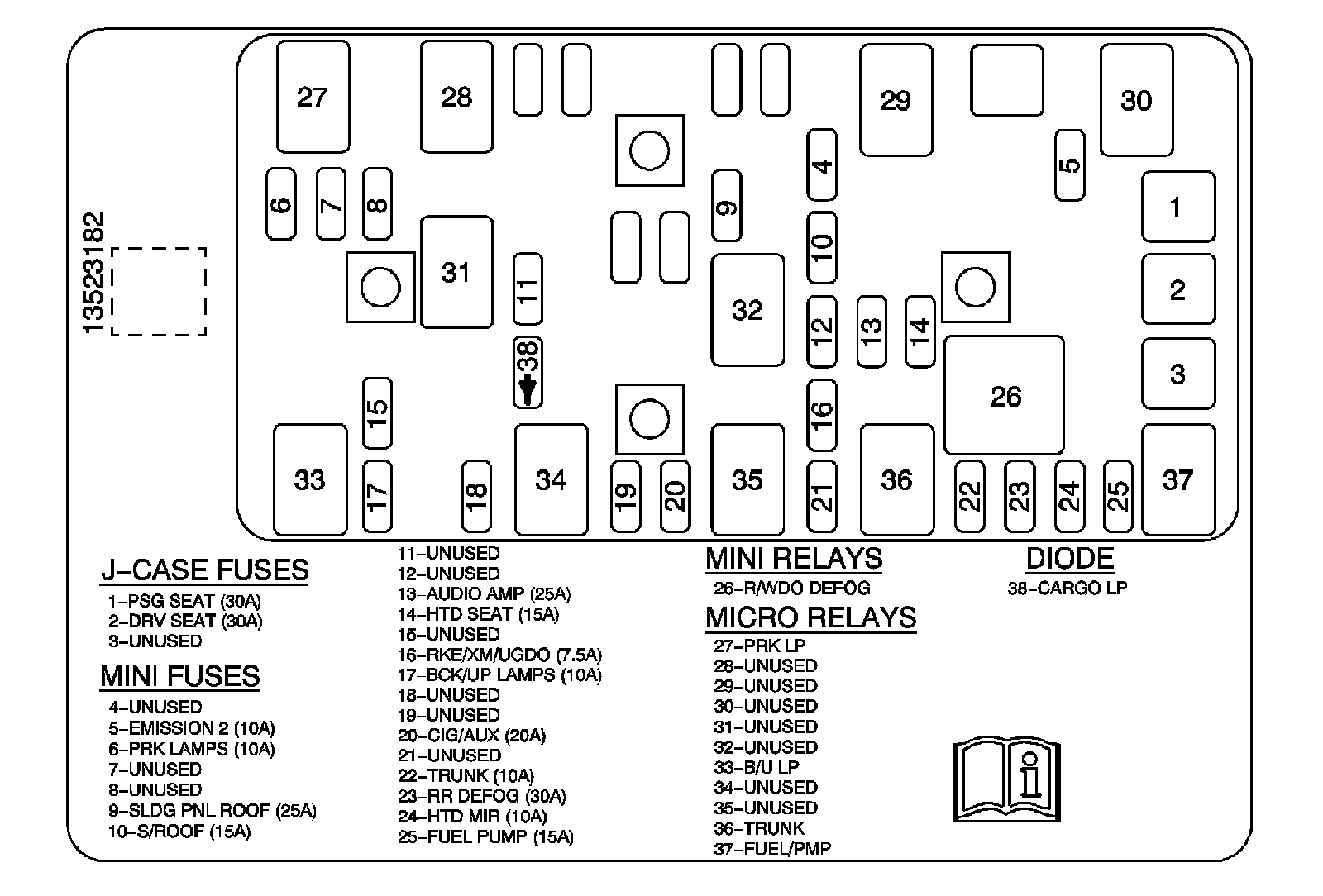

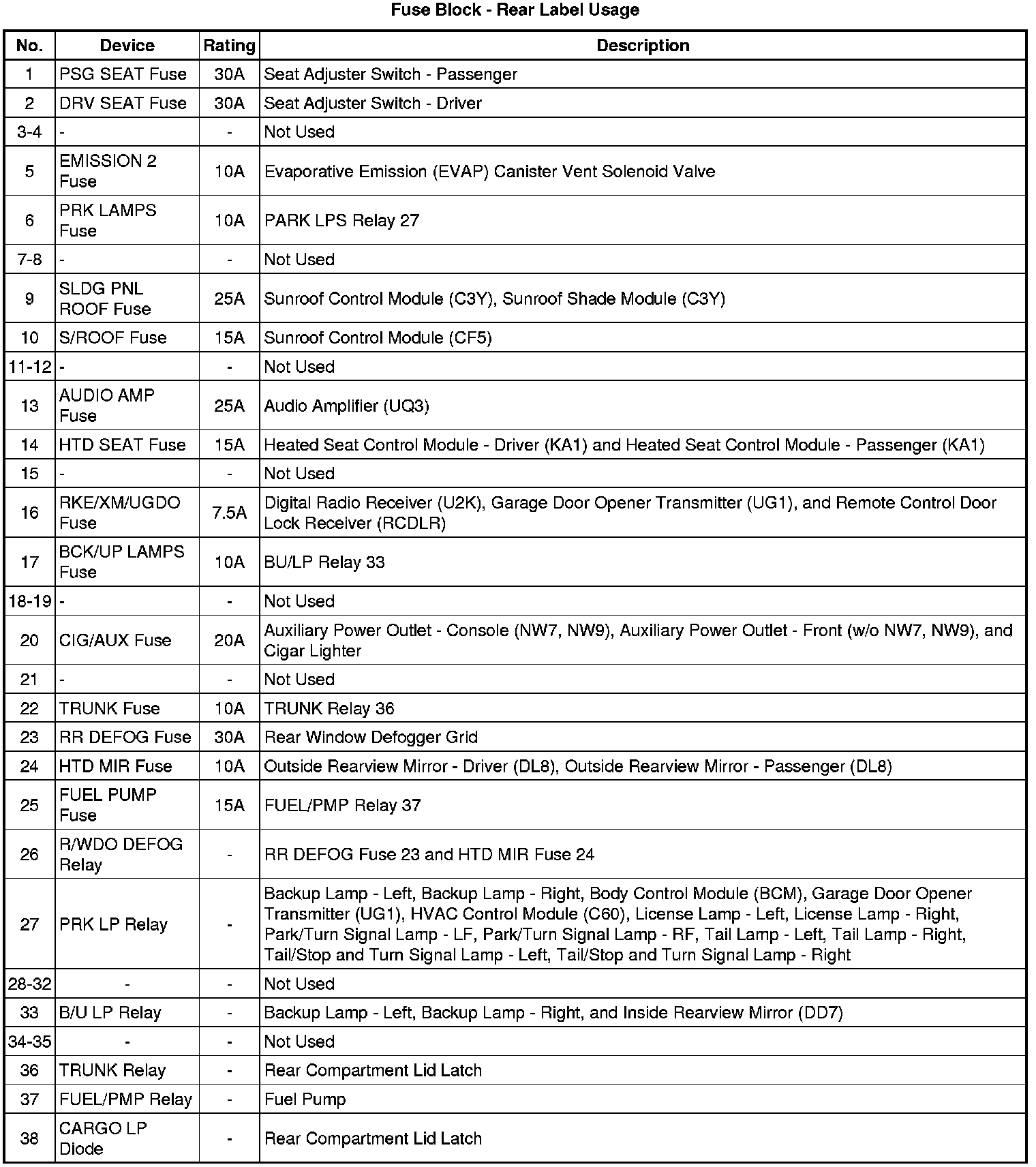

Fuse Block - Rear Label

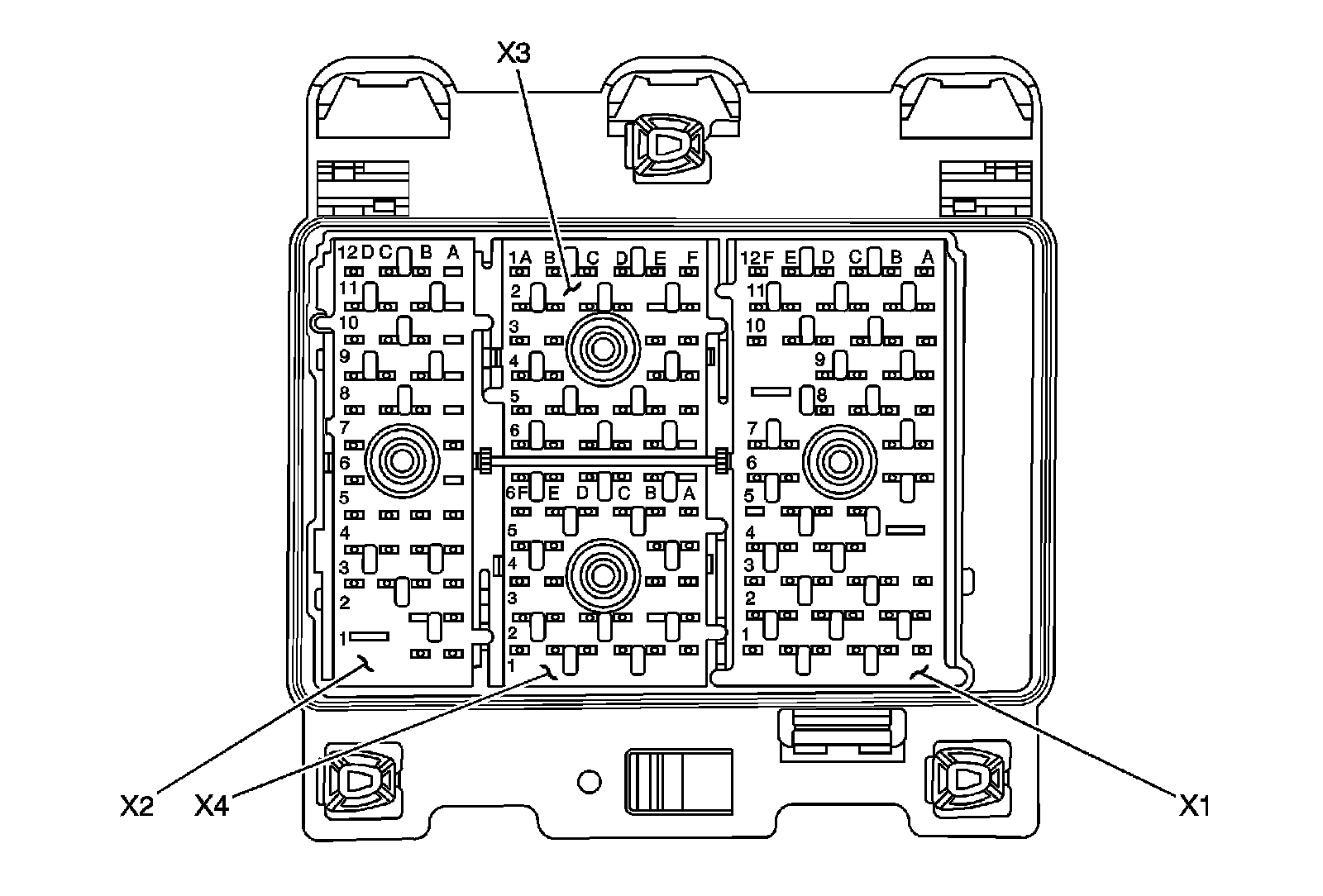

Fuse Block - Rear Top View





Fuse Block - Rear Bottom View

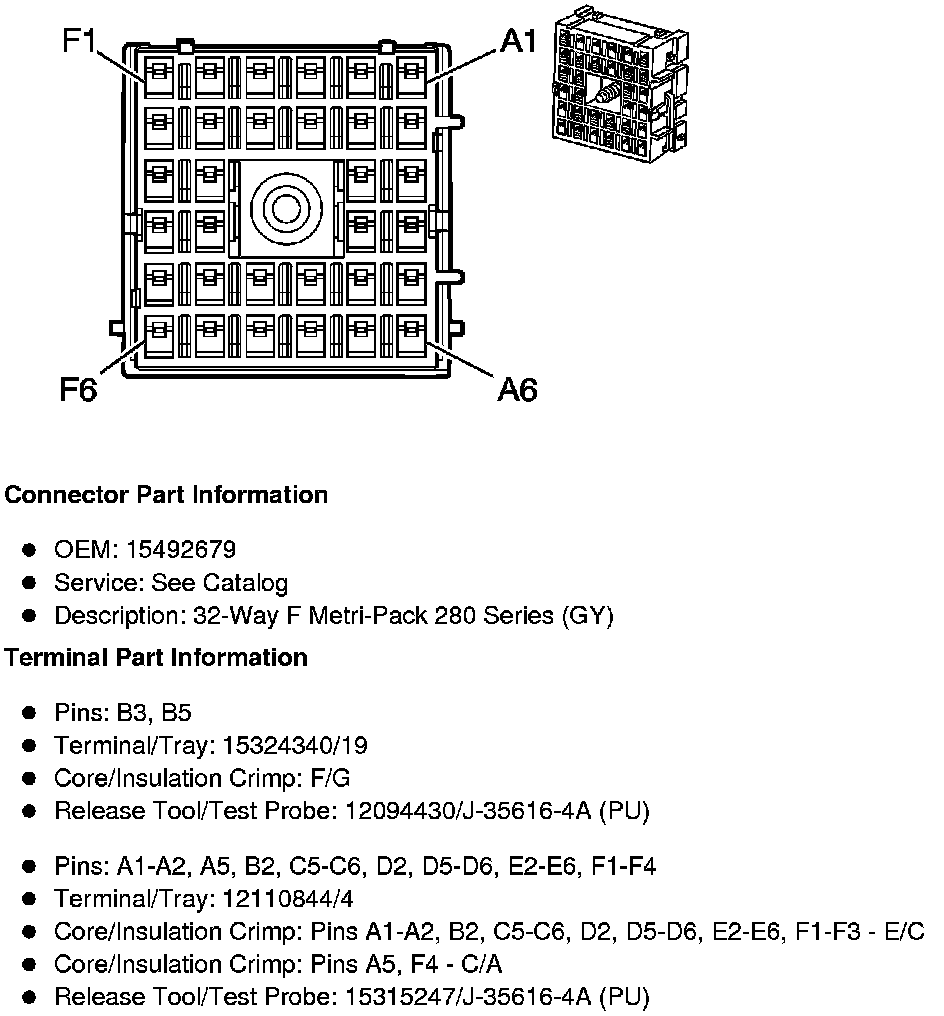

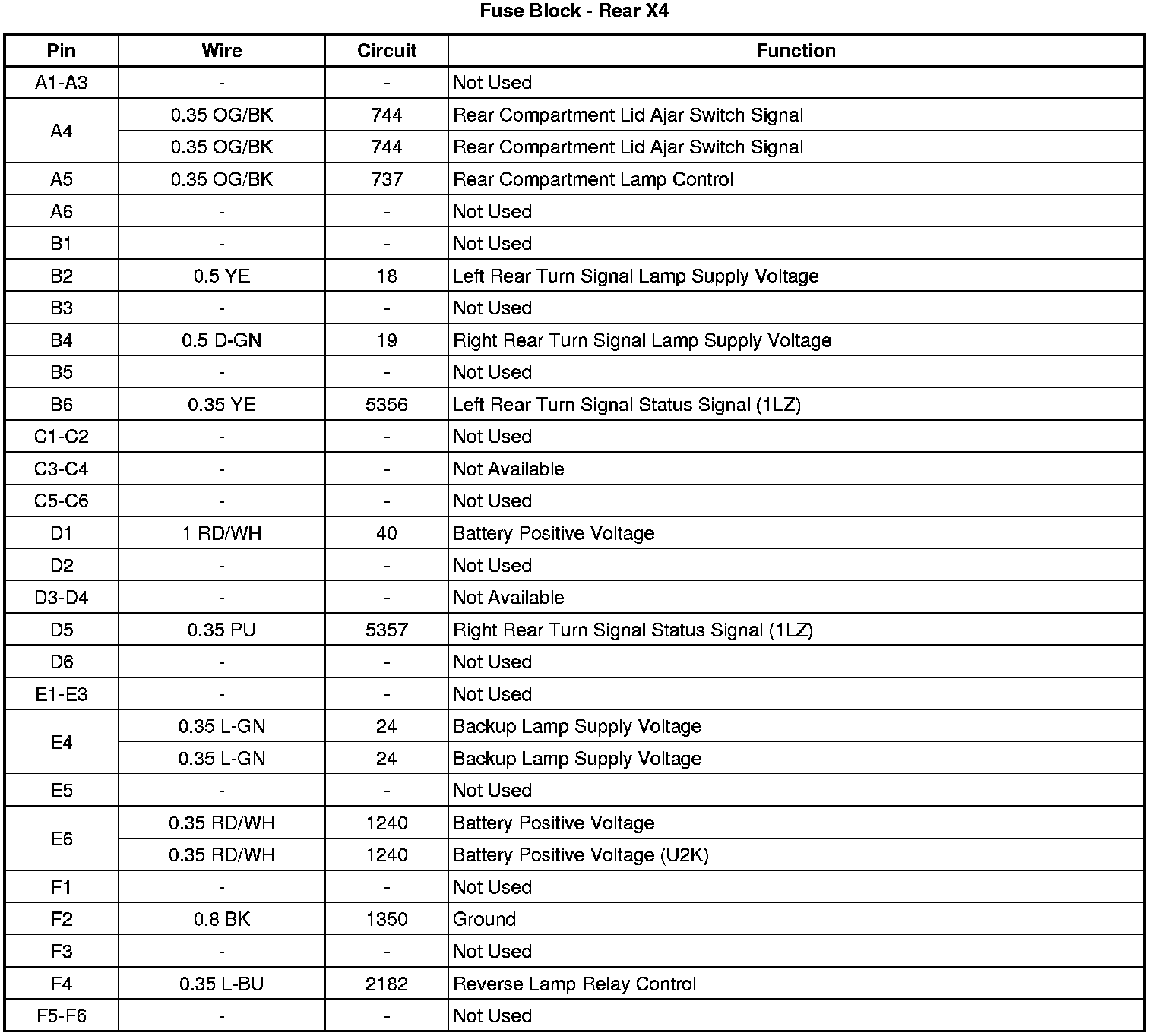

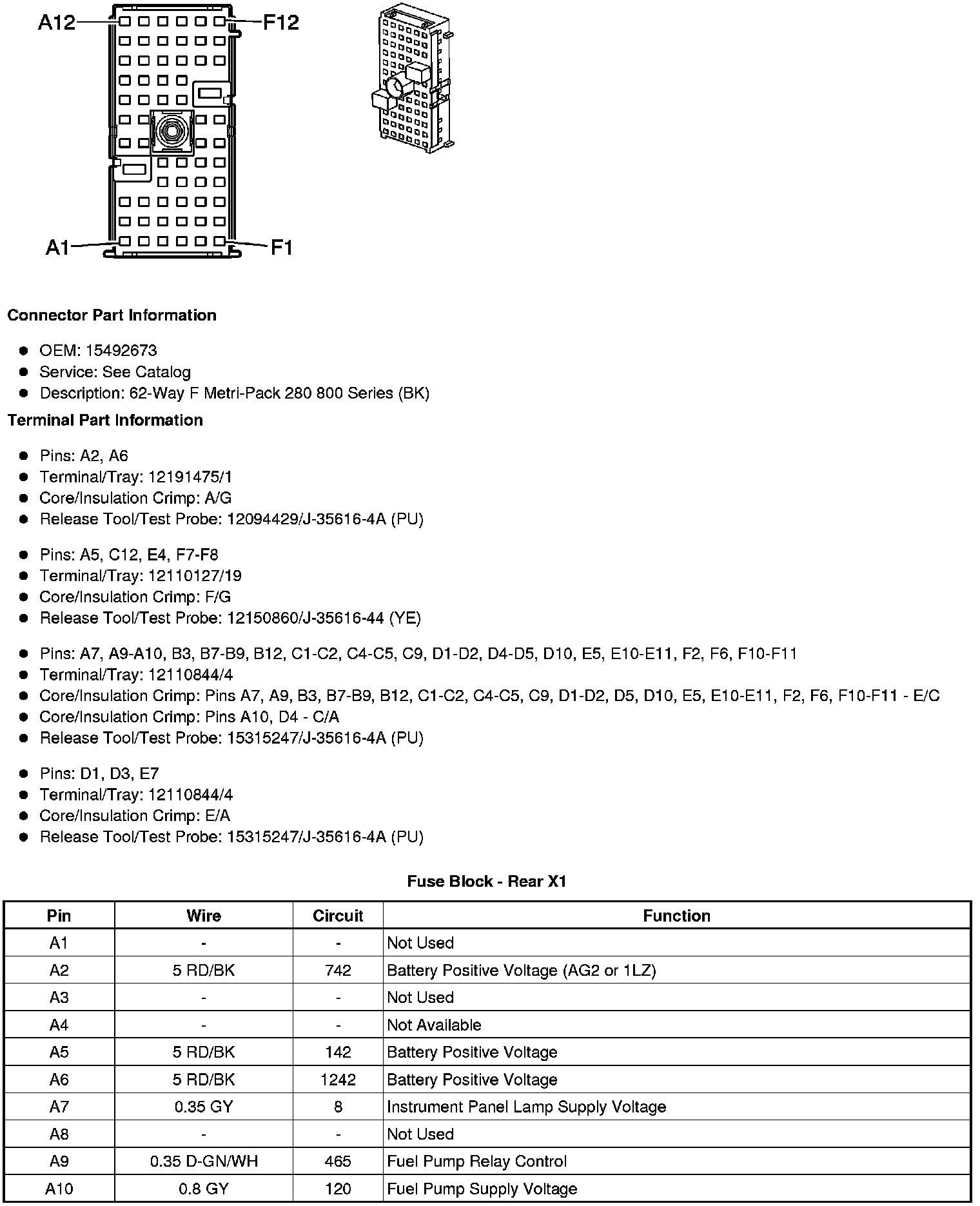

Fuse Block - Rear X1

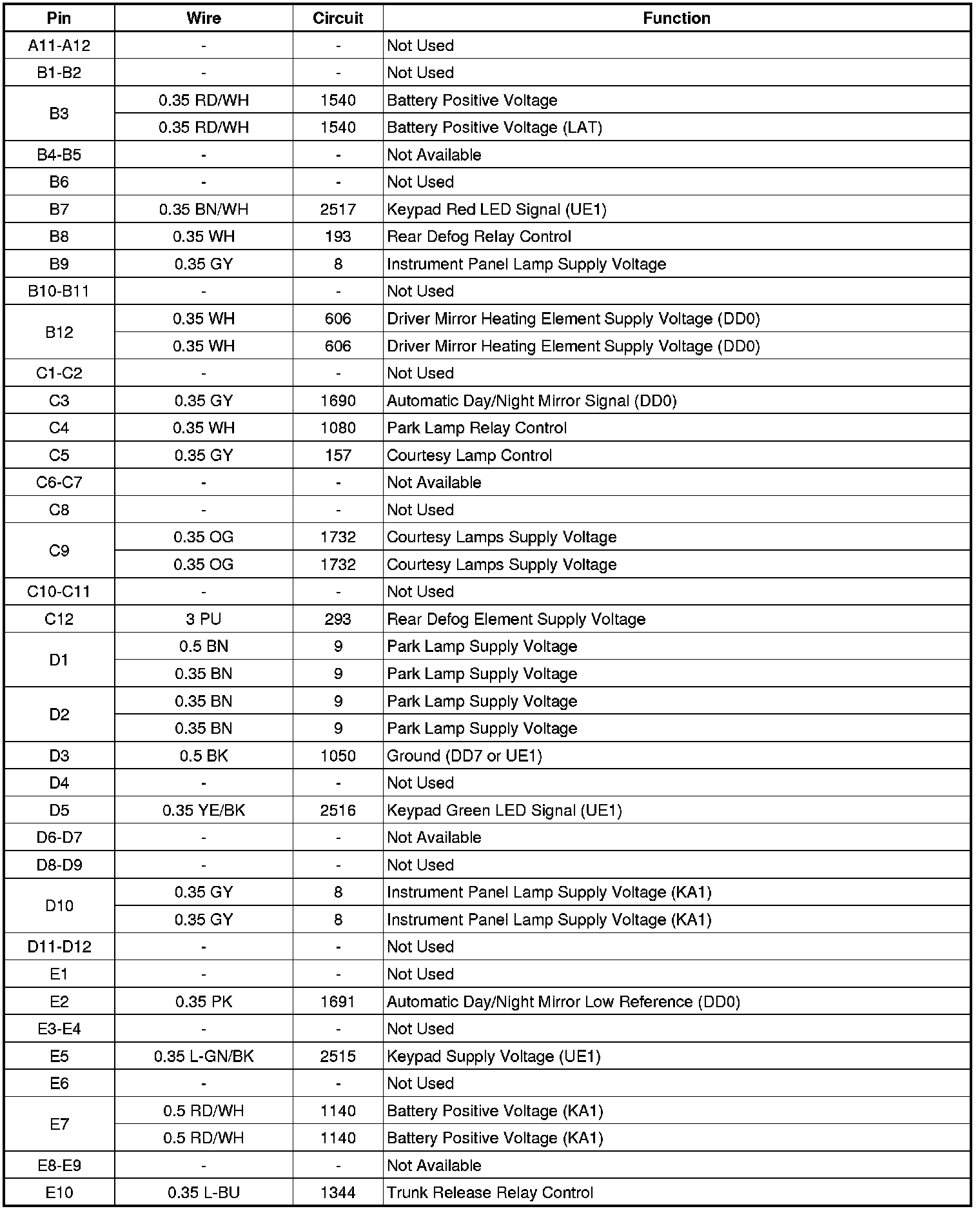

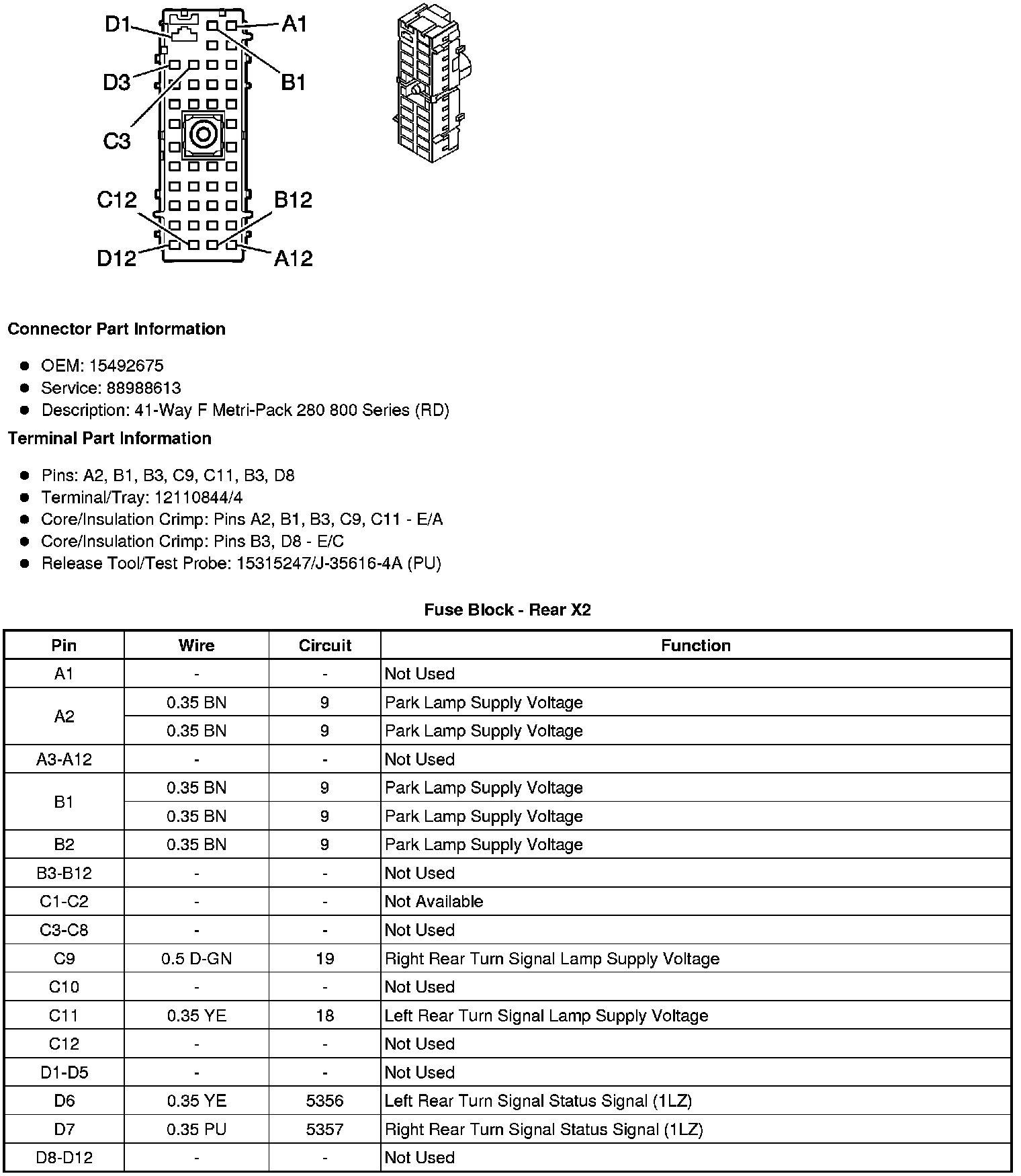

Fuse Block - Rear X2

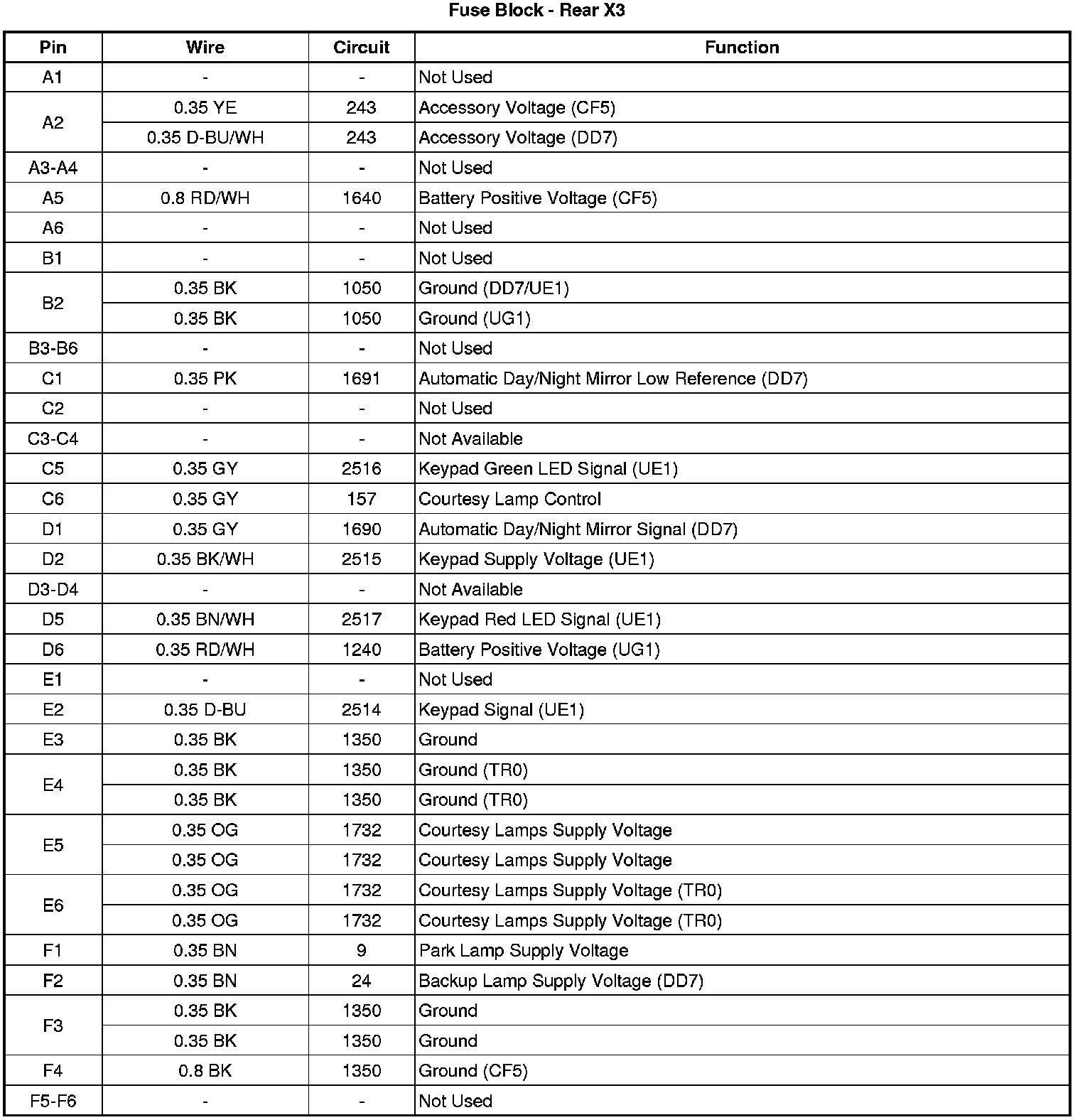

Fuse Block - Rear X3

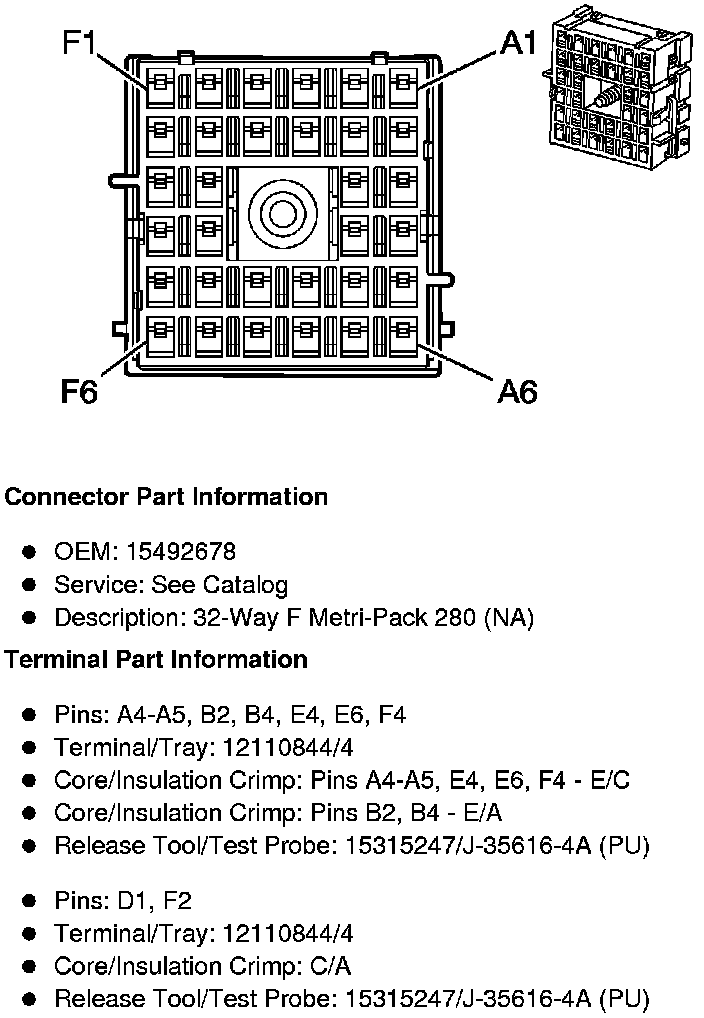

Fuse Block - Rear X4
