Harness Routing Views




Harness Routing Views

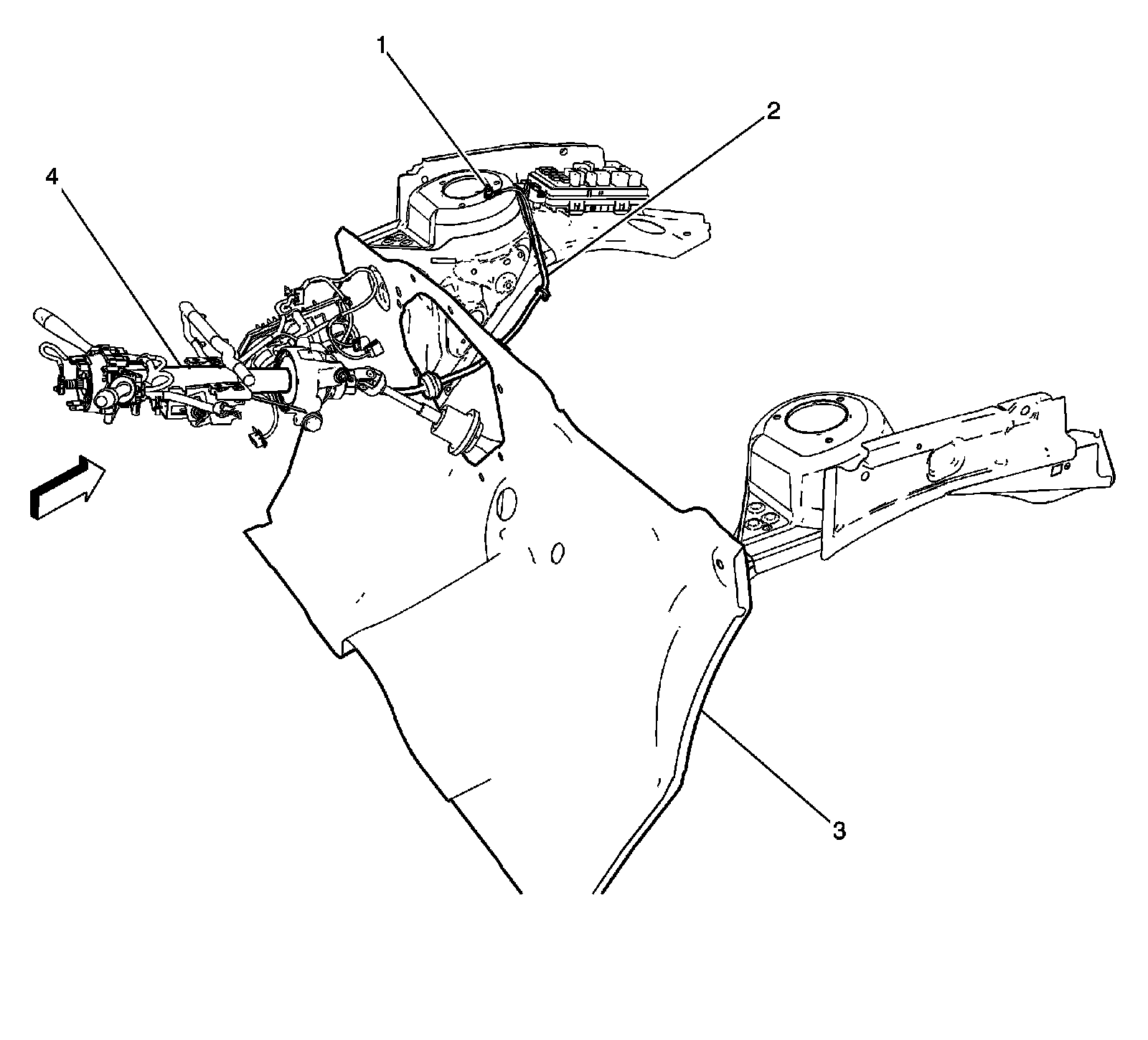

Electronic Power Steering (EPS)




1 - G103 (LAT or LE5)
2 - EPS Harness
3 - Dash Panel
4 - Power Steering Control Module (without NVH)
