Washer Fluid Heater




Component Connector End Views

Windshield Washer Solvent Heater X1 (XA7)

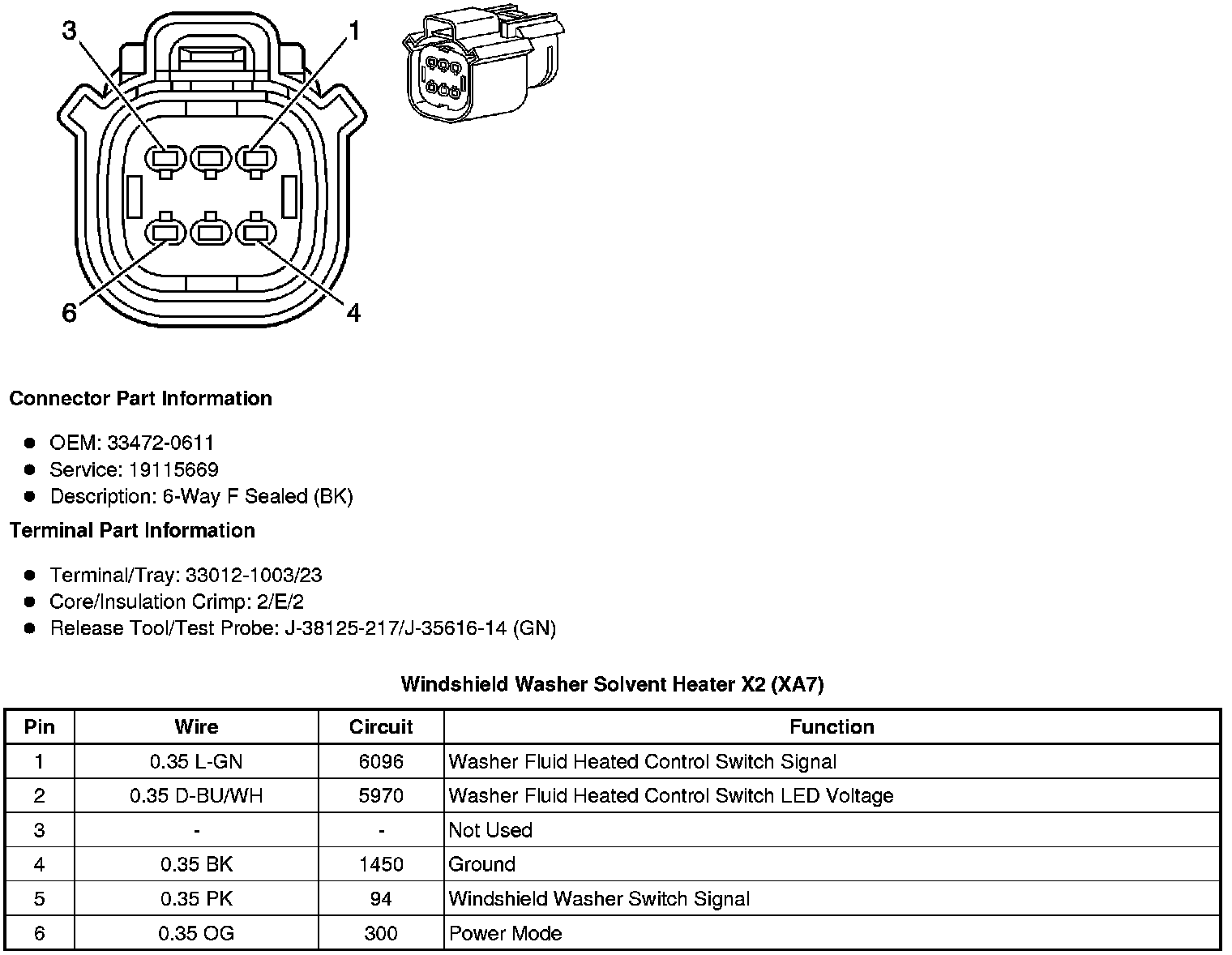

Windshield Washer Solvent Heater X2 (XA7)
