Data Link Connector: Diagrams

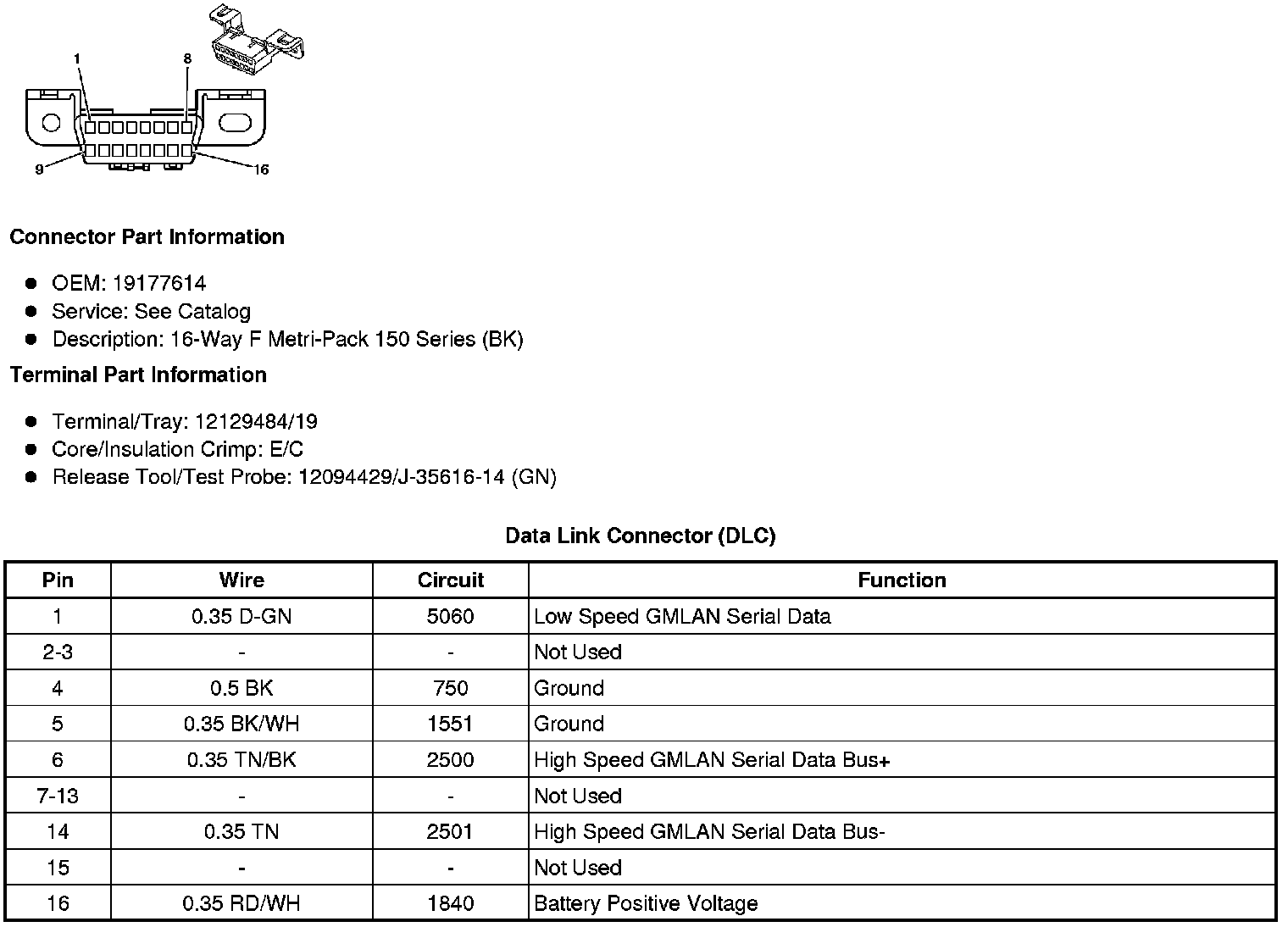

Component Connector End Views

Data Link Connector (DLC)






Data Link Resistor (without MH6)
