Liftgate Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

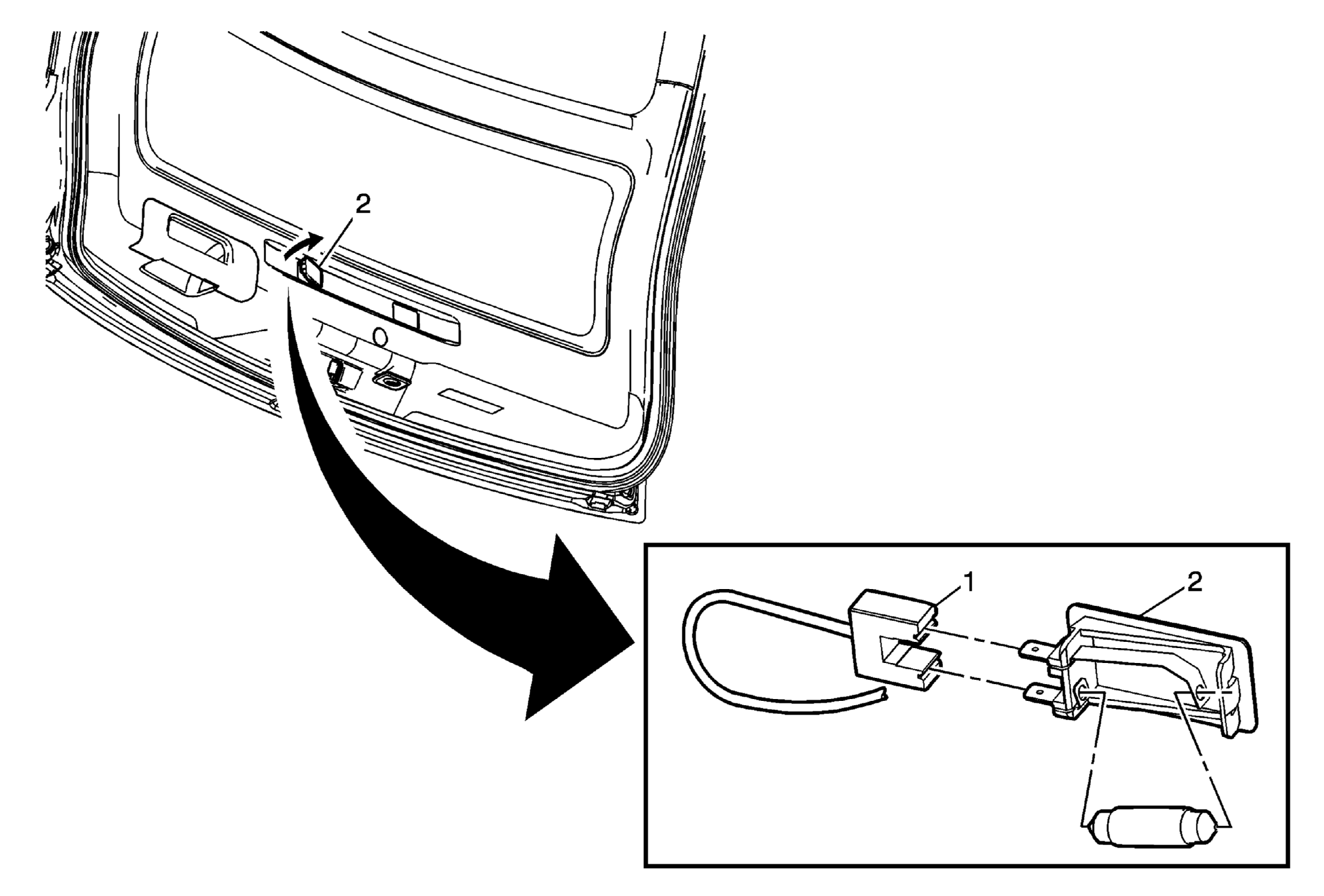

Fig 1: Liftgate Courtesy Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Jumper Wiring Harness Assembly
2	Liftgate Courtesy Lamp Assembly Procedure Carefully use a plastic flat-bladed tool, and release the tab retaining the lamp lens to the Liftgate assembly. Disconnect the electrical connection.

Callout

Component Name

Liftgate Jumper Wiring Harness Assembly

Liftgate Courtesy Lamp Assembly

Procedure

Carefully use a plastic flat-bladed tool, and release the tab retaining the lamp lens to the Liftgate assembly.
Disconnect the electrical connection.
