Radio Rear Speaker Replacement

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

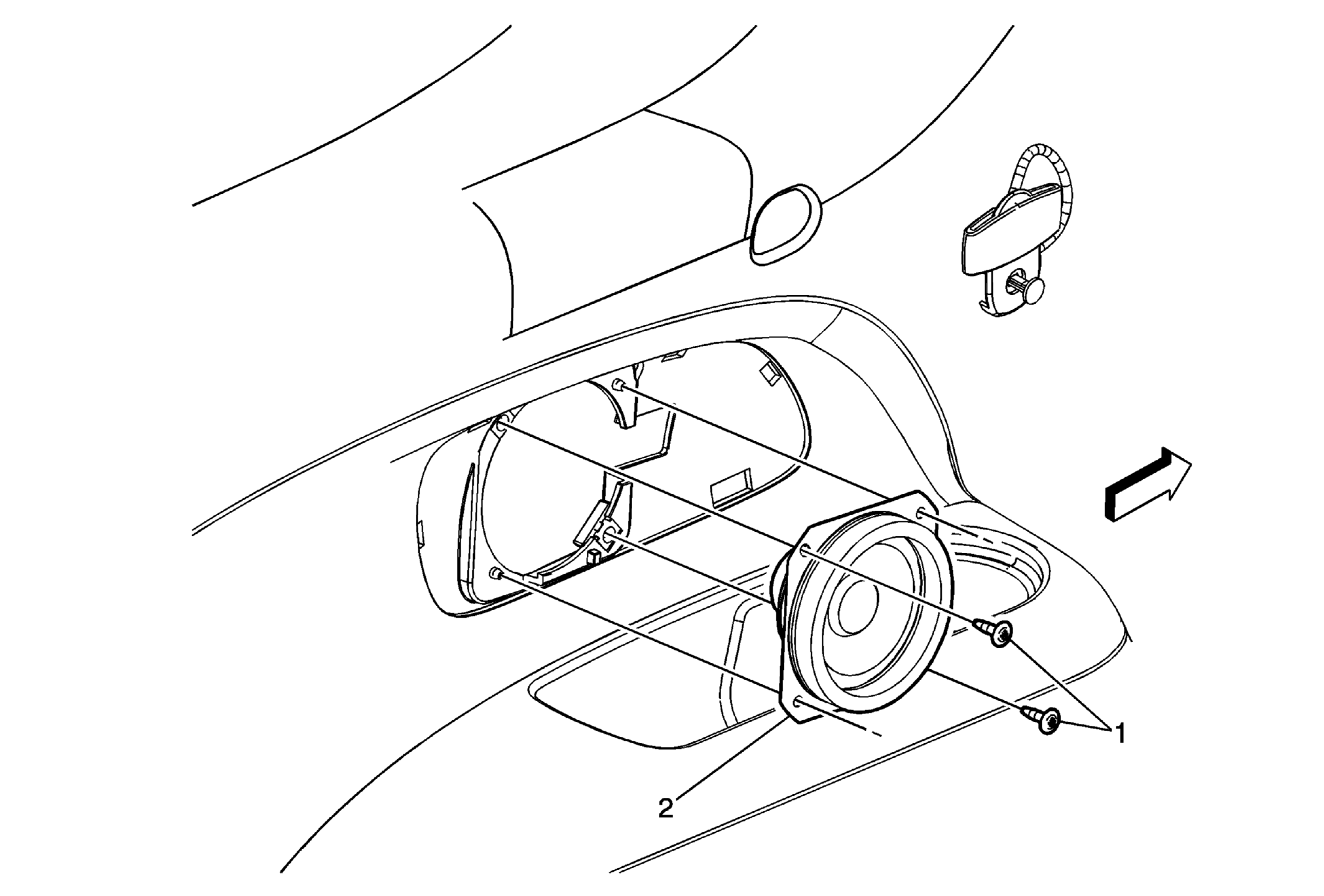

Fig 1: View Of Radio Rear Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear speaker grille. Refer to Radio Rear Speaker Grille Replacement .
1	Radio Rear Quarter Trim Speaker Assembly Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Rear Quarter Trim Speaker Assembly Procedure Disconnect the electrical connector.
