Radio Speaker Amplifier Replacement (With UQG)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

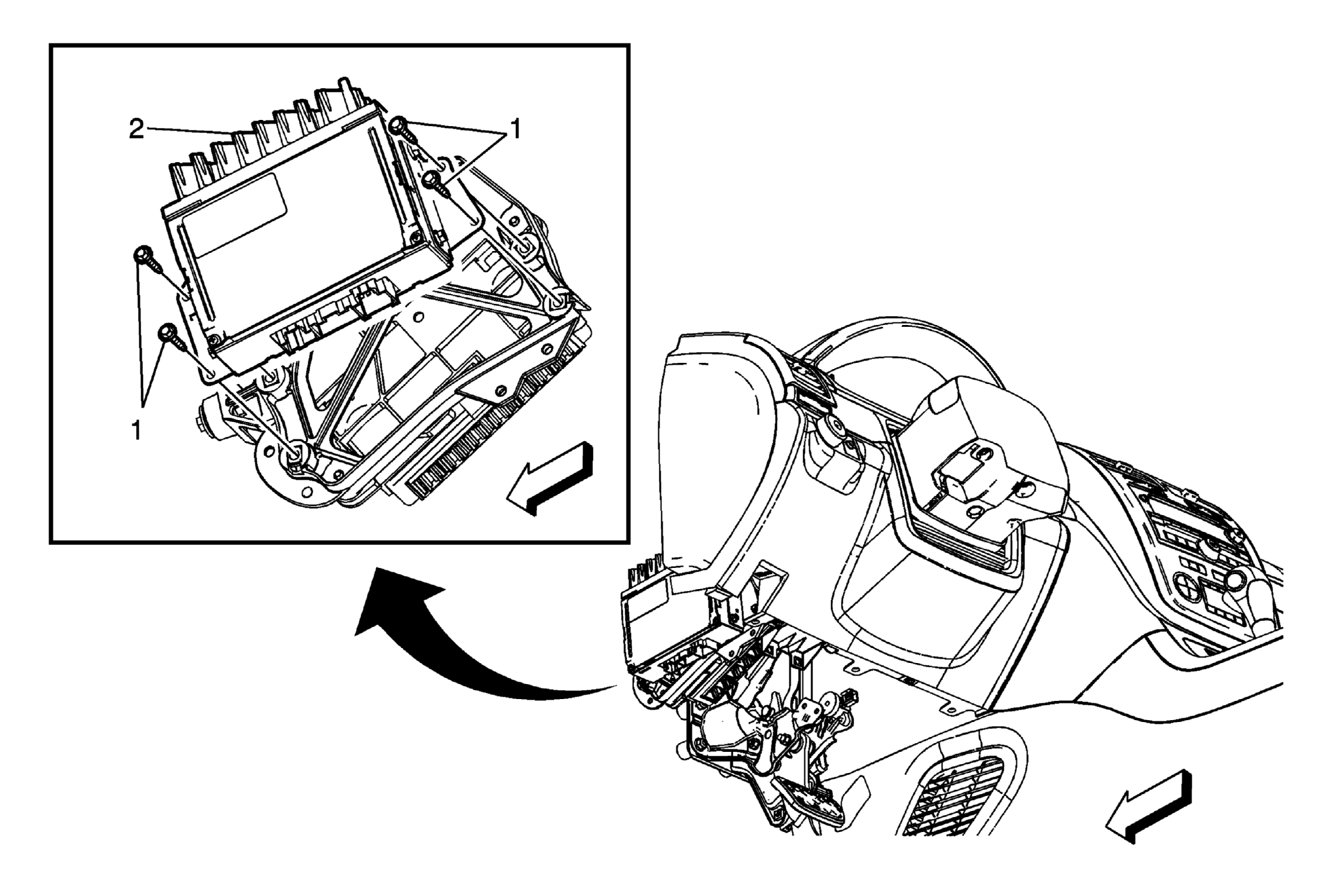

Fig 1: Identifying Amplifier (With UQG)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the left side instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Enclave) , Instrument Panel Insulator Panel Replacement - Left Side (Acadia) , Instrument Panel Insulator Panel Replacement - Left Side (Traverse) .
1	Radio Speaker Amplifier Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Speaker Amplifier Assembly Procedure Disconnect the electrical connector.
