Reading Lamp Bulb Replacement
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

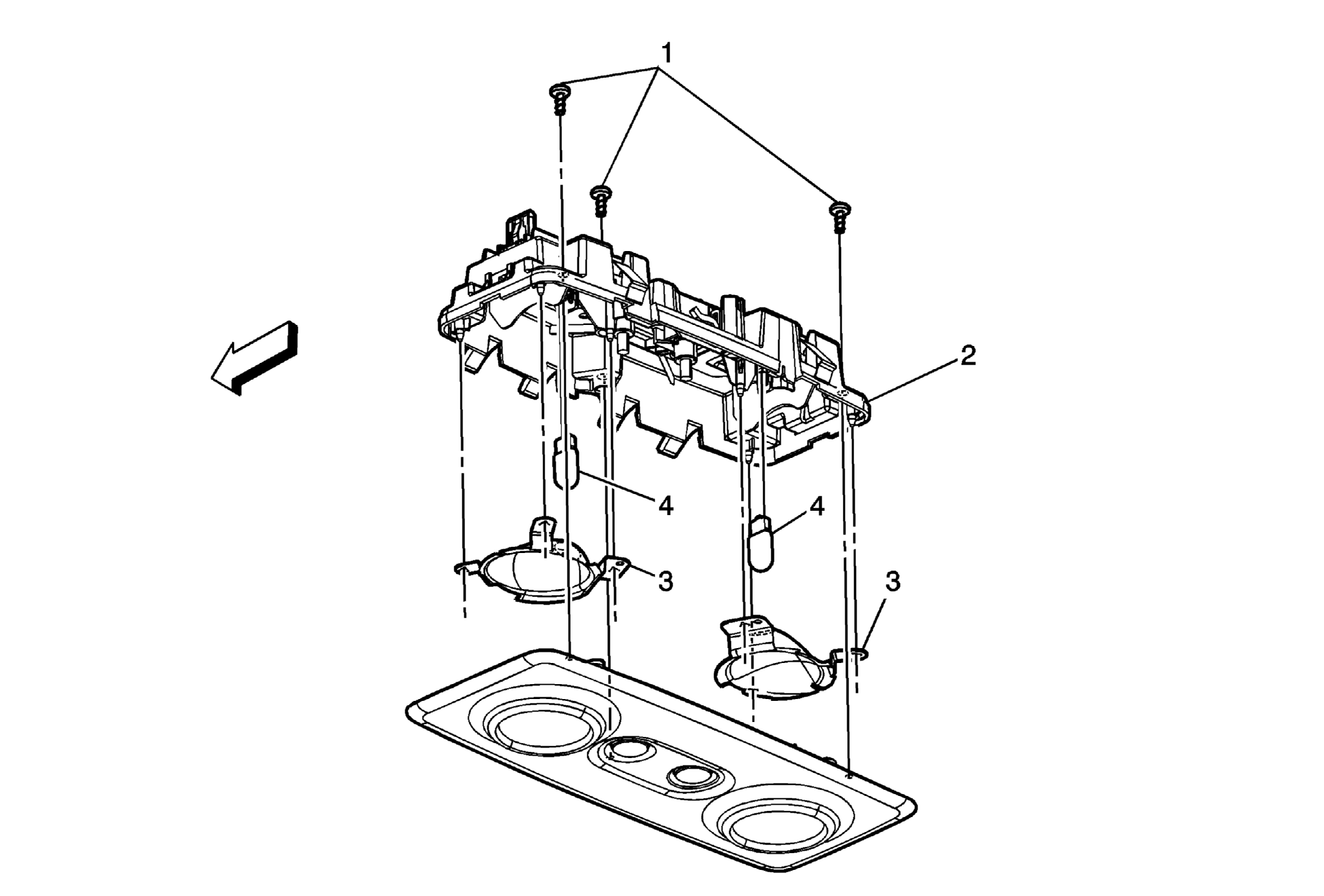

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the reading lamp assembly. Refer to Reading Lamp Replacement . |
|
| 1 | Dome Lamp Housing Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m(18 lb in) |
| 2 | Dome Lamp Housing |
| 3 | Dome Reading Reflector (Qty: 2) |
| 4 | Reading Lamp Bulb (Qty: 2) |
